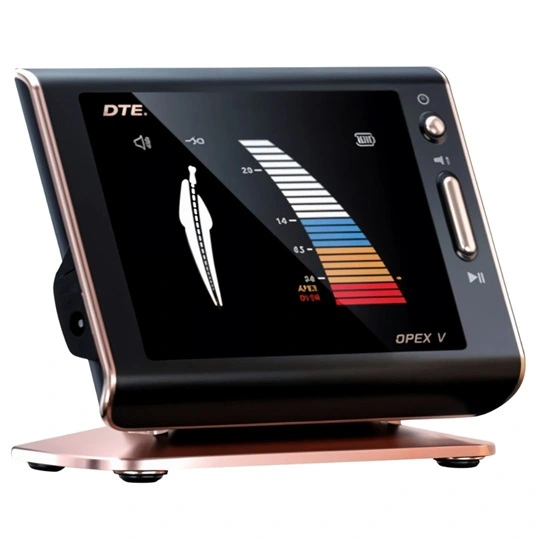

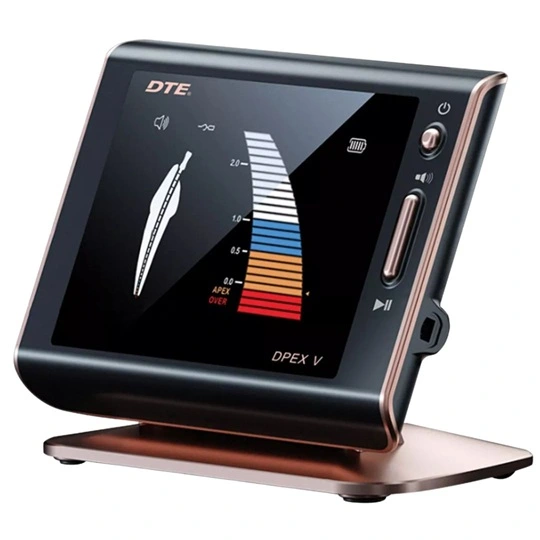

Woodpecker DTE DPEX – V 5th Generation Apex Locator

• Fifth-Generation Apex Locating Technology with multi-frequency measurement and advanced DSP processing for superior accuracy

• Eliminates Canal Interference – delivers precise readings even in the presence of blood, residual pulp, or irrigants

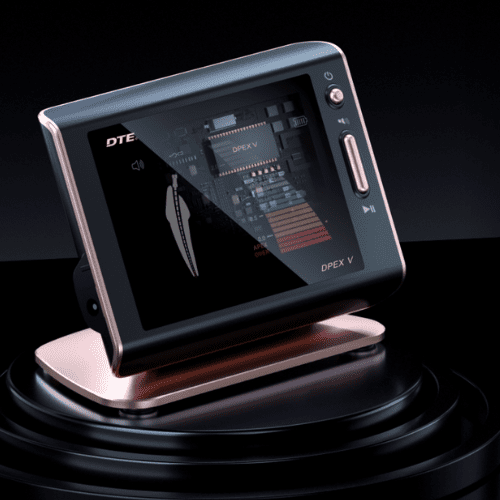

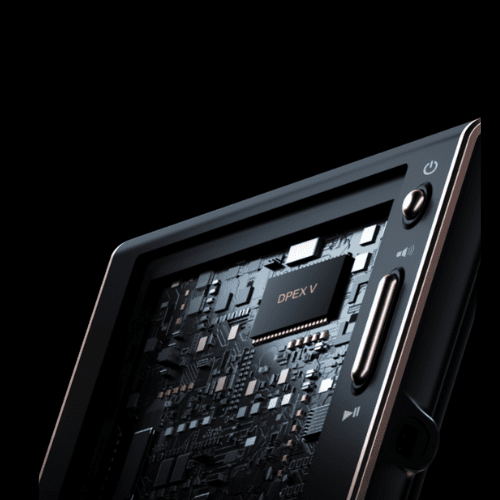

• Advanced Digital Circuit System powered by an industry-recognized U.S. processing chip with 17% faster data processing

• Built with high-precision Japanese components for distortion-free, high-resolution signals

• Automatic Calibration within 0.5 seconds of boot-up for quick and reliable performance

• Preset Apical Stop (0.0–1.0 range) for controlled and accurate working length determination

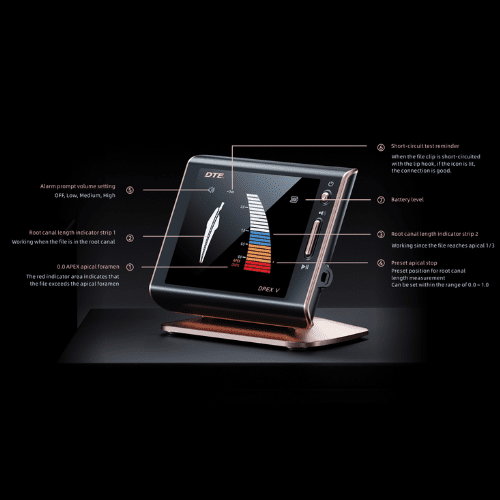

• Real-Time File Position Display with dual indicator strips for clear canal progression tracking

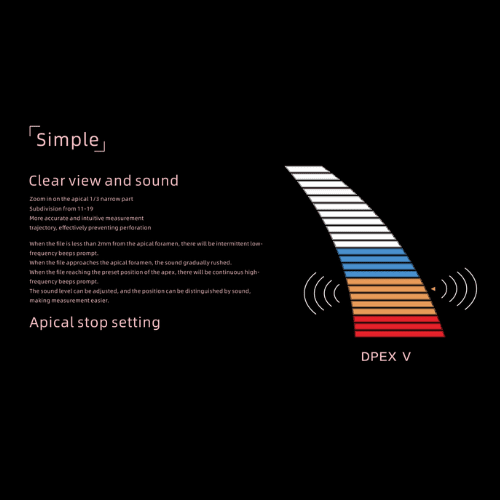

• Audio Alert Guidance System – intermittent low-frequency beeps near apex and continuous high-frequency beep at preset stop (adjustable volume: Off/Low/Medium/High)

• Short-Circuit Detection System ensures proper connection between file clip and lip hook

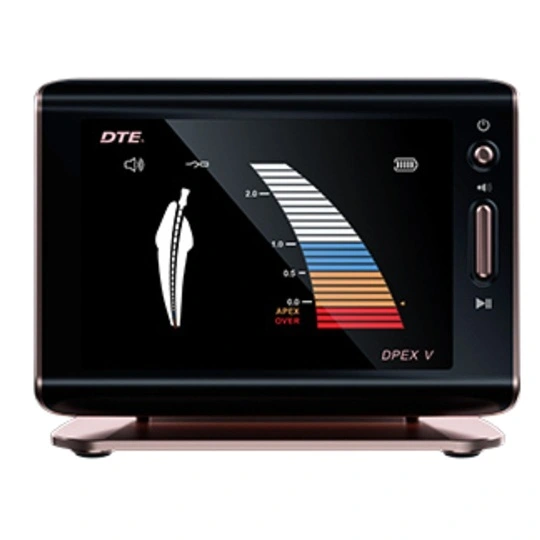

• 4.5″ Bright LCD Display with glare-free illumination and enhanced apical 1/3 visualization (11–19 subdivision)

• Premium Black & Rose Gold Design with compact, ergonomic structure

• Battery Level Indicator for uninterrupted clinical workflow

• Dimensions: 138 mm (L) × 77 mm (W) × 107 mm (H)

• Weight: 385 g

• Battery: 3.6V / 750 mAh (Model: 14500)

• Adapter Model: DJ-0500100-A5

  • Input: 100V–240V ~ 50Hz/60Hz (0.5–0.2A)

  • Output: DC 5V / 1A

• Power Consumption: ≤ 0.5W

• Display: 4.5 inches

• Screen Type: LCD Screen

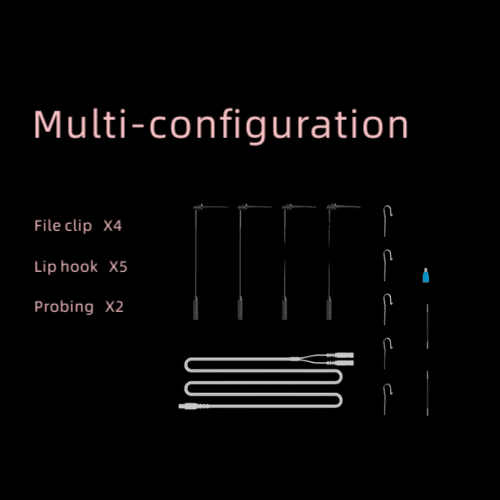

• Apex Locator Main Unit

• File Clip × 4

• Lip Hook × 5

• Measuring Wire

• Touch Probe
• Tester

• Charging Adapter

• User Manual

• Package Dimensions (cm): 18 x 16 x12

This product is self-installable; technician support is available on a paid basis if required.

• 1 Year warranty against all parts of the product under normal operating conditions.
• Physical damage is not covered under warranty in any case.

1. Can this apex locator provide accurate readings in wet canals?
Yes. The multi-frequency technology combined with DSP processing ensures accurate measurements even in the presence of blood, pulp tissue, or irrigating solutions.

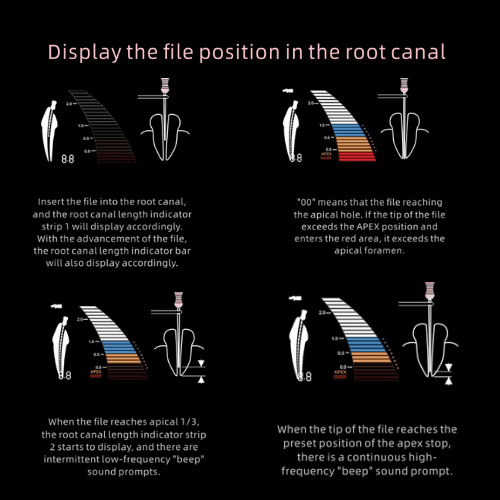

2. What happens when the file reaches the apex?
The device emits a continuous high-frequency beep at the preset apical stop. “00” indicates the file has reached the apical foramen.

3. Can the apical stop be adjusted?
Yes. The apical stop can be preset within a range of 0.0 to 1.0 for customized working length control.

4. How does the device indicate proximity to the apex?
It provides visual indicator strips and audio alerts. Low-frequency intermittent beeps occur within 2 mm of the apical foramen, increasing in frequency as the file advances.

5. Does the device require manual calibration?
No. It performs automatic calibration within 0.5 seconds after powering on.

6. Is the sound alert adjustable?
Yes. The alarm volume can be set to Off, Low, Medium, or High.
