KEY features
Self-illuminating LED provides enhanced visibility and better access to the operating site.
- Daylight-quality LED illumination that is significantly more durable than quartz, ensuring long-term performance.
- DYNAMO micro power generator electronically calibrated to deliver stable, highly efficient LED illumination without external power.
- Clean Head System prevents saliva, blood, and oral fluids from entering the handpiece, helping maintain internal hygiene and long-lasting bearings.
- Integrated shaft bearing enables smooth, quiet operation with improved cutting efficiency.
- Ceramic bearings reduce vibration, ensure smooth performance, and minimize heat generation.
- Quattro water spray delivers effective cooling, helping reduce heat buildup and minimize tissue trauma.
Technical Specification

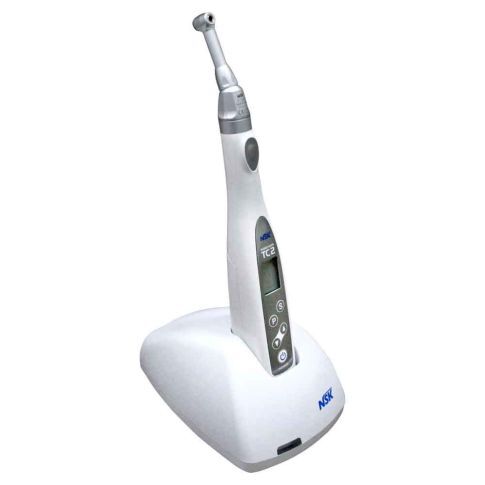

EndoMate TC2 Cordless Endomotor
- Motor Type: Endodontic electric motor
- Motor Type: Endodontic electric motor
Speed Range: 2,000 – 9,000 min⁻¹
Charging Time: Approx. 1.5 hours (varies with workload)
Continuous Use: Approx. 1.2 hours (varies with workload)

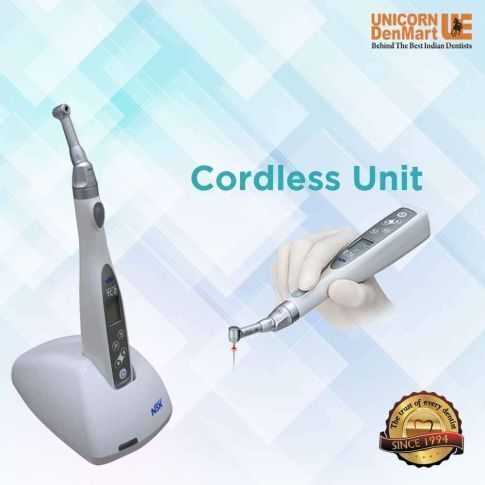

Power Source: Rechargeable battery
Compatible Head: MP series reduction heads (eg. MP-F16R)
MP-F16R Head

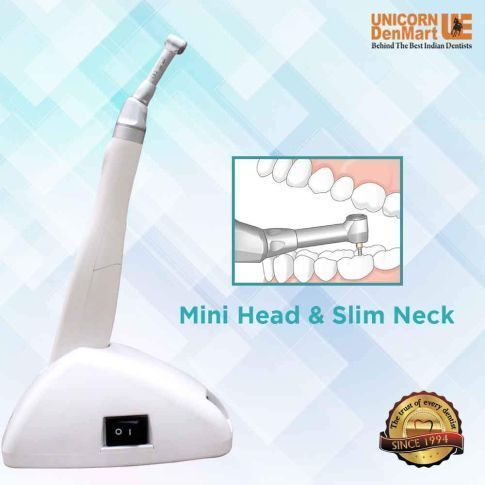

- Head Type: Miniature Head
- Intended Use: Ni-Ti Files (Ø 2.35 mm)
- Gear Ratio: 16:1 Reduction
- Chuck System: Push Button Chuck
- Rotation: 360° Continuous Rotation
Packaging
ENDO-MATE TC2 Motor
MP-F16R Reduction Head

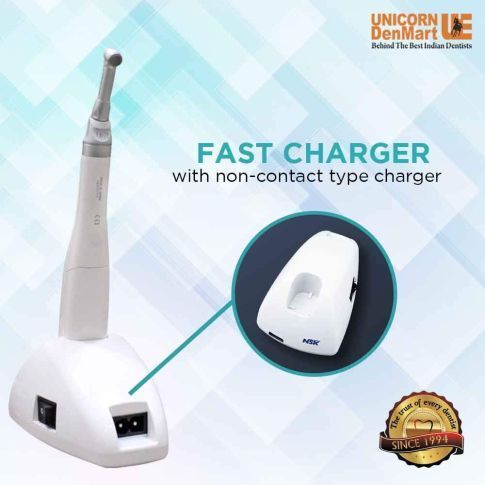

Battery Charger
User Manual
- Package Dimension (cm): 24 x 20 x 11
Installation
This product is self-installable; technician support is available on a paid basis if required.
FAQs
Q1. What type of files can be used with the MP-F16R head?
The MP-F16R head is designed for use with Ni-Ti files of Ø 2.35 mm.
Q2. Is this system compatible with an apex locator?
Yes. The MP-F16R head does not support connection to an apex locator.
Q3. What is the gear reduction ratio of the MP-F16R head?
The MP-F16R head features a 16:1 reduction ratio, allowing controlled torque and speed during endodontic procedures.
Q4. Does the handpiece offer full rotational movement?
Yes. The MP-F16R head provides 360° continuous rotation for enhanced access and maneuverability within the canal.
