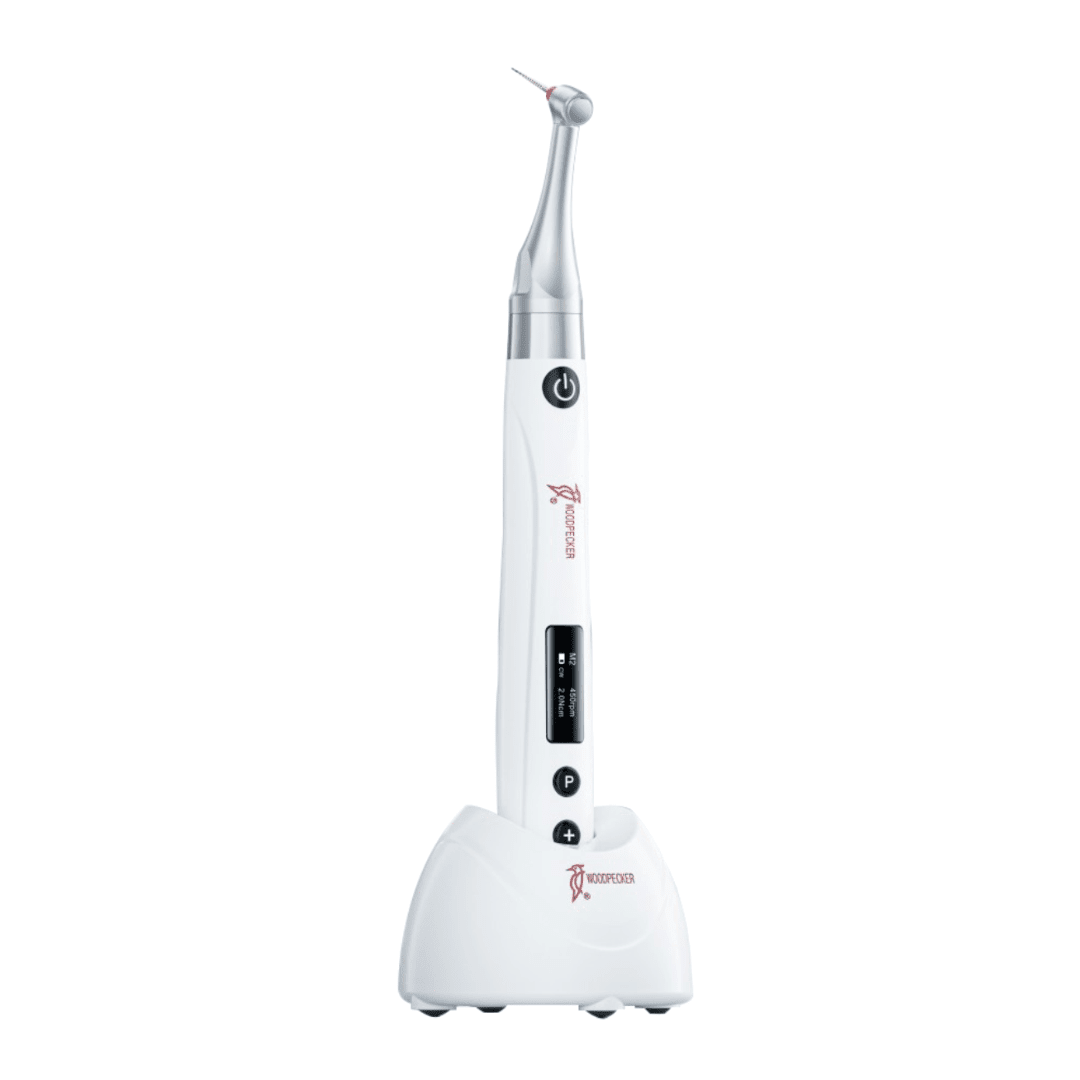

Upgrade your endodontic workflow with the Woodpecker Endo Free Brushless Endo Motor, engineered for speed, control, and clinical safety. Its cordless design ensures total freedom of movement, while the brushless motor guarantees smoother torque delivery with 10 times the service life of traditional brush motors.

The Endo Free offers 4 versatile working modes – Forward, Reverse, Reciprocation, and ATR (Auto Torque Reverse) – allowing easy adaptability for various file systems and clinical scenarios.

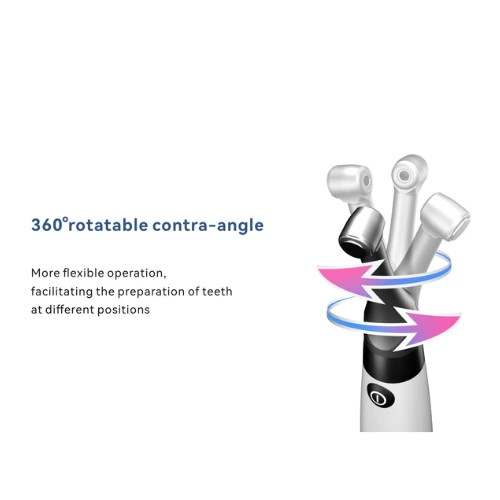

Its 360-degree rotatable mini contra-angle ensures better accessibility, even in posterior regions, while the lightweight handpiece (just 106.8 grams) reduces hand fatigue during lengthy procedures.

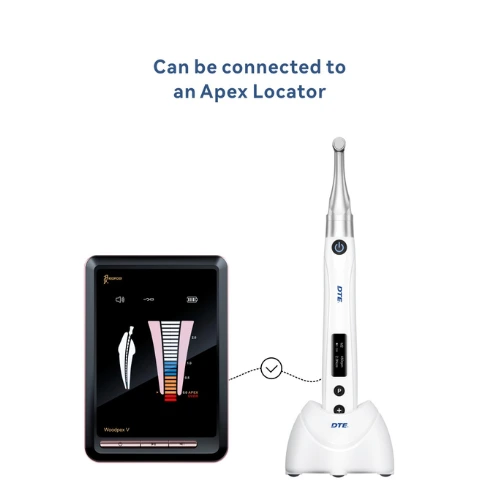

With apex locator connectivity, you get real-time working length control, minimizing risk and improving accuracy.

Whether you’re a general dentist, endodontist, or a clinician looking to upgrade from older wired systems, the Woodpecker Endo Free is an investment in precision and efficiency.

✅ Cordless Freedom: No wires, complete mobility during procedures

✅ Brushless Motor Technology: Less heat, longer life, low noise

✅ Torque & Speed Control: Adjustable settings for safer file use

✅ 4 Working Modes: Forward, Reverse, Reciprocation, ATR (Auto Torque Reverse)

✅ 360° Rotatable Mini Contra-Angle: Excellent visibility and flexibility

✅ Apex Locator Compatibility: Seamless connection for real-time length control

✅ Lightweight Design: Only 106.8 grams (handpiece + contra angle)

✅ Long Battery Backup: Full day performance on a single charge

✅ Built for Indian Clinics: Reliable performance under busy clinical schedules

• Motor Type: Brushless (for long life and low heat generation)
• Speed Range: Adjustable from 100 to 1,200 RPM
• Torque Control: Fully adjustable for different file systems and canal anatomies
• Working Modes:
• Forward
• Reverse
• Reciprocation
• ATR (Auto Torque Reverse)
• Contra-Angle Ratio: 6:1 mini contra-angle for better visibility and access
• Contra-Angle Rotation: 360-degree rotatable for easy positioning
• Weight: Approx 106.8 grams (handpiece with contra-angle)
• Battery Type: Rechargeable lithium-ion battery
• Charging Time: Around 90 minutes for full charge
• Battery Backup: Long-lasting; suitable for multiple procedures on a single charge
• Apex Locator Compatibility: Yes (can connect with most apex locators)
• Display: LED with operating mode and torque indicator
• Warranty: 1 Year manufacturer warranty via Unicorn Denmart

This product is self-installable; technician support is available on a paid basis if required.

When you order the Woodpecker Endo Free, you will receive:

✅ 1 x Endo Free Main Unit (Motor Body)

✅ 1 x Mini 6:1 Contra-Angle Handpiece

✅ 1 x Charging Base / Dock

✅ 1 x Power Adapter / Charging Cable

✅ 1 x User Manual

✅ 1 x Connection Cable for Apex Locator (Optional Use)

✅ Warranty Card

Q1. Is the Woodpecker Endo Free cordless?
Yes, it is fully cordless. This allows you to work without any wire restrictions during endodontic procedures.

Q2. Is it a brushless motor? Why is that important?
Yes, it has a brushless motor. Brushless motors generate less heat, offer smoother rotation, and have a longer lifespan compared to conventional brushed motors.

Q3. What is the RPM range of the Endo Free?
The speed ranges from 100 to 1,200 RPM, making it suitable for most root canal treatments.

Q4. Can it connect to an apex locator?
Yes, the Endo Free is compatible with most apex locators, allowing real-time working length control.

Q5. How many working modes does it have?
It offers 4 modes:

• Forward rotation
• Reverse rotation
• Reciprocation mode
• ATR (Auto Torque Reverse) mode

Q6. What is the weight of the handpiece?
The total weight (handpiece + contra angle) is approximately 106.8 grams, making it lightweight and easy to handle.

Q7. Is the Endo Free rechargeable?
Yes, it comes with a charging base. A full charge can last through multiple endo cases in a day.

Q8. Can I adjust the torque settings?
Yes, the torque is adjustable, allowing you to set it according to your preferred file system and canal anatomy.

Q9. Is it compatible with all endo file systems?
Yes, it works with most rotary and reciprocating file systems commonly used in dental clinics across India.

Q10. What is special about the contra-angle?
It comes with a 6:1 mini contra-angle, giving better visibility and access to posterior teeth. It also offers 360-degree rotation for flexible positioning.

Q11. How does it prevent file breakage?
The ATR mode (Auto Torque Reverse) automatically reverses the file when preset torque is reached, minimizing instrument separation risk.

Q12. What is the warranty period?
It comes with a 1-year manufacturer warranty, provided by Woodpecker India through Unicorn Denmart.

Q13. What about after-sales service support?
Service support is available across India through Unicorn Denmart’s network of service centers.

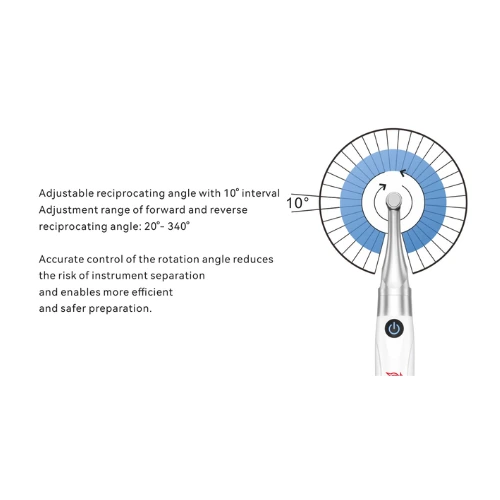

Q14. Can I use it with reciprocating file systems like WaveOne Gold?
Yes, the Endo Free supports reciprocating mode with adjustable angles, making it compatible with reciprocation files.

Q15. Does the motor overheat during long procedures?
No. The brushless motor design ensures minimal heat generation even during extended clinical use.

Q16. Does it include a contra-angle handpiece?
Yes, the product package includes 1 mini 6:1 contra-angle handpiece.

Q17. Is the contra-angle autoclavable?
Yes, the contra-angle can be autoclaved for infection control. (The motor body is not autoclavable.)

Q18. How is the Endo Free different from Woodpecker E-Com or E-Com Plus?
Endo Free is cordless, brushless, lighter, and offers more working modes, making it a more advanced and ergonomic upgrade over E-Com and E-Com Plus.

Q19. How long does it take to charge, and what’s the battery backup?
It takes around 90 minutes for a full charge, providing enough battery life for multiple cases in a day.

Q20. Is it officially approved for sale in India?
Yes. The Endo Free is officially imported and distributed by Unicorn Denmart, Woodpecker’s authorized partner for India.
