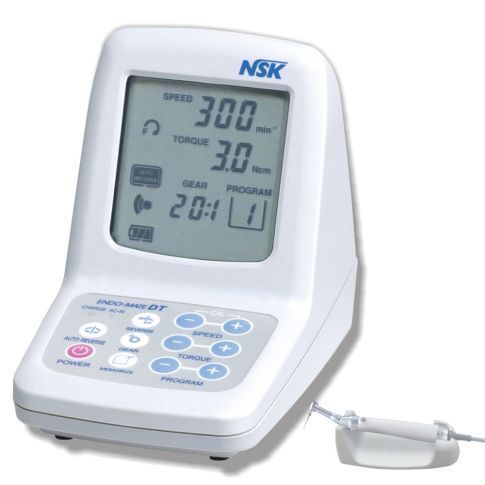

Brand: NSKThe NSK ENDO-MATE DT is smart, ultra-compact among NSK endomotors. Designed for precise torque-controlled root canal procedures. Lightweight and fully portable, it combines advanced auto-reverse functionality with intelligent memory settings, allowing clinicians to work efficiently across a wide range of Ni-Ti file systems. With flexible power options and pedal-free operation, ENDO-MATE DT delivers reliable performance and clinical convenience in both chairside and mobile setups.
Available on backorder: This item is currently out of stock but you can still order it, and we will ship it to you later when new inventory arrives, reserving the product for you in the meantime.
KEY features
- The NSK Endo-Mate DT is a highly reliable endodontic motor equipped with an auto-reverse function and six adjustable head angle positions, allowing improved accessibility during root canal procedures.

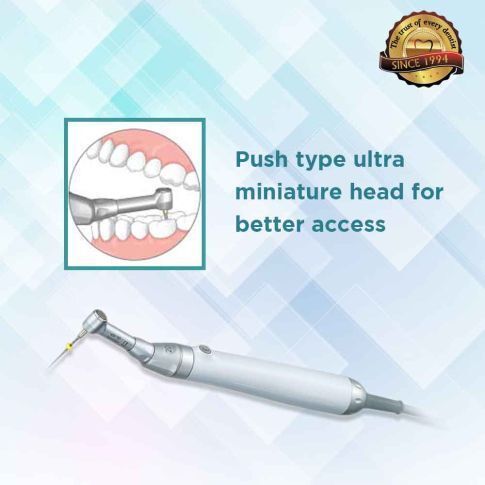

- The push-type ultra-miniature head attachment provides excellent visibility and direct access to the treatment area, enabling clinicians to remain fully focused on both the patient and the procedure.
- Designed to enhance clinical performance, the NSK Endo-Mate DT endomotor improves efficiency, accuracy, and control in root canal treatment.

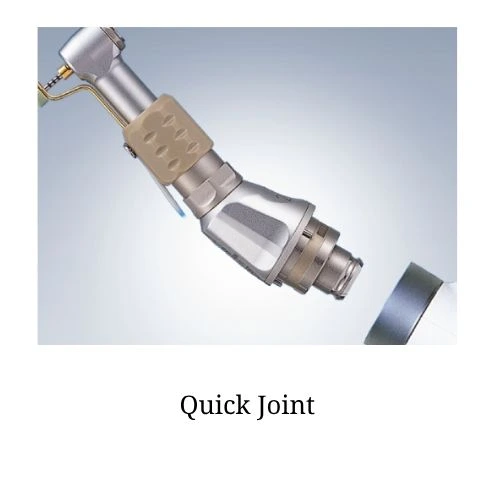

- The quick joint mechanism allows fast and easy head exchange, while the compact head design ensures the treatment site remains clearly visible at all times.

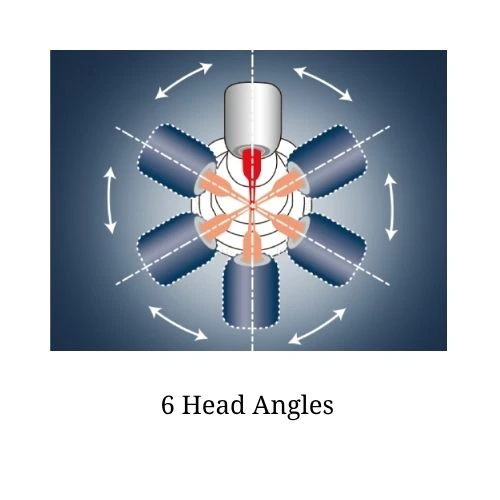

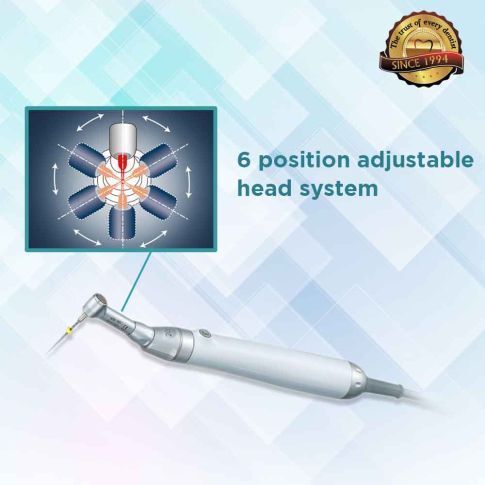

- With six selectable head angles, the handpiece head can be adjusted to the optimal working position based on the location of the tooth, improving comfort and precision.

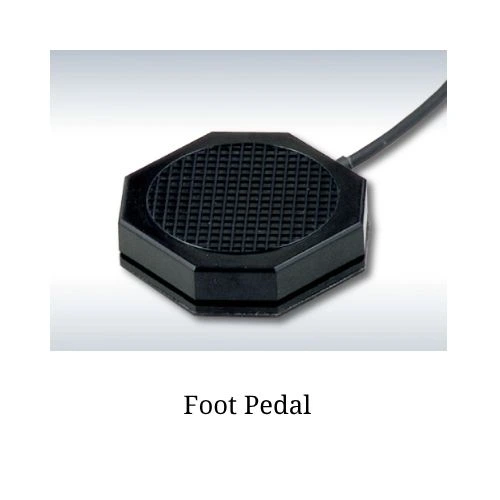

- The on/off function of the micromotor is operated via a convenient finger switch on the handpiece, with an optional foot control available to suit individual clinical preferences.
Technical Specification
EndoMate DT Motor
- Dimensions: W92 * D148 * H124 mm
- Weight: 456 g
- No of programs: 9
- Gear Ratios: 20:1, 16:1, 10:1, 4:1, 1:1
- Max Torque: 7 Ncm (20:1 gear ratio)
- Charge / Continuous Use: 5 Hours / 2 Hours (Depending on workload)
- Power Supply: AC 230V/ 50Hz or Battery
- Max Speed: 100 – 13,000 rpm
MP-F16R Head
- Head Type: Miniature Head
- Intended Use: Ni-Ti Files (Ø 2.35 mm)
- Gear Ratio: 16:1 Reduction
- Chuck System: Push Button Chuck
- Rotation: 360° Continuous Rotation
Packaging
- EndoMate DT Control Unit
EndoMate DT Motor with Cord
Reduction Head
Handpiece Stand
AC Adaptor
- Package Dimension (cm): 26 x 23 x 16
Installation
This product is self-installable; technician support is available on a paid basis if required.
Warranty
- 1 Year warranty against all parts of the product under normal operating conditions.
- Physical damage is not covered under warranty in any case.
FAQs
Q1. How does torque control with auto-reverse enhance safety during canal preparation?
The motor continuously monitors torsional load and activates auto-reverse or auto-stop at preset limits, reducing the risk of file separation in curved or constricted canals.
Q2. What is the benefit of using interchangeable reduction heads with different gear ratios?
Different reduction ratios allow the motor to adapt to various Ni-Ti file systems, ensuring controlled torque delivery and consistent shaping performance.
Q3. How do the miniature head design and adjustable head angles impact clinical access?
The compact head and multiple angle positions improve visibility and access in posterior and limited-opening cases, supporting better file alignment.
Q4. How does the system design contribute to long-term clinical efficiency?
The modular construction enables easy component replacement and workflow flexibility, ensuring reliable performance and reduced maintenance over time.
