Q: Technical Specification

Exposure Time Panoramic: 9 ~ 17 sec Cephalometric: 4 ~ 12 sec CT (SS): 7.7/14.5 sec Detector Pitch Panoramic: 75 × 75 µm Cephalometric: 75 µm to 124 µm CT: 100 × 100 µm to 179 × 179 µm Detector Size Panoramic: 152 × 6.5 mm Cephalometric: 228 × 6.5 mm to 310 × 250 mm CT: 130 × 130 mm to 229 × 229 mm Active Area CT: 230.2 x 228 mm Panoramic: 152 x 6.45 mm Cephalometric: 228 x 6.45 mm FOV (Field of View) CT: 160 × 140 mm to 230 × 240 mm Cephalometric: 310 × 230 mm to 310 × 250 mm Voxel Size: Adjustable from 75 to 400 μm Focal Spot: 0.5mm Target Angle: 5º Tube Voltage: 60 ~ 90kV Tube Current: 4 ~ 12 mA Line Voltage: 220V, 50/60Hz

Question 1

Key features

Accepted Answer

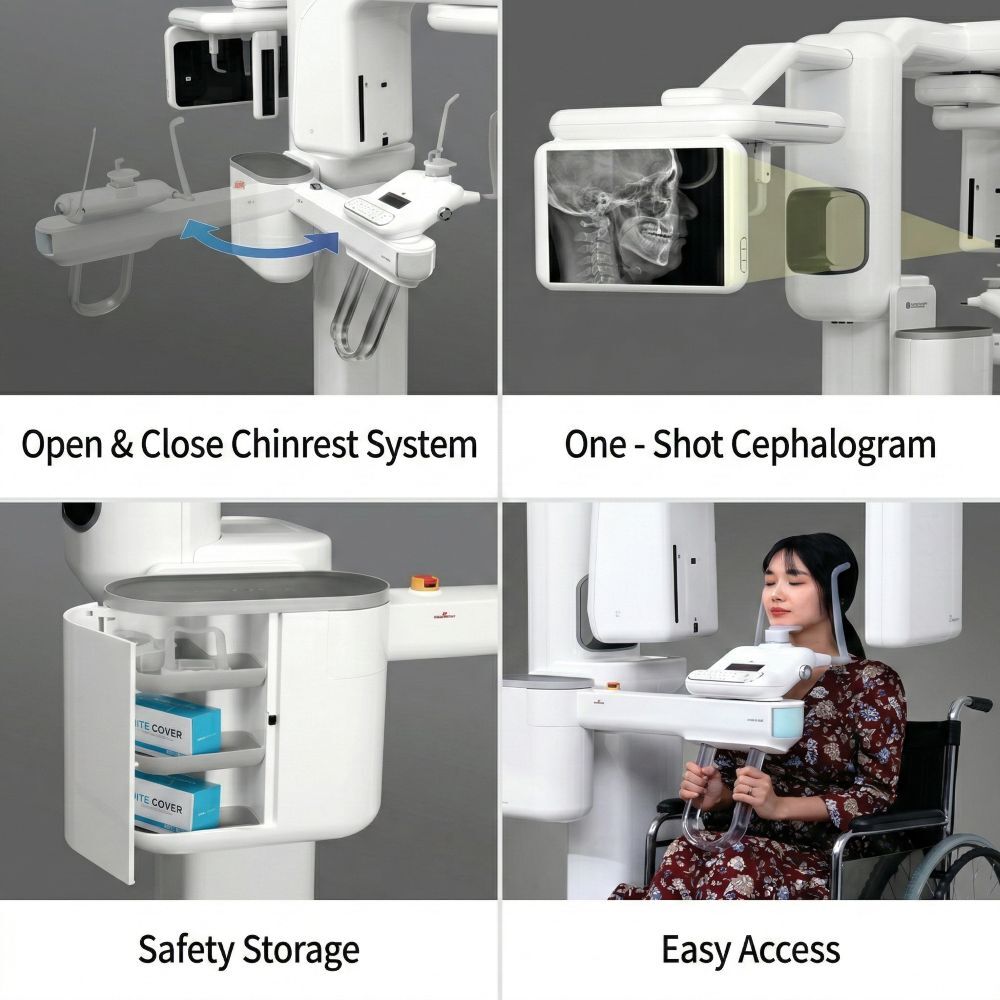

• Combines 3D CBCT, Panoramic (OPG), and optional Cephalometric imaging in one comprehensive system.

• Equipped with three dedicated CMOS & Amorphous Silicon flat-panel sensors, ensuring long-lasting performance and balanced load distribution for 2D & 3D imaging.

• Features intelligent Smart Positioning database that adapts to patient exposure and previous positioning, reducing manual adjustments.

• Includes Scout Mode to minimize positioning errors and ensure accurate scan alignment.

• Integrated Smart Metal Artefact Removal (SMARF) technology enhances image clarity in metal-present cases.

• Enables rapid 2-second Cephalometric imaging (2Sec Ceph Plus) to reduce motion blur; One-Shot Ceph available in Premium version.

• Delivers high-precision imaging for implant planning, TMJ analysis, airway assessment, and advanced diagnostics.

• Offers three scan modes – Normal, Fast & HD to match varied diagnostic requirements.

• Provides Free FOV selection from 4×5 cm to 23×24 cm, covering endodontic to maxillofacial and neuro cases.

• Ensures fast scanning (7.7–14.5 seconds) with reconstruction completed in under one minute.

• Supports specialized imaging modes for middle ear, sinus, airway, vertebrae, temporal and related regions.

• Enables Model Scanning to digitize impressions and plaster casts into STL format, eliminating physical storage needs.

• Allows seamless sharing in DICOM® format with open software architecture for flexible integration.

• Built with a sealed base and column design to prevent pests, wire damage, and short-circuit risks.

• Designed as a self-standing, wheeled mobility unit, requiring no wall or floor drilling for installation.

Question 2

Technical Specification

Accepted Answer

Exposure Time

Panoramic: 9 ~ 17 sec
Cephalometric: 4 ~ 12 sec
CT (SS): 7.7/14.5 sec

Detector Pitch

Panoramic: 75 × 75 µm
Cephalometric: 75 µm to 124 µm
CT: 100 × 100 µm to 179 × 179 µm

Detector Size

Panoramic: 152 × 6.5 mm
Cephalometric:228 × 6.5 mm to 310 × 250 mm
CT: 130 × 130 mm to 229 × 229 mm

Active Area

CT: 230.2 x 228 mm
Panoramic: 152 x 6.45 mm
Cephalometric: 228 x 6.45 mm

FOV (Field of View)

CT: 160 × 140 mm to 230 × 240 mm
Cephalometric:310 × 230 mm to 310 × 250 mm
Voxel Size: Adjustable from 75 to 400 μm
Focal Spot: 0.5mm
Target Angle: 5º
Tube Voltage: 60 ~ 90kV
Tube Current: 4 ~ 12 mA
Line Voltage: 220V, 50/60Hz

Question 3

Pre-Installation Guide

Accepted Answer

Click here to open PDF in new tab

Question 4

Packaging

Accepted Answer

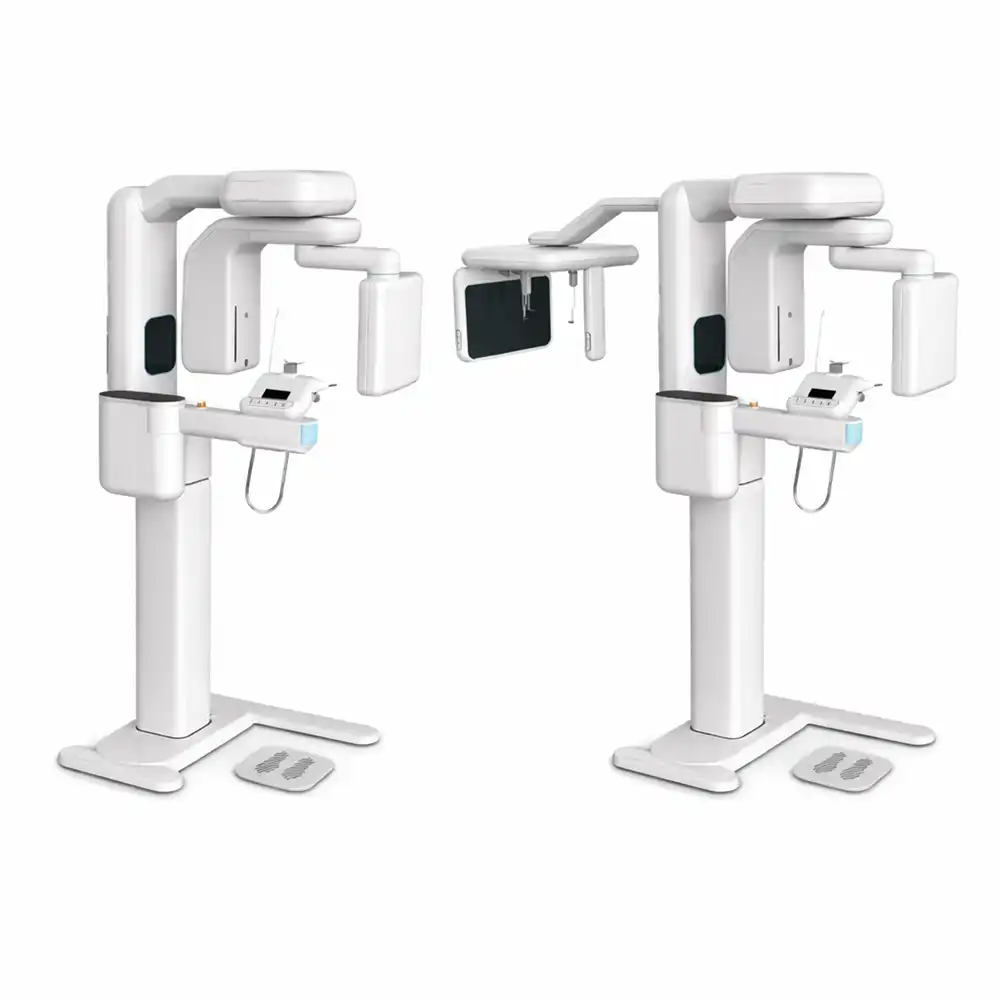

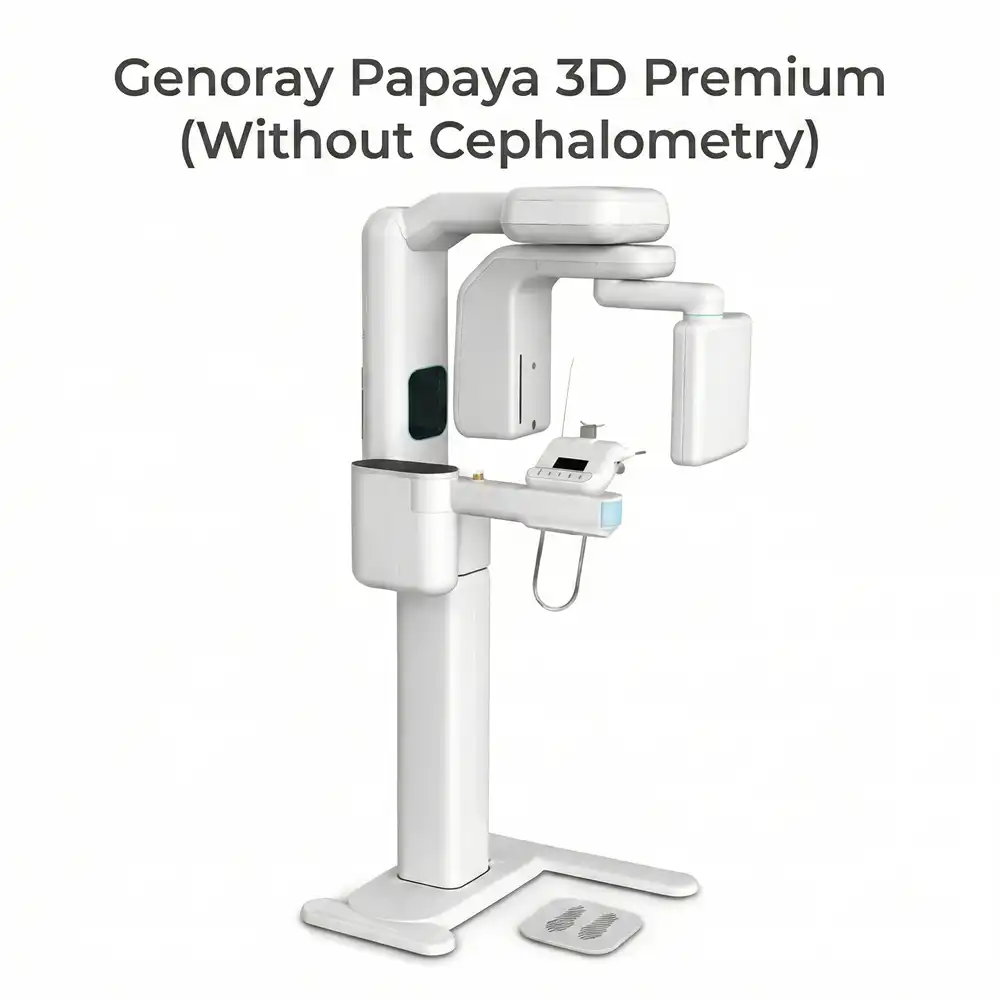

Genoray Papaya 3D Premium (Without Cephalometry)

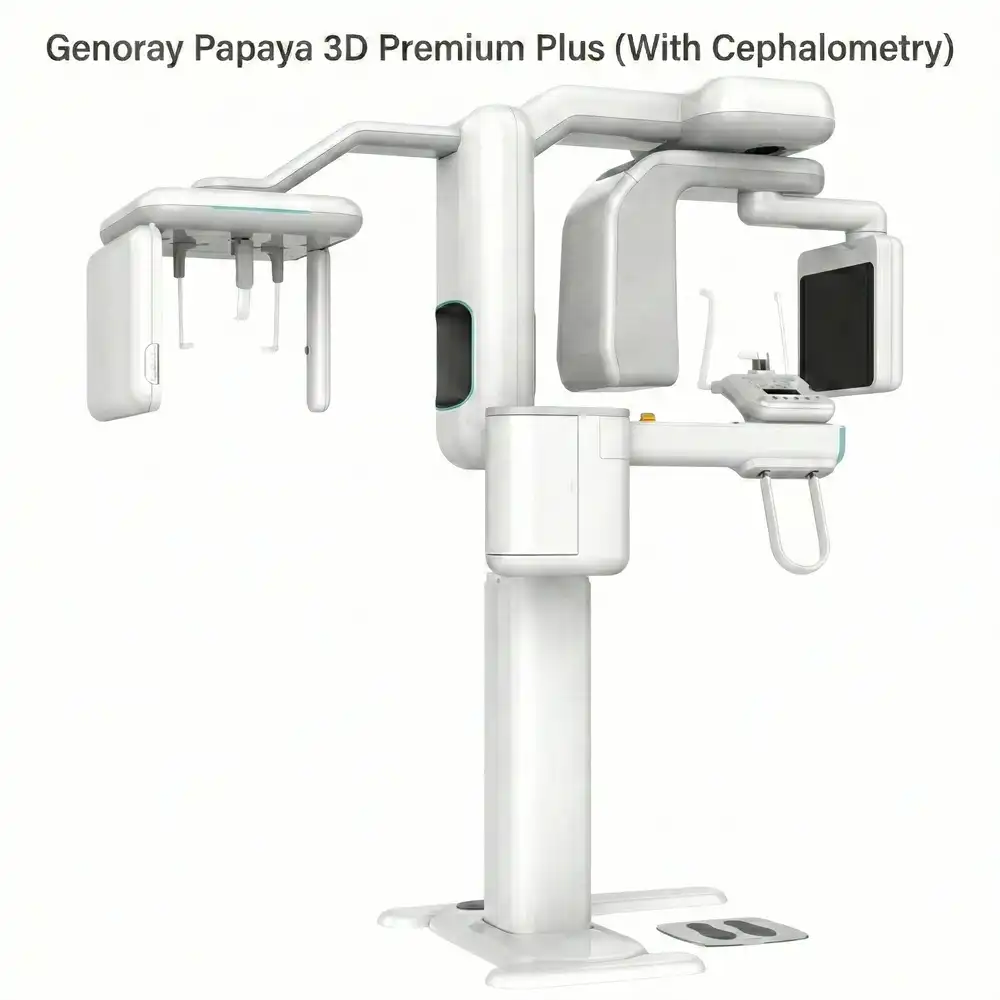

Genoray Papaya 3D Premium Plus (With Cephalometry)

Question 5

Warranty

Accepted Answer

Manufacturer/Importer warranty of 5 Years as applicable for this product.
Warranty does not apply against any physical damage to the product.

Question 6

FAQS

Accepted Answer

1. What imaging modalities are available in the Papaya 3D Premium Plus?

The system offers CBCT, Panoramic (OPG), Cephalometric (optional), and Model Scanning, making it a comprehensive 4-in-1 dental imaging solution.

2. Is the Cephalometric function mandatory?

No. The unit is available in CBCT with Cephalometric and CBCT without Cephalometric configurations, allowing practices to choose based on their clinical requirements.

3. What is the maximum Field of View (FOV) available?

The system provides a maximum FOV of up to 23 × 24 cm, suitable for full maxillofacial and advanced diagnostic applications.

4. Does the system support metal artefact reduction?

Yes. It is equipped with Smart Metal Artefact Removal (SMARF) technology to enhance image clarity in cases involving metallic restorations.

5. Can the system digitize dental models?

Yes. The Model Scanning function allows digitization of impressions and plaster casts into STL format, eliminating the need for physical storage.

Dental Chairs

Gnatus

Dental Chairs

Dental Chairs

Gnatus

Dental Chairs

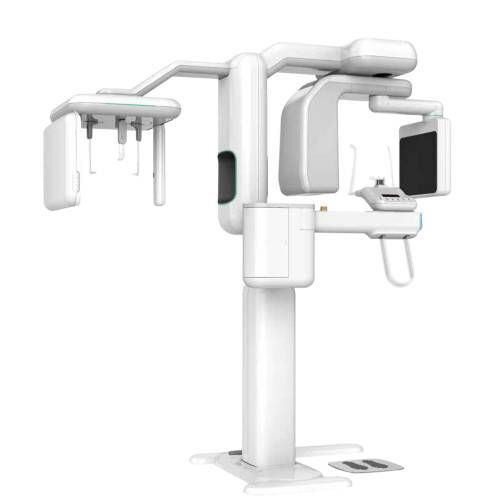

Genoray Papaya 3D Premium Plus 4-in-1 Dental CBCT Imaging System
