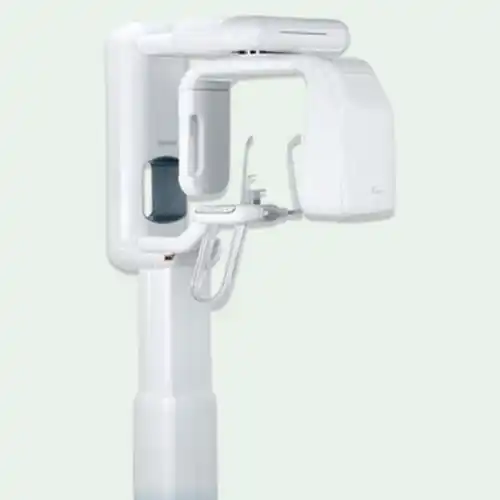

Genoray Papaya Slim & Papaya Plus Dental OPG (without PC)

Line Voltage: 220 V, 50/60 Hz

Maximum Tube Voltage: 90 kV

Minimum Tube Voltage: 60 kV

Target Angle: 5°

Focal Spot: 0.5 mm

Anode Heat Storage Capacity: 35 kJ

Maximum Heat Dissipation Rate: 250 W

Panoramic Exposure Time: 9 – 17 sec

Cephalometric Exposure Time: 4 – 12 sec

Cephalometric Image Height: ~228 mm

Pixel Pitch: 75 × 75 μm

Active Area: 152 × 6.5 mm / 228 × 6.5 mm

Dimensions (W × D × H): 1150 × 1090 × 2317 mm

Weight: ~110 kg

CUST

X-ray Beam Type: Fan Beam

Slice Thickness: 0.195 mm

Number of Slices: 256

Volumetric Image Size: 50 × 50 × 103 mm

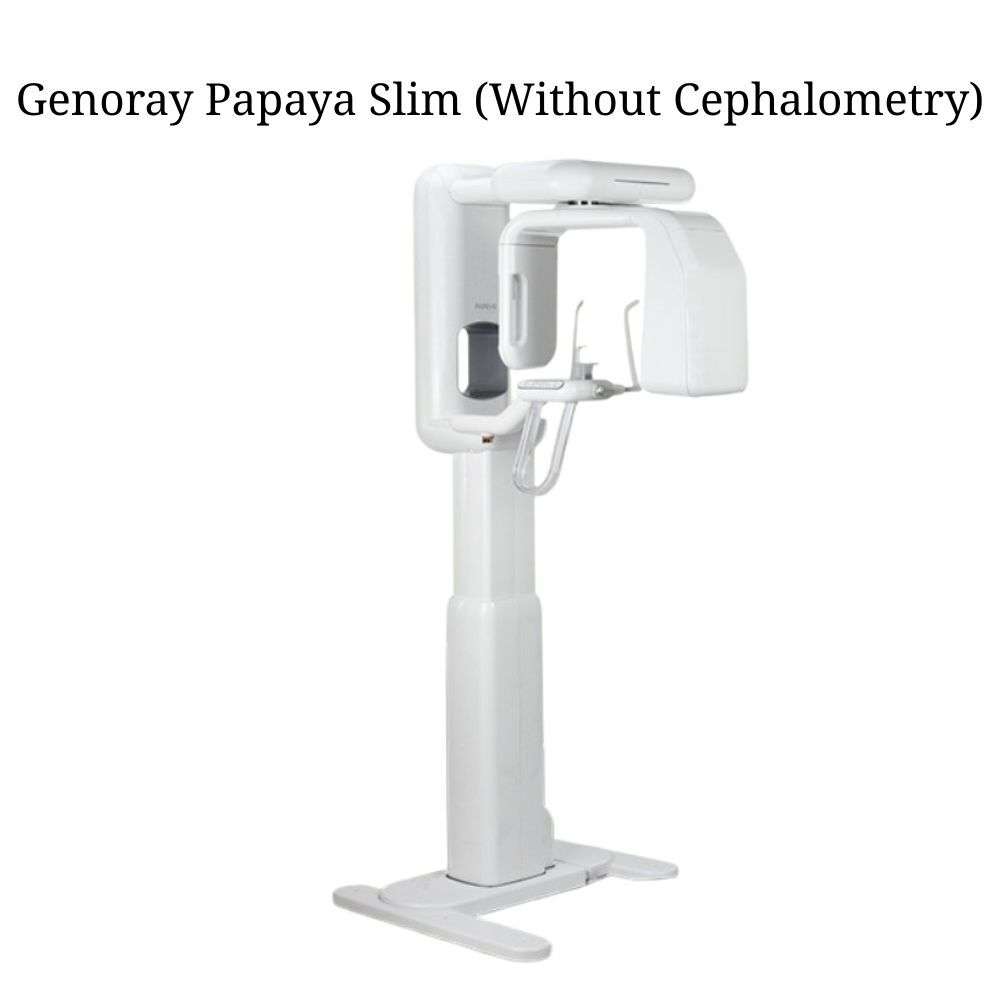

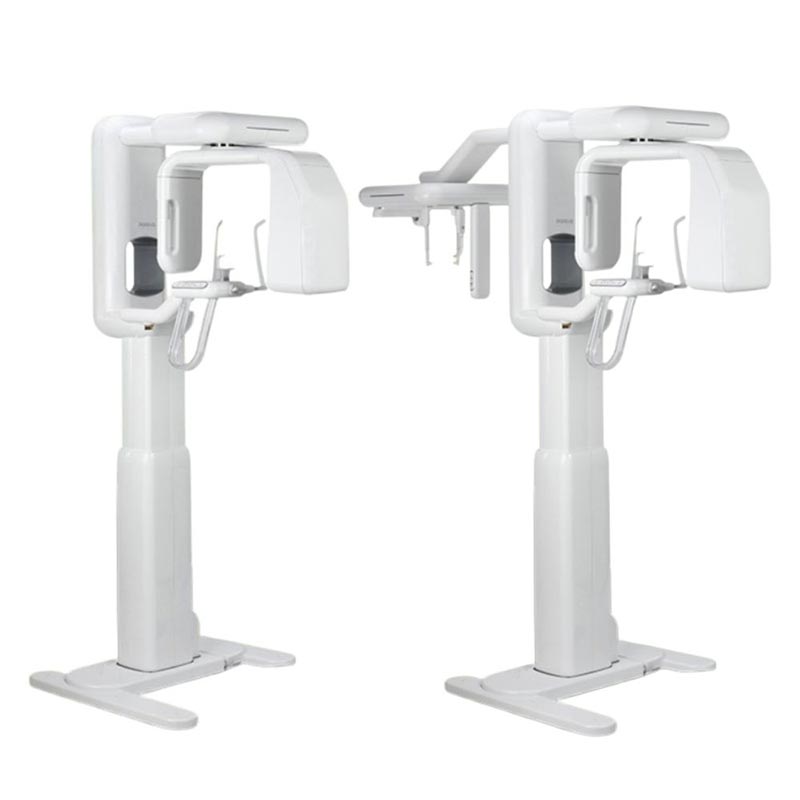

• Genoray Papaya Slim (Without Cephalometry)

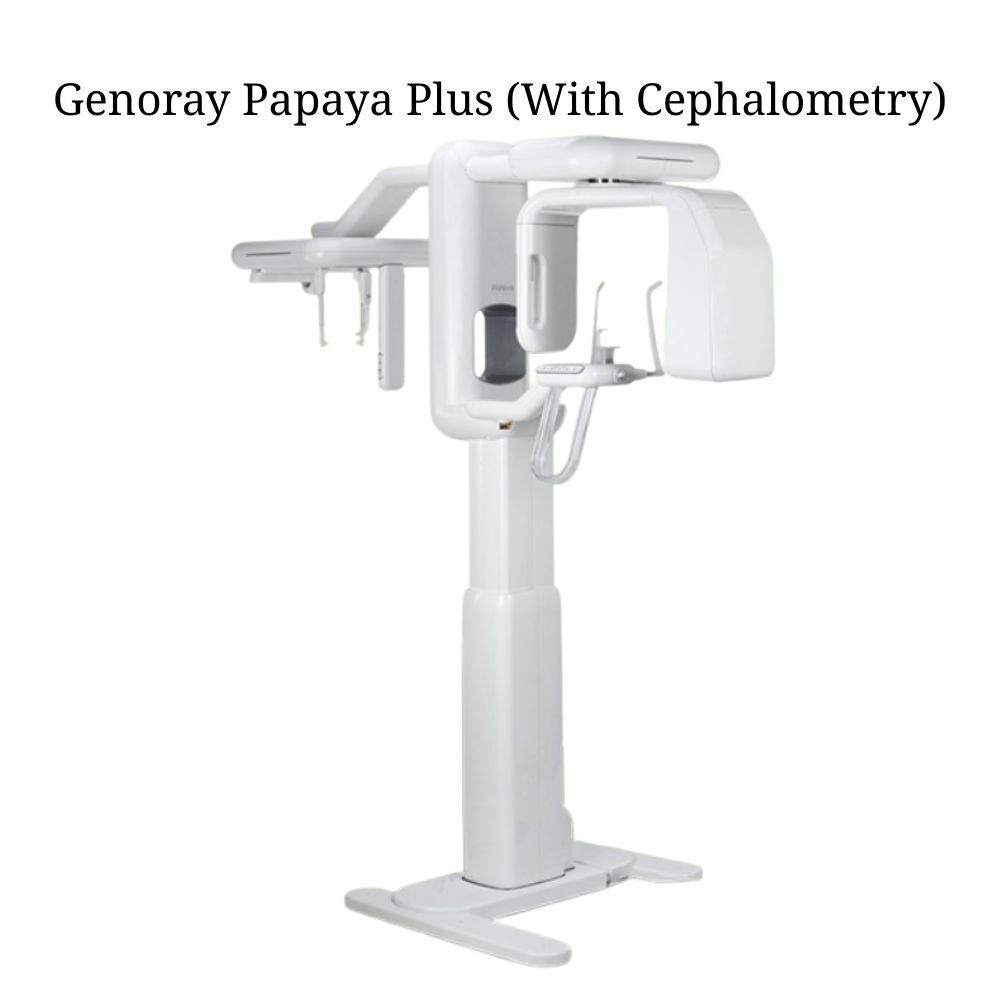

• Genoray Papaya Plus (With Cephalometry)

• Manufacturer/Importer warranty of 5 Years as applicable for this product.
• Warranty does not apply against any physical damage to the product.

1. What is the difference between Papaya Slim and Papaya Plus?

The Papaya Slim provides Panoramic and CUST tomography imaging, while the Papaya Plus adds Cephalometric imaging, making it suitable for orthodontic diagnosis.

2. What is CUST imaging used for?

CUST (Cubical Semi Tomography) produces cross-sectional dental images that help dentists evaluate bone structure and plan implant placement.

3. Is Papaya Plus suitable for orthodontic clinics?

Yes. Papaya Plus includes full cephalometric imaging with multiple ceph programs, making it ideal for orthodontic diagnosis and treatment planning.

4. How long does a panoramic scan take?

Panoramic exposure typically takes 9–17 seconds, ensuring quick and efficient imaging.

5. Does the system support implant planning?

Yes. The CUST tomography feature provides cross-sectional views that support implant planning and bone evaluation.
