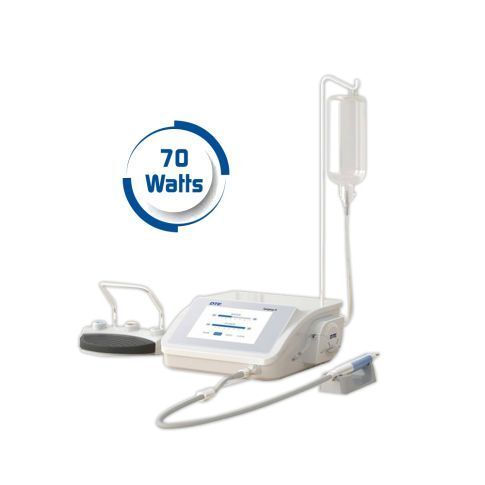

Woodpecker DTE Surgery – X Piezosurgery Unit

• Micron Cutting Technology (20–100 μm amplitude) ensures ultra-precise osteotomy with minimal trauma and faster postoperative recovery.

• Selective Cutting allows effective bone cutting while protecting soft tissues (nerves, blood vessels, mucosa), reducing surgical risk.

• Cold Cutting Mode (<38°C) minimizes heat generation with continuous irrigation, helping maintain clear visibility and reduced bleeding.

• Minimal Surgical Incision (3.5 mm × 0.5 mm) supports micro-invasive procedures in confined surgical areas.

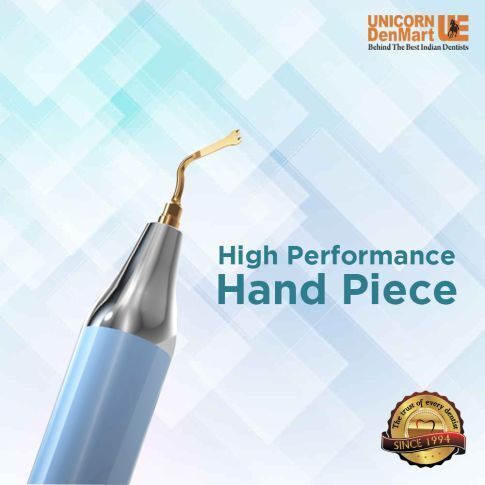

• High-Performance Handpiece delivers stable ultrasonic output for controlled and efficient cutting.

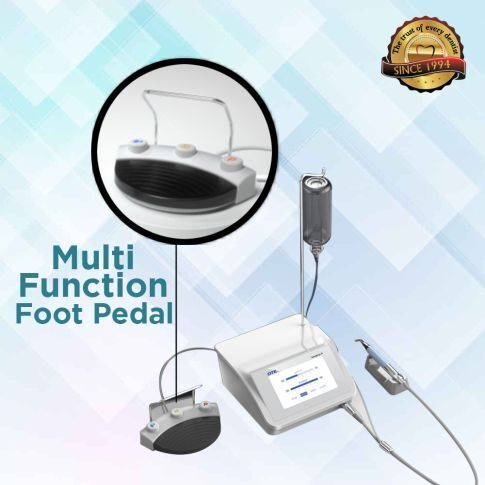

• Multi-Function Foot Pedal enables hands-free control of water flow, power, and working modes for streamlined workflow.

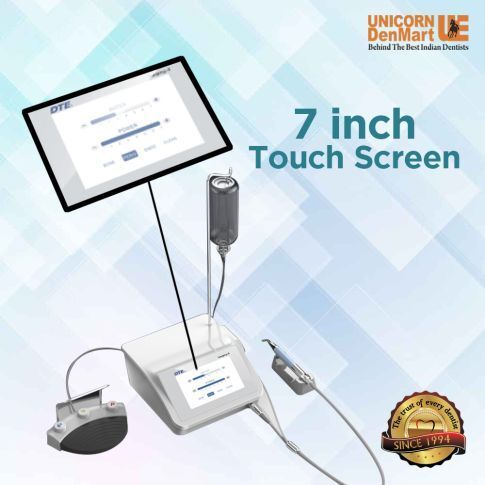

• 7-Inch Touch Screen Interface provides intuitive tap operation with real-time parameter display.

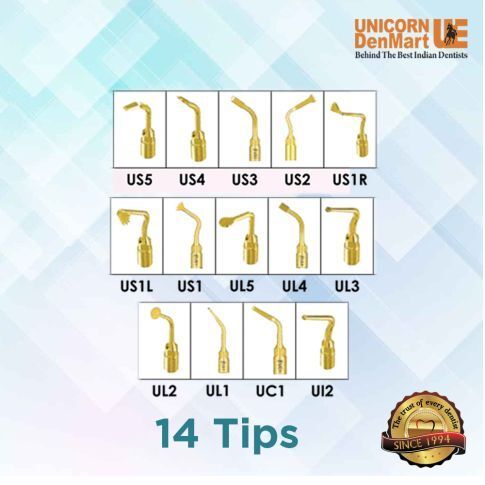

• Gold-Plated Tips Kit offers high wear resistance and durability, suitable for extraction, crest splitting, and retropreparation.

• Wide Clinical Applications including bone surgery, implantology, sinus lifting, periodontal surgery, and endodontic procedures.

• Technology: Ultrasonic Piezo Bone Surgery System

• Cutting Mode: Micron Cutting & Selective Cutting

• Vibration Amplitude: 20–100 μm

• Minimum Surgical Incision: 3.5 mm length × 0.5 mm width

• Cooling System: External irrigation with peristaltic pump

• Cold Cutting Temperature Control: Maintains tip temperature below 38°C

• Display: 7-inch Touch Screen Interface

• Control: Multi-function Foot Pedal

• Handpiece: High-performance ultrasonic handpiece

• Tip Coating: Gold-plated, wear-resistant tips

• Power Supply: 200–240V~, 50/60Hz

• Operation Mode: Continuous with irrigation support

• Surgery-X Control Unit

• Ultrasonic Handpiece

• Handpiece Holder

• Multi-function Foot Pedal

• Irrigation Tube Set

• Tips Kit (Gold-plated surgical tips)

• Tip Wrench

• Power Cord

• User Manual

• Package Dimensions (cm): 53 x 46 x 30

• 1 Year warranty against all parts of the product under normal operating conditions.
• Physical damage is not covered under warranty in any case.

Q1: What makes the Woodpecker Surgery X a reliable solution?
A1: It features precise ultrasonic cutting, soft tissue preservation, and optimized surgical control for efficient procedures.

Q2: How does the ultrasonic technology improve surgical performance?
A2: The micrometric vibration technology enhances cutting precision while reducing post-operative trauma.

Q3: Is this system suitable for delicate procedures?
A3: Yes, it is designed to protect soft tissues, ensuring precision without damaging surrounding structures.

Q4: How does the cooling system enhance usability?
A4: The quattro spray system provides continuous cooling, preventing overheating and enhancing cutting efficiency.

Q5: What types of procedures can this unit support?
A5: It is versatile, making it suitable for bone cutting, alveolar ridge splitting, sinus lifts, and other specialized applications.
