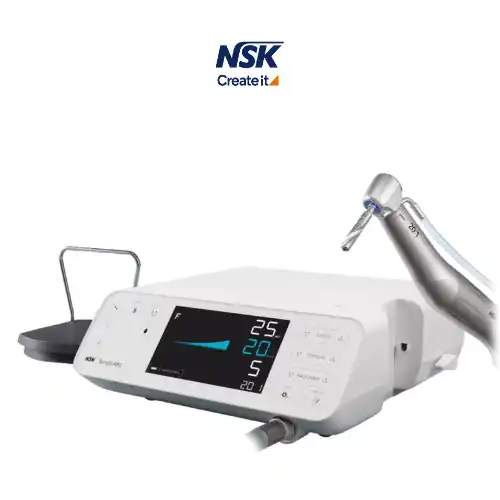

NSK Surgic AP2 Non-Optic Implant Motor

• Compact & Ergonomic Motor Design optimized for enhanced balance and smooth handling.

• High Torque Performance with adjustable torque range from 5–80 Ncm for varied applications.

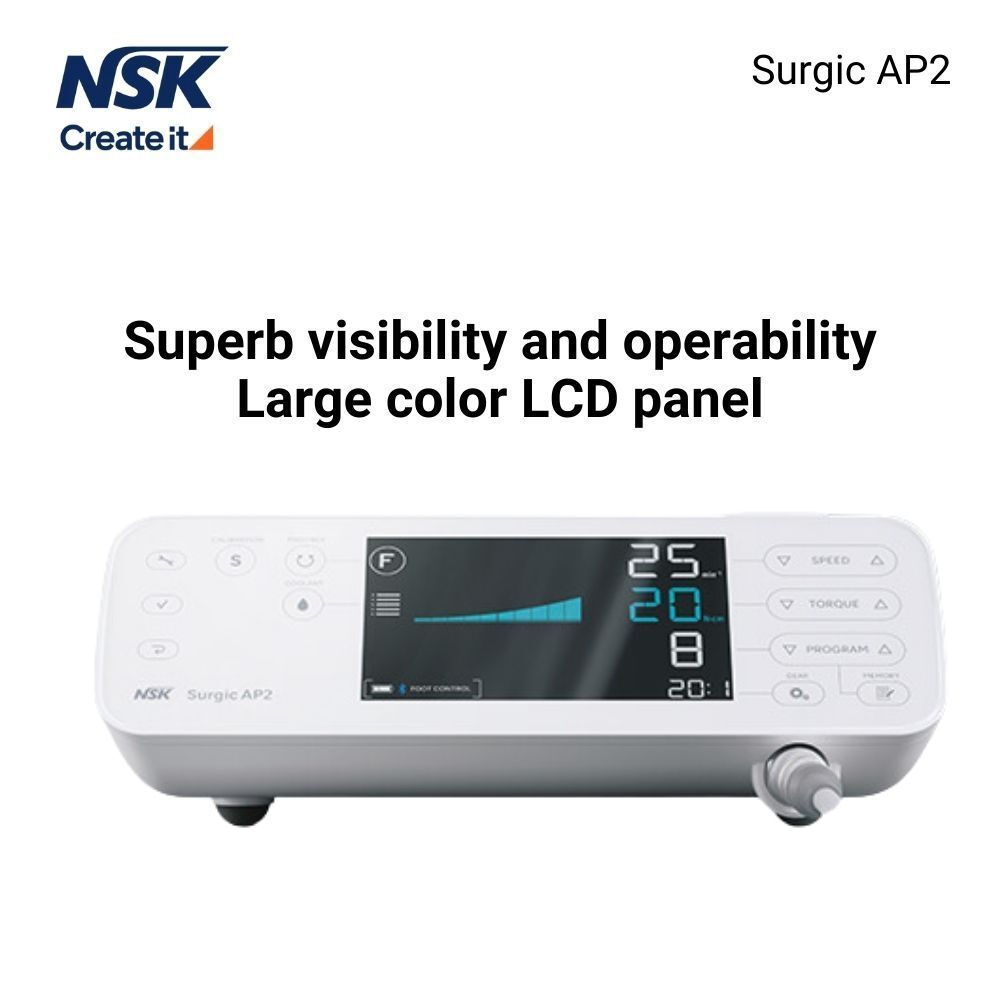

• Intuitive Digital LCD Display featuring a large, high-contrast screen for easy navigation and real-time control.

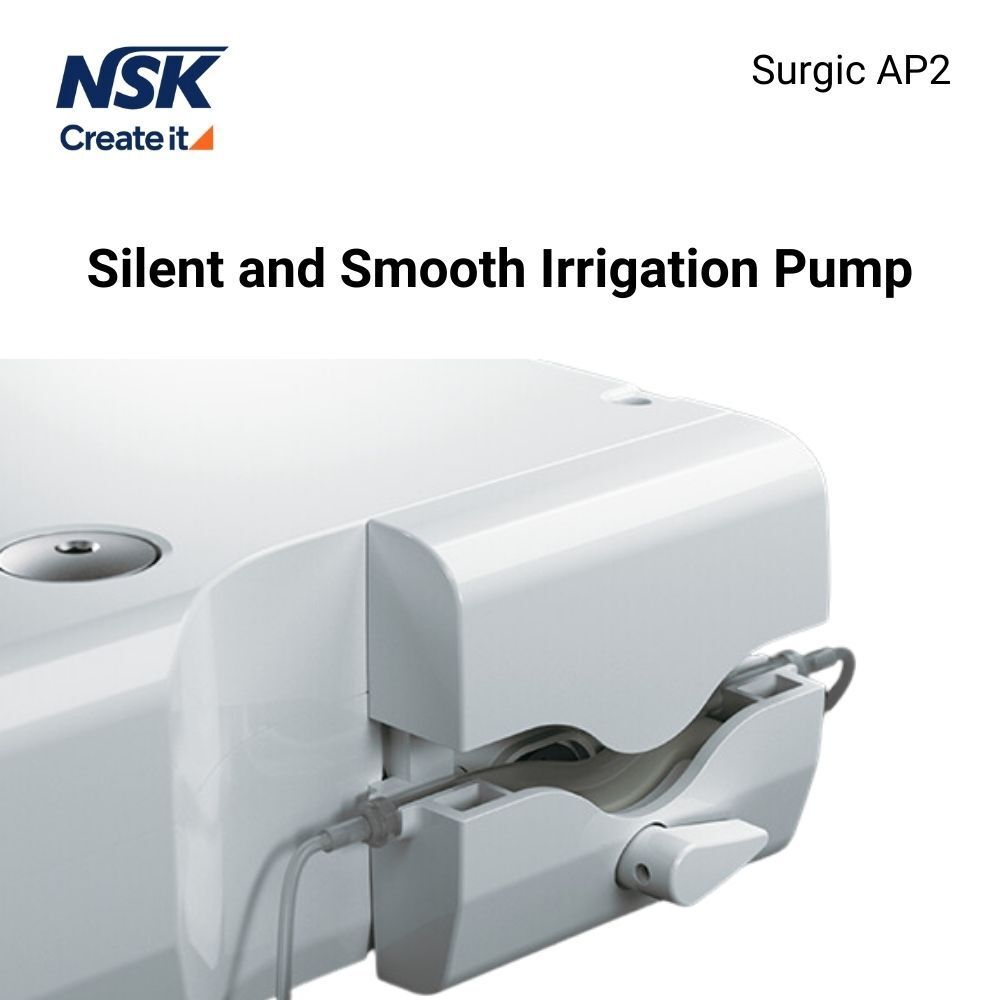

• Quiet & Efficient Irrigation System designed for smooth fluid management with silent pump operation.

• Wireless Foot Control (FC-84) with Bluetooth-enabled hands-free operation for improved workflow flexibility.

• Energy-Efficient & Durable Build engineered for long-term reliability and minimal power consumption.

• Multi-Program Compatibility including 8 customizable settings for implant and surgical techniques.

Control Unit

• Power Consumption: Max. 240V

• Torque Range: 5–80 N·cm

• Power Supply: AC 100–220V, 50/60Hz

• Max. Pump Output: 75 mL/min

• Number of Programs: 8

• Dimensions: W245 × D235 × H90 mm

• Weight: 2.1 kg

Micromotor (SG80MS)

• Input Voltage: DC 36V

• Rotation Speed: 200–40,000 min⁻¹

• Motor Type: Brushless

• Weight: 0.3 kg (with motor cord)

• Cord Length: 2.0 m

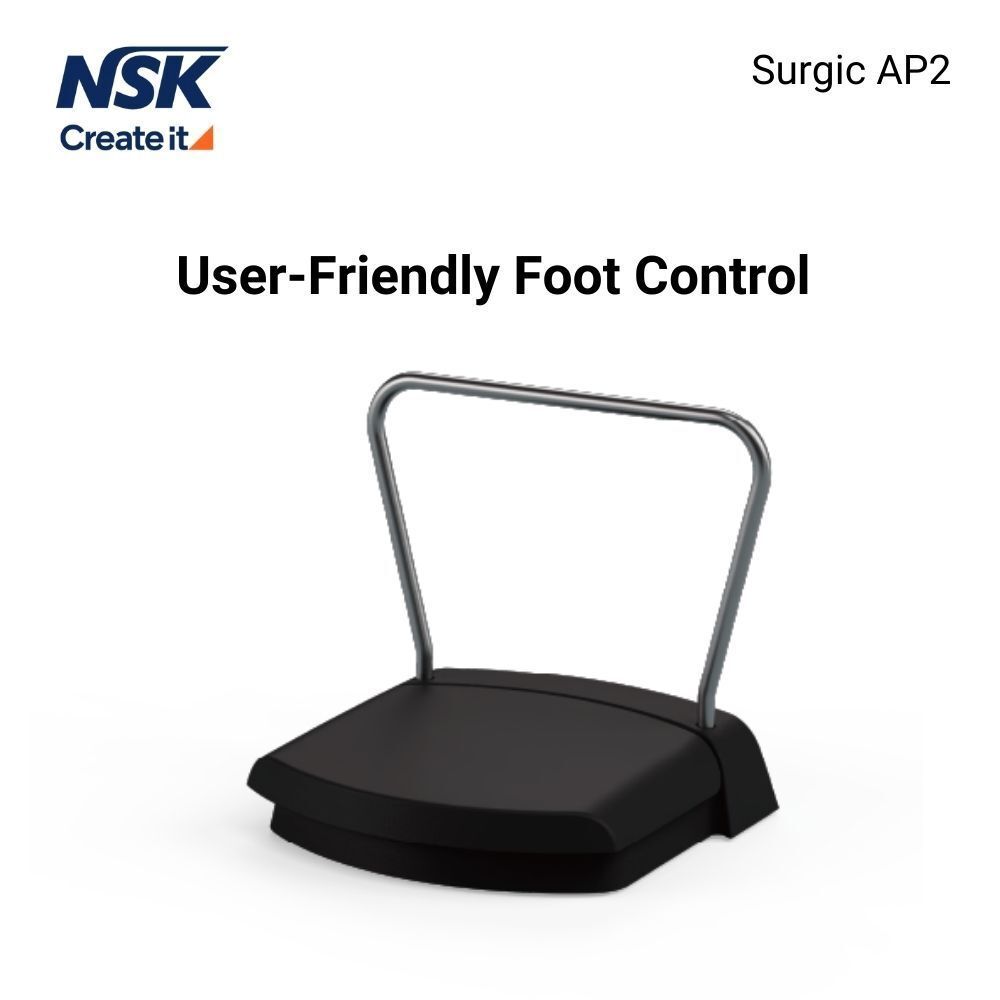

FC-84 Wireless Foot Control

• Operation Type: Battery Operated

• Battery Type: Three AA (Mignon/LR6) 1.5V alkaline batteries

• Dimensions: W155 × D155 × H149 mm

• Weight: 0.4 kg

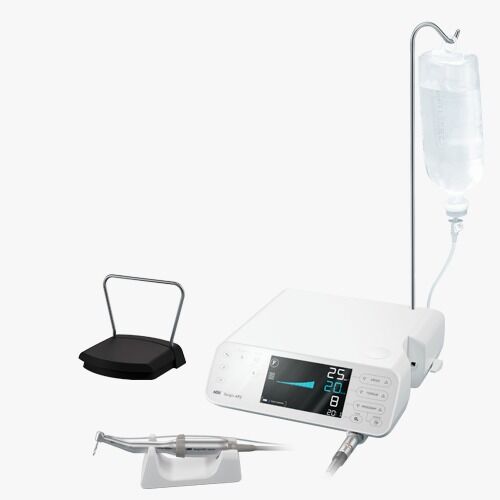

• Control Unit

• SG20M Handpiece (20:1 Reduction)

• Non-Optic Micromotor (SG80MS)

• FC-84 Wireless Foot Control (IPX8 Certified)

• Irrigation Tubes (5 pcs) & Other Accessories

• Free Tealth 20:1 Reduction LED Handpiece

• Package Dimensions (mm): 276 x 267 x 110

• 1 Year warranty against all parts of the product under normal operating conditions.
• Physical damage is not covered under warranty in any case.

Q1: What makes the NSK AP 2 a reliable choice?
It features precision motor control, user-friendly navigation, and a wireless foot pedal for smooth operation.

Q2: How does the digital LCD display improve functionality?
The large, high-contrast screen provides clear and accurate real-time settings control.

Q3: Is the irrigation system efficient for various applications?
Yes, it ensures steady fluid management for a seamless workflow.

Q4: How does the wireless foot control enhance usability?
The Bluetooth-enabled foot pedal allows for hands-free, flexible positioning.

Q5: Is the NSK AP 2 energy-efficient?
Yes, it is engineered for long-term durability and optimized energy consumption.
