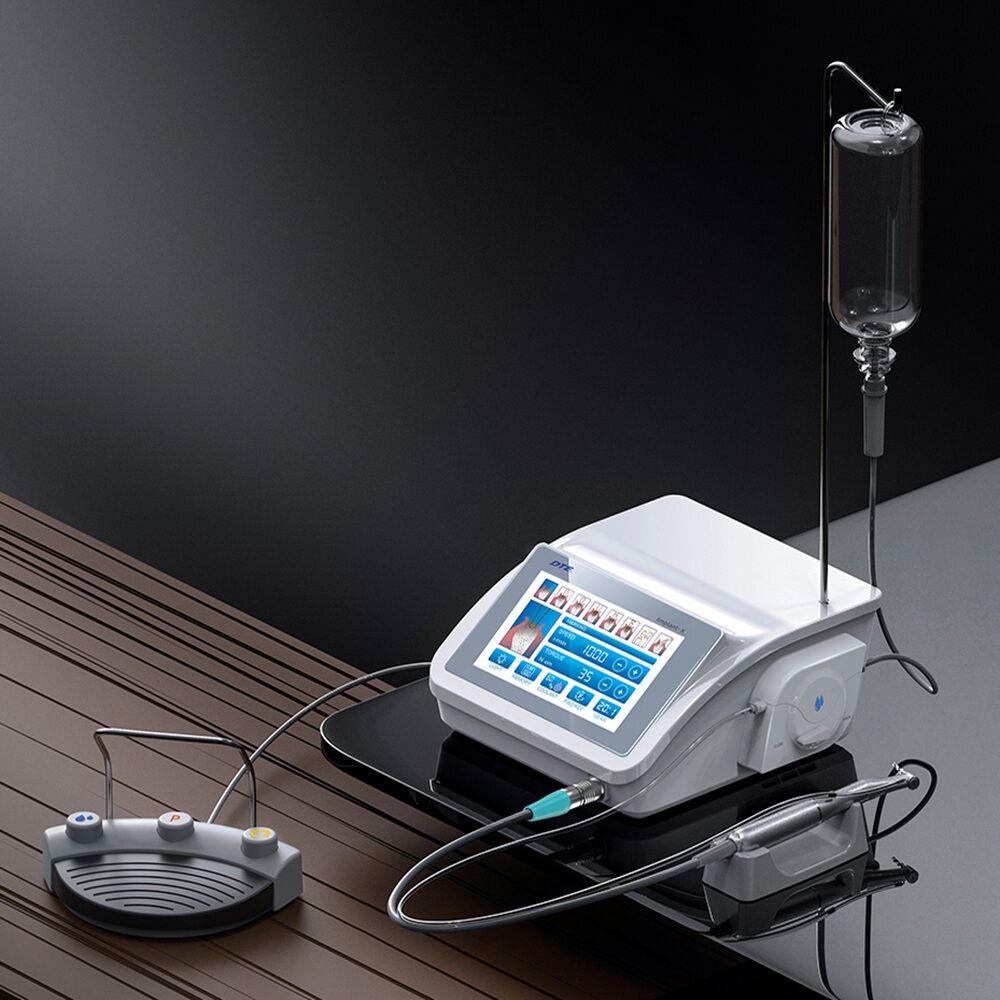

Woodpecker DTE Implant – X Physiodispenser

• Swiss-Imported Mute Motor delivers smooth, low-noise performance with reliable power output.

• Up to 80 N·cm High Torque with 5.5 N·cm motor torque, ideal for dense bone and complex implant cases.

• Advanced FOC Control Technology ensures stable and precise torque at both low and high speeds.

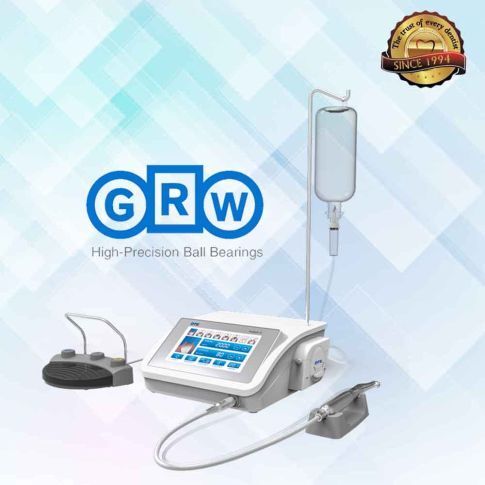

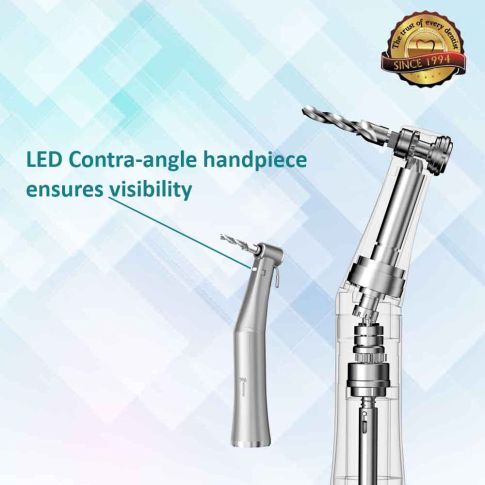

• LED Contra-Angle with Precision Bearings provides superior visibility, minimal oscillation, and consistent torque stability.

• Autoclavable Motor & Cable enhance infection control and clinical safety.

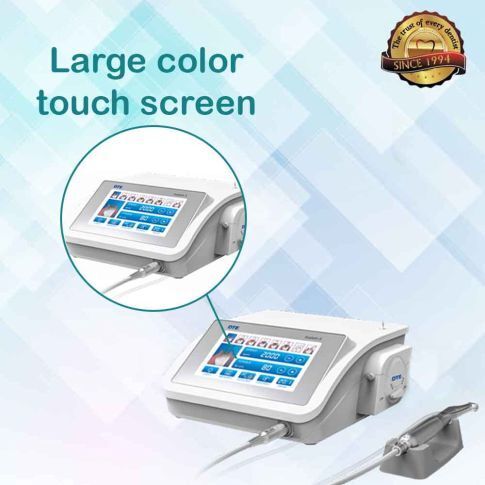

• Color Touch Screen with Glass Surface offers an intuitive interface with easy cleaning and wipe disinfection.

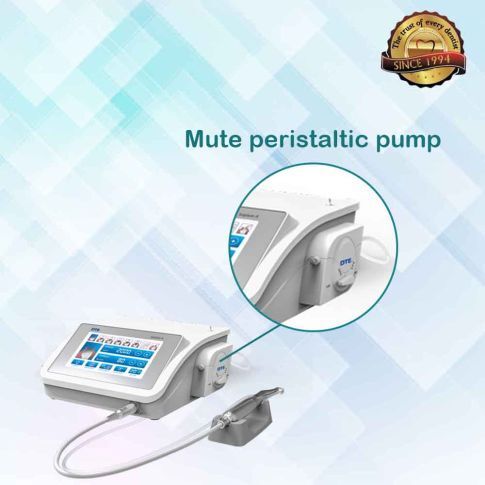

• Quiet Peristaltic Pump (135 ml/min) supports smooth irrigation and is compatible with disposable tubing.

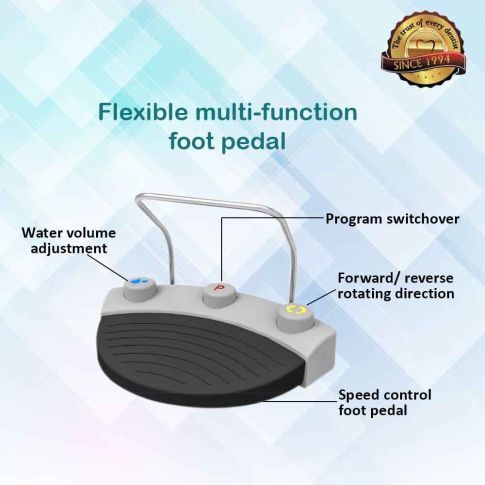

• Multi-Function Foot Pedal enables aseptic, hands-free operation with seamless control.

• Ergonomic Balanced Design reduces hand fatigue and improves surgical precision and control.

• Operation Mode: Intermittent (3 min ON / 10 min OFF)

• Power Supply Voltage: 200–240V~

• Frequency: 50/60 Hz

• Input Power: 150 VA

• Fuses: 2 × T1.6AL 250V

• Software Version: Implant-V1

• Applied Part: Contra-angle handpiece

• Maximum Temperature: 41.8°C

• Maximum Water Volume: 135 ml/min

• Dimensions: 265 × 263 × 119 mm

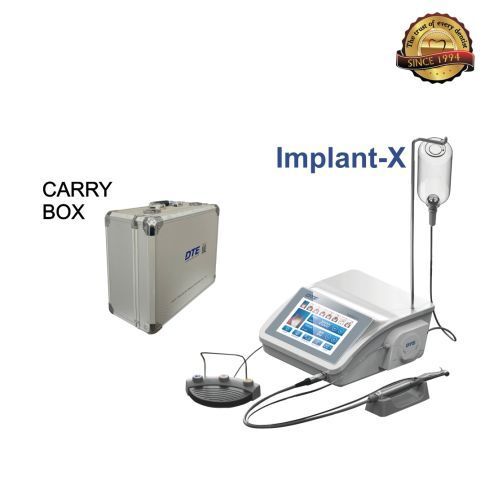

• Implant motor control unit
• Non-optic motor
• Foot control
• Coolant tubing
• Handpiece holder
• Handpiece stand
• Cleaning accessories
• Power cord
• Instructions manual

• 1 Year warranty against all parts of the product under normal operating conditions.
• Physical damage is not covered under warranty in any case.

1. What is the maximum torque output of the Implant-X?
It delivers up to 80 N·cm output torque, suitable for demanding implant procedures.

2. Is the motor autoclavable?
Yes, the motor and motor cable are autoclavable, ensuring proper infection control.

3. Does it have an LED light source?
Yes, it comes with an LED motor and LED contra-angle for enhanced surgical visibility.

4. What type of pump system does it use?
It features a quiet peristaltic pump compatible with disposable irrigation tubing.

5. What is the maximum irrigation flow rate?
The system provides up to 135 ml/min water flow.

6. Is the foot pedal multifunctional?
Yes, the multi-function foot pedal allows hands-free control and parameter adjustment during surgery.
