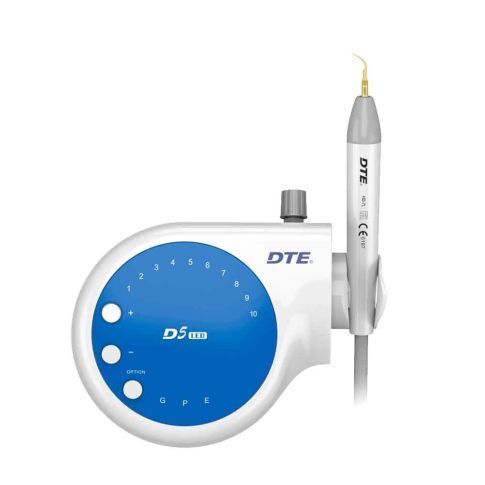

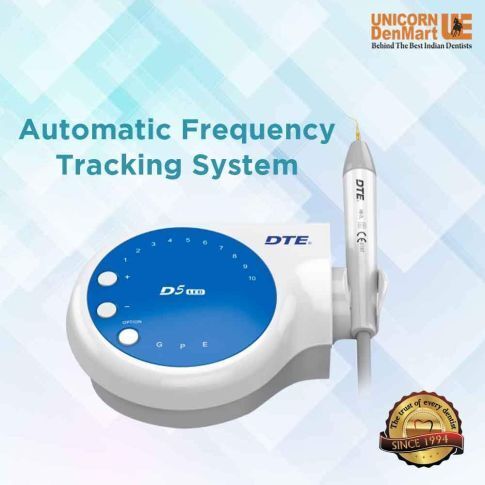

Woodpecker DTE D5 LED Ultrasonic Scaler with 6 Scaler Tips

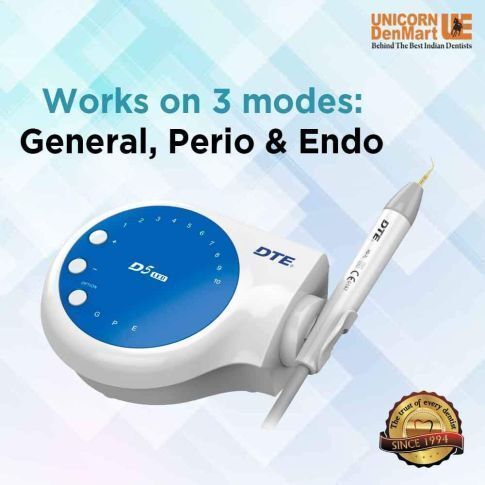

• Three operating modes – General, Perio, and Endo – for versatile clinical applications in scaling and irrigation

• Stable 28kHz ±3kHz vibration frequency ensures efficient calculus removal with controlled performance

• Adjustable power output from 3W to 20W for precise treatment customization

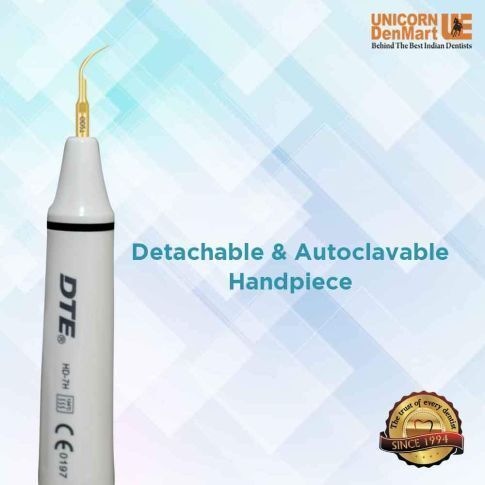

• LED optic handpiece enhances intraoral visibility and clinical accuracy

• High vibration excursion (≤100μm) with <2N force for effective yet gentle scaling

• Compatible with 0.1–5 bar water pressure for consistent cooling and irrigation

• Continuous operation design with compact, lightweight unit for convenient chairside use

• Power Supply Input: 220–240V~ | 50Hz/60Hz | 150mA

• Main Unit Input: 24V~ | 50Hz/60Hz | 1.3A

• Power Consumption: 3W – 20W

• Operating Mode: Continuous Operation

• Primary Tip Vibration Excursion: ≤ 100 μm

• Tip Vibration Frequency: 28kHz ± 3kHz

• Water Pressure Requirement: 0.1–5 bar (0.01–0.5 MPa)

• Handpiece: LED Optic

• Applied Part: Handpiece and Tip

• Weight – Main Unit: 0.65 kg

• Weight – Power Supply: 1 kg

• Total Approx. Weight: 1.65 kg

• Dimension: 188mm×159mm×81mm

• Main unit
• Handpiece
• Footswitch

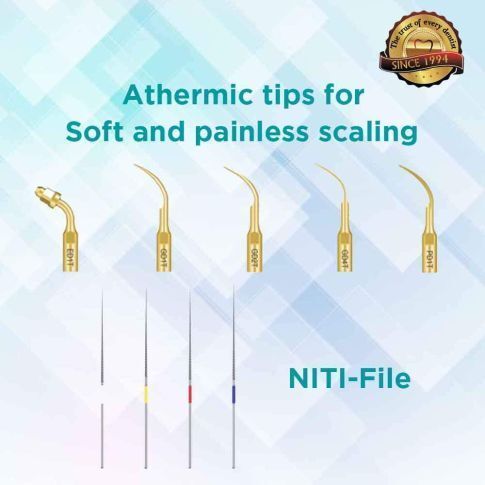

• 6 x Tips (ED1T, GD1T×2, GD2T, GD4T, PD1T)
• Adapter
• Torque wrench
• T Joint
• Water Pipe
• Operation manual
• Package Dimension (cm): 38 x 21 x 14

This product is self-installable, and technician support is available for a fee if required.

• 1 Year warranty against all parts of the product under normal operating conditions.

• Physical damage is not covered under warranty in any case.

1. Does this ultrasonic scaler come with an LED handpiece?
Yes, it features an LED optic handpiece that enhances visibility and improves precision during dental procedures.

2. What operating modes are available?
The unit offers three modes — General, Perio, and Endo — allowing flexibility across different treatment requirements.

3. What is the vibration frequency of the scaler?
It operates at a stable 28kHz ±3kHz frequency, ensuring effective calculus removal with controlled performance.

4. Can the power output be adjusted?
Yes, the output power is adjustable from 3W to 20W, enabling customized treatment intensity.

5. What water pressure range is required for operation?
The scaler operates efficiently within a water pressure range of 0.1 to 5 bar (0.01–0.5 MPa).
