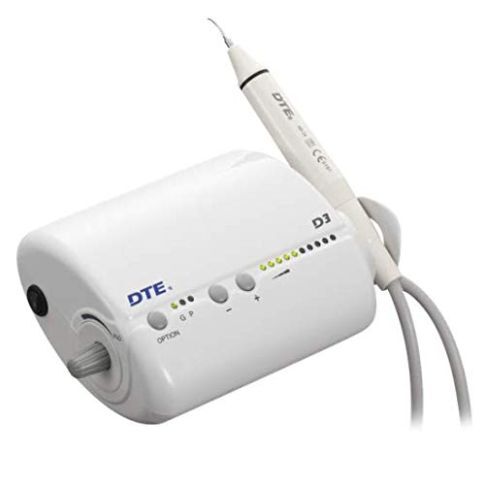

Woodpecker DTE D3 Ultrasonic Scaler (Without LED)

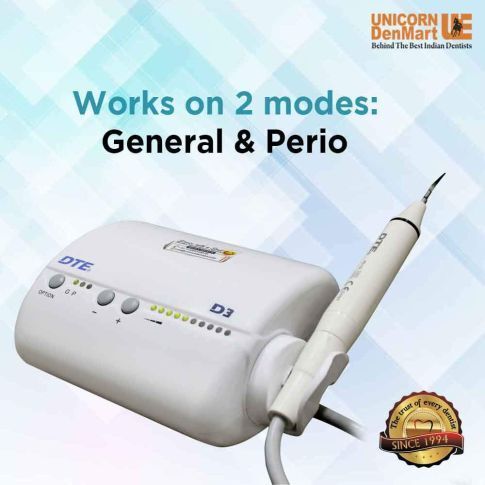

• Working Modes: 2

• Voltage Input: ~220V | 50Hz

• Main Unit Input: ~24V | 50Hz | 1.3A

• Output Power: 38 VA

• Operating Frequency: 28 kHz ± 3 kHz

• Water Pressure Requirement: 0.1–5 bar (0.01–0.5 MPa)

• Main Unit Weight: 0.66 kg

• Transformer Weight: 1 kg

• Dimensions: 198 mm × 134 mm × 80 mm

• Operating Mode: Continuous Operation

• Main unit
• Handpiece
• Footswitch
• 5 x Tips (GD1×2, GD2, GD4, PD1)
• Adapter
• Torque wrench
• T Joint
• Water Pipe
• Operation manual
• Package Dimension (cm): 38 x 21 x 14

This product is self-installable, and technician support is available for a fee if required.

• 1 Year warranty against all parts of the product under normal operating conditions.
• Physical damage is not covered under warranty in any case.

1. What procedures can this ultrasonic scaler be used for?
It is suitable for supragingival scaling, subgingival debridement, periodontal therapy, and endodontic irrigation procedures.

2. Does this scaler come with an LED handpiece?

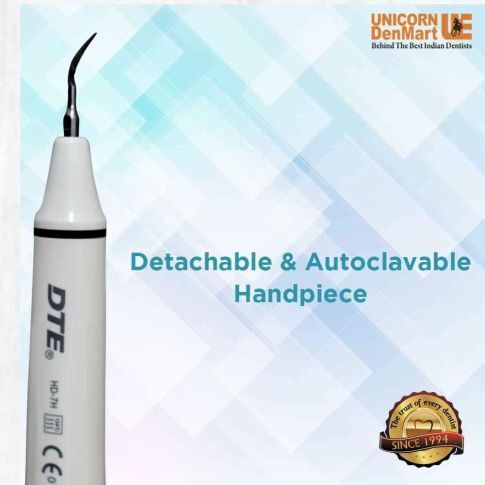

No, this model comes with a standard detachable handpiece without LED illumination.

3. How does the automatic frequency tracking improve performance?
The microcomputer-controlled system automatically tracks and stabilizes frequency to ensure consistent and efficient scaling.

4. What is the operating frequency of the unit?
The scaler operates at 28 kHz ± 3 kHz for effective calculus removal and smooth clinical performance.

5. What water pressure range is required for operation?
It operates efficiently within a water pressure range of 0.1 to 5 bar (0.01–0.5 MPa).

6. Is the power output stable during procedures?
Yes, the automatic degenerative feedback system maintains constant power output for comfortable and controlled scaling.
