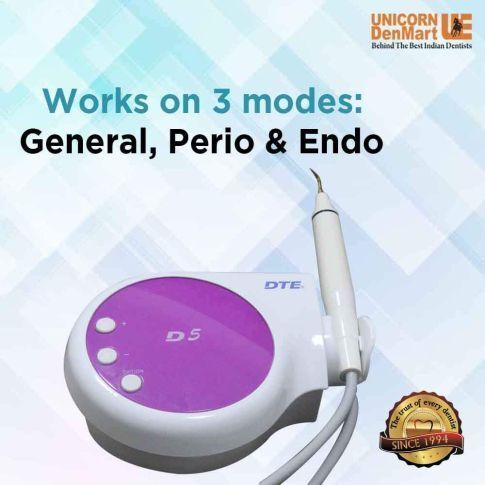

Woodpecker DTE D5 Ultrasonic Scaler (Without LED)

• Voltage Input: ~220V | 50Hz

• Main Unit Input: ~24V | 50Hz | 1.3A

• Output Power: 38 VA

• Operating Mode: Continuous Operation

• Frequency: 28 kHz ± 3 kHz

• Water Pressure Requirement: 0.1–5 bar (0.01–0.5 MPa)

• Bottle Capacity: 700 ml

• Main Unit Weight: 0.66 kg

• Transformer Weight: 1 kg

• Dimensions: 198 mm × 134 mm × 80 mm

• Main unit
• Handpiece
• Footswitch
• 5 x Tips (GD1×2, GD2, GD4, PD1)
• Adapter
• Torque wrench
• T Joint
• Water Pipe
• Operation manual
• Package Dimension (cm): 38 x 21 x 14

This product is self-installable, and technician support is available for a fee if required.

• 1 Year warranty against all parts of the product under normal operating conditions.
• Physical damage is not covered under warranty in any case.

1. Is this model equipped with LED illumination?
No, this is a non-optic ultrasonic scaler and does not include LED illumination.

2. What procedures can this scaler perform?
It is suitable for scaling, periodontal therapy, stain removal, and endodontic irrigation.

3. How many tips are included with the unit?
The scaler comes with 6 tips: 3 scaling, 1 perio, 1 stain removal, and 1 endo irrigation tip.

4. What is the operating frequency of the scaler?
It operates at 28 kHz ± 3 kHz for effective and controlled calculus removal.

5. Is the unit suitable for continuous use?
Yes, it is designed for continuous operation in routine and high-volume dental practices.
