Being Foshan Tornado Low Speed Straight Handpiece

• 1:1 Gear Ratio Transmission – Provides direct speed transfer for controlled and precise low-speed operations.

• External Cooling System – Ensures effective heat management during continuous procedures.

• Smooth & Efficient Operation – Designed for stable and vibration-free performance in clinical and lab applications.

• E-Type Compatibility – Compatible with standard E-type micromotor systems for versatile usage.

• Wide Bur Compatibility – Supports Ø2.334 – 2.355 mm burs for various dental procedures.

• Low Noise Operation – Operates at ≤ 70 dB for a quieter clinical environment.

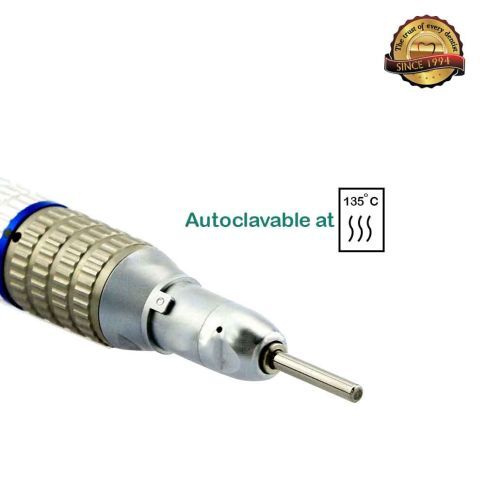

• Autoclavable Construction – Can be sterilized at up to 135°C for safe and hygienic use.

• Product Type: Straight Handpiece
• Handpiece Type: E-Type Low-Speed Handpiece
• Gear Ratio: 1:1
• Cooling System: External Cooling
• Rotation Speed: 22,000 – 27,000 rpm
• Air Pressure: 245 – 392 KPa (2.5 – 4.0 kgf/cm²)
• Water Pressure: 198 KPa (2 kg)
• Applicable Bur Diameter: Ø2.334 – 2.355 mm
• Noise Level: ≤ 70 dB
• Sterilization: Autoclavable up to 135°C

This product is self-installable; technician support is available on a paid basis if required.

• Manufacturer/Importer warranty of 6 months as applicable for this product.
• Physical damage or any external damage caused due to mishandling is not covered under warranty.

1. What is the gear ratio of the Tornado Straight Handpiece?
It features a 1:1 gear ratio, providing direct and controlled speed transmission.

2. What is the operating speed of this handpiece?
The handpiece operates at 22,000 – 27,000 rpm, suitable for low-speed procedures.

3. What type of burs are compatible with this handpiece?
It supports Ø2.334 – 2.355 mm burs, commonly used in straight handpieces.

4. Does this handpiece include a cooling system?
Yes, it features an external cooling system for effective heat management.

5. Is the handpiece autoclavable?
Yes, it is fully autoclavable up to 135°C, ensuring proper sterilization and hygiene.
