<article class="text-token-text-primary w-full focus:outline-none [--shadow-height:45px] has-data-writing-block:pointer-events-none has-data-writing-block:-mt-(--shadow-height) has-data-writing-block:pt-(--shadow-height) [&:has([data-writing-block])>*]:pointer-events-auto scroll-mt-[calc(var(--header-height)+min(200px,max(70px,20svh)))]" dir="auto" data-turn-id="request-6989c25d-3338-8323-a674-35ba2e970723-11" data-testid="conversation-turn-120" data-scroll-anchor="true" data-turn="assistant"> 1:5 increasing gear ratio delivers high-speed performance up to 200,000 min⁻¹ , ensuring efficient and precise cutting. Quattro Spray cooling system provides uniform multi-port water distribution around the bur for superior thermal control during high-speed procedures. Ceramic bearings that are lighter and significantly harder than steel reduce wear and extend cartridge lifespan. Clean Head System with anti-suck back mechanism prevents debris and fluids from entering the head, enhancing internal durability. Push-button chuck mechanism allows quick, tool-free bur changes with secure retention under load. Compact head design with stainless steel body offers improved access, balance, and long-term clinical reliability.

S-Max M95 Contra Angle Handpiece Instructions Manual Package Dimension (cm): 16 x 8 x 4

1 Year warranty against all parts of the product under normal operating conditions. Physical damage is not covered under warranty in any case.

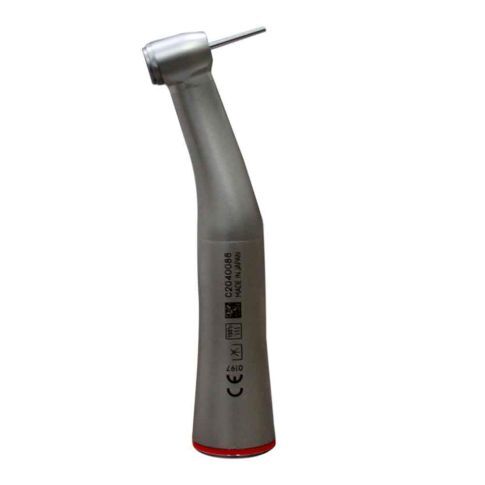

NSK S-Max M95 1:5 Increasing Contra Angle Handpiece

Q: Technical Specification

Gear Ratio : 1:5 Increasing Max Speed : 200,000 min^-1 Head Size : Ø9.9 x H 14.5 mm For : FG Burs (Ø1.6) Body Material : Stainless Steel Water Spray : Quattro Spray

Q: FAQs

Q1. What procedures is the S-Max M95 best suited for? It is ideal for crown preparation, cavity preparation, and high-speed restorative procedures requiring increased cutting efficiency. Q2. What does the 1:5 increasing gear ratio provide? It multiplies motor speed five times, enabling high-speed operation up to 200,000 min⁻¹ for efficient cutting. Q3. How does the Quattro Spray system benefit clinical performance? It delivers uniform cooling around the bur, reducing heat generation and improving patient comfort. Q4. What burs are compatible with the M95? The handpiece is designed for FG burs (Ø1.6 mm) with a push-button chuck mechanism for secure retention.

Key Features

1:5 increasing gear ratio delivers high-speed performance up to 200,000 min⁻¹, ensuring efficient and precise cutting.

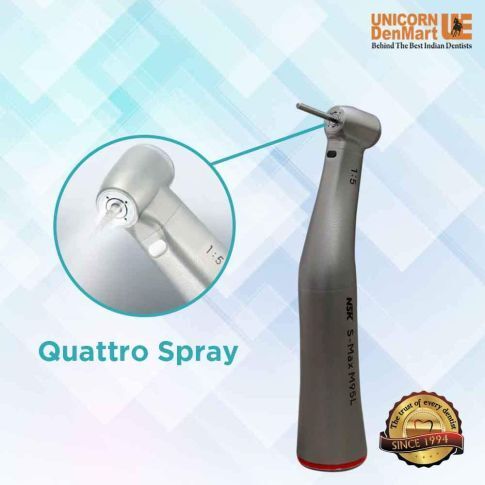

Quattro Spray cooling system provides uniform multi-port water distribution around the bur for superior thermal control during high-speed procedures.

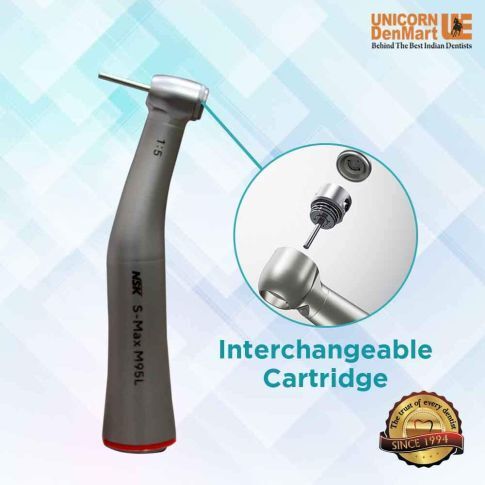

Ceramic bearings that are lighter and significantly harder than steel reduce wear and extend cartridge lifespan.
Clean Head System with anti-suck back mechanism prevents debris and fluids from entering the head, enhancing internal durability.

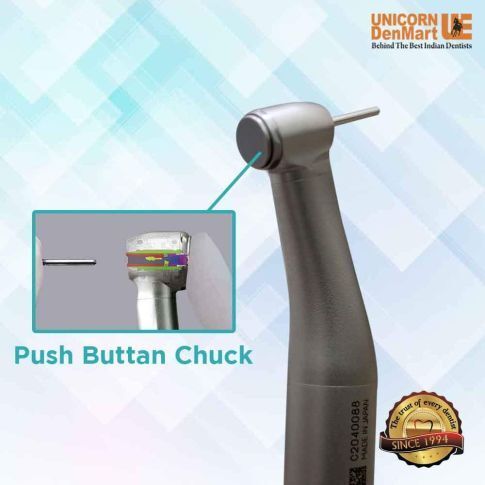

Push-button chuck mechanism allows quick, tool-free bur changes with secure retention under load.
Compact head design with stainless steel body offers improved access, balance, and long-term clinical reliability.

Technical Specification

Gear Ratio: 1:5 Increasing
Max Speed: 200,000 min^-1
Head Size: Ø9.9 x H 14.5 mm
For: FG Burs (Ø1.6)
Body Material: Stainless Steel
Water Spray: Quattro Spray

Packaging

S-Max M95 Contra Angle Handpiece
Instructions Manual
Package Dimension (cm): 16 x 8 x 4

Installation

This product is self-installable; technician support is available on a paid basis if required.

Warranty

1 Year warranty against all parts of the product under normal operating conditions.
Physical damage is not covered under warranty in any case.

FAQs

Q1. What procedures is the S-Max M95 best suited for?
It is ideal for crown preparation, cavity preparation, and high-speed restorative procedures requiring increased cutting efficiency.

Q2. What does the 1:5 increasing gear ratio provide?
It multiplies motor speed five times, enabling high-speed operation up to 200,000 min⁻¹ for efficient cutting.

Q3. How does the Quattro Spray system benefit clinical performance?
It delivers uniform cooling around the bur, reducing heat generation and improving patient comfort.

Q4. What burs are compatible with the M95?
The handpiece is designed for FG burs (Ø1.6 mm) with a push-button chuck mechanism for secure retention.

Disclaimer Product configurations, features, and specifications are subject to change based on the original manufacturer’s design and supply. Certain accessories or attachments may not be included in the standard offering and can vary by model or production batch. We recommend confirming all required features at the time of purchase. Requests for additions post-delivery will be considered based on availability and feasibility, and may incur additional costs.
