Anthos A7 Plus Dental Chair

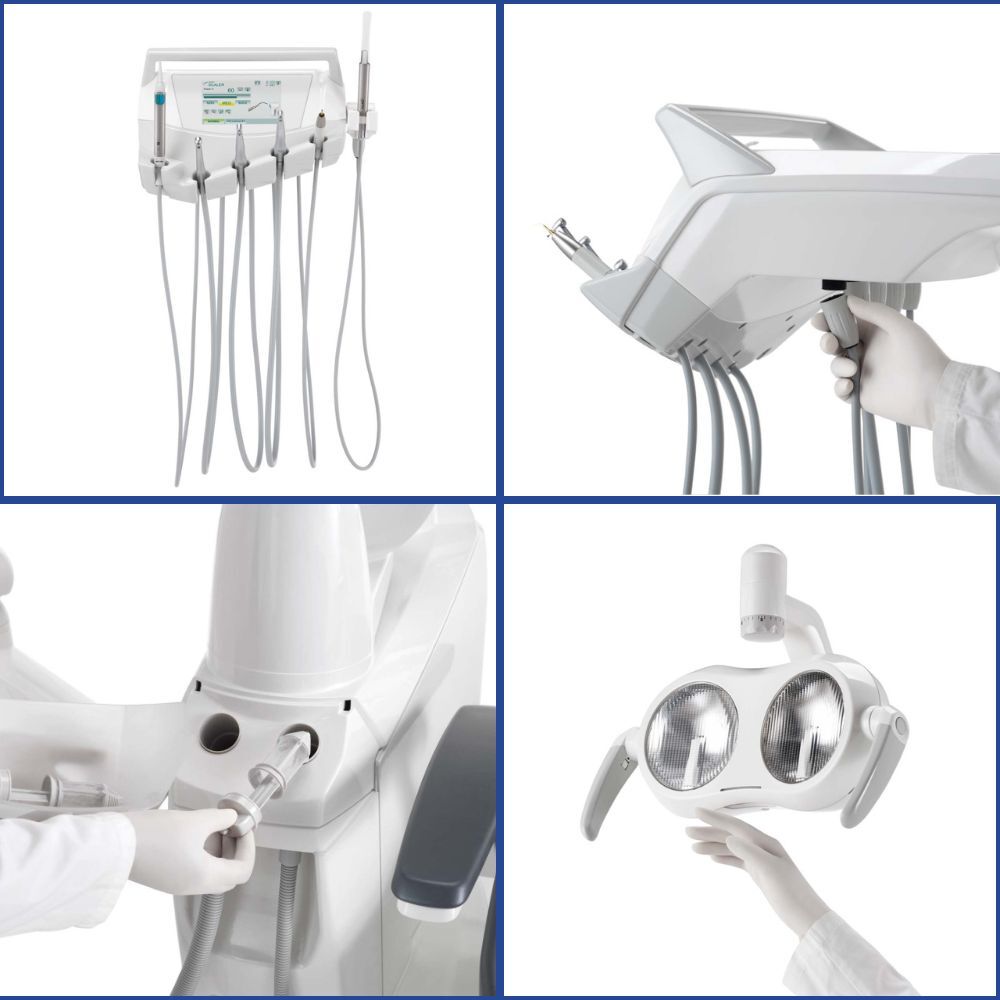

• Hanging-hose module designed for easy instrument access from multiple working positions, improving workflow ergonomics during daily procedures.
• 7″ Full Touch control panel allows intuitive control of patient chair movements, instrument parameters, hygiene cycles, accessory functions, and clinical work modes.
• Instrument settings can be personalised according to the dentist’s profile and clinical discipline, helping maintain consistent operating preferences in multi-user practices.
• Optional NFC connectivity enables up to 20 users to access personalised dental unit software settings using the supplied bracelet.
• Optional voice control supports hands-free activation of micromotor or scaler modes, operating light adjustment, programmed chair movements, and timer functions.
• Integrated endodontic system includes micromotor control, endodontic file database, torque and speed settings, Autostop, Autoreverse, Autoforward, and optional apex locator support.
• Apex locator integration displays apex distance during root canal instrumentation, with Apex-Stop function interrupting micromotor rotation when the apex is reached.
• Reciprocating mode compatibility supports commonly used reciprocating endodontic file systems such as RECIPROC®, RECIPROC BLUE®, and WAVEONE GOLD®.
• Integrated implantology module option combines brushless micromotor, peristaltic pump, and surgical contra-angle control through the Full Touch panel.
• Implant torque documentation allows torque curves to be monitored and exported in CSV, PDF, or PNG formats for records, assessment, or clinical documentation.
• i-MMs micromotor option delivers up to 70 Ncm torque when paired with the EVO R20L contra-angle, supporting implantology applications.
• Micromotor options include i-MMr and i-MMs, with LED lighting and speed range from 100 to 40,000 rpm for conservative, endodontic, and surgical workflows.
• Optional FIT fluorescence technology uses UV LED light in the micromotor to help identify composite materials during restorative, orthodontic, and aesthetic procedures.
• Venus LED MCT operating light option offers adjustable intensity up to 50,000 Lux, multiple colour temperatures, high colour fidelity, and curing-safe lighting mode.
• Optional Venus LED MCT View integrates a 4K camera into the operating light for clinical image capture, video recording, zoom, Smart Focus, and patient communication.
• Integrated multimedia support allows HD intraoral camera images and digital X-ray images to be displayed on the Multimedia control panel, monitor, or external PC.
• Anthos Connect with Di.V.A. enables remote assistance, usage monitoring, instrumentation tracking, disinfection cycle records, and access to model-specific tutorials and manuals.
• Advanced hygiene systems include W.H.E., BIOSTER, FLUSHING, A.C.V.S., S.H.S., and O.D.R. options for waterline safety, suction disinfection, spray circuit cleaning, and contamination control.

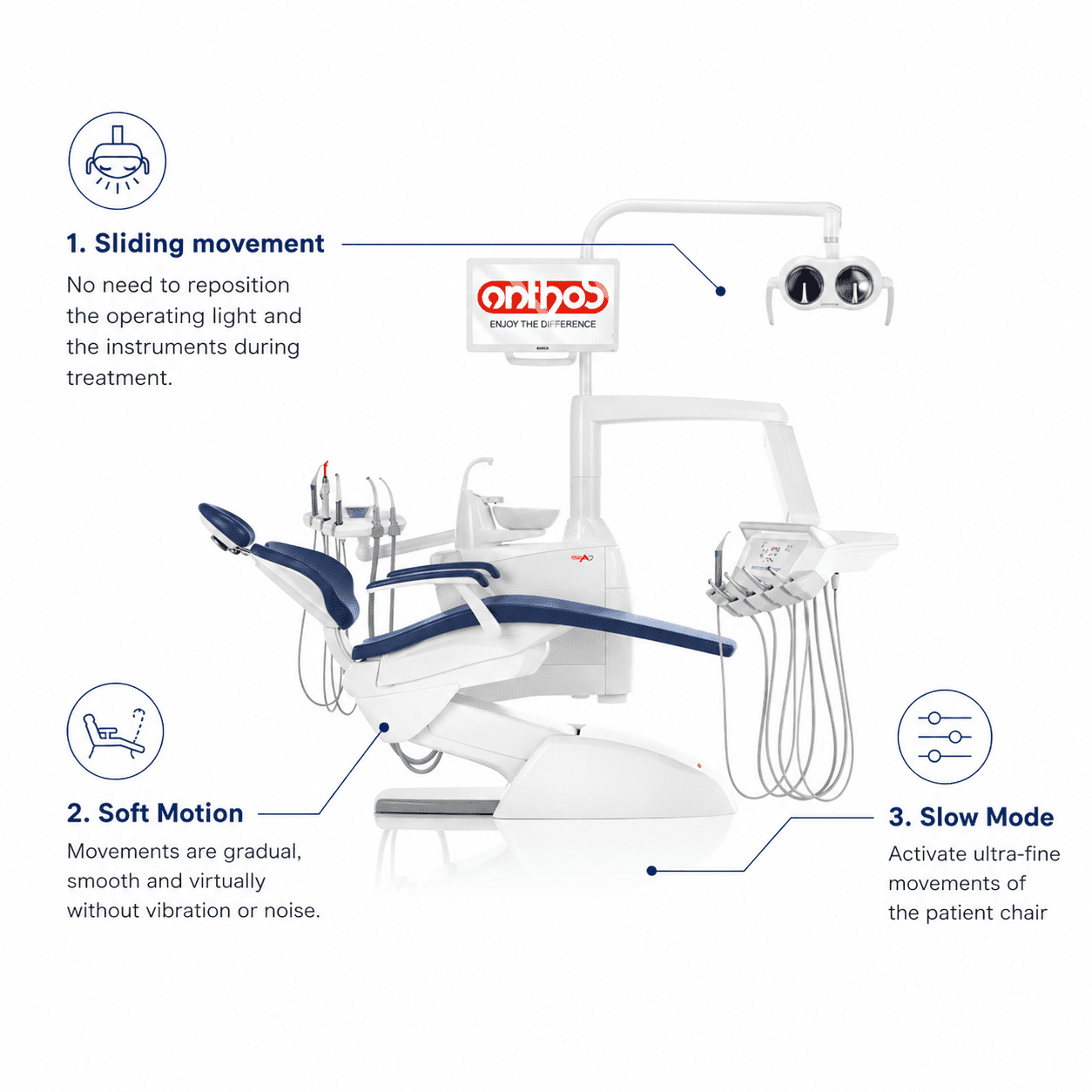

• Sliding patient chair movement synchronises the backrest with forward seat shift to preserve the working zone setup and improve comfort for the patient and clinician.
• Soft Motion technology option provides smooth, gradual chair start-stop movement with reduced vibration and noise for a calmer patient experience.
• Slow Mode option allows very fine chair positioning, especially useful during implantology procedures or microscope-assisted dentistry.
• Customisable upholstery and unit body aesthetics include 19 upholstery colour options, optional Memory Foam padding, and unit body colour variants.

• Unit Type: Integrated dental treatment unit
• Delivery System: International hanging-hose instrument module
• Control Panel: 7″ Full Touch HD multitouch panel
• Maximum Dental Unit Weight: 110 kg
• Maximum Chair Capacity: 190 kg
• Rated Voltage: 220–240 V~ / 100–120 V~
• Rated Frequency: 50/60 Hz
• Power Absorbed Max.: 2,400 VA
• Rated Current: 10 A at 220–240 V~ / 15 A at 100–120 V~
• Air Supply Pressure: 6–8 bar
• Water Supply Pressure: 3–5 bar
• Drain Connection: Ø40 mm
• Suction Connection: Ø40 mm
• Minimum Suction Vacuum: 65 mbar
• Micromotor Speed Range: 100–40,000 rpm
• Micromotor Torque: i-MMr: 3.3 Ncm; i-MMs: 5.3 Ncm
• Implantology Torque: Up to 70 Ncm with i-MMs + EVO R20L
• Operating Light Intensity: Up to 50,000 Lux
• Colour Temperature: 4,300 K / 5,000 K / 5,500 K
• Upholstery Options: 19 colour options

• Main Unit
• Foot Control
• Cuspidor Unit
• Operating Light
• Instrumentation
• Instructions Manual

• 2 Year warranty against all parts of the product under normal operating conditions.
• Physical damage is not covered under warranty in any case.

Q1. What type of dental chair is the Anthos A7 Plus?
The Anthos A7 Plus is an advanced integrated dental chair designed for modern clinical workflows. It combines ergonomic chair movement, intuitive touch control, integrated instrumentation, hygiene systems, and optional multimedia, endodontic, and implantology modules.

Q2. Is the Anthos A7 Plus suitable for endodontic procedures?
Yes. The chair can be configured with an integrated endodontic system that supports torque and speed control, endodontic file settings, Autostop, Autoreverse, Autoforward, reciprocating mode, and optional apex locator integration.

Q3. Can the Anthos A7 Plus be used for implantology?
Yes. With the optional implantology module, the chair integrates a brushless micromotor, peristaltic pump, and surgical contra-angle control through the Full Touch panel. The i-MMs micromotor with EVO R20L contra-angle can deliver up to 70 Ncm torque.

Q4. Does the Anthos A7 Plus support implant torque documentation?
Yes. The system can monitor torque curves and export treatment data in CSV, PDF, or PNG formats. This helps clinicians maintain surgical documentation, review torque performance, and support treatment records.
