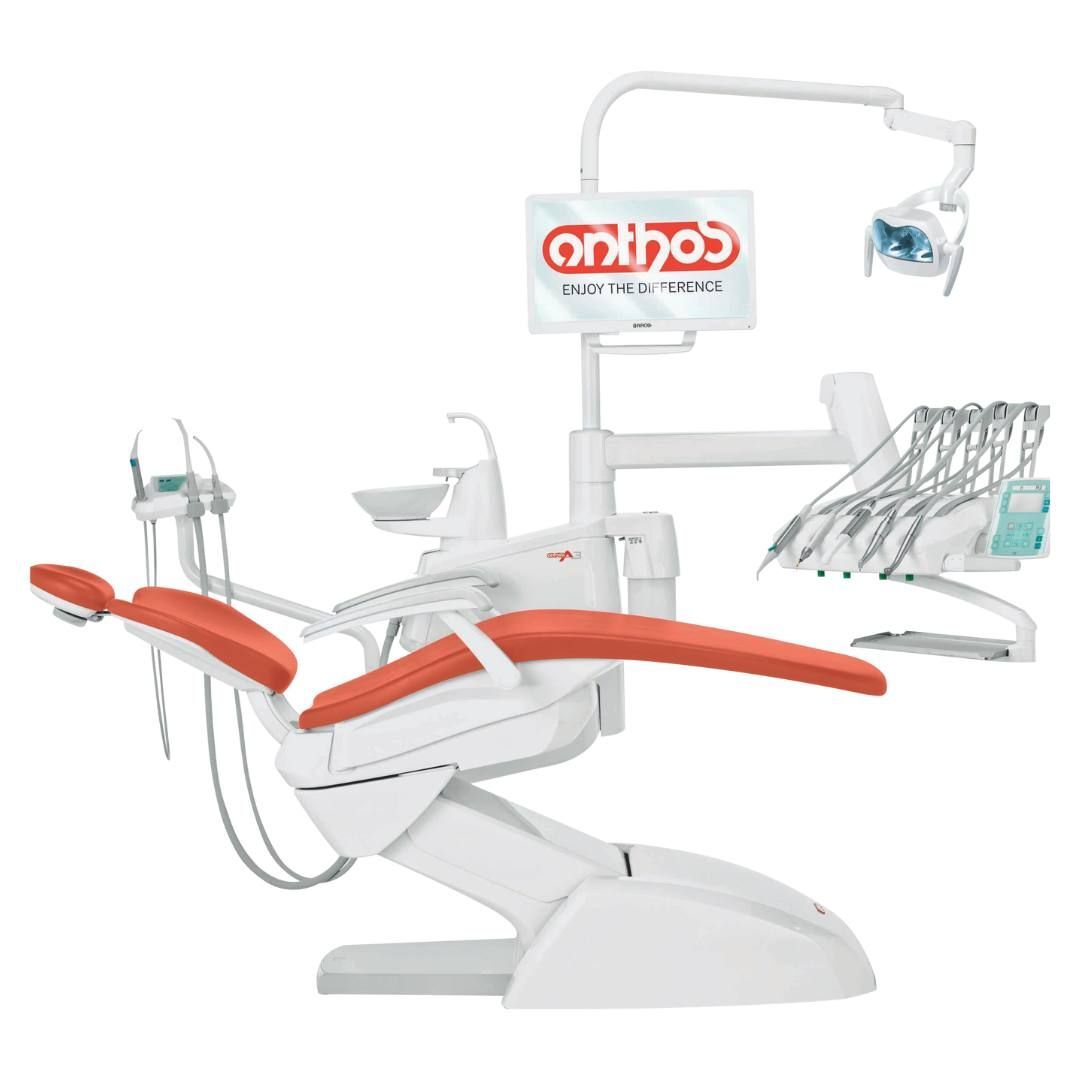

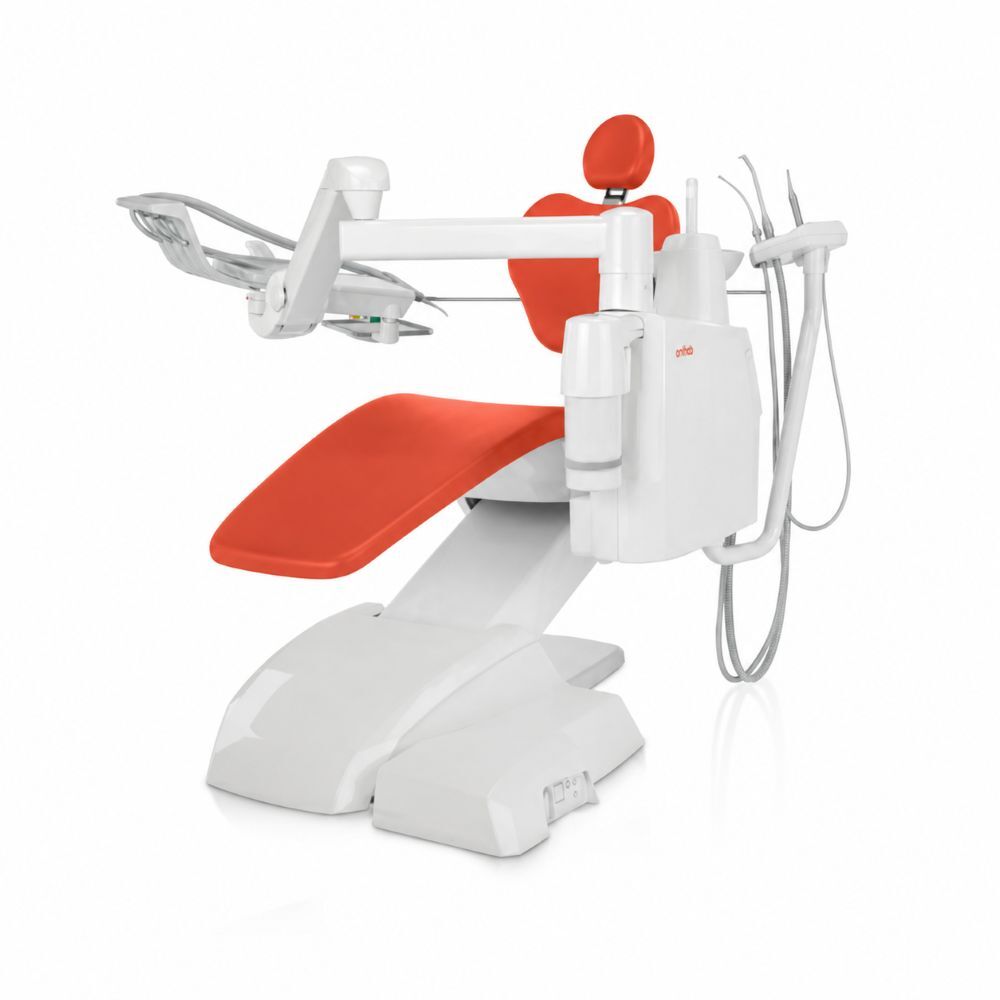

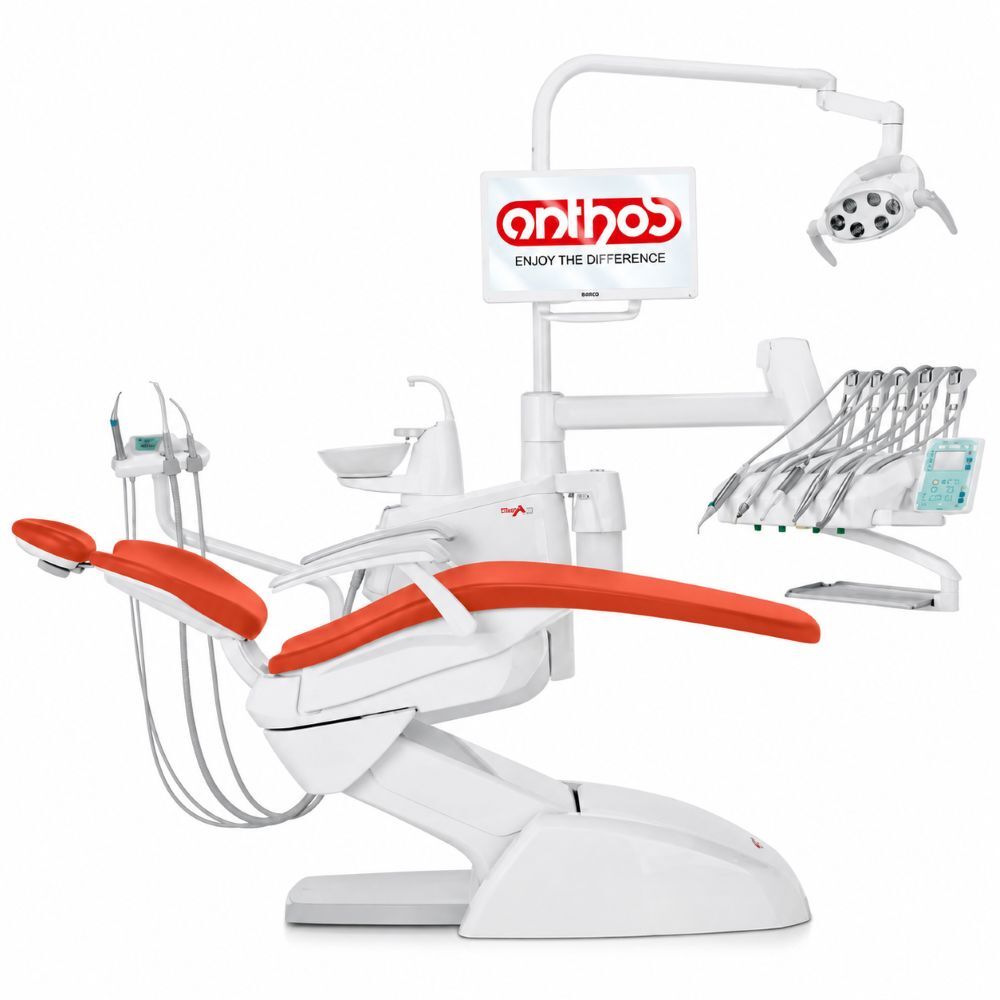

Anthos A3 Plus Dental Chair

• Smart hanging-hose instrument layout allows clinicians to access handpieces easily from multiple operating positions, improving day-to-day ergonomic usability.
• Digit control panel with alphanumeric display provides quick access to instrument settings, chair movements, integrated devices, and disinfection cycle status.
• Capacitive glass control surface is easy to clean and disinfect, with a Clean function that disables the control panel during surface cleaning to prevent accidental activation.
• Customisable instrument control lets the operator manage working modes and individual instrument parameters according to clinical preference.
• i-MMr micromotor support delivers a speed range of 100–40,000 rpm with 3.3 Ncm torque and optional LED lighting for improved operative visibility.
• Scaler compatibility supports LED or non-LED scaler handpieces and allows power adjustment for balancing scaling efficiency with patient comfort.
• Optional sixth instrument position allows integration of either an intraoral camera or curing light depending on the clinic’s workflow requirement.
• T-LED curing light compatibility supports latest-generation composite activation and includes multiple preset programs, including a bracket program for orthodontic use.
• C-U2 HD intraoral camera option features glass optics, LED light diffuser, HD 16:9 image capture, and a touch key for convenient freeze-frame use.
• Optional FLUO micromotor function uses UV LED light to highlight composite material, supporting restorative, aesthetic, and orthodontic composite identification.
• Patient chair lifting capacity up to 190 kg supports a wide patient range while maintaining stable chair positioning during treatment.

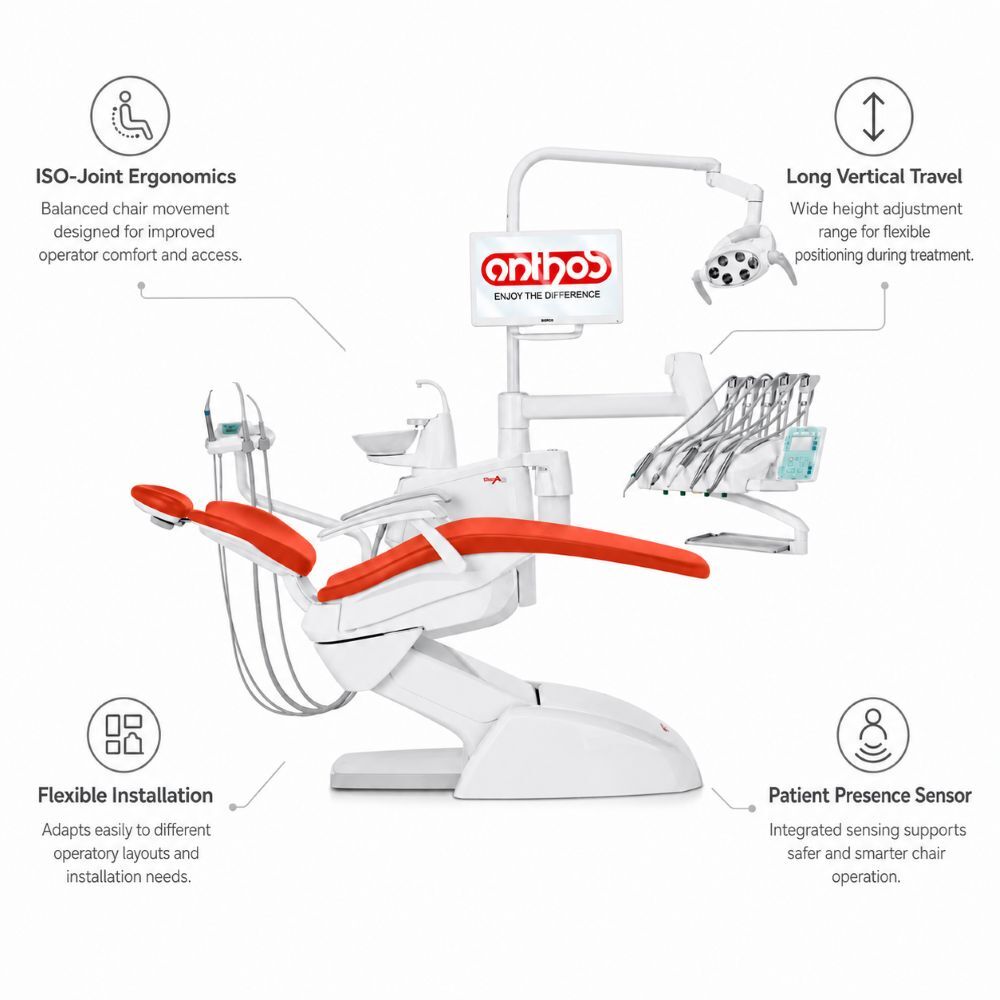

• ISO-JOINT ergonomics use compensated backrest-seat movement to improve patient comfort and minimise head movement during chair positioning.
• Long vertical travel from 37–80 cm helps clinicians work in comfortable seated or standing positions and improves chair access for elderly patients.
• Two backrest options — narrow and wide — allow clinics to select the configuration that best matches ergonomic access and patient comfort needs.
• Integrated hygiene options include W.H.E., BIOSTER, FLUSHING, S.H.S., and O.D.R. to support waterline safety, spray circuit cleaning, and contamination control.
• Multimedia and diagnostic options include C-U2 HD camera, Zen-X sensor, and 22″ LED monitor for chairside image sharing and patient communication.
• Anthos Connect with Di.V.A. enables remote assistance, usage monitoring, disinfection cycle tracking, instrumentation usage review, and access to model-specific tutorials and manuals.
• Flexible installation design offers two floor connection points, helping reduce adaptation work when replacing an existing dental chair.

• Unit Type: Integrated dental treatment unit
• Control Panel: Digit control panel with alphanumeric display
• Dental Unit Weight: 110 kg
• Dental Chair Weight: 105 kg
• Maximum Chair Capacity: 190 kg
• Chair Vertical Travel: 37–80 cm
• Rated Voltage: 220–240 V~ / 100–120 V~
• Rated Frequency: 50/60 Hz
• Maximum Power Absorbed: 2,400 VA
• Rated Current: 10 A at 220–240 V~ / 15 A at 100–120 V~
• Air Supply Pressure: 6–8 bar
• Water Supply Pressure: 3–5 bar
• Drain Connection: Ø40 mm
• Suction Connection: Ø40 mm
• Minimum Suction Vacuum: 65 mbar
• Suction Flow Rate: 450 L/min
• Micromotor: i-MMr, 3.3 Ncm
• Micromotor Speed Range: 100–40,000 rpm
• Scaler: LED / non-LED options
• Syringe: 3-way syringe
• Operating Light Options: Venus E-LED / Venus Plus SCT / Venus Plus SCT Composite
• Standard Light Intensity: Venus E-LED, 7,000–40,000 Lux
• Optional Light Intensity: Venus Plus SCT / Composite, 3,000–50,000 Lux
• Monitor Option: 22″ LED Full HD monitor, 16:9, 1920 × 1080 pixels
• Digital X-ray Sensor Option: Zen-X sensor, IP67-certified

• Main Unit
• Operating Light
• Foot Control
• Assistant’s Module
• Cuspidor Unit
• Instructions Manual

• 2 Year warranty against all parts of the product under normal operating conditions.
• Physical damage is not covered under warranty in any case.

Q1. What type of dental chair is the Anthos A3 Plus?
The Anthos A3 Plus is an integrated dental treatment unit designed for professional dental procedures across restorative dentistry, scaling, prophylaxis, diagnostics, endodontic workflows, and routine clinical practice.

Q2. Is the Anthos A3 Plus suitable for multi-speciality dental clinics?
Yes. The chair supports multiple instrument options, including micromotor, scaler, turbine connection, syringe, curing light, intraoral camera, and digital X-ray sensor integration. This makes it suitable for general dentistry, restorative procedures, prophylaxis, orthodontic support, and diagnostic communication.

Q3. What is the main advantage of the dentist’s module layout?
The dentist’s module is designed for easy handpiece access from different working positions. Its smart instrument arrangement improves visibility, accessibility, and chairside organisation during clinical procedures.

Q4. Does the Anthos A3 Plus support endodontic use?
Yes. The manual mentions endodontic operation mode with LCD Touch console compatibility, adjustable speed from 100–1200 rpm, torque adjustment from 0.1–5.0 Ncm, certified contra-angle settings, and support for apex locator use where configured.

Q5. What is the micromotor specification in the Anthos A3 Plus?
The chair supports the i-MMr micromotor with 3.3 Ncm torque and a speed range of 100–40,000 rpm. LED lighting is available as an optional configuration.
