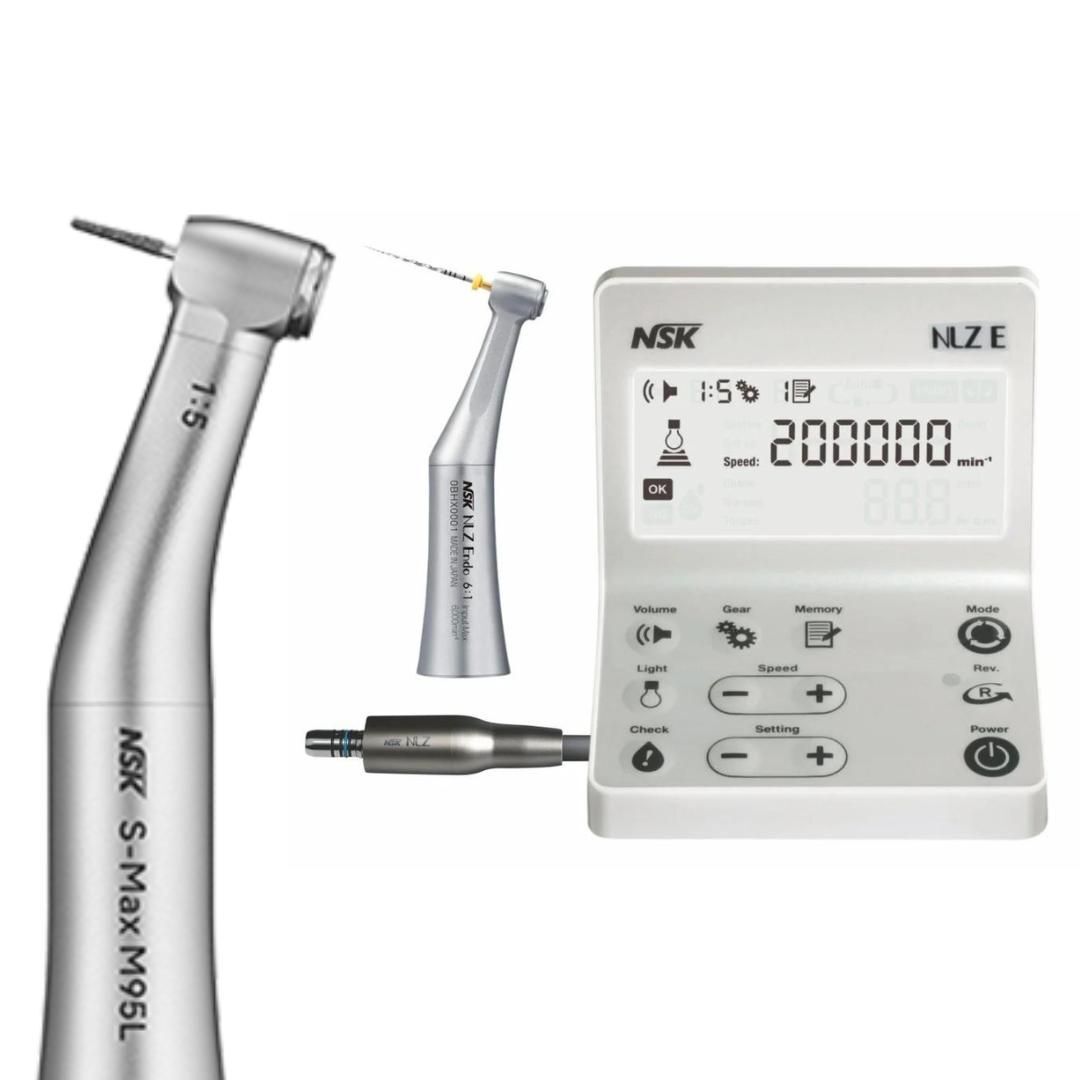

NSK NLZ – E Electric Micromotor (With Endodontic Function) with M95L & Endo Handpiece

• Flexible Installation Design ensures superior visibility, improved operability, and seamless integration into various dental unit setups.
• Multiple Operational Modes – Regular, Endo, and Reciprocating modes allow smooth transition between restorative and endodontic procedures.
• Dual Functionality supports both Crown Cutting and Endodontic Treatment, streamlining workflow with a single integrated system.
• Reciprocating Mode Compatibility with NLZ Endo (6:1) gear head handpiece enhances precision and control during complex root canal procedures.
• Contra-Check Function detects abnormalities caused by electric attachment deterioration, ensuring equipment reliability and operational safety.
• Contra-Safe Protection System automatically stops motor operation in case of excessive heat, preventing overheating and protecting patient and device.
• Built-in Microfilters in the tubing connector trap debris and foreign particles, reducing clogging and maintaining optimal water flow.
• Simplified Pipe Configuration minimizes internal water blockage risks, improving long-term durability and consistent clinical performance.

• Type: Brushless
• Speed Range: 100 – 40,000 rpm (up to 200,000 rpm with 1:5 handpiece)
• Torque Range: 0.3 – 6.0 Ncm (max torque 4.2 Ncm in general mode)
• Modes: Regular, Endo, and Reciprocating with 6 program settings
• Regular Mode:
  1. Handpieces with both 1:1 and 1:5 gear ratios can be used
  2. When using a 1:5 gear ratio handpiece, the speed can be increased up to 200,000 rpm
  3. When using a 1:1 gear ratio handpiece, the speed range changes to 100 – 40,000 rpm
• Endo Mode:
  1. Only a handpiece with a 1:1 gear ratio can be used
  2. Speed range: 100 – 6,000 rpm
• Reciprocating Mode:
  1. In endo mode, torque can be adjusted, and auto-reverse mode is activated
  2. A separate handpiece NLZ E with gear ratio 6:1 must be connected for reciprocating mode
  3. The NLZ has a reciprocating function, allowing work in reciprocating mode (150:30)

• NLZ E U Control Unit & Main Unit
• NE180 AC Adaptor
• NLZ Motor Brushless Electric Micromotor
• NLZ CD Motor Cord
• NLZ U Bracket (Mounting Bracket for Secure Installation)
• NSK S-Max M95L Contra Angle Handpiece
•  NSK NLZ Endo Handpiece

This product is self-installable; technician support is available on a paid basis if required.

• 1 Year warranty against all parts of the product under normal operating conditions.
• Physical damage is not covered under warranty in any case.

1. What type of motor does the NLZ-E use?
The NLZ-E is powered by a high-performance brushless electric micromotor, delivering stable torque, smooth rotation, and consistent clinical performance.

2. Does the NLZ-E support endodontic procedures?
Yes. It features a dedicated Endodontic Mode with torque control and auto-reverse functionality for safe and precise root canal treatment.

3. What operational modes are available?
The system offers Regular Mode, Endo Mode, and Reciprocating Mode, allowing seamless transition between restorative and endodontic applications.

4. Can the NLZ-E be used for crown cutting?
Yes. It is designed for both crown preparation and endodontic treatment, providing dual clinical functionality in a single system.

5. Is reciprocating motion supported?
Yes. When paired with the NLZ Endo (6:1) gear head handpiece, the system enables reciprocating motion for enhanced precision in root canal procedures.
