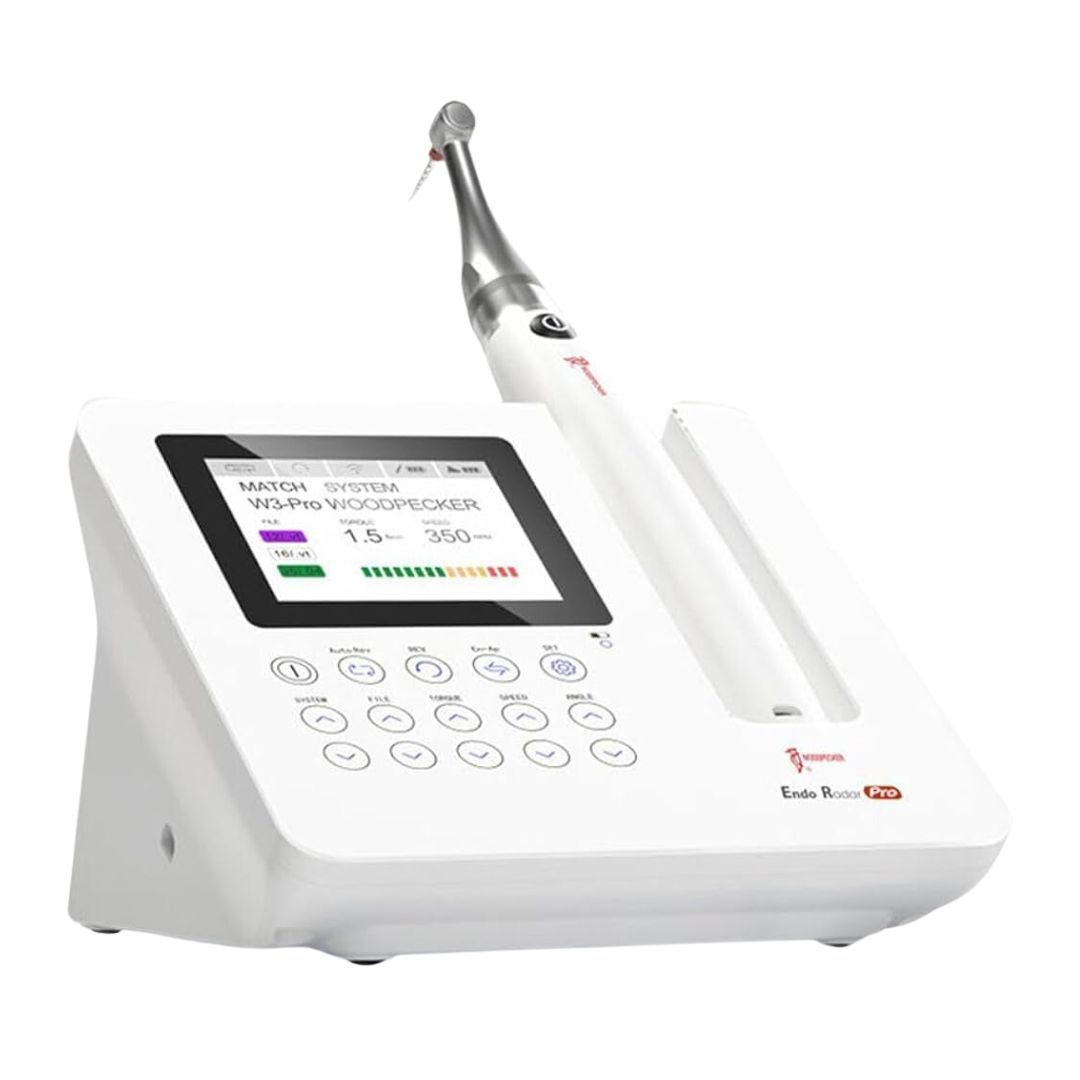

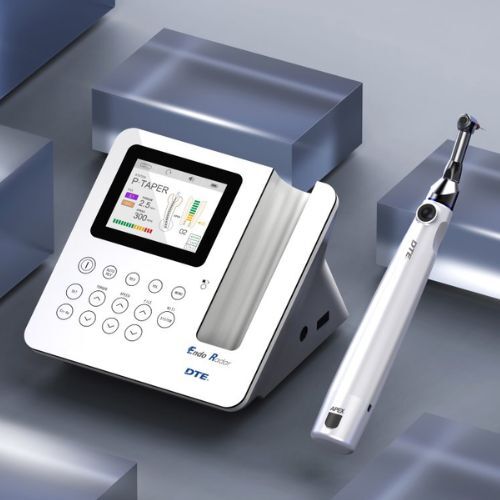

Woodpecker DTE Endo Radar Pro Brushless Endomotor with Built-in Apex Locator

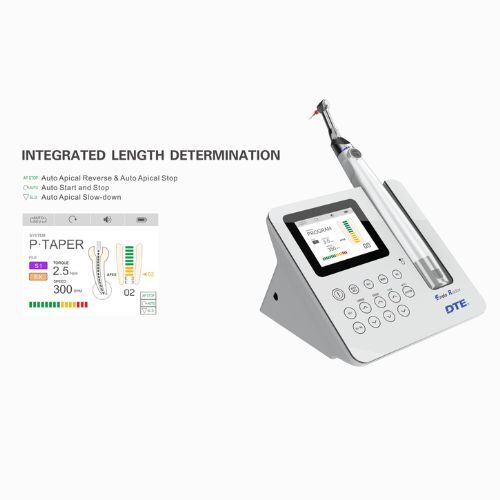

• 2-in-1 Endomotor with Built-in Apex Locator enables simultaneous canal preparation and real-time working length measurement

• Cordless & Portable Design offers better maneuverability and reduced operator fatigue

• High-Speed Performance up to 2500 rpm ensures faster and more efficient canal preparation

• Real-Time File Tip Monitoring allows canal enlargement while continuously tracking file position

• High-Performance Brushless Motor provides lower noise, smoother rotation, and longer service life

• ATR (Automatic Torque Reverse) Mode helps prevent file separation by reversing at preset torque

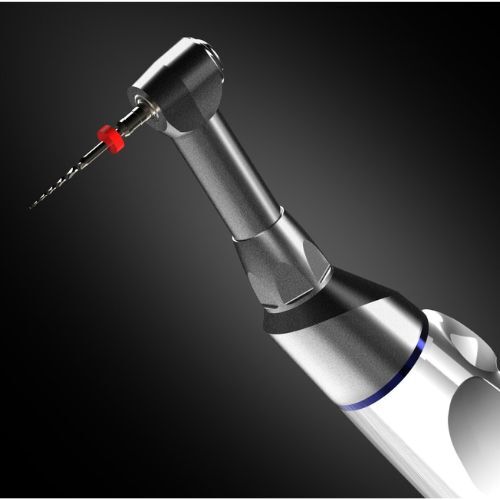

• 360° Rotatable 6:1 Contra-Angle improves access in posterior and difficult-to-reach areas

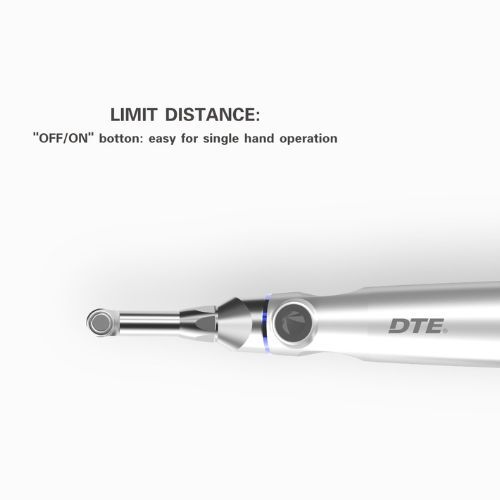

• Super Small Head & Slim Neck Design enhances visibility and clinical precision

• Wireless Charging Base with High-Capacity Battery ensures long-lasting and uninterrupted operation

• Wide Speed Range (100–2500 rpm) and Torque Range (0.4–5.0 N.cm) supports all major rotary file systems

• Gear Head Ratio: 6:1
• Torque range: 0.4 – 5.0 Ncm
• Speed Range: 100 – 1200 rpm
• Rotatable contra-angle: 360°
• Functions:
  1. Auto-start
  2. Auto Slow down
  3. Auto Reverse
• Built-in User Defined Modes: 11
• Contra-Angle Head Size: ⌀8mm X 9.7mm height

• Head Design: Super small head with slim neck

• Compatibility: Suitable for all file systems

• Base Unit (Apex Locator Unit)
• Motor Handpiece

• 6:1 Contra-Angle

• 4 × File Clip

• 2 × Lip Hook

• 2 × Touch Probe

• Measuring Wire
• Tester
• Charging Adapter
• Protective Silicone Cover
• Disposable Insulation Sleeves
• O Ring
• USB Wire
• Instructions Manual
• Package Dimensions (cm): 25 x 14 x 19

This product is self-installable; technician support is available on a paid basis if required.

• 1 Year warranty against all parts of the product under normal operating conditions.
• Physical damage is not covered under warranty in any case.

1. What is the primary use of Endo Radar Pro?
It is used for endodontic treatment, combining root canal preparation and working length measurement in a single device.

2. Can it measure canal length while shaping?
Yes, the built-in apex locator allows real-time file tip monitoring during canal enlargement.

3. What is the maximum speed of the device?
The motor operates from 100 to 2500 rpm, enabling efficient and faster canal preparation.

4. What is ATR mode?
ATR (Automatic Torque Reverse) automatically reverses the file when preset torque is reached, helping prevent file separation.

5. Is the device cordless?

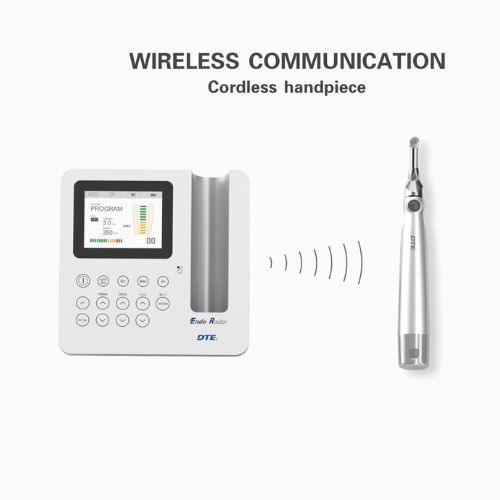

Yes, it features a cordless, portable handpiece with a wireless charging base for better mobility and convenience.

6. What is the torque range?
The adjustable torque range is 0.4–5.0 N.cm, suitable for various rotary file systems.

7. Is it compatible with all file systems?
Yes, it is compatible with most major rotary file systems available in the market.

8. Does the contra-angle rotate?
Yes, the 6:1 contra-angle rotates 360°, improving access in posterior and difficult areas.
