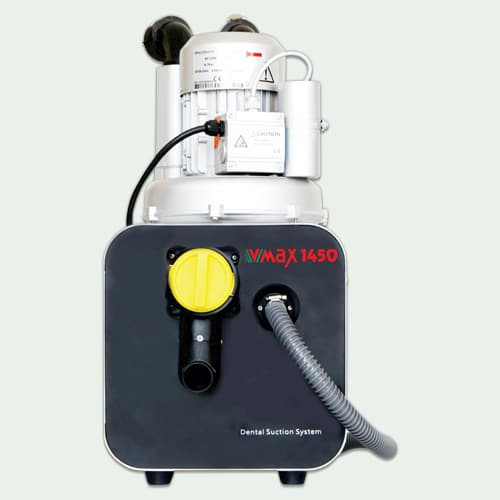

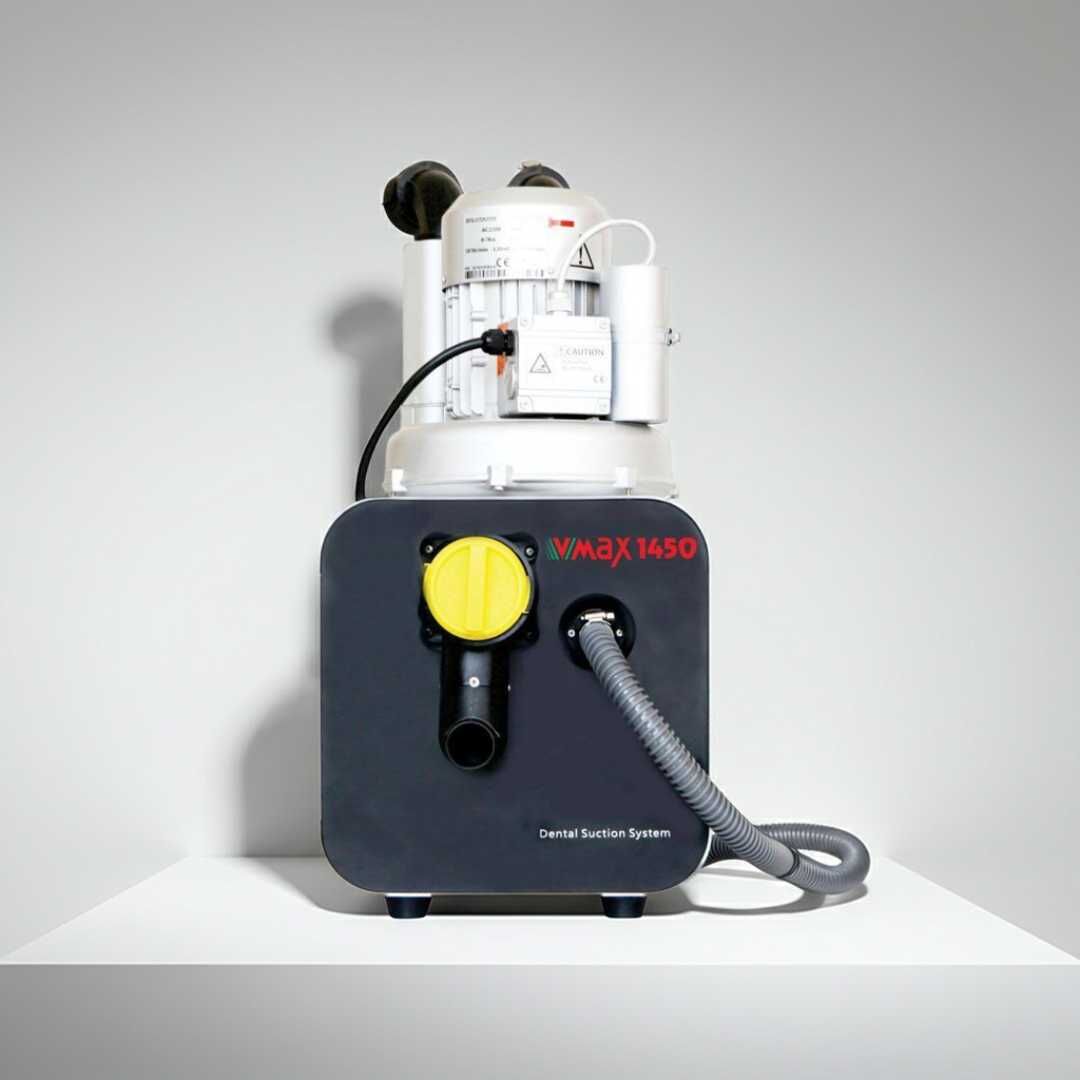

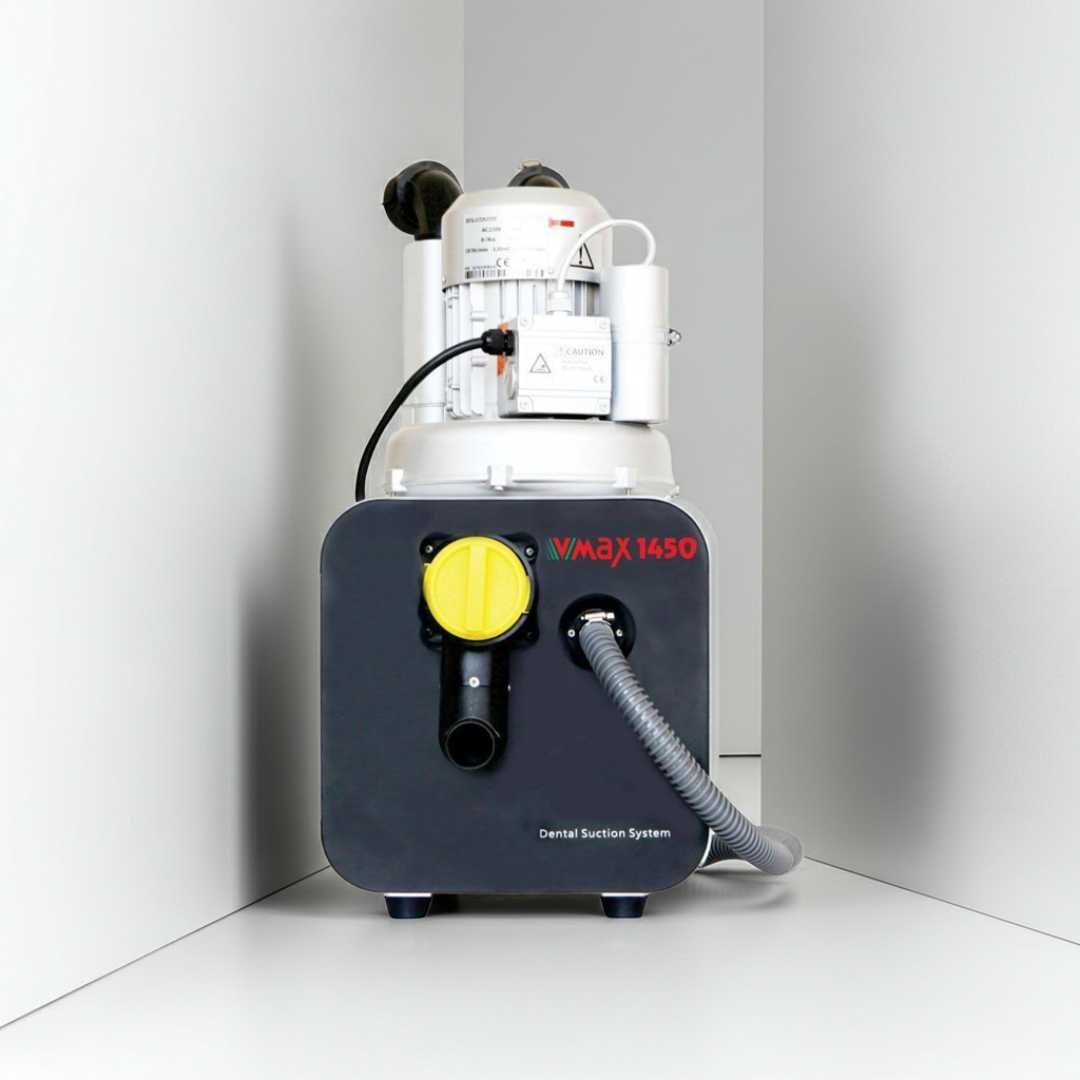

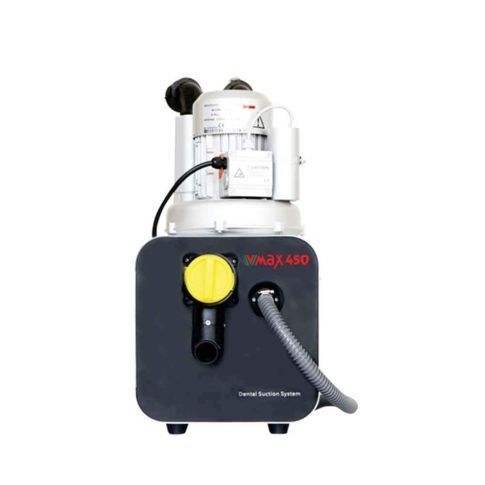

Vmax Wet Line Suction System

• High-performance wet line suction system designed for efficient evacuation of liquids and debris

• Powerful motor options ensuring reliable and consistent suction performance

• High pumping capacity for smooth operation in single and multi-chair setups

• Optimal vacuum levels for effective clinical suction during procedures

• Low noise operation for a comfortable and quiet clinical environment

• Suitable for small to large dental practices

• 0.88 HP Variant (Up to 2 Chairs)
  • Power: 0.88 HP
  • Maximum Pumping Capacity: 800 L/min
  • Vacuum Degree: -13 KPa
  • Suitable for: Up to 2 Chairs

• 2 HP Variant (Up to 4 Chairs)
  • Power: 2 HP
  • Maximum Pumping Capacity: 1100 L/min
  • Vacuum Degree: -21 to -24 KPa
  • Suitable for: Up to 4 Chairs
  • Noise Level: 57 to 62 dB

• 3 HP Variant (Up to 6 Chairs)
  • Power: 3 HP
  • Maximum Pumping Capacity: 1500 L/min
  • Vacuum Degree: -22 to -25 KPa
  • Suitable for: Up to 6 Chairs
  • Noise Level: 58 to 62 dB

• Suction Unit
• Power Cord
• Drainpipe
• Instructions Manual

• 1 Year warranty against all parts of the product under normal operating conditions.
• Physical damage is not covered under warranty in any case.

Service charges is applicable if engineer will visit for installation.

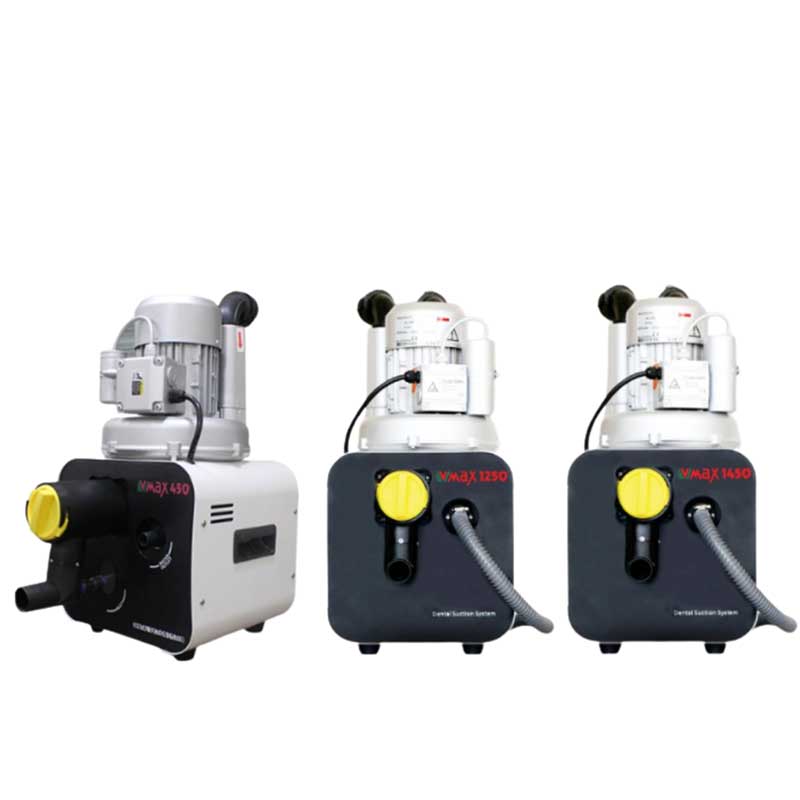

1. What motor options are available?
The system is available in 0.88 HP, 2 HP, and 3 HP variants to suit different clinic sizes and requirements.

2. How many dental chairs can it support?
Depending on the model selected, it can support up to 2 chairs (0.88 HP), 4 chairs (2 HP), or 6 chairs (3 HP).

3. What is the maximum pumping capacity?
The pumping capacity ranges from 800 L/min to 1500 L/min, depending on the selected motor variant.

4. What is the vacuum range of the system?
The vacuum degree ranges from -13 KPa to -25 KPa, ensuring effective suction of liquids and debris.

5. Is the system noisy during operation?
No, it operates at a low noise level of approximately 57–62 dB, maintaining a comfortable clinical environment.
