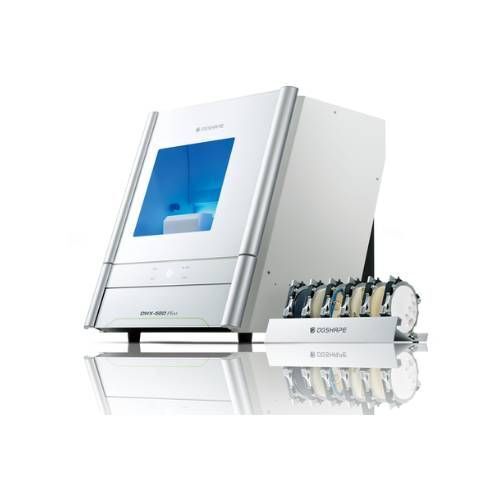

Roland DWX-52D Plus Dental Milling Machine

Efficient Milling Set-Up: A new Snap-In Clamp System for disc changing includes six material adapters and offers a fast and secure set-up—eliminating mounting errors and minimizing damage during disc insertion. With the Snap-In Clamp System, reinserted material adaptors keep discs indexed to their original position for production that requires secondary milling or two-stage processing. In addition, the DWX-52D Plus features built-in storage drawers and an included disc adapter rack to ensure a highly organized and efficient workspace. The Snap-In Clamp System enables multi-device adapter integration. The same material adapters can be used on the DWX-52D Plus, DWX-52DC and DWX-52DCi for a convenient and scalable milling solution.

Increased Milling Capabilities: The DWX-52D Plus provides continuous milling with a 15-station Automatic Tool Changer (ATC) and auto-adjusted air pressure that automatically switches to the right air volume in response to the CAM software material data. Other enhanced features include automatic dust collection when opening the front cover to keep dust away from your lab surfaces and support a clean and healthy environment.

Intelligent Tool Control: A feature of the simplified VPanel operation is an Intelligent Tool Control (ITC) function that instinctively swaps out tools directly from their position when they have reached their user-defined lifespan with a designated “partner tool” without needing to pause production. The ITC has been updated for the DWX-52D Plus to allow for user-defined setup– users can now assign burs in any figuration they want in the Automatic Tool Changer (ATC).

5-Axis Milling: A smooth and steady ball screw-driven system produces exceptional results. The DWX-52D Plus simultaneously rotates and tilts discs for deep undercuts— milling large arch restorations and other full-mouth prosthetics with ease.

User-replaceable Spindle: The DWX-52D Plus features a spindle that can be replaced in a matter of minutes, without needing to call out a technician. No special tools, testing or training is required.

Clean, Precise, and Flexible Milling Solution: Delivers high-quality results with adaptable milling options.

Simplified Operation: The DWX-52D Plus replaces the complicated controls associated with CNC milling with an intuitive Virtual Machine Panel (VPanel) that automatically swaps out used burs (ITC function), conducts machine diagnostics, and provides one-touch device calibration.

Automatic Cleaning: Automated cleaning feature for maintenance convenience.

Open Architecture: Load the included brush tool into the Automatic Tool Changer (ATC) and set-it-up to automatically sweep away zirconia dust and other debris for a cleaner milling surface. The DWX-52D Plus also features an internal auto-start dust collection system to maintain a clean machine, and an ionizer to reduce static when milling PMMA.

Highest Clinical Standards: The DWX-52D Plus doesn’t tie users to a specific software or proprietary control source. Users have the freedom to work with their choice of the latest CAD/CAM software, scanners and materials.

• Cuttable Material: Zirconia, Wax, PMMA, and more
• Workpiece Shape: Various dimensions and types
• Workpiece Weight: Up to 850 g
• Adapters: 6 housed

Operating Parameters:

• Operating Speed: 6 to 1,800 mm/min
• Spindle Motor: Brushless DC
• Spindle Speed: 6,000 to 30,000 rpm
• Rotary Axis Travel Angle: A axis ±360°, B axis ±30°
• Burs Housed: 15
• Attachable Bur: Specific dimensions
• Compressed Air: 0.05/0.2 MPa

Control and Interface:

• Interface: USB
• Control Command Set: RML-1, NC code

Power Requirements:

• Voltage: AC 100 V to 240 V
• Frequency: 50/60 Hz
• Power Consumption: Approx. 200 W

Operating Noise:

• Operating Noise: 70 dB(A) or less in operation

Dimensions and Weight:

• Dimensions (W x D x H): 495 x 660 x 600 mm
• Weight: 67 kg

Installation Environment:

• Specified temperature and humidity ranges

Included Items:

• Various tools and accessories

Operating System:

• Operating System: Windows 7/8/8.1/10
• USB Cable: Use included cable

Package Dimention in Inch : 19.5  x 26.0  x 23.6
