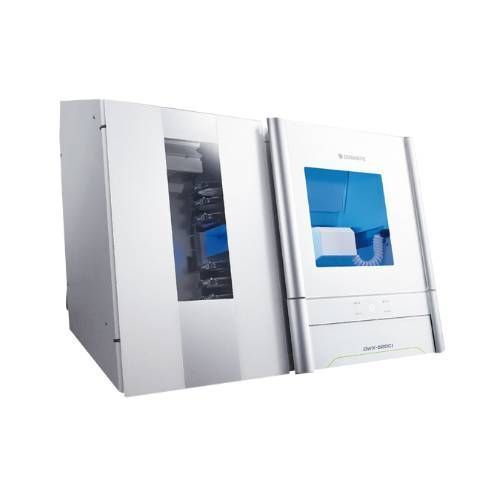

Roland DWX 52 DCi Dental Milling Machine

The Ultimate in 24-Hour Productivity: The ultimate in ease, material flexibility and unattended production, the DWX-52DCi Dental Mill expands your lab production with a 6-slot automatic disc changer (ADC), 15-station automatic tool changer, and other automated features. It gives users of all skill levels a powerful, efficient, and affordable dental restoration solution that now includes performance visualization software and other intelligent updates.

Mill Multiple Zirconia Shades, Day and Night: Increase productivity with a mill that continues working, even when your lab is closed. Load up-to six 98.5mm discs in the ADC and mill the following materials:
• Zirconia
• PMMA
• Gypsum
• PEEK
• Glass fiber-reinforced resin
• Composite resin
• CoCr sinter metal

Performance Software for Added Efficiency: New DWINDEX software enables users to analyze production results. It offers data gathering and comparison for tool operation, material operation, and more.

Production Made Easy with Automatic Milling: The DWX-52DCi features a 15-station Automatic Tool Changer (ATC) for continuous milling and auto-adjusted air pressure that automatically switches to the right air volume in response to the CAM software material data.

Even Simpler Operation with Intuitive VPanel Software: An upgraded Virtual Machine Panel (VPanel) automatically swaps out used burs (ITC function), conducts machine diagnostics, and offers one-touch machine calibration. New and improved features include user-defined ATC tool positioning, email notifications for maintenance and milling status, and machine management for up-to four DWX-52DCi units at once

Economical Open Architecture: The DWX-52DCi doesn’t tie users to specific software or proprietary control source. Users have the freedom to work with the latest CAD/CAM software, scanners and materials of their choice

Reliability and Support: DGSHAPE by Roland ensures that your machine is always up-and-running with a two-year warranty, plus the best support in the industry from a network of customer support representatives, dedicated dealers and certified service engineers.

• Cuttable Material: Zirconia, Wax, PMMA, and more
• Workpiece Weight: Up to 1.87 lbs (850 g)
• Workpiece Dimensions: Various sizes, max height 35mm
• Number of Adapters: 6 housed

Operating Parameters:

• Operating Speed: 6 to 1,800 mm/min
• Spindle Motor: Brushless DC
• Spindle Speed: 6,000 to 30,000 rpm
• Rotary Axis Travel Angle: A: ±360°, B: ±30°
• Burs Housed: 15
• Attachable Bur: 4 mm diameter, 40-55 mm length
• Compressed Air Compatibility: 0.2 MPa

Control and Interface:

• Interface: USB
• Control Command Set: RML-1, NC code

Power Requirements:

• Voltage: AC 100 V, 50/60 Hz
• Power Consumption: Approx. 200 W

Operating Noise:

• Operating Noise: 70 dB(A) during operation, 45 dB(A) in standby mode

Dimensions and Weight:

• Dimensions (W x D x H): 34.6 x 26.0 x 23.6 inches
• Weight: 231.5 lbs. (105 kg)

Installation Environment:

• Specific conditions outlined

Included Items:

• Various tools, software, accessories

Operating System:

• Operating System: Windows 7/8/8.1/10
