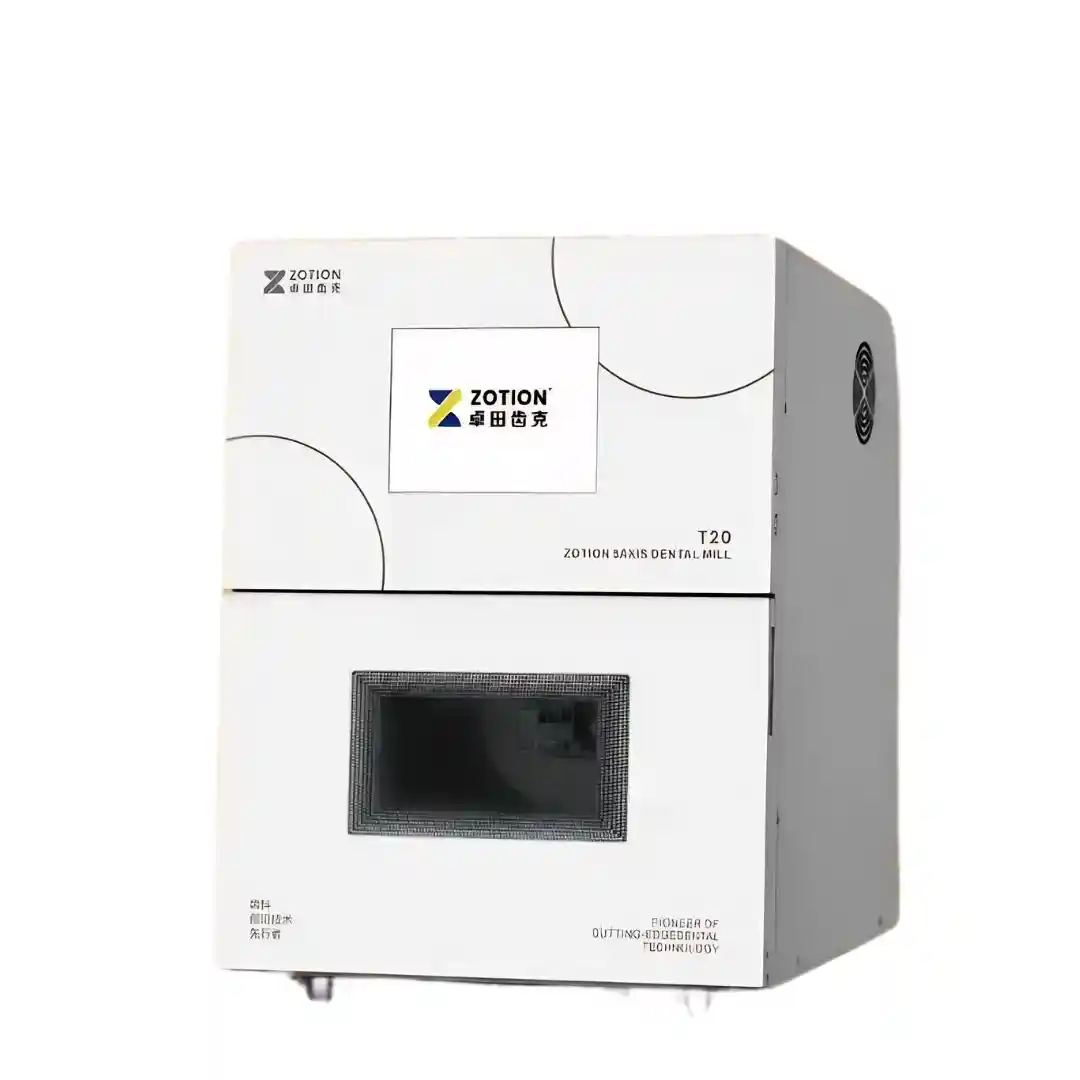

The Zotion T20 Dental Milling Machine is a powerful 5-axis wet and dry milling solution designed for modern dental labs that demand precision, speed, and versatility. Built to handle a wide range of dental materials, it features automatic calibration, intelligent tool management, air-cooled spindle performance, and reliable power-off recovery for uninterrupted productivity and consistent restoration quality.
Estimated delivery:3 - 7 days
Key features
- 5-axis milling system for precise and complex dental restorations
- Supports zirconia, PMMA, wax, PEEK, glass ceramic, and pre-milled abutments
- Automatic calibration system for stable and accurate milling performance
- Air-cooled spindle ensures efficient operation and longer service life
- High spindle speed range from 6000 to 60000 RPM
- Automatic tool changer with 12-tool capacity for seamless workflow
- Intelligent tool lifetime monitoring reduces manual tracking
- Power-off recovery resumes milling from the exact interruption point
- Quiet operation for a more comfortable lab environment
- Compact and lightweight design fits easily into modern dental labs
Technical Specification
- Axis Type: 5-axis
- Milling Materials: Zirconia, PMMA, Wax, PEEK, Glass Ceramic, Pre-milled Abutment
- Rotation Range: A axis ±360°, B axis +25° to -135°
- Spindle Speed: 6000–60000 RPM
- Cooling System: Air Cooling
- Tool Changing: Automatic Tool Changer with 12 tools
- Tool Size: Ø4 × 56 mm shank diameter
- Control Code: NC Code
- Power Input: 220V ±10%, 50/60 Hz
- Spindle Power: 850W
- Running Speed: Z axis 4000 mm/min, XY axis 6000 mm/min
- Working Noise: <45 dB standby, <70 dB milling
- Machine Dimensions: 420 mm × 540 mm × 500 mm
- Machine Weight: 50 kg
- Power-Off Protection: Yes
- Software Interface: User-friendly with calibration memory
Packaging
- Zotion T20 5-Axis Milling Machine
Warranty
- 1 Year warranty against all parts of the product under normal operating conditions.
- Physical damage is not covered under warranty in any case.
FAqs
1. What is the Zotion T20 Dental Milling Machine used for?
It is used for precision dry milling of dental restorations in modern digital dental labs.
2. Which materials can the Zotion T20 mill?
It can mill zirconia, PMMA, wax, PEEK, glass ceramic, and pre-milled abutments.
3. Does the Zotion T20 have automatic tool changing?
Yes, it includes an automatic tool changer with space for 12 tools.
4. What happens if there is a power interruption during milling?
The machine has power-off recovery and can resume work from the exact point where it stopped.
5. Is the Zotion T20 suitable for compact dental labs?
Yes, its compact footprint and 50 kg weight make it suitable for labs with limited space.
