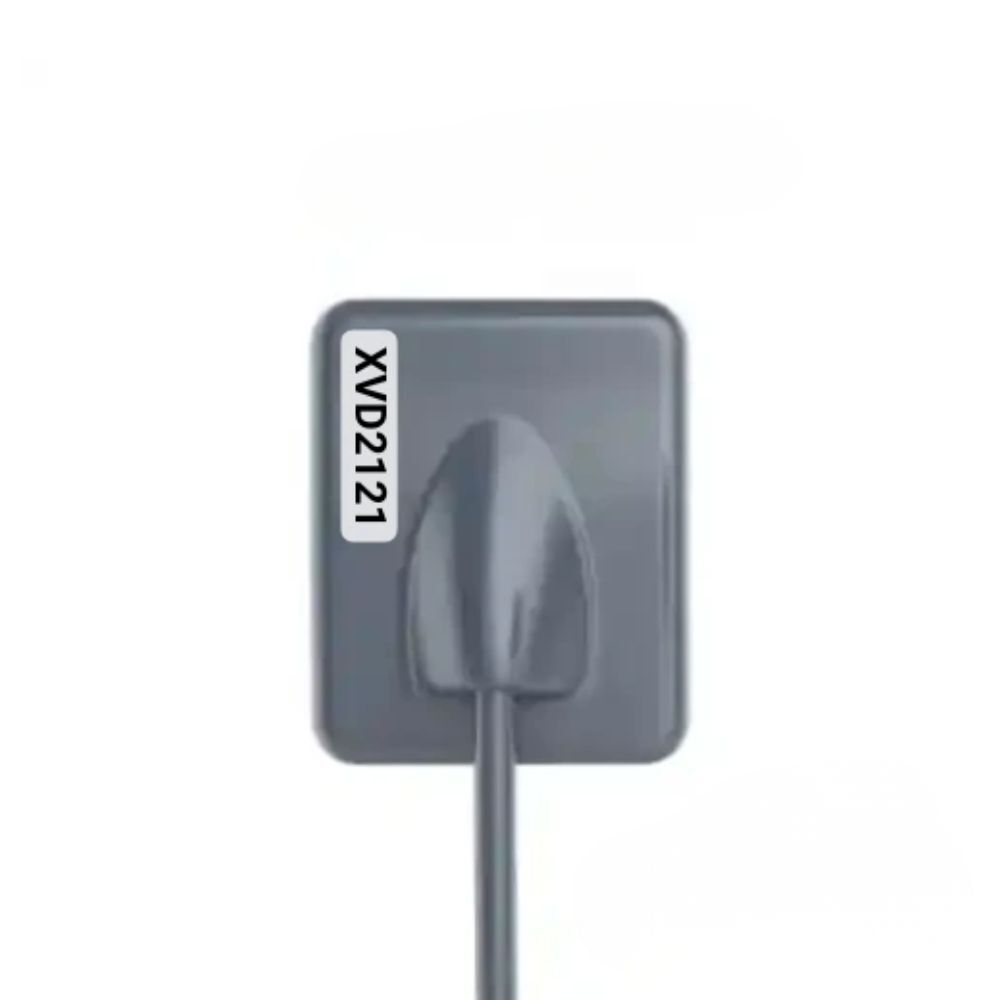

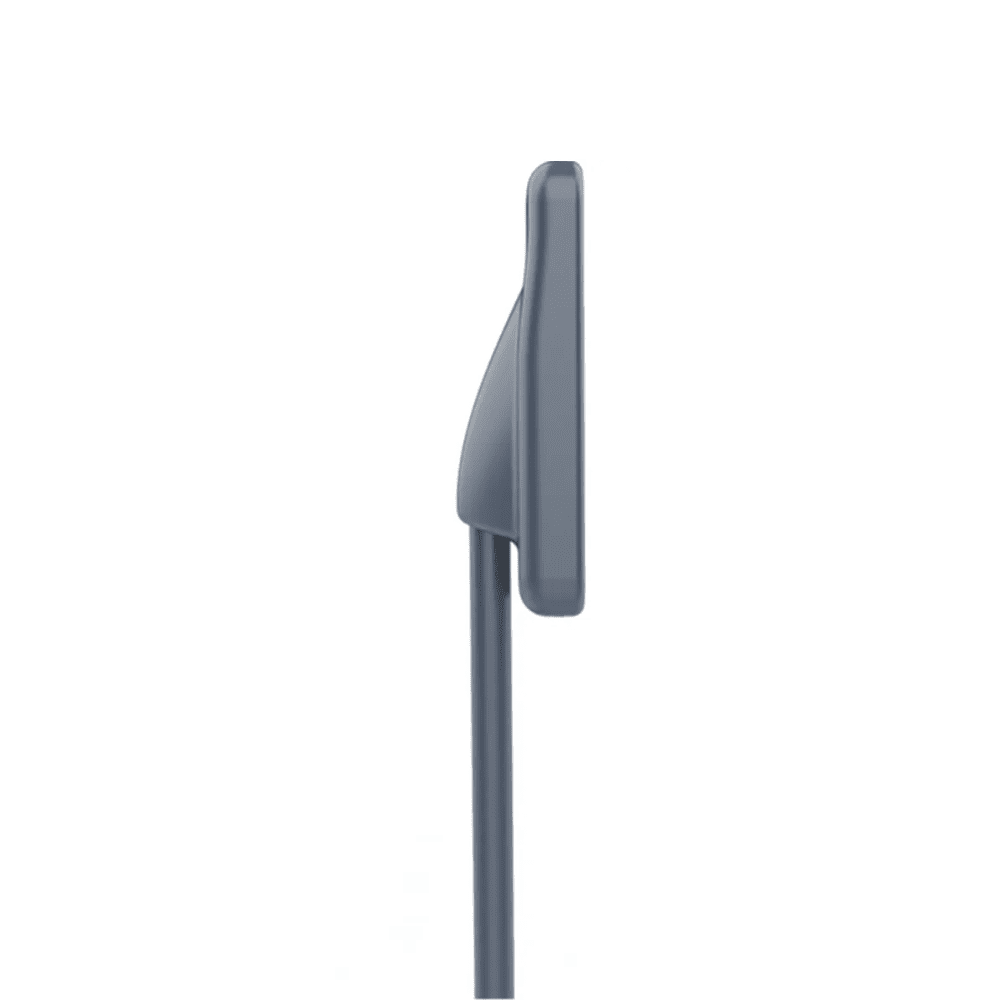

Xpect Vision RVG Sensor for Digital Dental X-Ray Imaging – Size 1

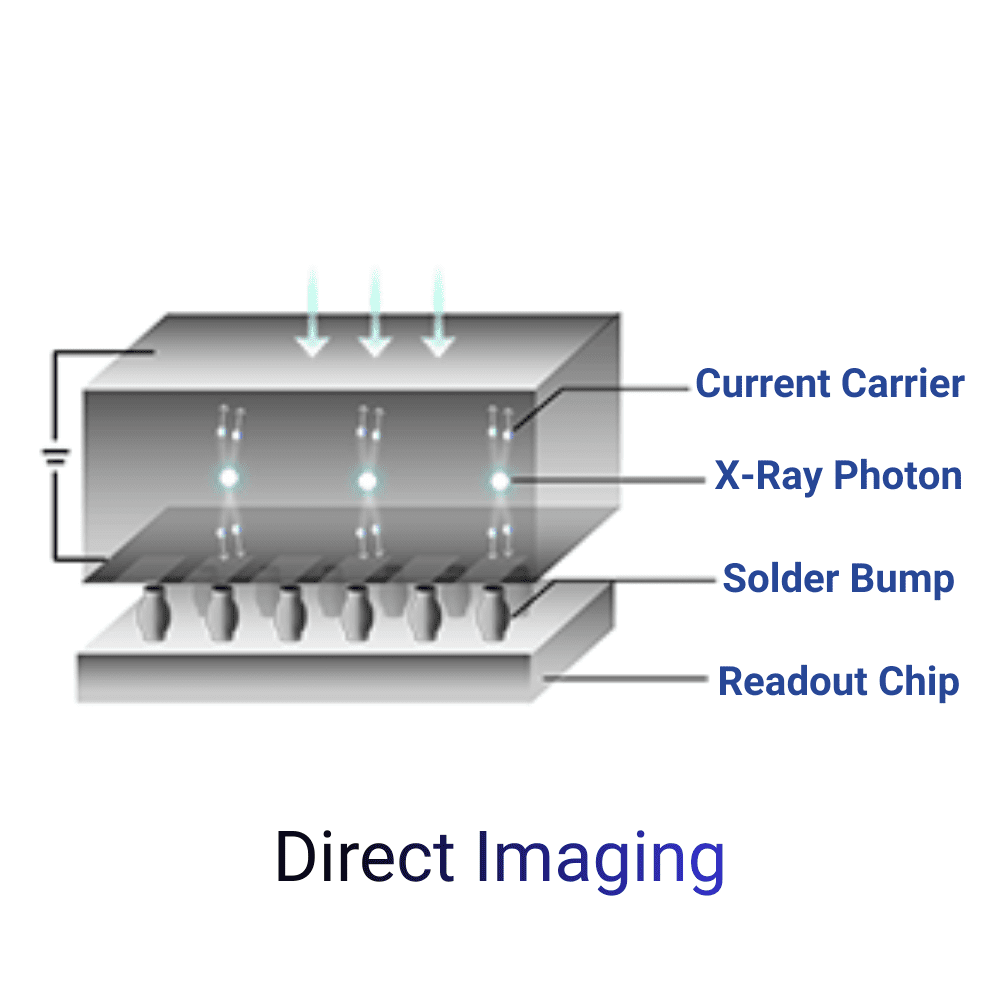

• Advanced photon-counting technology enables direct imaging, eliminating light scattering seen in conventional indirect sensors for clearer and more stable images.

• A broad dynamic range reduces the need for repeated exposure adjustments while ensuring consistent clinical image quality.

• Allows easy adjustment of contrast and brightness to meet different clinical diagnostic requirements.

• Uses silica-based chips instead of traditional cesium iodide, preventing image blurring and ensuring long-term performance stability.

• Tested for over 500,000 exposures and 100,000+ cable bending cycles, ensuring reliable performance in busy dental clinics.

• A shock-resistant and waterproof casing protects the sensor from impacts, moisture, and daily clinical wear.

• One of the thinnest intraoral X-ray sensors, designed for easy placement and improved patient comfort.

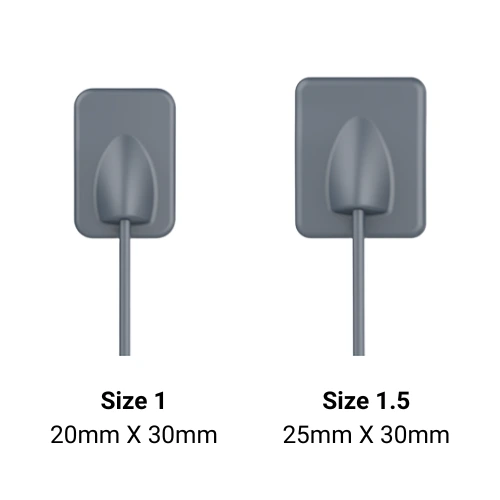

• Available in two sizes for adults and pediatric patients, meeting different clinical imaging requirements.

• Compatible with sensor positioners for accurate placement, helping reduce patient discomfort and improve diagnostic efficiency.

• Sensor Size: Size 1
• Technology: Photon-Counting Direct Conversion
• Dynamic Range / Grayscale: 16-bit
• Actual Resolution: 14–16 lp/mm
• Effective Imaging Area: 20 × 30 mm
• Sensor Dimensions: 26.5 × 41.3 mm
• Sensor Thickness: 6 mm
• Image Capture Time: ~3 seconds
• Image Formats Supported: BMP, DIR, DCM, JPEG, PNG, TIFF
• Connection Type: USB 2.0
• Cable Length: 3 meters (extendable)

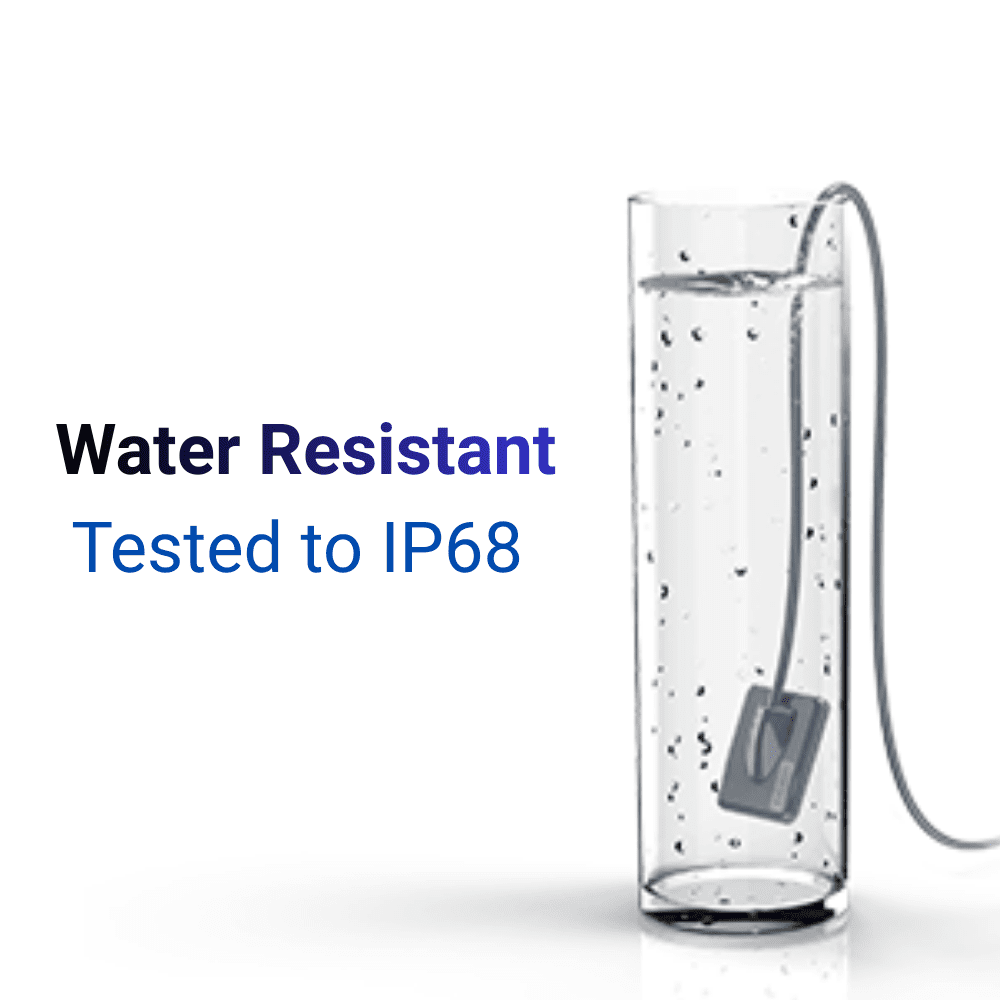

• Waterproof Rating: IP68
• Operating System Support: Windows 7, 8, and 10
• Installation: Self-installable

• Xpect Vision RVG Sensor – Size 1.5
• Instruction Manual

This product is self-installable; technician support is available on a paid basis if required.

• Manufacturer/Importer warranty of 5 Years as applicable for this product.
• Service and Warranty are handled by the manufacturer/importer directly for this product.

Q1: What makes Xpect Vision India’s most loved intraoral sensor?
A: It combines high-resolution imaging, AI-enhanced diagnostics, and durability trusted by thousands of clinics across the country.

Q2: How does the AI technology help dentists?
A: It offers smarter diagnostics, sharper images, faster reporting, and clearer patient communication—all powered by intelligent imaging algorithms.

Q3: Is it suitable for busy dental practices?
A: Absolutely. It is engineered for demanding workflows with quick processing, high durability, and seamless software performance.

Q4: Can it be installed easily?
A: Yes, the sensor is plug-and-play with self-installation support. Paid technician setup is also available if needed.

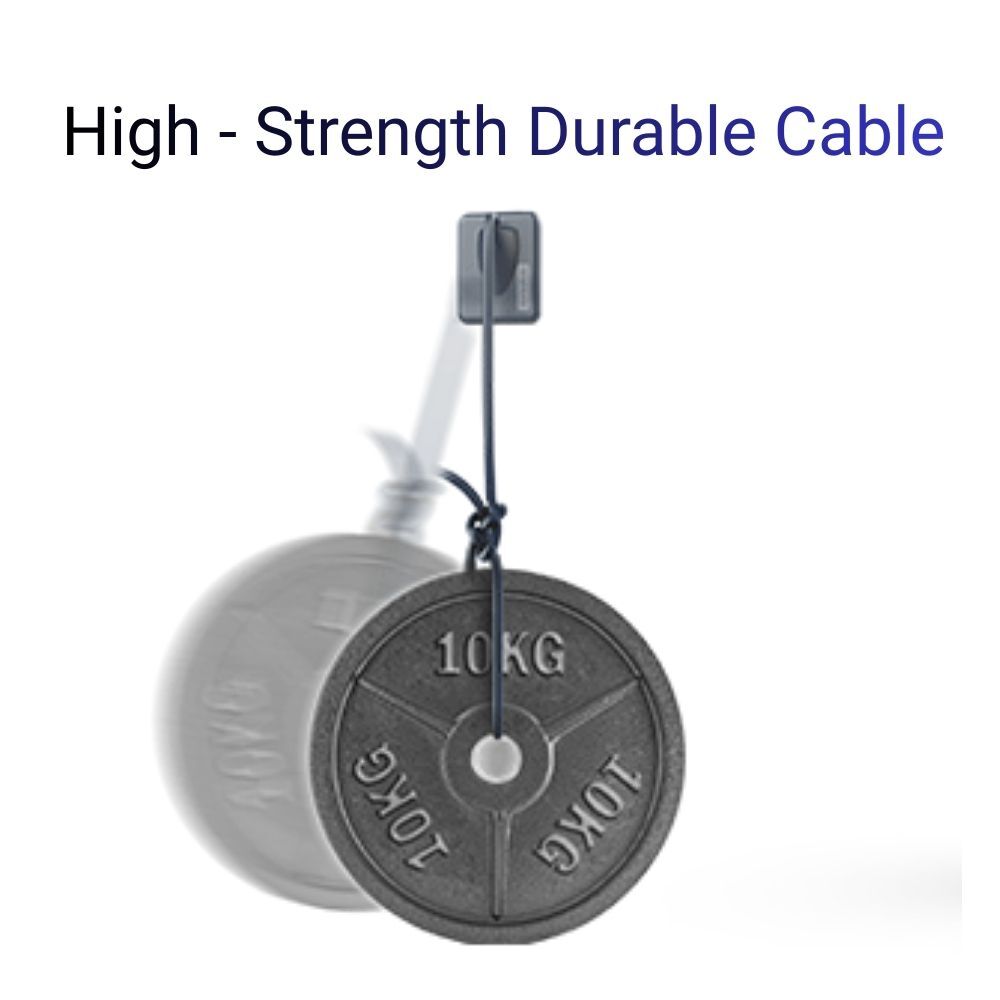

Q5: Is the cable prone to wear and tear?
A: Not at all. It features a reinforced cable tested for high durability in long-term use.
