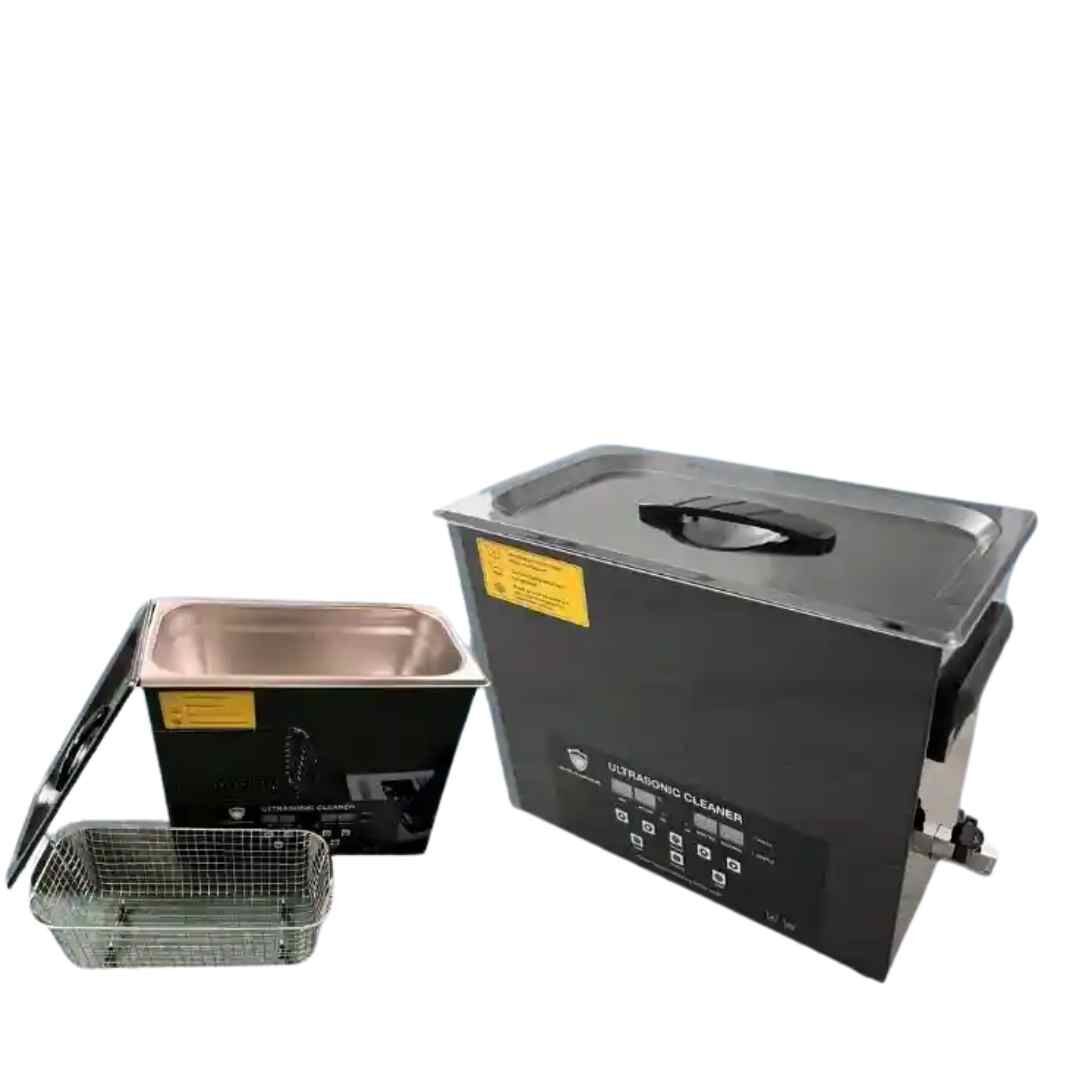

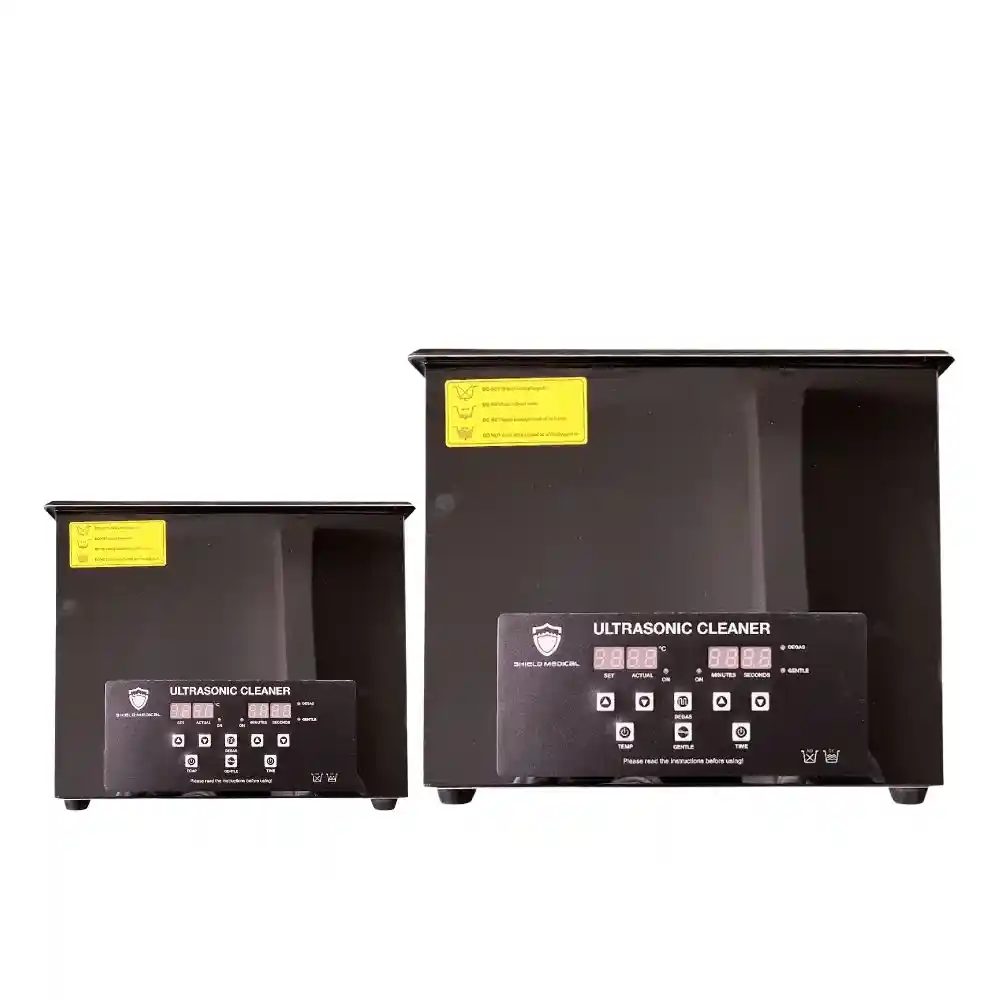

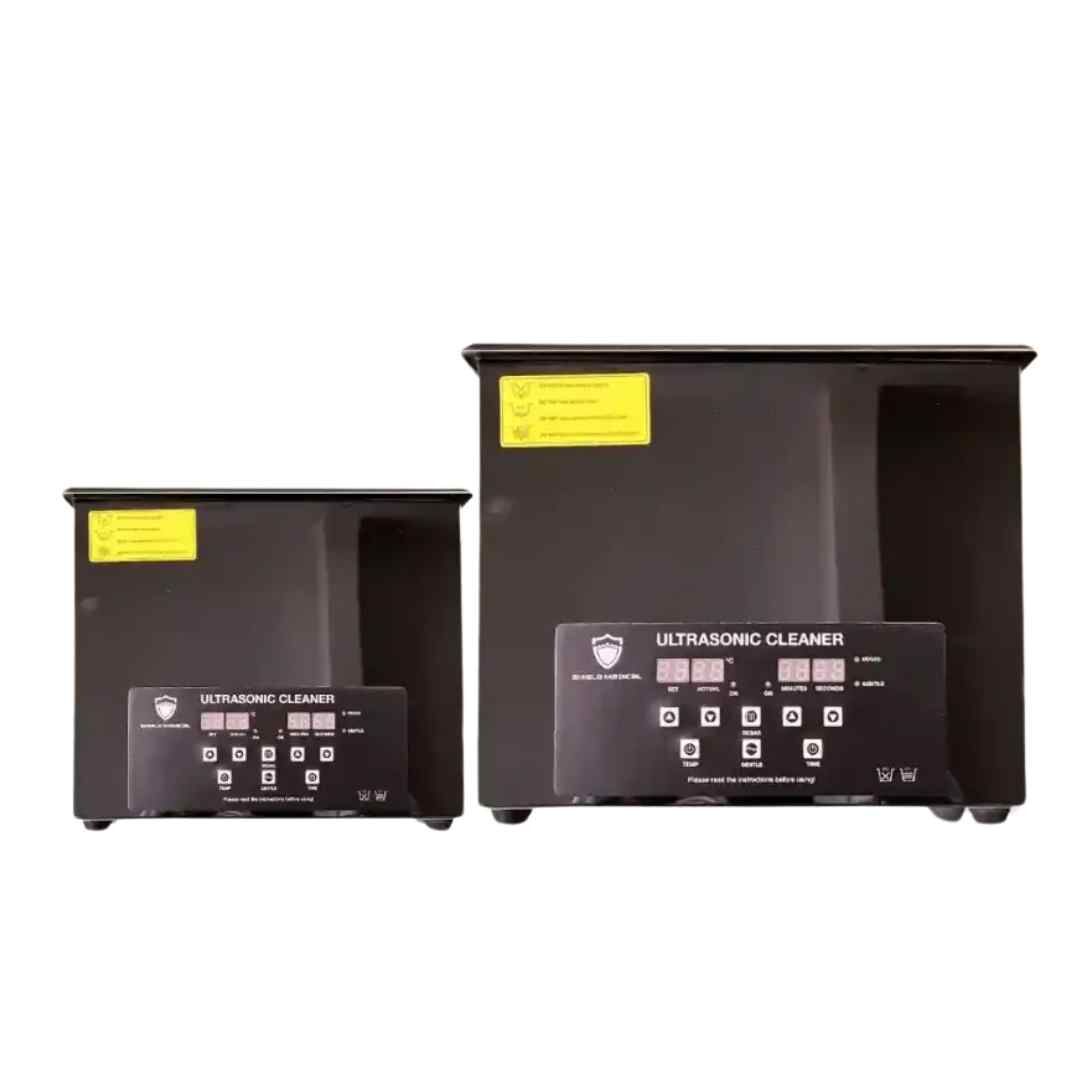

Shield Medical Ultrasonic Cleaner

UC-S M2021 (3.2L)

• Tank Size: 240 × 135 × 100 mm

• Tank Capacity: 3.2 Litres

• Ultrasonic Power: 60 / 120 W

• Ultrasonic Frequency: 40,000 Hz (40 kHz)

• Heating Power: 100 W

• Time Setting: 0–30 Minutes

• Heating Temperature Range: 0–80°C

• Voltage: 220–240V, 50–60Hz

UC-S M2024 (10L)

• Tank Size: 300 × 240 × 150 mm

• Tank Capacity: 10 Litres

• Ultrasonic Power: 120 / 240 W

• Ultrasonic Frequency: 40,000 Hz (40 kHz)

• Heating Power: 250 W

• Time Setting: 0–30 Minutes

• Heating Temperature Range: 0–80°C

• Voltage: 220–240V, 50–60Hz

• Shield Medical Ultrasonic Cleaner – 3.2L (UC-S M2021)
• Shield Medical Ultrasonic Cleaner – 10L (UC-S M2024)

This product is self-installable, and technician support is available for a fee if required.

• 1 Year warranty against all parts of the product under normal operating conditions.
• Physical damage is not covered under warranty in any case.

Q. Can I clean delicate surgical instruments using this device?

Yes, both models have a Gentle Mode specifically designed for safe cleaning of precision instruments without causing damage.

Q. What is the Degas Mode and why is it important?

Degas Mode removes trapped air bubbles, maximizing ultrasonic cleaning efficiency—especially important for intricate tools and narrow-lumen instruments.

Q.How do I choose between 3.2L and 10L models?

If you handle a large volume of instruments or work in a multi-chair setup, go for the 10L model. For smaller practices or tighter workspaces, the 3.2L model is more space-efficient.

Q.Is it safe to use on electronic or optical components?

Yes, as long as the component is waterproof or fully immersed under supervision. Use Gentle Mode for fragile items and follow manufacturer guidelines.
