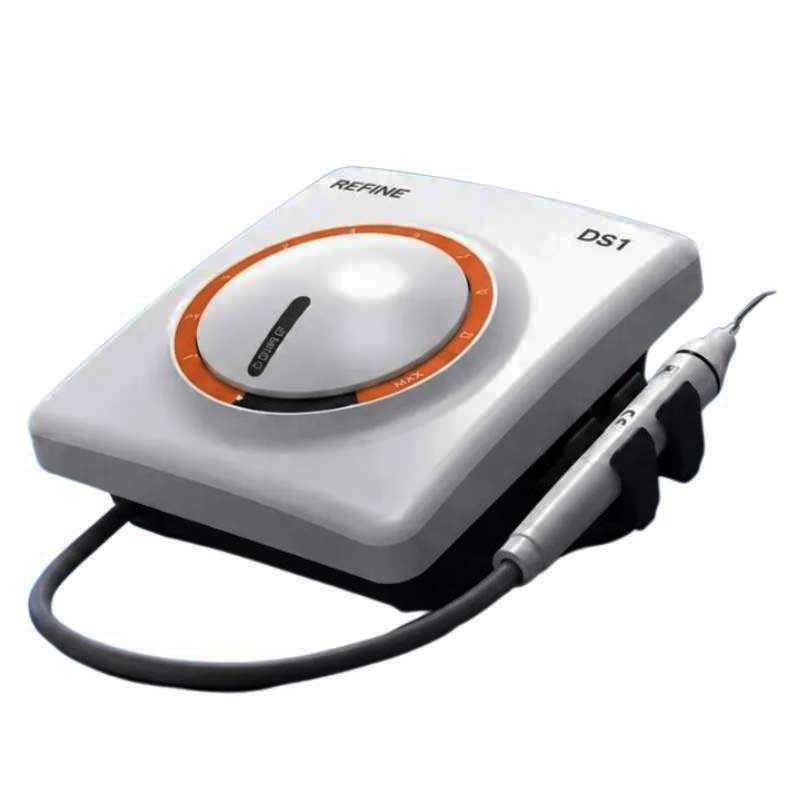

Refine DS1 Ultrasonic Scaler – Piezoelectric Dental Scaling Unit with Autoclavable Handpiece

• Stable ultrasonic scaling performance with 28kHz ± 5kHz frequency.
• Automatic frequency tracking for consistent treatment efficiency.
• Supports both Scaling (G Mode) and Periodontal (P Mode) functions.
• Detachable autoclavable handpiece for improved infection control.
• Adjustable power settings for customized treatment intensity.
• Controlled water flow system for effective cooling and irrigation.
• Efficient plaque, calculus and stain removal.
• Compact and lightweight chairside design.
• User-friendly operation for daily clinical procedures.
• Suitable for routine prophylaxis and periodontal maintenance treatments.

• Model: DS1
• Power Input: 220VAC 50Hz / 110VAC 60Hz
• Main Unit Input: 24VAC 50Hz, 1.3A
• Input Power: 38VA
• Vibration Frequency: 28kHz ± 5kHz
• Water Pressure: 0.1 bar – 5 bar (0.01MPa – 0.5MPa)
• Function Modes: G Mode (Scaling), P Mode (Periodontal)
• Output Power of Tip: 3W – 20W
• Primary Tip Vibration Excursion: <200μm
• Package Dimensions: 375mm × 305mm × 120mm
• Weight: 2.4 kg
• Application: Scaling and Periodontal Treatment

• Main unit
• Handpiece

This product is self-installable, and technician support is available for a fee if required.

• 1 Year warranty against all parts of the product under normal operating conditions.
• Physical damage is not covered under warranty in any case.

1. What procedures can be performed with the Refine DS1 Ultrasonic Scaler?

The Refine DS1 is designed for routine dental scaling, plaque and calculus removal, stain cleaning, and periodontal maintenance procedures.

2. Does the Refine DS1 feature an autoclavable handpiece?

Yes, the detachable handpiece can be sterilized in an autoclave at up to 134°C, supporting proper infection control protocols.

3. What is the operating frequency of the Refine DS1?

The scaler operates at a stable ultrasonic vibration frequency of 28kHz ± 5kHz for effective clinical performance.

4. Does the scaler offer different treatment modes?

Yes, it supports G Mode for scaling procedures and P Mode for periodontal treatments, allowing flexibility based on clinical needs.

5. Can the power level be adjusted during treatment?

Yes, the output power can be adjusted according to the amount of calculus and patient sensitivity, helping improve treatment comfort and efficiency.
