Key features
• Quiet water supply system ensures low-noise operation, stable performance, and smooth surgical procedures
• Multiple working modes including Bone Surgery, Periodontal Treatment, Root Canal Treatment, and Cleaning Mode for versatile clinical applications
• Bone surgery capability supports procedures like wisdom tooth extraction, implant removal, sinus lift, bone grafting, cyst removal, and alveolar ridge expansion
• Periodontal treatment functionality suitable for scaling, root planing, crown lengthening, and precise bone contouring
• Root canal treatment mode enables periapical preparation and effective canal debridement
• Integrated cleaning mode helps flush water pipes, preventing saline crystallization and blockages
• Multi-angle rotating handpiece holder with high-temperature and high-pressure sterilization compatibility
• Lightweight 110 g handpiece with low operating temperature and full-power performance for improved clinician comfort
• High-intensity LED illumination provides clear surgical visibility and enhanced procedural precision
• Separate water tubing and handle cable design improves maintenance, infection control, and clinical safety
• Multi-functional foot pedal control enables hands-free mode switching, power adjustment, and water flow control
• Ultra-precise micro-vibration cutting with <80 µm radial amplitude and <20 µm lateral amplitude for minimally invasive procedures
• Micrometer-level cutting precision allows small incisions (≈3.5 mm length, 0.5 mm width) with clean surgical margins
• Reduced bleeding and tissue trauma due to vibration-controlled cutting and minimal surgical area
• Soft-tissue protection technology helps avoid damage to nerves, blood vessels, and surrounding tissues
• Sterilizable tubing system supports high-temperature and high-pressure sterilization, reducing infection and swelling risk
• Cold cutting technology maintains wound temperature below 38°C, preventing thermal damage and promoting faster healing
Technical Specification
- Power Supply Voltage: 100–240V, 50/60Hz, 150VA
- Operation Type: Intermittent (60s ON, 10s OFF)
- Fuse Rating: 3.15AT, 250V
- Flow Rate: 45–100 ml/min
- Radial Amplitude: 8–63 µm
- Transverse Amplitude: 1.5–12 µm
- Working Tip Frequency: 23.8 kHz – 32.2 kHz
- Handle Dimensions: 130.3 × Ø33.5 mm
- Unit Dimensions (L×W×H): 28 × 23 × 14 cm
- Weight: 3.4 kg
packaging

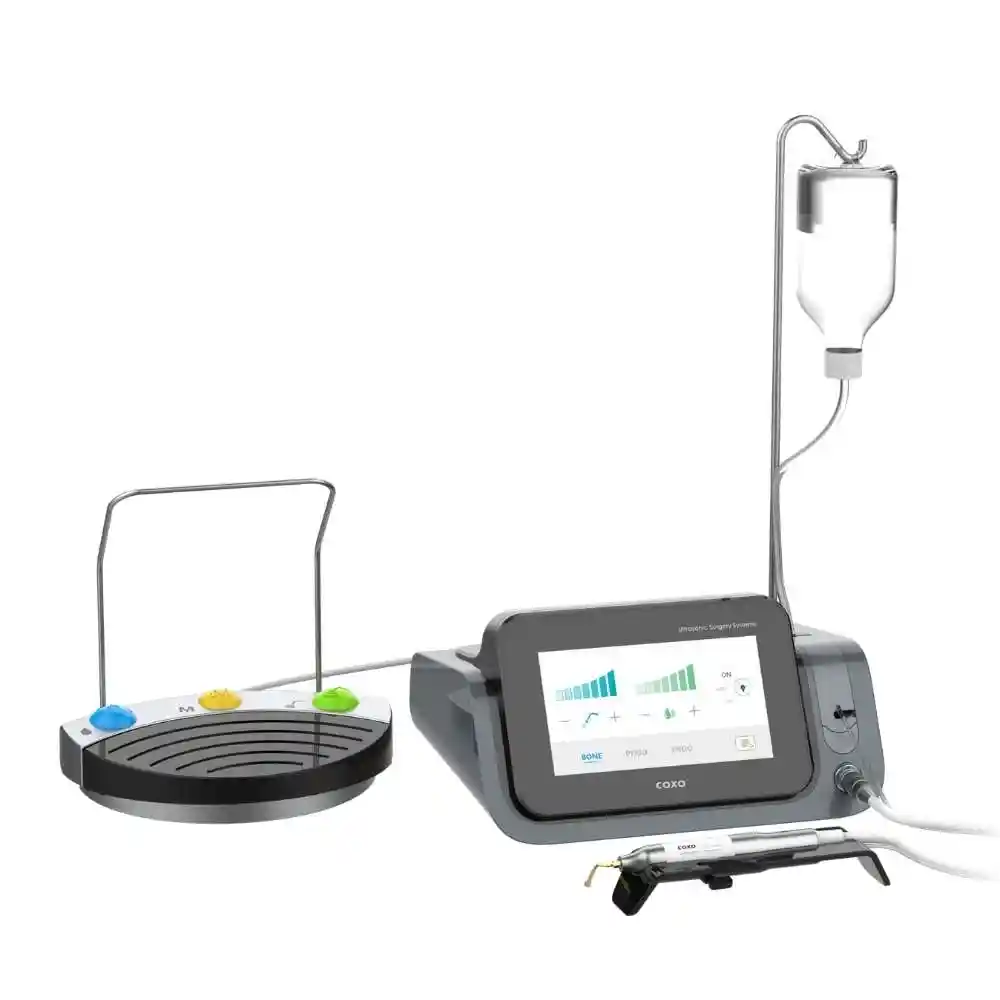

• Control Unit
• Foot Pedal
• Handpiece (with Cord)
• Handpiece Stand
• Handpiece Holder
• Bracket
• LED Light
• Tip Holder
• Sterilization Case
• Torque Wrench
• Irrigation Hanger
• 5 × Irrigation Tubes
• 5 × Tube Holders
• 7 × Ultrasonic Tips (PS1 ×1, PS2 ×2, PS4 ×1, PS5 ×1, PC1 ×1, PL3 ×1)
• Power Cord
• 2 × Fuse
Warranty
- 1 Year warranty against all parts of the product under normal operating conditions.
- Physical damage is not covered under warranty in any case.
FAQs
Q1. What types of procedures can the Piezo-X perform?
The Piezo-X supports a wide range of procedures including bone surgery, sinus lifts, periodontal treatments, and endodontic applications, thanks to its multi-mode operation.
Q2. Is the unit easy to control during surgery?
Yes, it features a smart 7-inch touch screen and a multipurpose foot control for real-time, hands-free adjustments to power, mode, and water flow.
Q3. What makes the Piezo-X handpiece unique?
It features LED lighting for better surgical vision and a separation design for easy maintenance and secure operation with consistently low handle temperature.
Q4. Can the Piezo-X be used for patients with varying bone densities?
Absolutely. The Piezo-X has adjustable power levels (Power 1 to 6–7) in Bone Mode to treat low to very high bone densities precisely.
