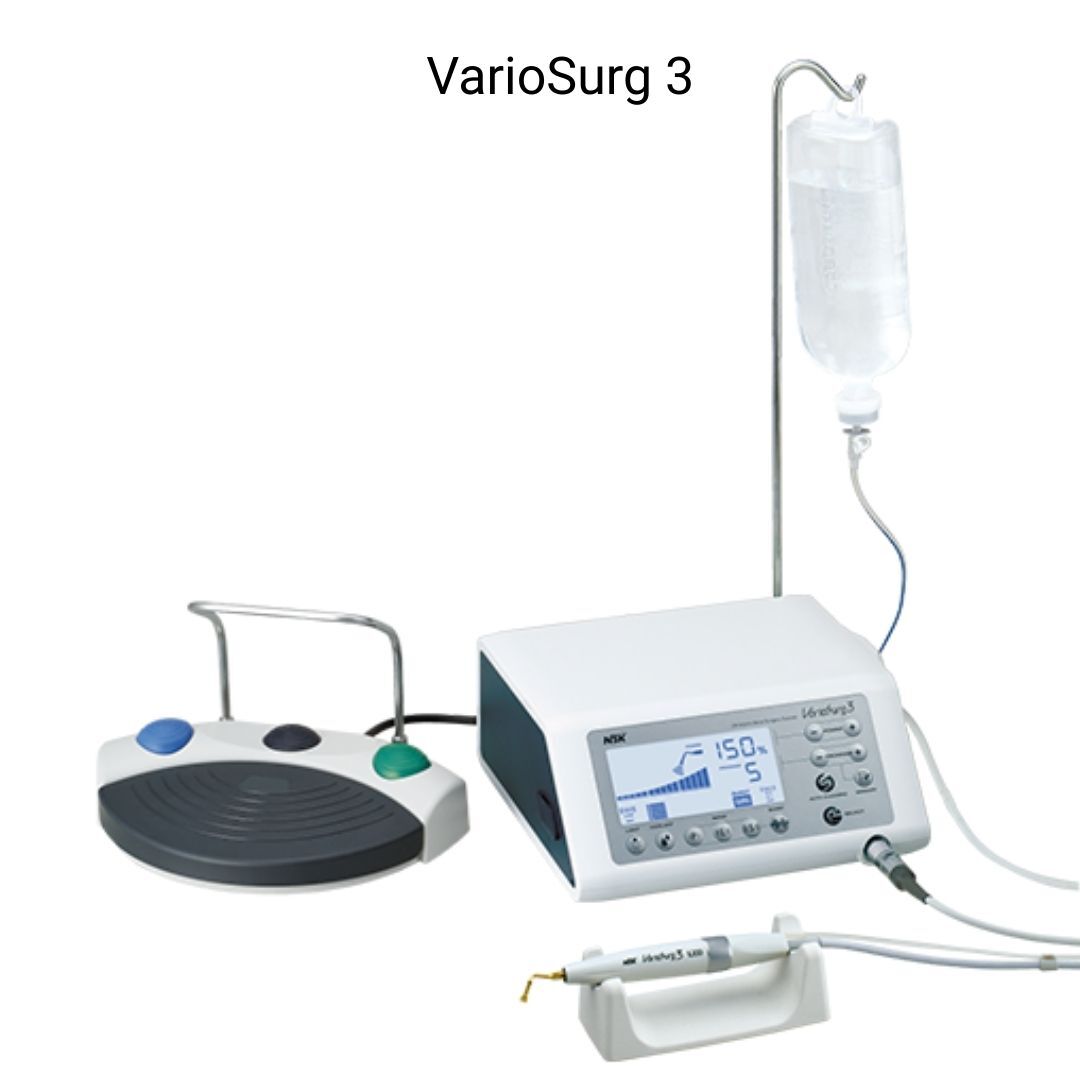

NSK VarioSurg 3 Ultrasonic Bone Surgery System

Instantly switch from Surg Mode to Burst Mode during procedures. Burst Mode delivers a hammer-drill effect, enabling efficient cutting through dense cortical bone with three selectable burst patterns.

Operating at optimized ultrasonic frequencies, the system ensures controlled bone cutting while minimizing trauma to surrounding soft tissues.

Three selectable LED light intensity levels provide optimal visibility based on the surgical field and procedure requirements.

The FC-78 foot control allows accurate, hands-free operation with clearly marked functions and flexible positioning during surgery.

VarioSurg 3 can be linked with the Surgic Pro implant motor using a single foot control, forming a compact, space-saving surgical treatment center.

NSK’s precision tips feature three-dimensional cutting edges for enhanced sharpness, cutting efficiency, and procedural control.

• Product Series: VarioSurg 3

• Type: Ultrasonic Bone Surgery System

• Operating Frequency: 28–32 kHz

• Power Supply: AC 120 V / 230 V, 50/60 Hz

• Irrigation Flow Rate: 10–75 mL/min

• Program Modes: SURG × 5, ENDO × 2, PERIO × 2

• Control Unit Dimensions: W 265 × D 220 × H 100 mm

• Illumination: LED (3 intensity levels)

• Foot Control: IPX8 Medical Grade

• Compatibility: Linkable with NSK Surgic Pro

• Control Unit (LED compatible)
• Ultrasonic Surgical Handpiece with 2 m Cord
• FC-78 Foot Control
• Sterilisation Cassette
• Handpiece Stand
• Irrigation Tube Set (5 pcs)

Basic H-S Kit (Included Tips & Accessories)

• H-SG1 Tip
• SG3 Tip
• SG5 Tip
• SG6D Tip
• SG7D Tip
• SG11 Tip
• Tip Holder

This product is self-installable; technician support is available on a paid basis if required.

• 1 Year warranty against all parts of the product under normal operating conditions.
• Physical damage is not covered under warranty in any case.

1. What is BURST Mode in the VarioSurg 3 Series?
BURST Mode creates a hammer-drill effect that improves cutting efficiency in dense bone while maintaining ultrasonic control.

2. Can the VarioSurg 3 be used with an implant motor?
Yes, it can be linked with the NSK Surgic Pro using a single foot control for a compact surgical setup.

3. Is the foot control waterproof?
Yes, the FC-78 foot control complies with the IPX8 standard for medical foot control systems.

4. What procedures is the VarioSurg 3 suitable for?
It supports surgical, periodontal, and endodontic ultrasonic applications.

5. Does the system include surgical tips?
Yes, the complete set includes a basic H-S surgical tip kit and a sterilization cassette.
