Key Highlights
- Built-in ultrasonic scaler module – designed to integrate into the dental unit for a clean, space-efficient installation.
- Integrated Multi Function Ultrasonic Scaler – supports ultrasonic scaling through a complete module and handpiece system.
- iPiezo engine – provides ultrasonic operation within the specified frequency range for consistent scaler performance.
- Optic / Non-Optic options – available in both configurations depending on clinical preference and unit setup.
- LED support – includes LED functionality as shown for improved visibility during scaling procedures.
- 28–32 kHz operating frequency – designed to work in the ultrasonic range used for scaling.
- Max Output: 11 W – provides controlled ultrasonic power output for clinical use.
Technical Specification

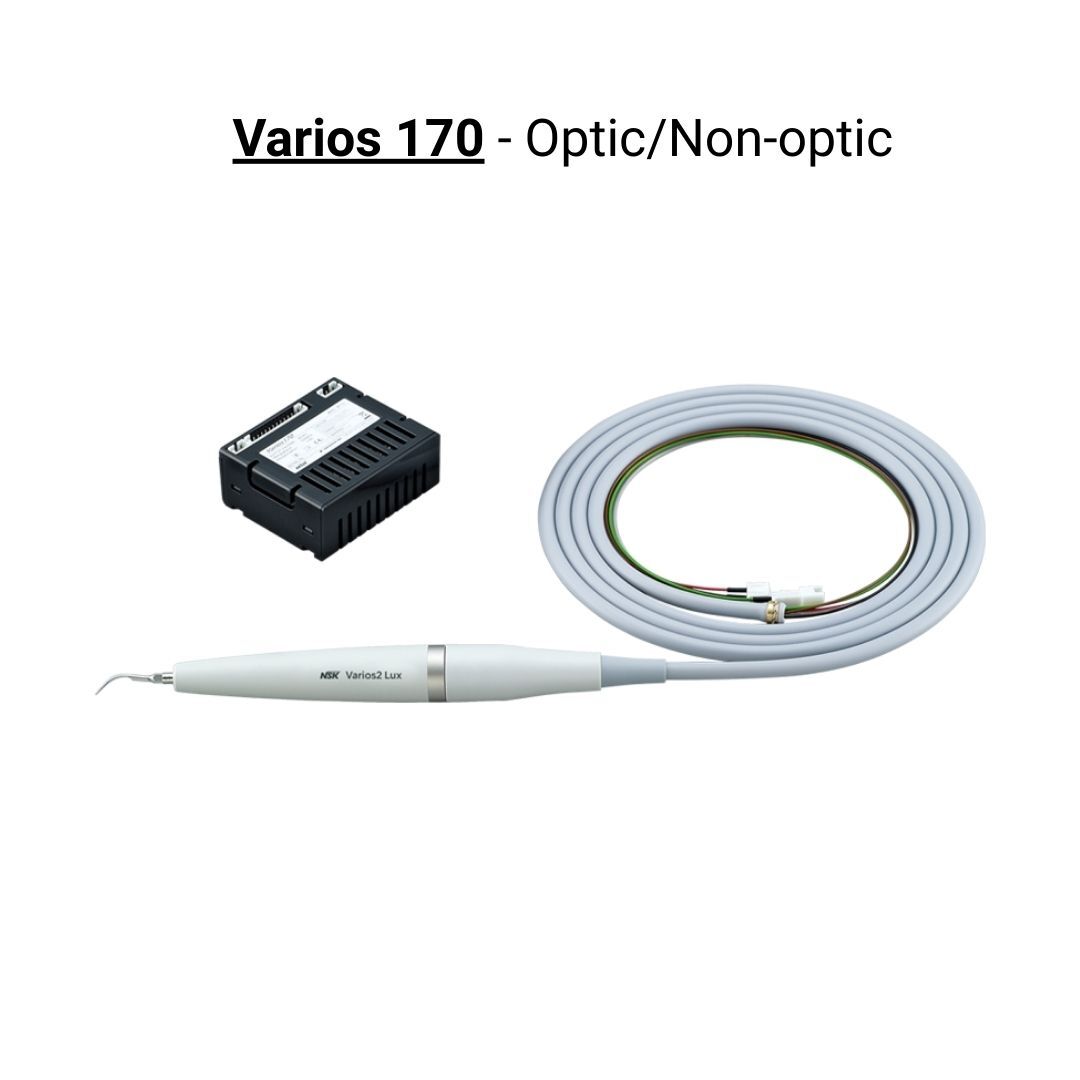

- Product Name: Varios 170
- Engine: iPiezo engine
- Versions Available: Optic / Non-Optic
- Light: LED
- Power Supply: AC 24 V ±10% (or DC 24–36 V)
- Frequency: 28–32 kHz
- Maximum Output: 11 W
- Dimensions: W 63 × D 54 × H 26 mm
- Module Weight: 59 g
Packaging
- Built-in Module
- Handpiece
- Handpiece Cord
- 3 Scaling Tips (G4, G6, G8)
- 3 × Tip Replacement Wrench with Torque Limiter
- Sterilization Case
Installation
This product is self-installable; technician support is available on a paid basis if required.
Warranty
- 1 Year warranty against all parts of the product under normal operating conditions.
- Physical damage is not covered under warranty in any case.
FAQs
1) What type of ultrasonic engine does NSK Varios 170 use?
NSK Varios 170 is equipped with an iPiezo engine, designed to deliver ultrasonic operation for scaling.
2) What is the operating frequency range of the Varios 170?
The scaler operates within 28–32 kHz, which is the working ultrasonic range specified for this model.
3) What is the maximum output of NSK Varios 170?
Varios 170 delivers a maximum output of 11 W, supporting controlled ultrasonic scaling performance.
4) What is included in the Varios 170 complete set?
The set includes a built-in module, handpiece, handpiece cord, 3 scaling tips (G4, G6, G8), 3 tip replacement wrenches with torque limiter, and a sterilization case.
