Handpiece (Z95L / Z85L) Wrench Instructions Manual

1 Year warranty against all parts of the product under normal operating conditions. Physical damage is not covered under warranty in any case.

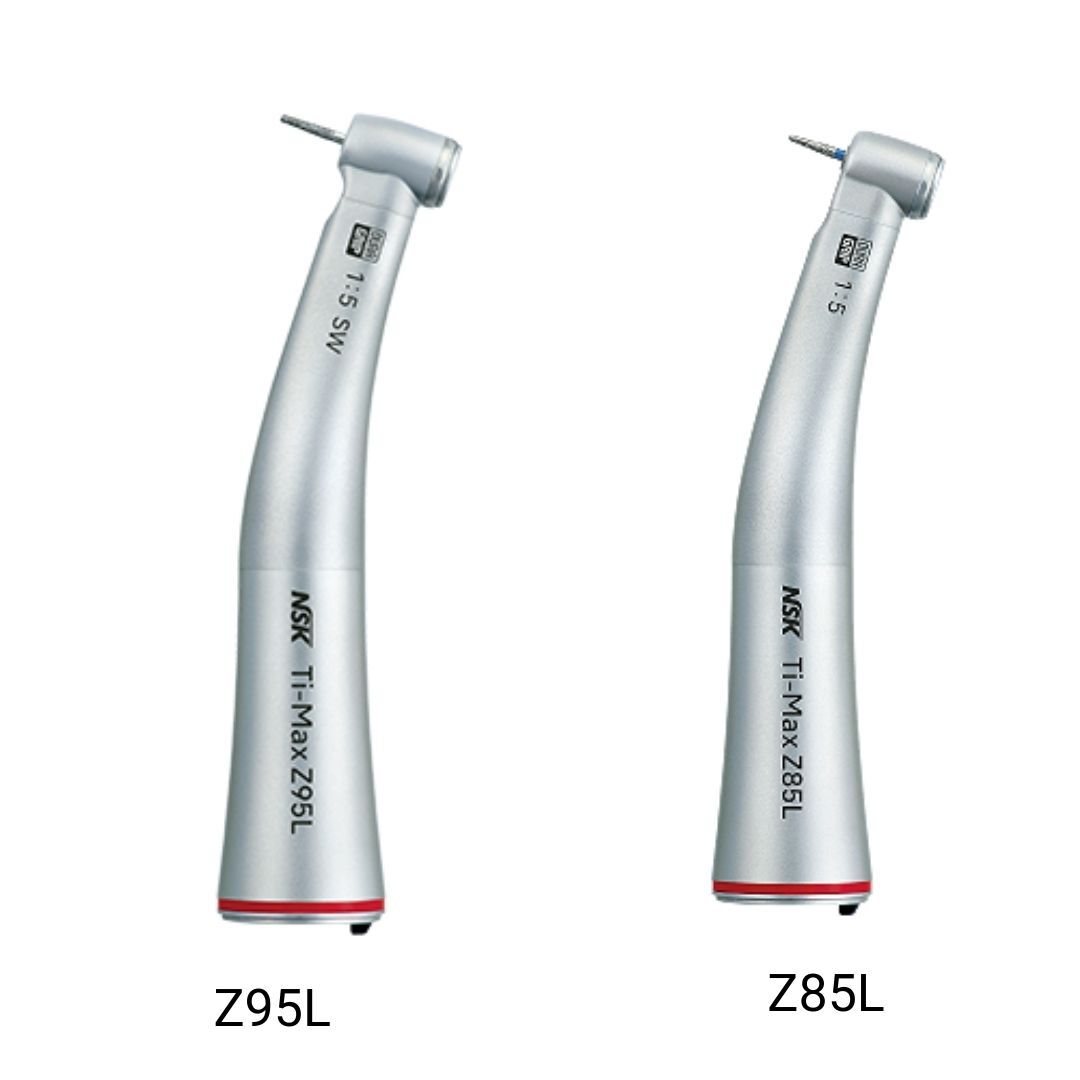

NSK Ti-Max Z 1:5 Increasing Contra-Angle

Q: FAQs

1) What is the difference between Z95L and Z85L? Z95L includes a Two-Way Spray Function for water jet or mist spray, while Z85L features single spray cooling for routine high-speed procedures. 2) How does the Anti Heat System benefit clinical use? It reduces heat generation during operation, improving patient safety without compromising manoeuvrability. 3) Are these handpieces suitable for difficult-to-reach areas? Yes. Both feature compact head designs, with Z95L offering enhanced access due to its increased head angle. 4) What burs are compatible with the Z85L? Z85L is designed for FG burs (Ø1.6).

Key Features

1:5 speed increasing mechanism delivers high rotational output for efficient cutting and reduced chair time.
Compact head design enhances visibility and access, particularly in posterior and hard-to-reach areas.
Two-way spray function (Z95L) enables instant switching between water jet and water spray, supporting both surgical safety and restorative cooling.
Enhanced 2° visibility angle (Z95L) improves access and clarity in molar and restricted treatment zones.
Single spray cooling (Z85L) ensures consistent and reliable thermal control during routine high-speed procedures.
Advanced Anti Heat System significantly reduces heat generation, enhancing patient comfort and procedural safety.
Lightweight titanium body with scratch-resistant DURAGRIP coating provides durability, secure grip, and long-term reliability.
High-precision ceramic bearings ensure smooth, stable, low-vibration rotation with reduced operational noise.
Integrated Cellular Glass Optics deliver bright, uniform illumination for improved clinical accuracy.
Built-in microfilter protection prevents debris entry into the spray system, maintaining consistent cooling performance over time.

Technical Specification

Ti-Max Z95L

Type: Optic
Model: Z95L
Order Code: C1034
Head Type: Standard Head
Gear Ratio: 1:5 Increasing
Bur Type: For FG burs (Ø1.6 mm)
Head Size: Ø8.9 × H 13.4 mm
Coolant Design: Quattro Ports (with Two-Way Spray Function)
Body Material: Titanium Body
Body Coating: DURAGRIP
Maximum Speed: 200,000 min⁻¹

Ti-Max Z85L

Type: Optic
Model: Z85L
Order Code: C1062
Head Type: Miniature Head
Gear Ratio: 1:5 Increasing
Bur Type: For FG burs (Ø1.6 mm)
Head Size: Ø8.9 × H 11.8 mm
Water Spray: Single Spray
Body Material: Titanium Body
Body Coating: DURAGRIP
Maximum Speed: 200,000 min⁻¹

Packaging

Handpiece (Z95L / Z85L)
Wrench
Instructions Manual

Installation

This product is self-installable; technician support is available on a paid basis if required.

Warranty

1 Year warranty against all parts of the product under normal operating conditions.
Physical damage is not covered under warranty in any case.

FAQs

1) What is the difference between Z95L and Z85L?
Z95L includes a Two-Way Spray Function for water jet or mist spray, while Z85L features single spray cooling for routine high-speed procedures.

2) How does the Anti Heat System benefit clinical use?
It reduces heat generation during operation, improving patient safety without compromising manoeuvrability.

3) Are these handpieces suitable for difficult-to-reach areas?
Yes. Both feature compact head designs, with Z95L offering enhanced access due to its increased head angle.

4) What burs are compatible with the Z85L?
Z85L is designed for FG burs (Ø1.6).
