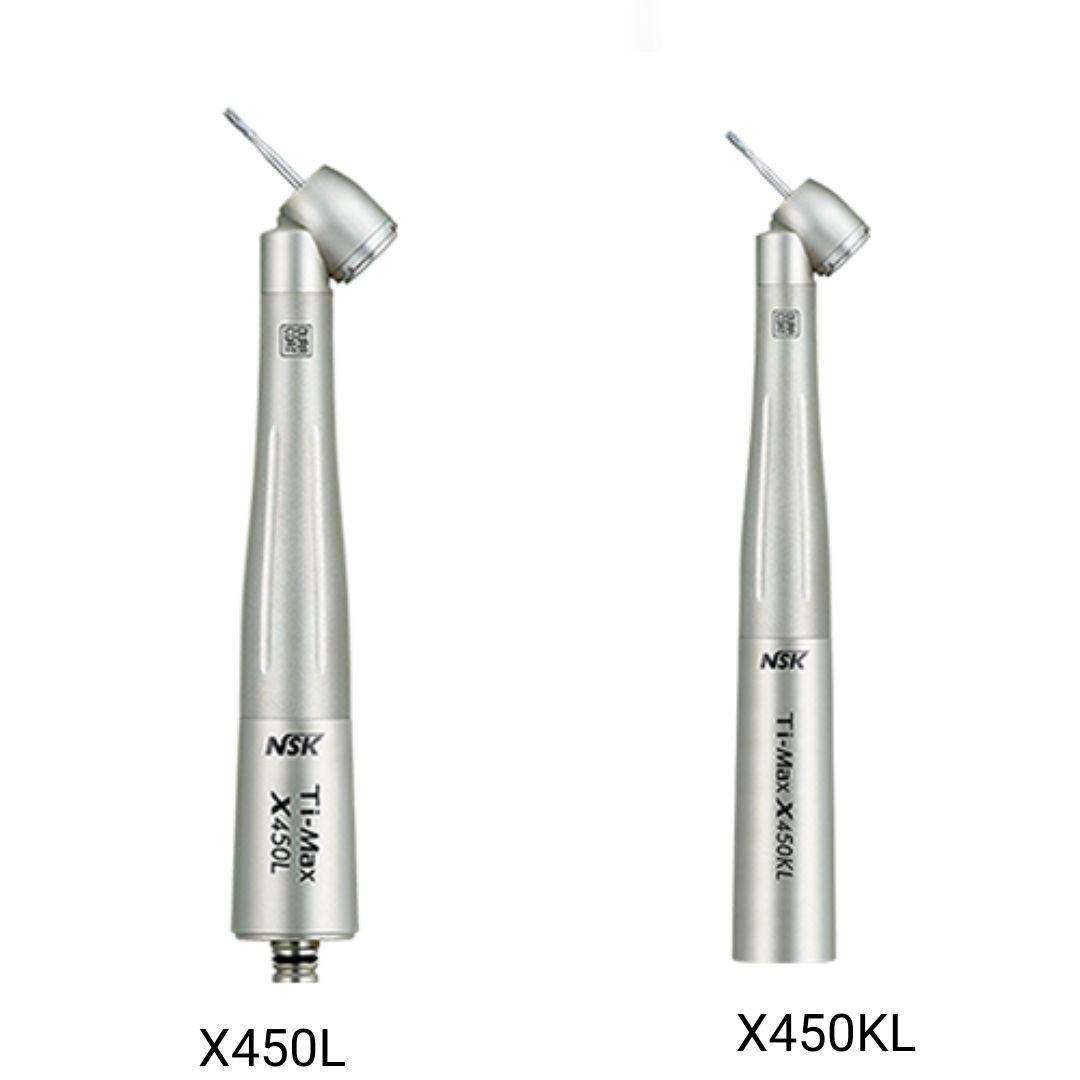

NSK Ti-Max X450 45° Angled Head LED Airotors (X450L / X450KL)

• Unique 45° angled head design provides exceptional accessibility and direct visibility, particularly during surgical procedures in posterior regions.

• Ergonomic slim-form body design enhances maneuverability and improves access to hard-to-reach treatment areas.

• Specifically engineered for sectioning and extraction of third molars and impacted teeth, supporting surgical precision and control.

• Delivers robust 21 watts of cutting power, ensuring efficient bone cutting and tooth sectioning performance.

• Advanced triple water jet cooling system provides effective irrigation around the bur, minimizing heat generation during surgical procedures.

• Lightweight yet durable titanium body with scratch-resistant DURACOAT finish ensures long-term reliability and secure handling.

• Integrated Cellular Glass Optics deliver bright, uniform illumination for enhanced surgical visibility.

• High-performance ceramic bearings enable smooth, stable high-speed rotation with reduced vibration and noise.

• Product Name: Ti-Max X450

• Type: Air Turbine

• Head Angle: 45° Angle Head

• Power: 21 W

• Speed: 380,000–450,000 min⁻¹

• Head Size: ø11.2 × H 13.5 mm

• Bur Type: For FG extra-long burs (25 mm) only

• Cooling: Triple Water Jet

• Body Material: Titanium body with scratch-resistant DURACOAT

• Optics: Cellular Glass Optics

• Bearings: Ceramic Bearings

• Safety / Hygiene System: Clean Head System

• Chuck Type: Push Button Chuck

• Sterilization: Up to 135°C

• Ti-Max X 450L/450kL Contra Angle Handpiece
• Instructions Manual

This product is self-installable; technician support is available on a paid basis if required.

• 1 Year warranty against all parts of the product under normal operating conditions.
• Physical damage is not covered under warranty in any case.

1. Why is the Ti-Max X450 designed with a 45-degree angled head?

The 45-degree angled head is specially designed to provide incredible accessibility in hard-to-reach areas, supporting procedures such as sectioning and extraction of third molars and other impacted teeth.

2. What is the cutting power and speed range of the Ti-Max X450?

The Ti-Max X450 delivers 21 W of cutting power and operates at 380,000–450,000 min⁻¹.

3. How does the Ti-Max X450 support cooling during surgical cutting?

The handpiece uses an effective cooling system featuring triple water jets, helping ensure safe and effective treatment during surgical procedures.

4. Which type of burs can be used with the Ti-Max X450?

The Ti-Max X450 is designed for FG extra-long burs (25 mm) only.
