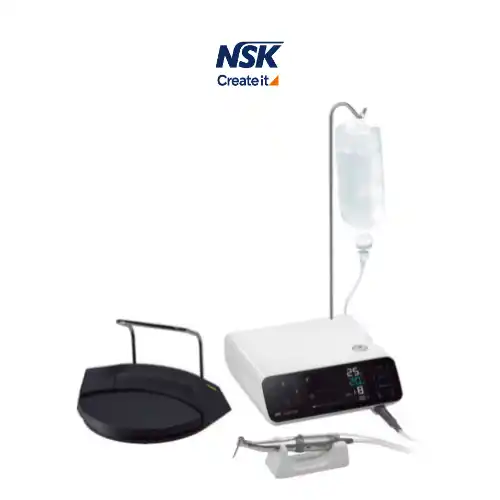

NSK Surgic Pro2 Optic Implant Motor

Control Unit with AHC

• Power Supply: AC 100–240V, 50/60 Hz
• Max. Pump Output: 75 mL/min
• Programs: 8 Programs / Implant Systems
• Dimensions: W 245 × D 235 × H 90 mm

Micromotor

• Torque Range: 5–80 Ncm
• Motor Speed: 200–40,000 min⁻¹
• Light Power (Optic Micromotor): Over 32,000 LUX

Wireless Foot Control

• Coolant solution flow volume button

• PRG (Program) button

• Forward/Reverse button

• Speed control pedal

• Control Unit

• SGL80M Optic Micromotor

• X-SG20ML Optic Handpiece (20:1 Reduction)

• Wireless Foot Control

• Irrigation Tubes (Pack of 3) & Other Accessories

Package Dimensions (cm): 40 x 33 x38

• 1 Year warranty against all parts of the product under normal operating conditions.
• Physical damage is not covered under warranty in any case.

1. What is Surgic Pro2 used for?
Surgic Pro2 is a high-performance implant motor system designed for dental implant placement, oral surgery, and advanced surgical procedures requiring precise torque and speed control.

2. What is the torque range of Surgic Pro2?
It offers an adjustable torque range of 5–80 Ncm, ensuring precise control for various implant systems and clinical applications.

3. How many programs does the unit support?
The system includes 8 customizable programs, allowing clinicians to tailor settings based on implant protocols and surgical techniques.

4. Does Surgic Pro2 have wireless foot control?
Yes, it features a Bluetooth-enabled FC-84 wireless foot control, enabling flexible positioning without cable restrictions.

5. Can Surgic Pro2 connect with other surgical systems?
Yes, it can be linked with the NSK VarioSurg 3, allowing clinicians to switch between systems using a single foot control for a streamlined workflow.

6. Is the unit compatible with iPad connectivity?
Yes, Surgic Pro2 supports iPad connectivity for real-time procedural data display and traceability management.
