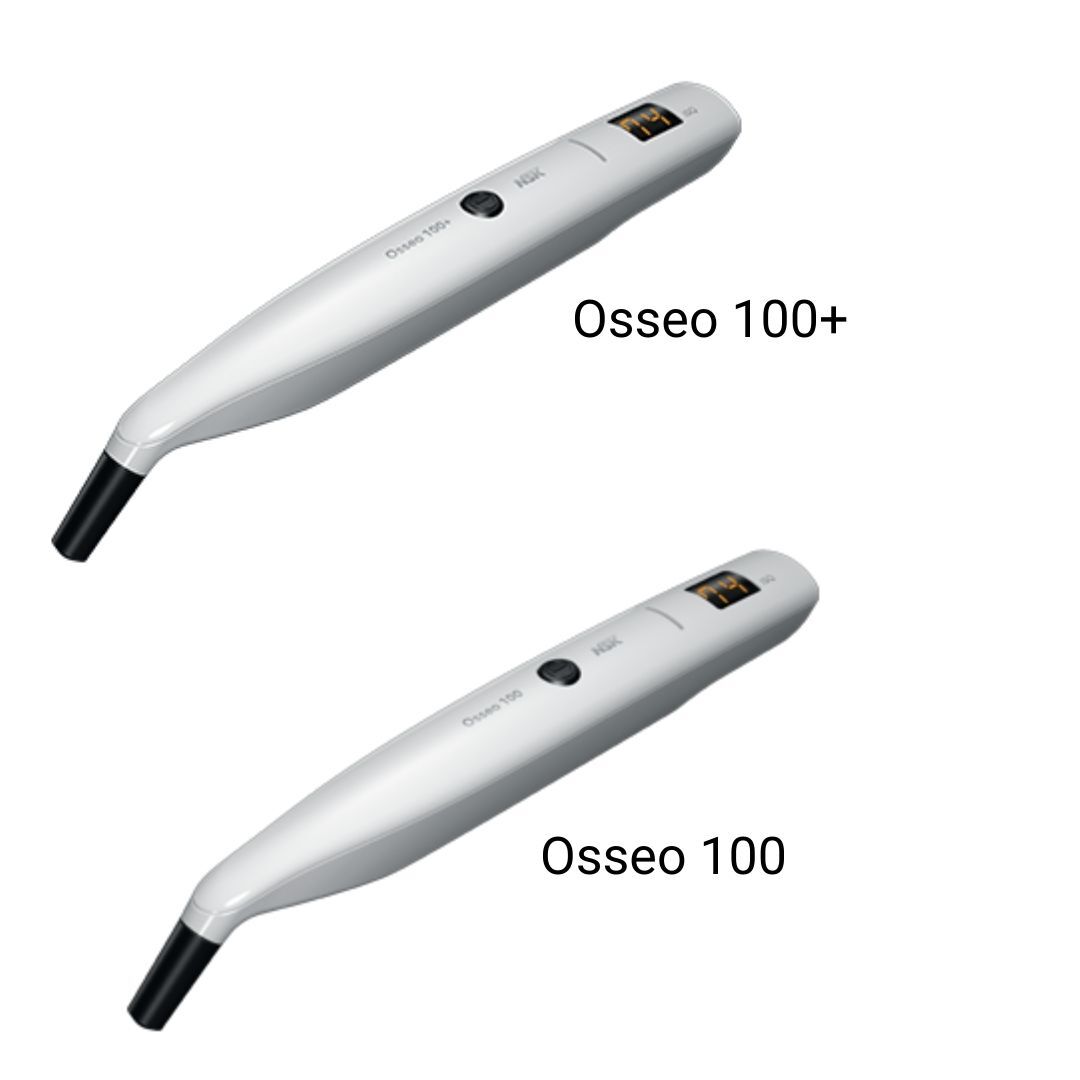

NSK Osseo 100 and 100+ Implant Stability Measurement Device

• Accurate ISQ Measurement provides objective implant stability values, helping determine the ideal loading time and reduce implant failure risk.
• Non-Contact, Atraumatic Technology measures stability without physical contact with the implant or abutment, eliminating unnecessary impact.

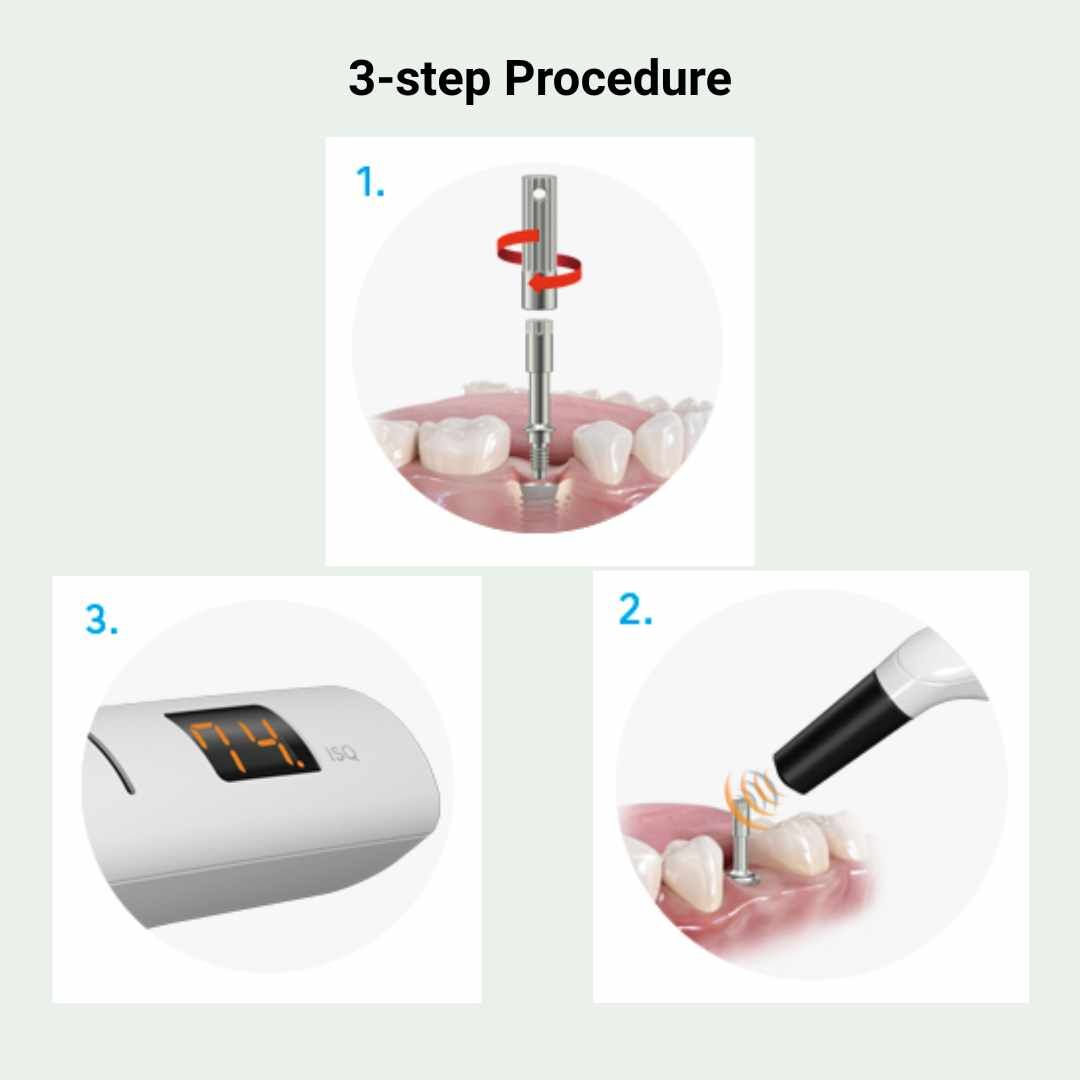

• Fast & Simple Operation allows measurements within seconds after mounting a MulTipeg™, with clear numerical results displayed on the LED screen.
• Supports Risk Management and enables planning for early or immediate loading protocols, especially in medically compromised patients.
• Compact Stand-Alone Design features a lightweight, portable unit that operates independently without requiring additional systems.

Osseo 100

• Measurement Range: ISQ Scale 1–99

• Measurement Method: Non-contact RFA (Resonance Frequency Analysis)

• Compatibility: MulTipeg™ (sold separately)

• Power Input: 5VDC, 1 VA

• Charger Input: 100–240 VAC, 5VA

• Instrument Weight: Approx. 100 g

• Battery Full Charge Time: Approx. 3 hours*

• Continuous Drive Time: Approx. 1 hour*

• Operation Type: Stand-alone device

Osseo 100+

• Measurement Range: ISQ Scale 1–99

• Measurement Method: Non-contact RFA (Resonance Frequency Analysis)

• Connectivity: Bluetooth® Wireless Connection

• Compatibility: MulTipeg™ (sold separately)

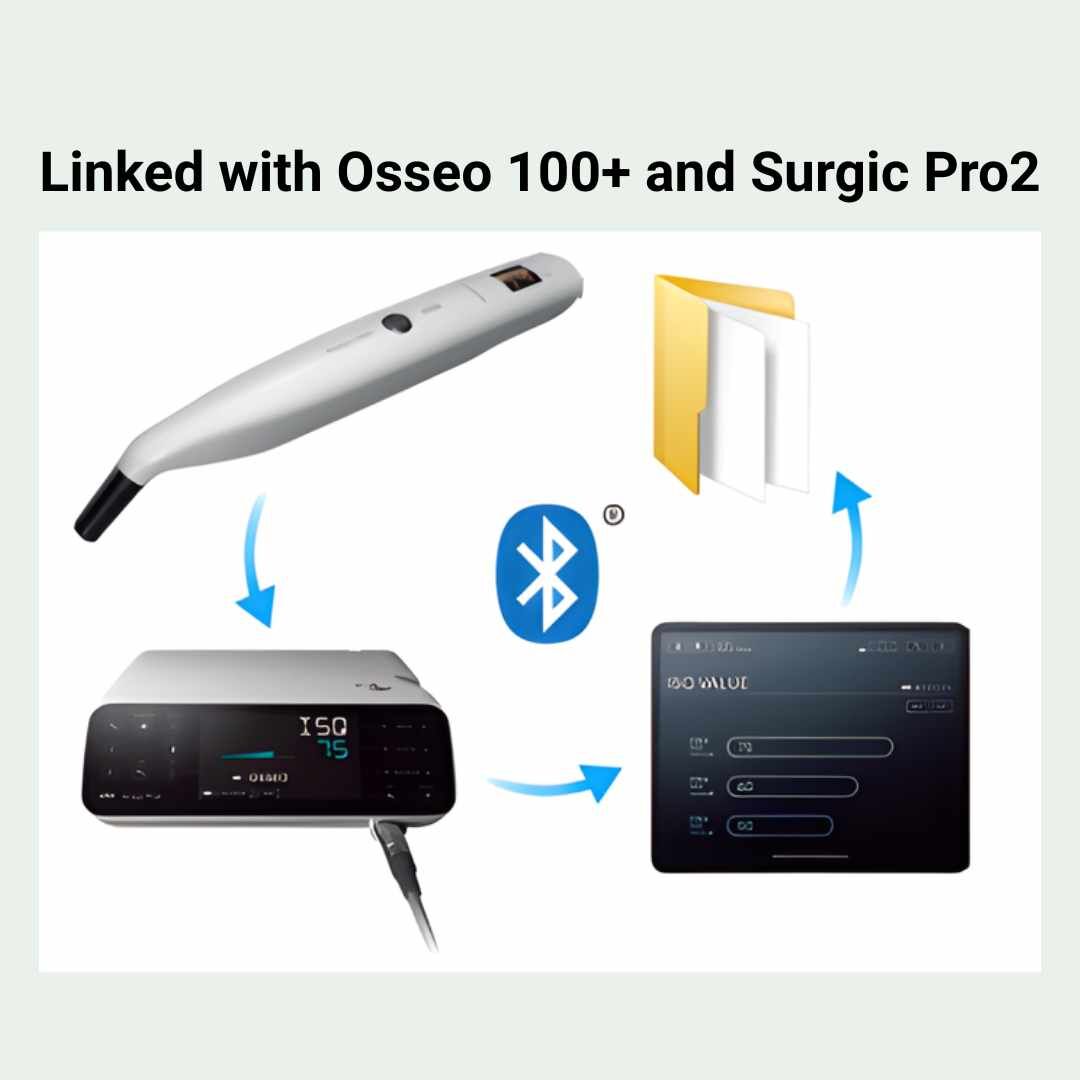

• Integration: Connects with Surgic Pro2 for shared ISQ data management

• Power Input: 5VDC, 1 VA

• Charger Input: 100–240 VAC, 5VA

• Instrument Weight: Approx. 100 g

• Battery Full Charge Time: Approx. 3 hours*

• Continuous Drive Time: Approx. 1 hour*

Osseo 100

• Osseo 100 Instrument
• MulTipeg Driver
• Mains Adapter & Plugs
• MulTipeg™ not included (sold separately)

Osseo 100+

• Osseo 100+ Instrument
• MulTipeg Driver
• Mains Adapter & Plugs
• MulTipeg™ not included (sold separately)

This product is self-installable; technician support is available on a paid basis if required.

• 1 Year warranty against all parts of the product under normal operating conditions.
• Physical damage is not covered under warranty in any case.

1. What does ISQ mean?

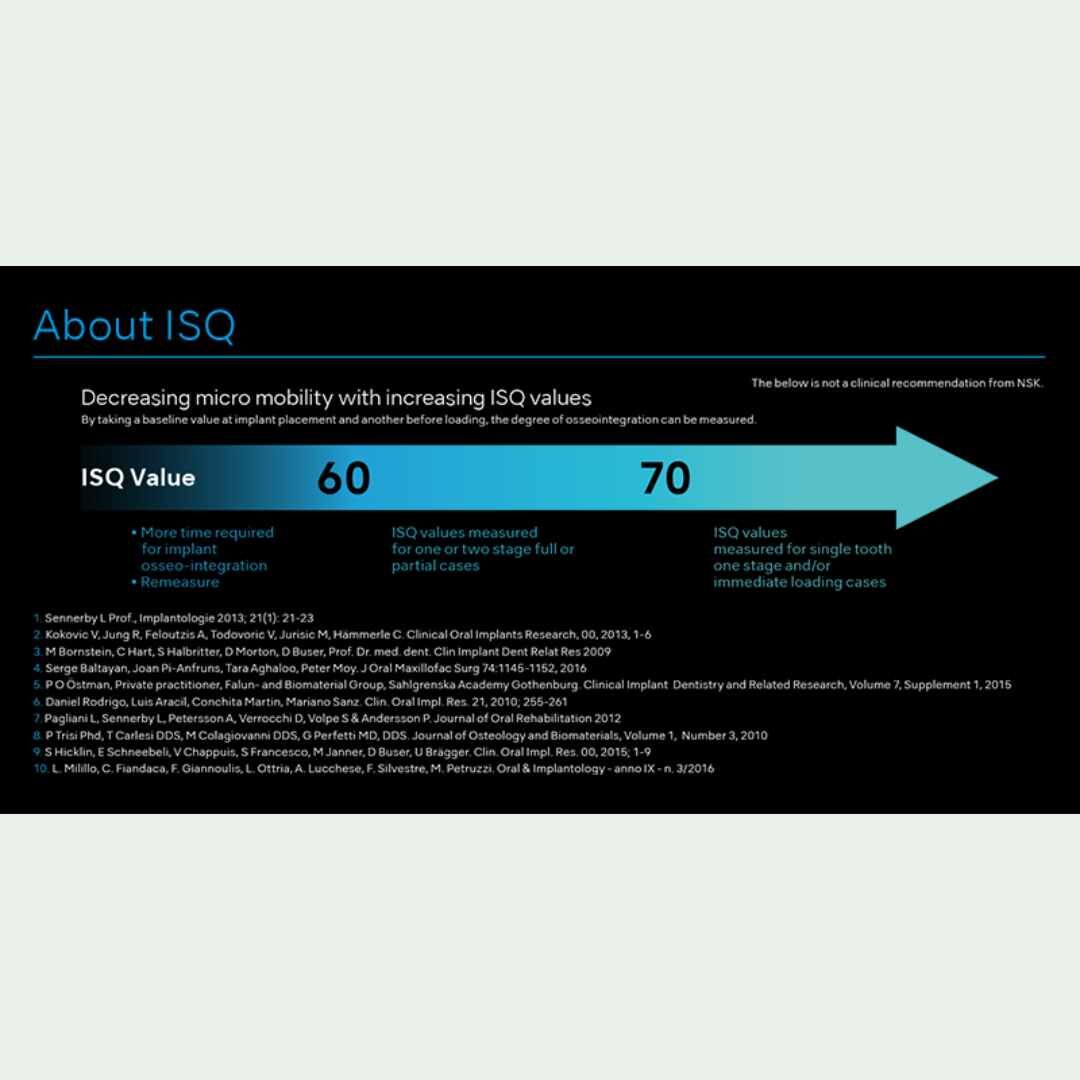

ISQ (Implant Stability Quotient) is a numerical value between 1–99 that indicates implant stability. Higher values reflect stronger stability.

2. How does the Osseo system measure stability?
It uses Resonance Frequency Analysis (RFA). A magnetic pulse excites the MulTipeg™, generating a vibration measured as an ISQ value.

3. Is the measurement invasive?
No. The process is completely non-contact and non-invasive, ensuring no disturbance to the implant.

4. What is the difference between Osseo 100 and Osseo 100+?

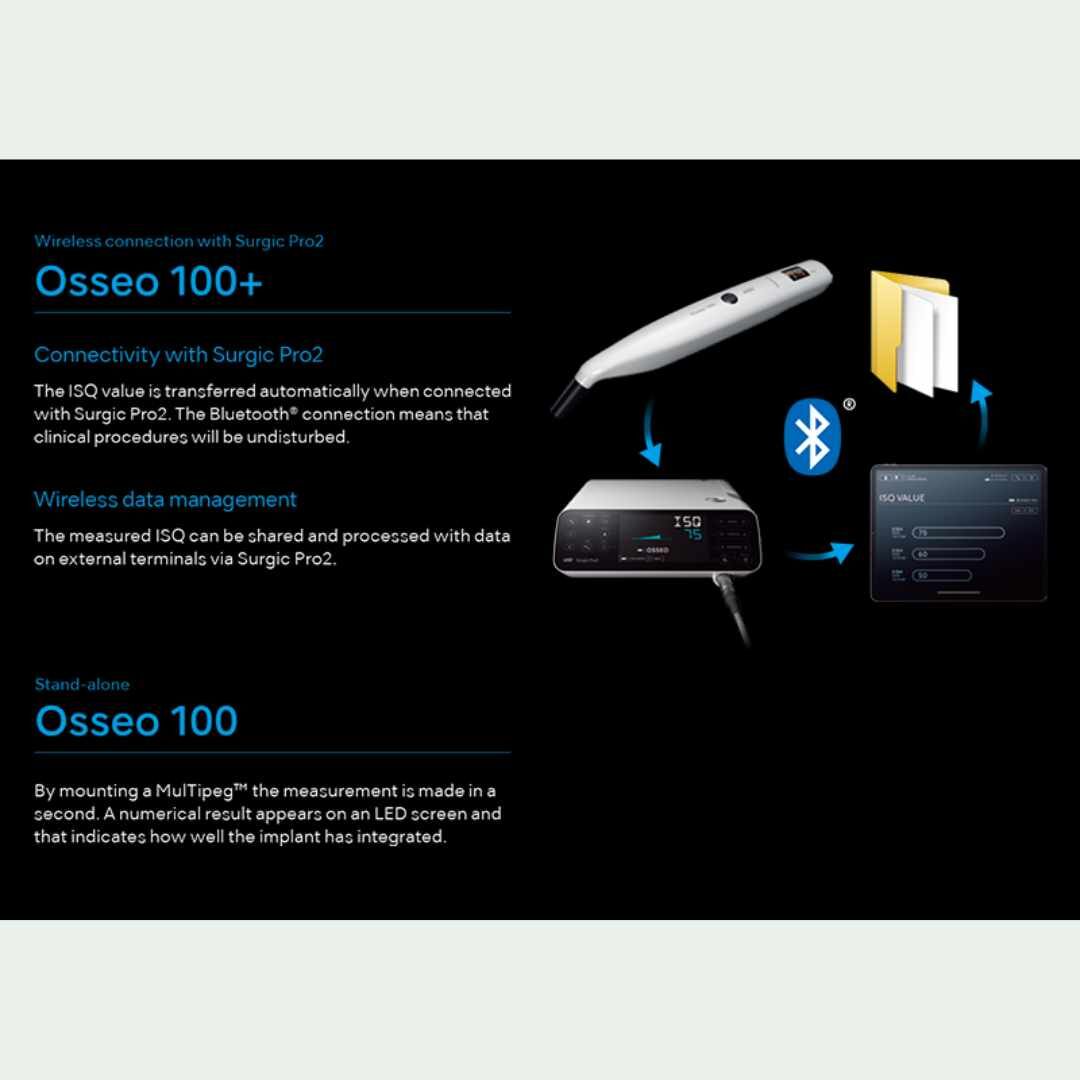

Osseo 100 operates as a stand-alone unit, while Osseo 100+ offers Bluetooth® connectivity and integration with Surgic Pro2 for shared ISQ data management.

5. Is MulTipeg™ included in the package?

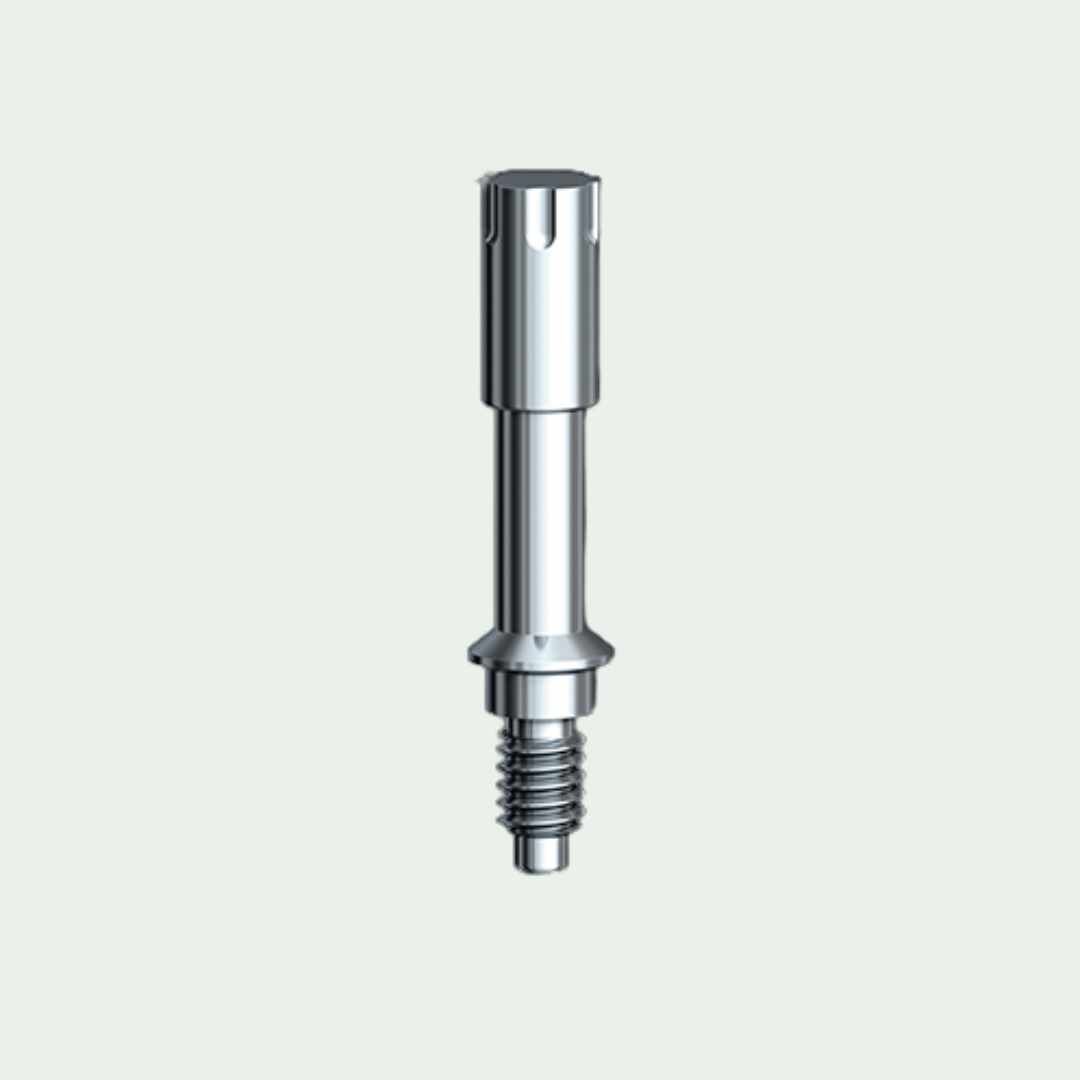

No. MulTipeg™ is sold separately and is selected according to the implant system being used.

6. How many times can MulTipeg™ be sterilized?
MulTipeg™ can be sterilized approximately 20 times, depending on usage and handling.
