NSK iPex II Advanced Apex Locator

• SmartLogic technology with advanced algorithm ensures consistent and highly accurate root apex detection across varying canal conditions.

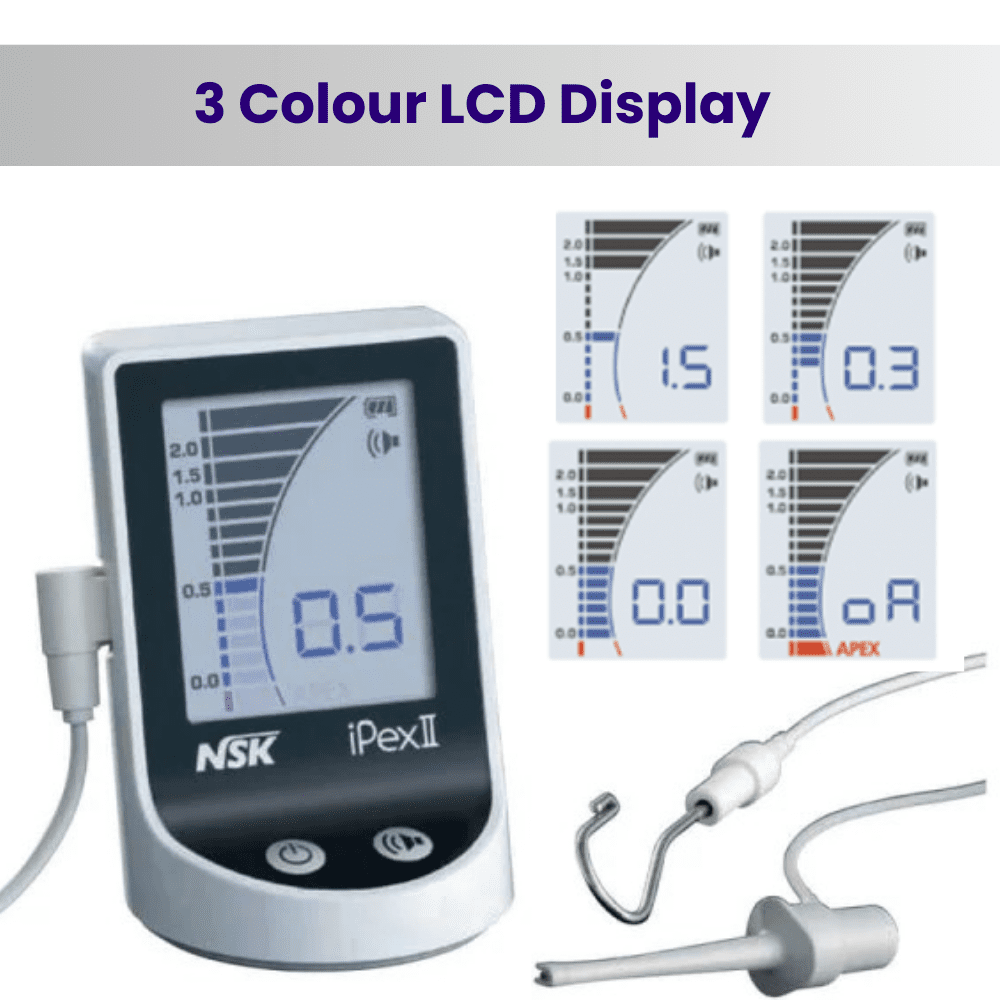

• The 3-color LCD display with real-time bar graph clearly tracks file progression within the canal.

• As the file approaches 0.5 mm (Zone of Precision), the display turns blue and the audio alert increases in pitch and tempo for clear clinical guidance.

• At 0.0 (minor apical diameter), a continuous tone confirms accurate file tip positioning at the apical constriction.

• If the file extends beyond the apex, a rapid continuous alert is triggered with “APEX” in red and “OA” (Over Apex) in blue clearly displayed.

• The compact, lightweight body with a 6 cm base and optimally angled LCD panel ensures ergonomic handling and distraction-free monitoring.

• Product Type: Electronic Apex Locator

• Technology: SmartLogic Apex Detection

• Operating Conditions: Works in dry & wet canals

• Display Type: Three-colour LCD

• Alert System: 3-stage audible alerts

• Screen Reflectivity: Very low

• Body Design: Compact & lightweight

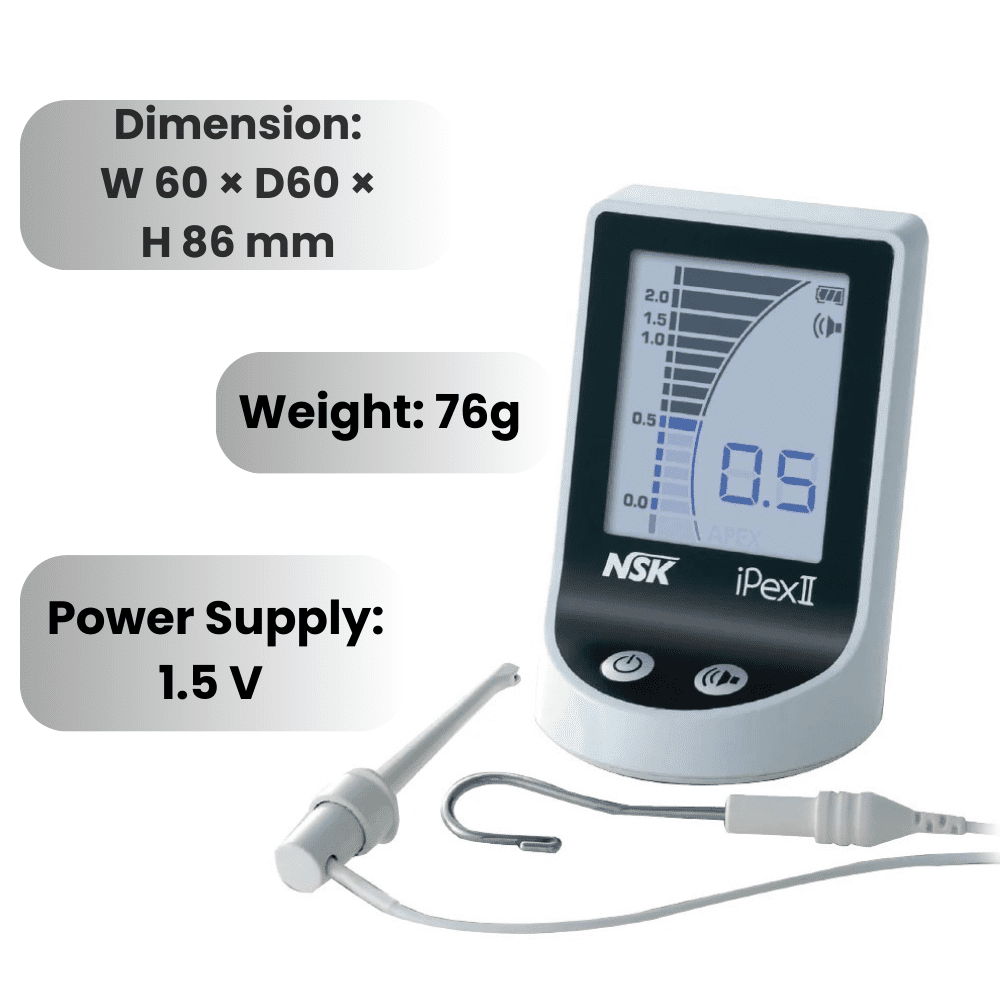

• Power Supply: 1.5 V AAA (LR03 or R03) Batteries

• Continuous Use: Approx. 60 Hours
• Dimensions: W 60 × D 60 × H 86 mm
• Weight: 76 g (Without Batteries)

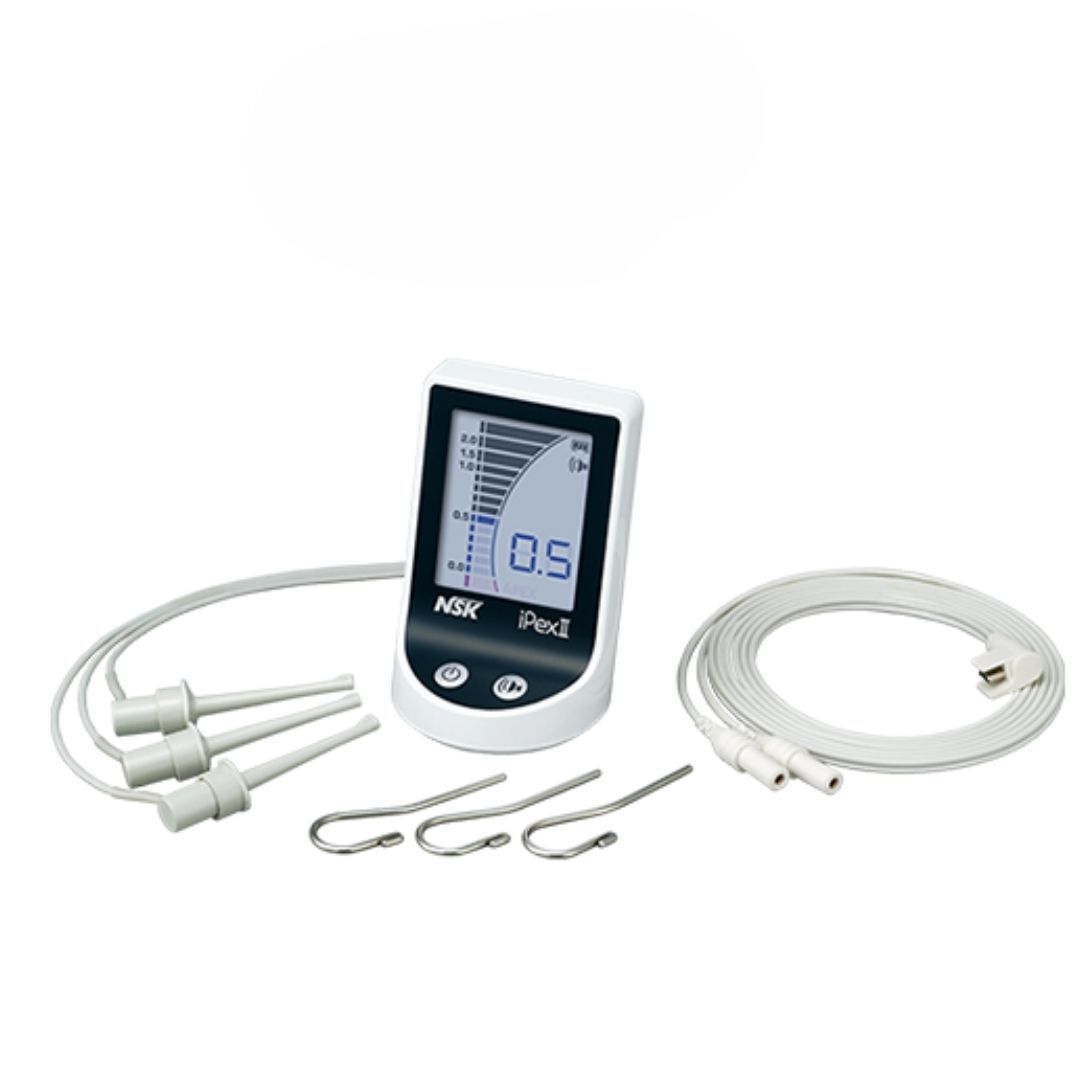

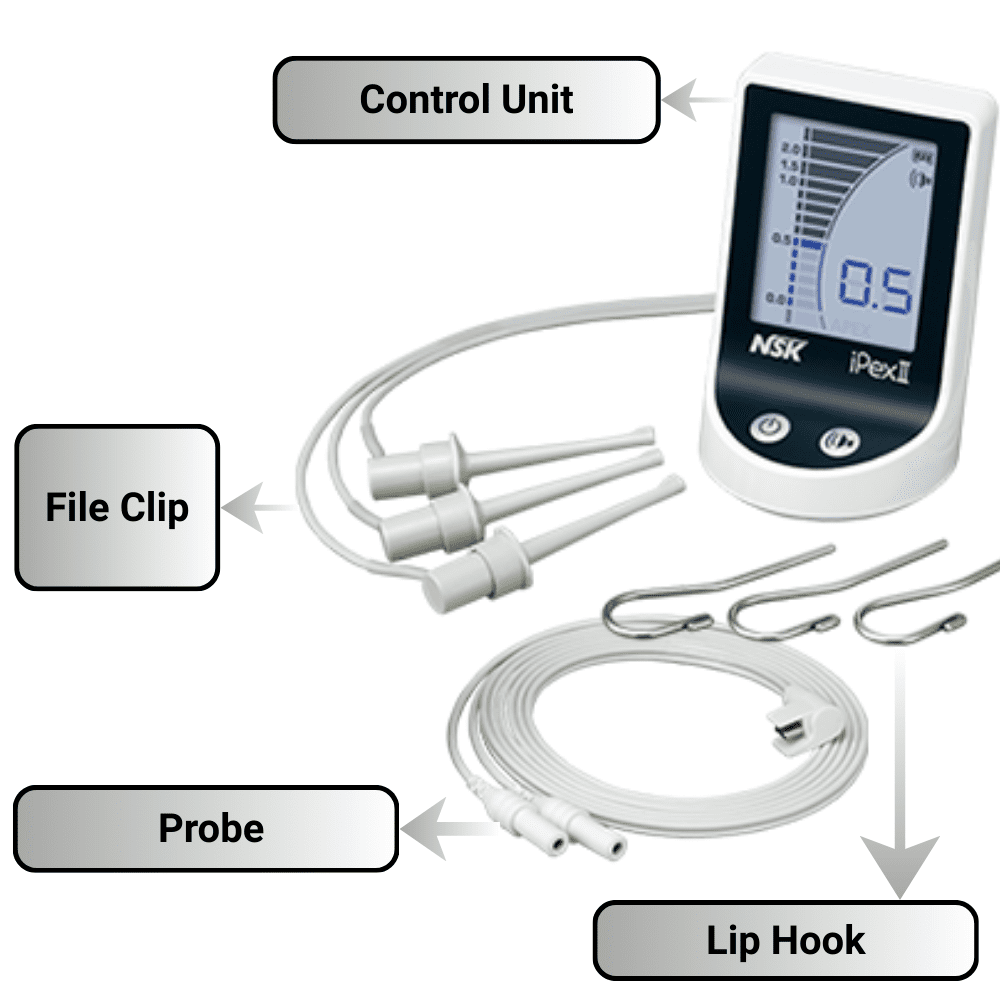

• Control Unit
• iPex II Probe (1.8 m)
• iPex II File Clip (3 pcs.)
• Lip Hook (3 pcs.)
• AAA Manganese Dry Batteries (3 pcs.)
• iPex II Tester



This product is self-installable; technician support is available on a paid basis if required.

• 1 Year warranty against all parts of the product under normal operating conditions.
• Physical damage is not covered under warranty in any case.

Q1. How does the SmartLogic system improve apex detection accuracy?
SmartLogic technology is developed through extensive clinical validation and adapts to varying canal conditions, ensuring stable and precise working length determination.

Q2. How does the iPex II indicate proximity to the apical constriction?
The 3-color LCD bar graph changes as the file progresses, turning blue near 0.5 mm, with increasing audio alerts, and displaying 0.0 with a continuous tone at the minor apical diameter.

Q3. What happens if the file passes beyond the apex?
The unit provides a rapid continuous alert, displays “APEX” in red, and shows “OA” (Over Apex) in blue to clearly indicate over-instrumentation.

Q4. Is the iPex II suitable for use in different clinical environments?
Yes, its compact 6 cm base, lightweight design, and angled LCD panel allow easy setup and clear monitoring in any operatory setting.

Q5. How long can the device operate on battery power?
The iPex II offers approximately 60 hours of continuous use with AAA batteries, ensuring reliable performance during extended clinical sessions.
