Key features
- XXL 160L chamber designed for high-volume instrument reprocessing
- Processes instruments for up to 90 patients in a single cycle
- AquaBoost technology improves cleaning efficiency by up to 63%
- Powerful 3-arm rinsing system for deep instrument cleaning
- Smart-Touch XXL display with integrated video guidance
- Available with activeDRY and passiveDRY drying systems
- Integrated CF card, USB, and network connectivity for documentation
- ProControl system enables secure batch approval and traceability
- Compatible with 90+ baskets, adapters, and loading systems
- Reduces manual handling and improves operational efficiency
Technical Specification
- Product Type: Washer-Disinfector

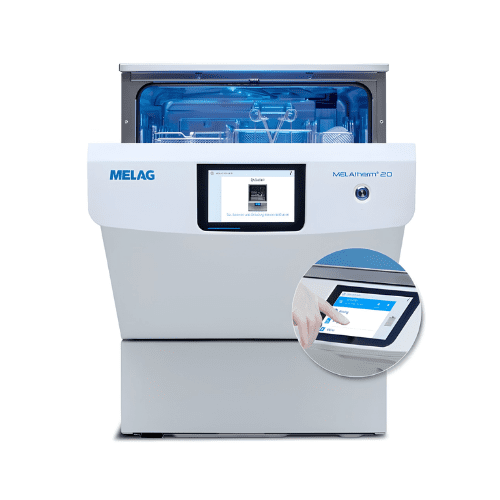

- Model: Melag MELAtherm 20
- Chamber Volume: 160 Liters
- Device Dimensions (W × H × D): 59.8 × 81.8 × 73 cm
- Chamber Dimensions (W × H × D): 50.9 × 51.1 × 53.9 cm
- Weight: Approx. 74 kg
- Power Supply (DTA Variant): 3N AC 318–415 V, 50 Hz
- Power Supply (DTB Variant): AC 220–240 V, 50 Hz
- Power Consumption: 9.1 kW (DTA) / 2.9 kW (DTB)
- Noise Level During Drying: <73 dB(A)
- Heat Emission: 1.186 kWh
- Minimum Water Pressure: 1.5 bar
- Recommended Flow Rate: 8 L/min
- Maximum Water Pressure: 10 bar
- Cold Water Connection: 3/4” Internal Thread
- Wastewater Connection: DN21
- Protection Class: IP20
- Cable Length: 2 m
- Drying Options: activeDRY / passiveDRY
- Documentation Interfaces: CF Card, USB & Network Connectivity
Packaging
- Main Unit 1 – Melag MELAtherm 20
Warranty
- 1 Year warranty against all parts of the product under normal operating conditions.
- Physical damage is not covered under warranty in any case.
FAqs
1. What is the Melag MELAtherm 20 used for?
The Melag MELAtherm 20 is used for automated cleaning, disinfection, and drying of dental and medical instruments in high-volume clinics.
2. How many instruments can the MELAtherm 20 process per cycle?
It can process instruments for up to 90 patients in a single cycle.
3. What is AquaBoost technology in the MELAtherm 20?
AquaBoost technology enhances cleaning performance with a powerful circulation pump and advanced rinsing system for superior decontamination.
4. Does the Melag MELAtherm 20 support digital documentation?
Yes, it supports documentation and traceability through CF card, USB, and network connectivity.
5. What drying options are available in the Melag MELAtherm 20?
The system is available with activeDRY for internal and external drying or passiveDRY with automatic door opening.
