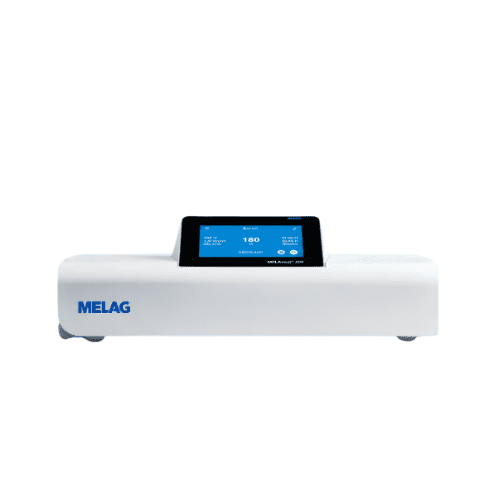

Melag MELAseal 300 – Dental Rotary Sealing Machine

• High-speed continuous sealing with transport speed up to 15 m/min
• Smart-Touch display for intuitive and user-friendly operation
• Fast heating-up time of approximately 100 seconds
• Automatic film feeding system for uninterrupted workflow
• 12 mm segmented sealing seam for strong and reliable seals
• Compliant with EN ISO 11607-2 sealing standards
• USB and Ethernet connectivity for process documentation
• Supports audit-ready sterilization compliance
• Compact and space-saving design for modern clinics
• Energy-efficient Power Save mode for reduced power consumption

• Product Type: Dental Rotary Sealing Machine
• Article Number: ME10300
• Device Dimensions (W × D × H): 360 × 175 × 160 mm
• Weight: 5.6 kg
• Interfaces: 2 × USB, 1 × Ethernet
• Sealing Seam Width: 12 mm
• Transport Speed: 5 – 15 m/min
• Customizable Seal Edge: 0 – 40 mm
• Temperature Range: 100 – 215 °C
• Heating-Up Time: Approx. 100 seconds
• Power Supply: 230 V / 50–60 Hz
• Power Consumption: 650 W (heating phase)
• Compliance Standard: EN ISO 11607-2

• Main Unit 1 – Melag MELAseal 300

• 1 Year warranty against all parts of the product under normal operating conditions.
• Physical damage is not covered under warranty in any case.

1. What is the Melag MELAseal 300 used for?

The Melag MELAseal 300 is used for sealing sterilization pouches and packaging dental instruments before autoclaving.

2. Is the Melag MELAseal 300 suitable for high-volume clinics?

Yes, with sealing speeds up to 15 m/min, it is ideal for busy dental clinics and sterilization departments.

3. Does the MELAseal 300 support documentation and compliance?

Yes, it includes USB and Ethernet interfaces for recording sealing parameters and maintaining compliance documentation.

4. What standards does the Melag MELAseal 300 comply with?

It complies with EN ISO 11607-2 standards for validatable sealing processes.

5. How long does the Melag MELAseal 300 take to heat up?

The machine heats up in approximately 100 seconds, enabling quick operation and improved workflow efficiency.
