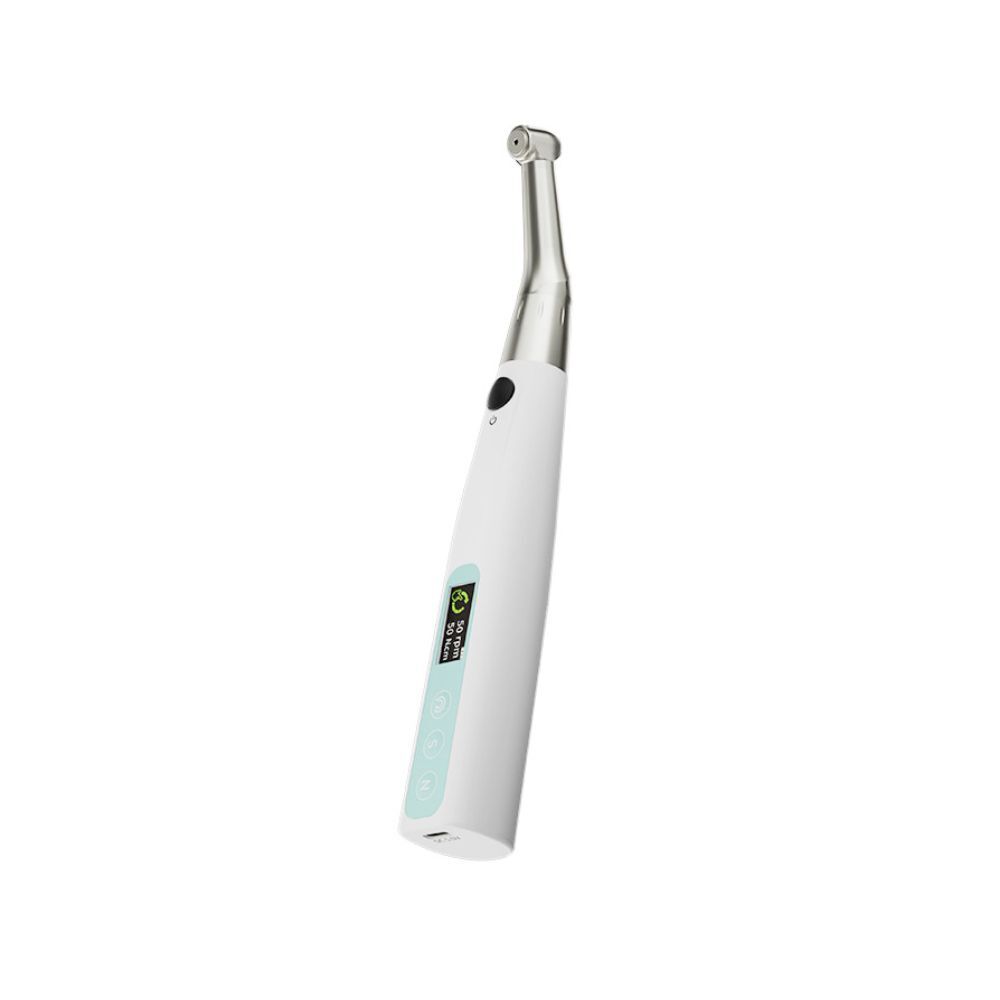

Yahope iT3 Dental Implant Torque Wrench

• Cordless motor handpiece system designed for convenient implant abutment fixation without cable restriction.
• Torque range of 10–50 N·cm allows controlled tightening according to implant prosthetic requirements.
• Speed range of 10–50 rpm supports slow, stable, and controlled rotation during implant procedures.
• 20:1 contra-angle attachment provides precise torque transmission for implant abutment placement.
• CW and CCW operation modes allow both forward and reverse rotation for tightening or loosening abutments.

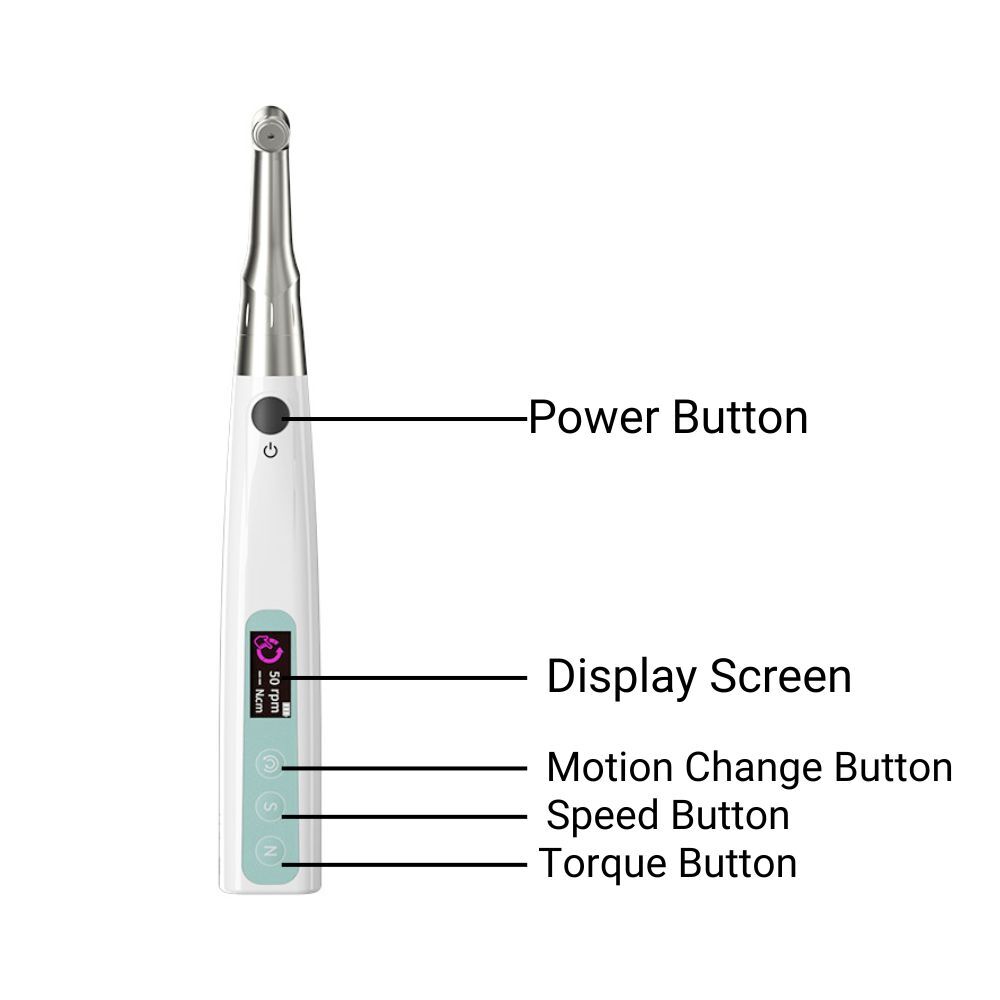

• LCD digital display clearly shows key working parameters such as speed, torque, rotation direction, and battery status.

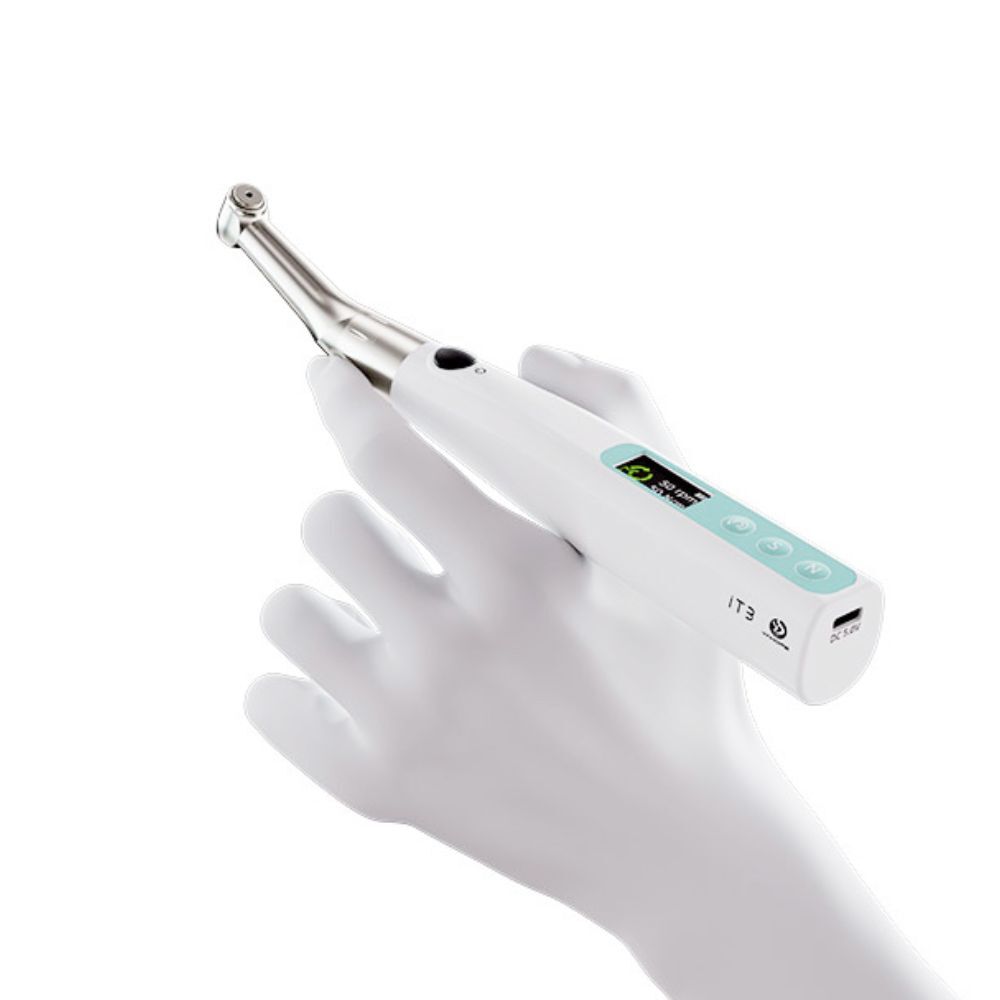

• One-handed operation helps improve chairside efficiency and handling comfort during implant prosthetic steps.
• Rechargeable lithium battery supports cordless use with protection against over-voltage, over-current, and short circuit.
• Stable and accurate performance helps reduce manual variability during abutment fixation.

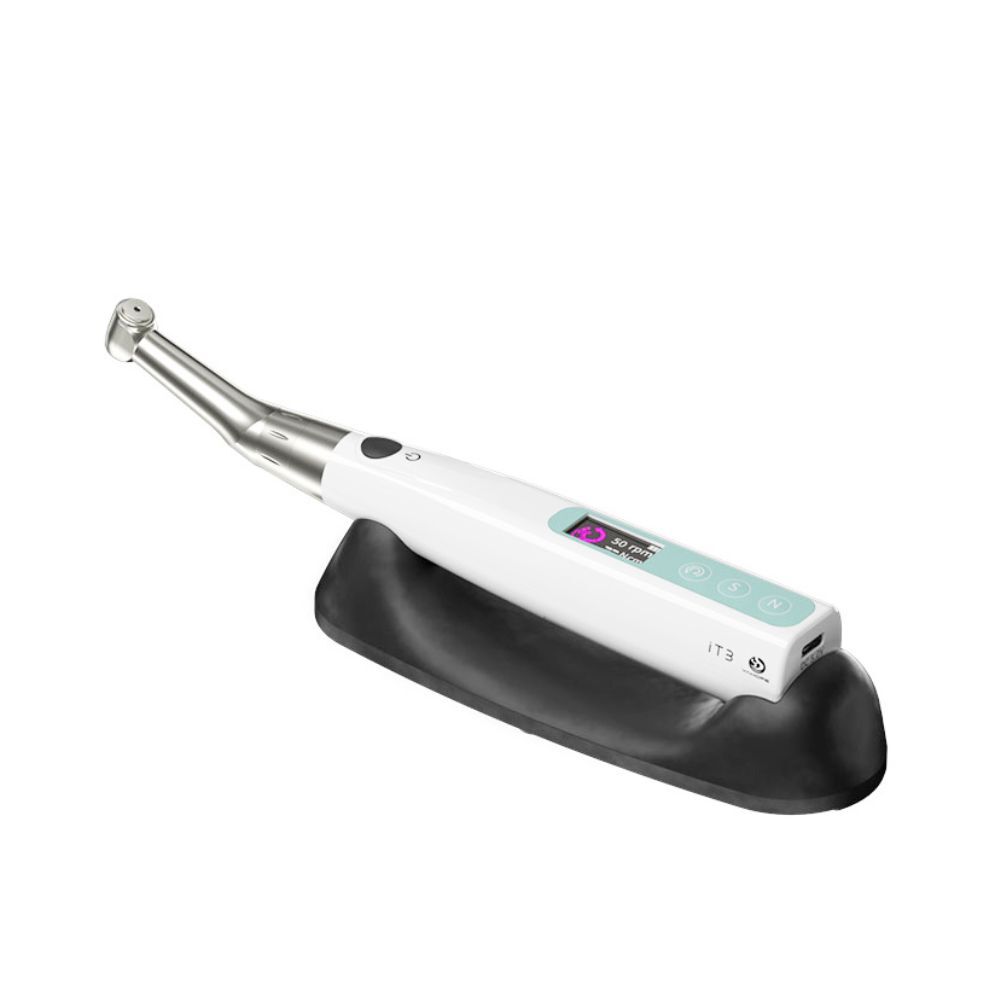

• Compact charging base and adapter allow easy storage, charging, and clinical workstation organization.

• Product Type: Cordless dental implant torque wrench / motor handpiece system
• Intended Use: Fixing an abutment onto an implant during implant surgery or implant prosthetic procedures
• Operation Mode: Continuous operation
• Rotation Direction: Forward / Clockwise rotation and Reverse / Counterclockwise rotation

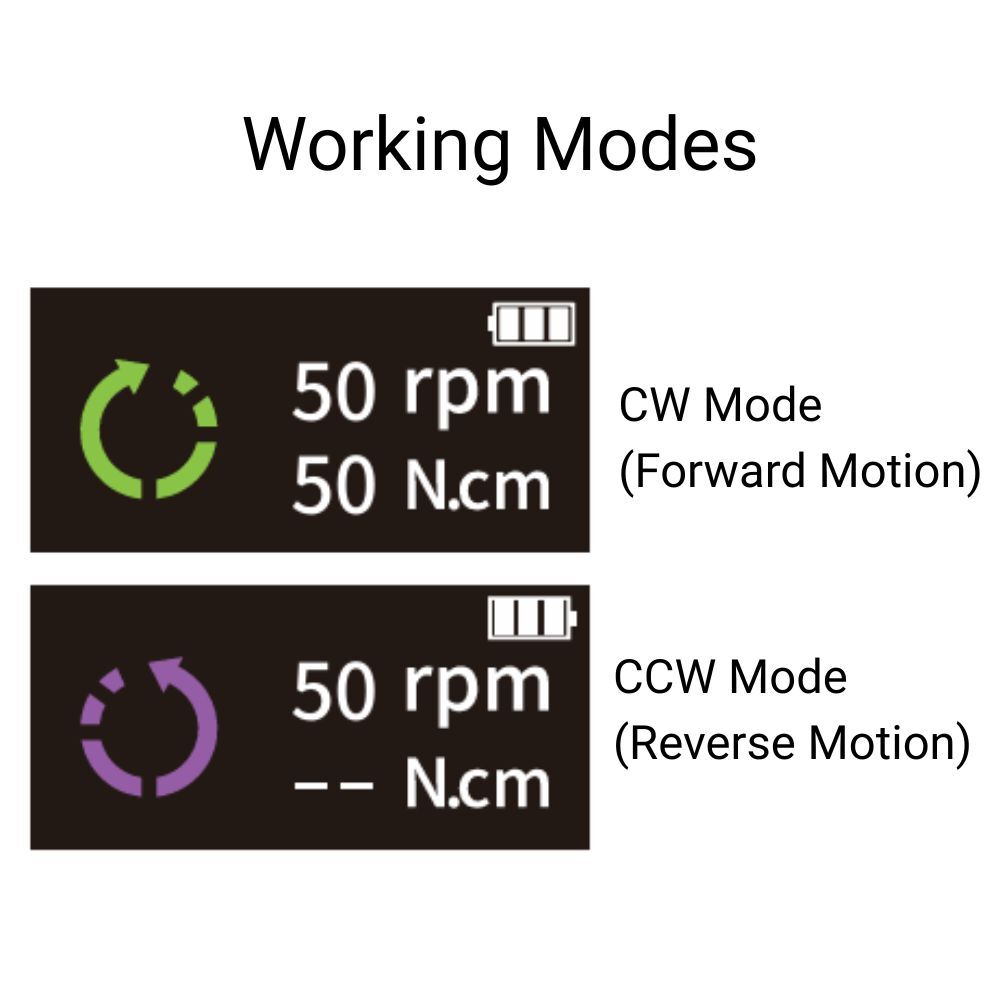

• Motion Mode: CW and CCW mode
• Torque Range: 10–50 N·cm
• Speed Range: 10–50 rpm
• Contra Angle Ratio: 20:1
• Display: LCD digital display
• Battery Type: Rechargeable lithium battery
• Battery Model: 18500
• Battery Capacity: 1900 mAh
• Battery Protection: Over-voltage, over-current, and short-circuit protection
• Adapter Input: 100–240V~, 50/60Hz
• Adapter Output: 5V, 1A

• Handpiece

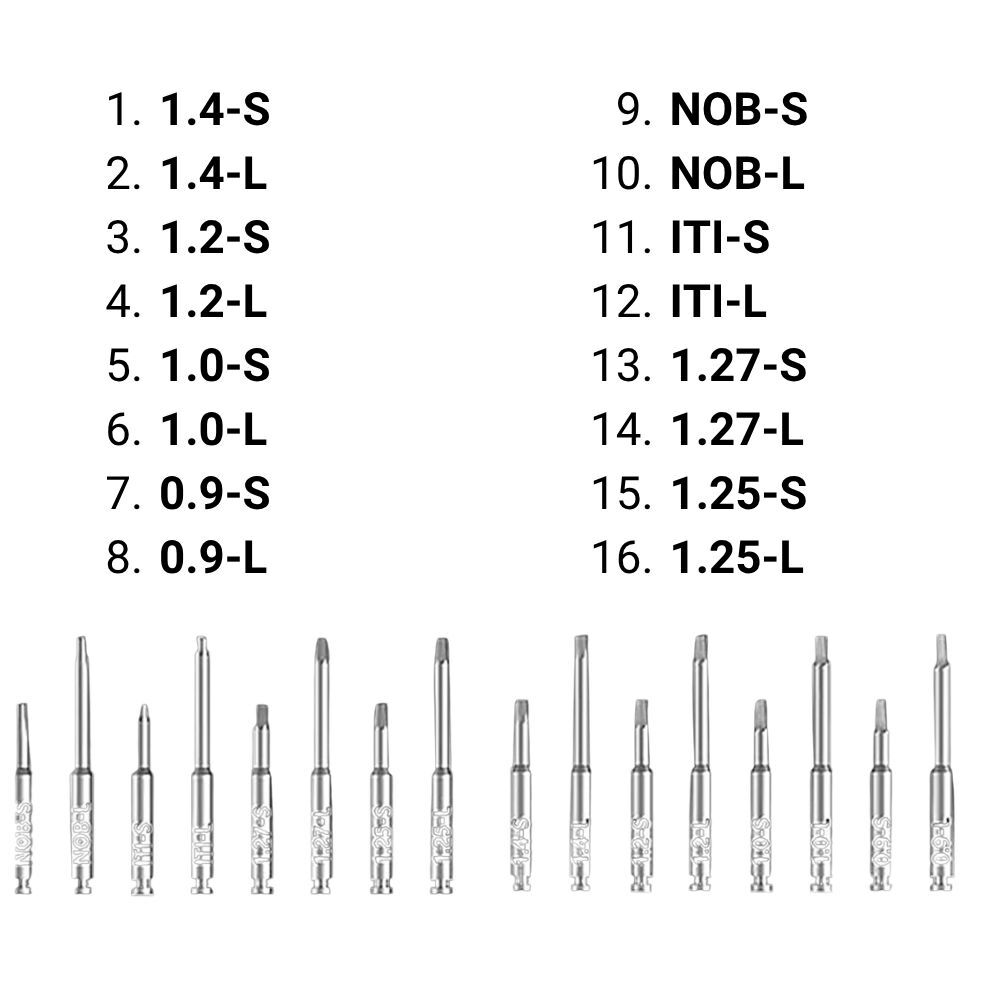

• Screwdrivers (16 drivers)

1.4-S

1.4-L

1.2-S

1.2-L

1.0-S

1.0-L

0.9-S

0.9-L

NOB-S

NOB-L

ITI-S

ITI-L

1.27-S

1.27-L

1.25-S

1.25-L

• Spray Nozzle
• Contra Angle
• Adapter
• Base

• 1 year warranty against all parts of the product under normal operating conditions.
• Physical damage is not covered under warranty in any case.

1. What is the Yahope iT3 Dental Implant Torque Wrench used for?

The Yahope iT3 is used for controlled tightening or loosening of implant abutments. It helps clinicians apply torque with improved consistency during implant prosthetic or implant surgery-related procedures.

2. What is the torque range of the Yahope iT3?

The device offers a torque range of 10–50 N·cm, making it suitable for different implant abutment fixation requirements.

3. Does the Yahope iT3 support reverse rotation?

Yes. It supports both clockwise and counterclockwise rotation, allowing forward and reverse operation during implant procedures.

4. What is the speed range of this implant torque wrench?

The Yahope iT3 operates within a speed range of 10–50 rpm, providing controlled low-speed performance for implant abutment handling.

5. Is this device cordless?

Yes. The iT3 is a cordless rechargeable motor handpiece system powered by a lithium battery.
