Yahope iCHECK Dental Implant Stability Meter

• No SmartPeg required, making the system consumable-free and cost-efficient for repeated clinical use.
• One-click rapid measurement allows quick chairside assessment of implant stability with minimal workflow interruption.
• Data obtained after 6 taps to help provide a stable and consistent measurement value.
• Automatic protection program activates when implant stability is less than 59, stopping the tapping rod after just 2 taps.
• Tapping-based measurement mechanism eliminates the need for additional disposable measuring pegs or transducers.
• LCD digital display provides clear visibility of measured values during clinical use.
• Compact cordless handpiece design supports convenient handling and easy access in the oral cavity.
• Rechargeable lithium battery supports clinical portability and repeated use between charges.
• Disposable sleeves included to support hygienic use during chairside procedures.
• Suitable for implant stability evaluation during implant surgery, healing assessment, and prosthetic loading decisions.

• Product Type: Implant stability meter
• Measurement Method: Tapping-based implant stability measurement
• Consumable Requirement: No SmartPeg required
• Display: LCD display
• Operation Mode: Continuous operation
• Protection Against Electrical Shock: Class II
• Protection Degree Against Electrical Shock: Type B
• Battery Type: Rechargeable lithium battery
• Battery Model: 16340
• Battery Capacity: 700 mAh
• Battery Protection: Over-voltage, over-current, and short-circuit protection
• Adapter Input: 100–240V~, 50/60Hz
• Adapter Output: 5V, 1A
• Accuracy: Display value ±3
• Tapping Speed: 0.5 seconds per tap
• Tapping Strength: ≤1.0 N to 1.3 N
• Measurement Tapping Cycle: Taps 2–4 times until the measured value reaches 1–59
• Stability Measurement: After 60–99, the device taps 6 times to measure stability

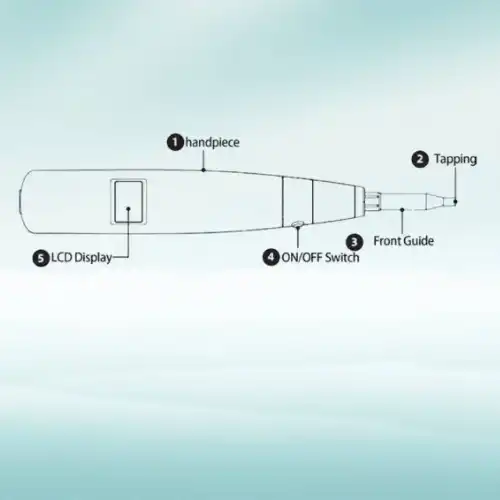

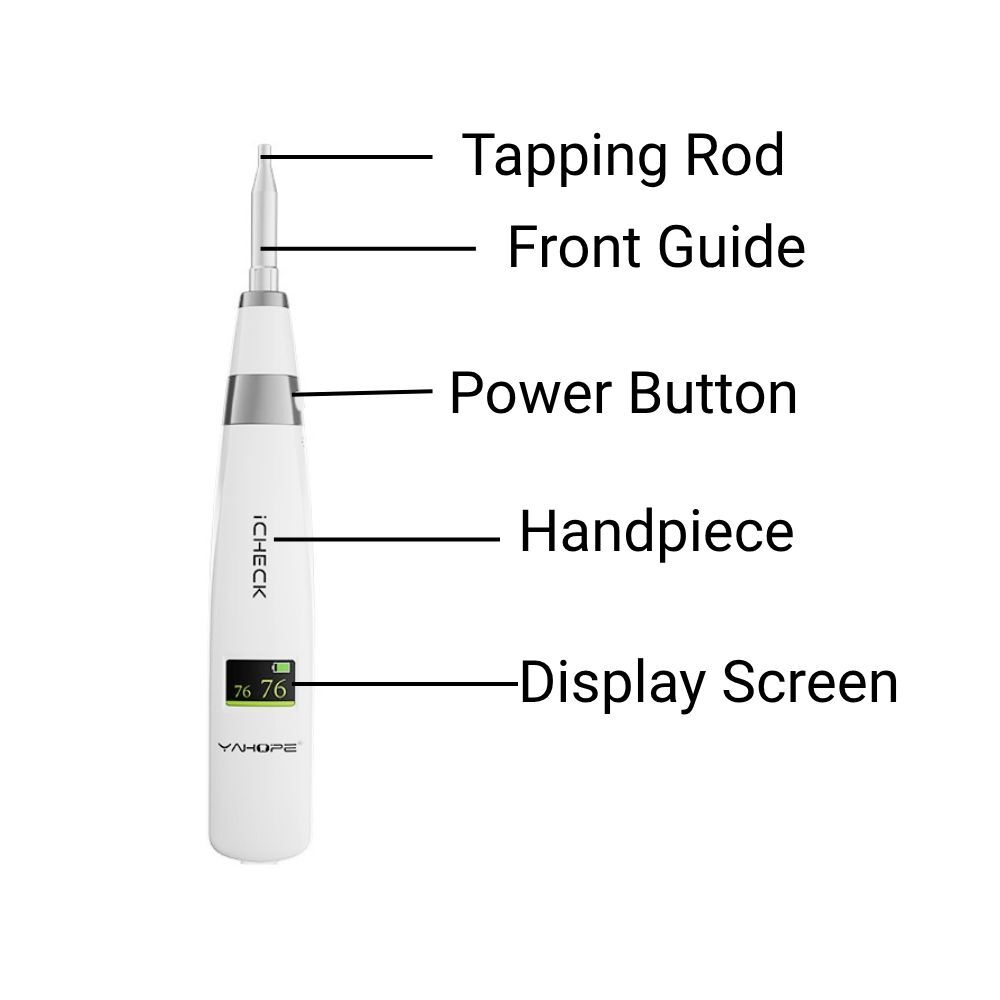

• Handpiece
• Tapping Rod / Applied Part
• Front Guide
• Target Bar
• Base
• Allen Wrench
• Adapter
• Disposable Sleeves

• 1 year warranty against all parts of the product under normal operating conditions.
• Physical damage is not covered under warranty in any case.

1. What is the iCHECK Implant Stability Meter used for?

The iCHECK Implant Stability Meter is used to measure dental implant stability during implant treatment. It helps clinicians assess whether an implant has achieved adequate stability for clinical decision-making.

2. Does iCHECK require SmartPegs?

No. iCHECK does not require SmartPegs, making it a consumable-free implant stability measurement system.

3. How does the device measure implant stability?

The device uses a tapping rod mechanism. It gently taps the implant/abutment area and displays the stability value on the LCD screen.

4. How many taps are required for measurement?

Data is obtained after 6 taps when the measured stability value is within the higher range. If the stability value is less than 59, the device stops after 2 taps and enters the protection program.

5. What is the accuracy of the iCHECK Implant Stability Meter?

The device has an accuracy of display value ±3.
