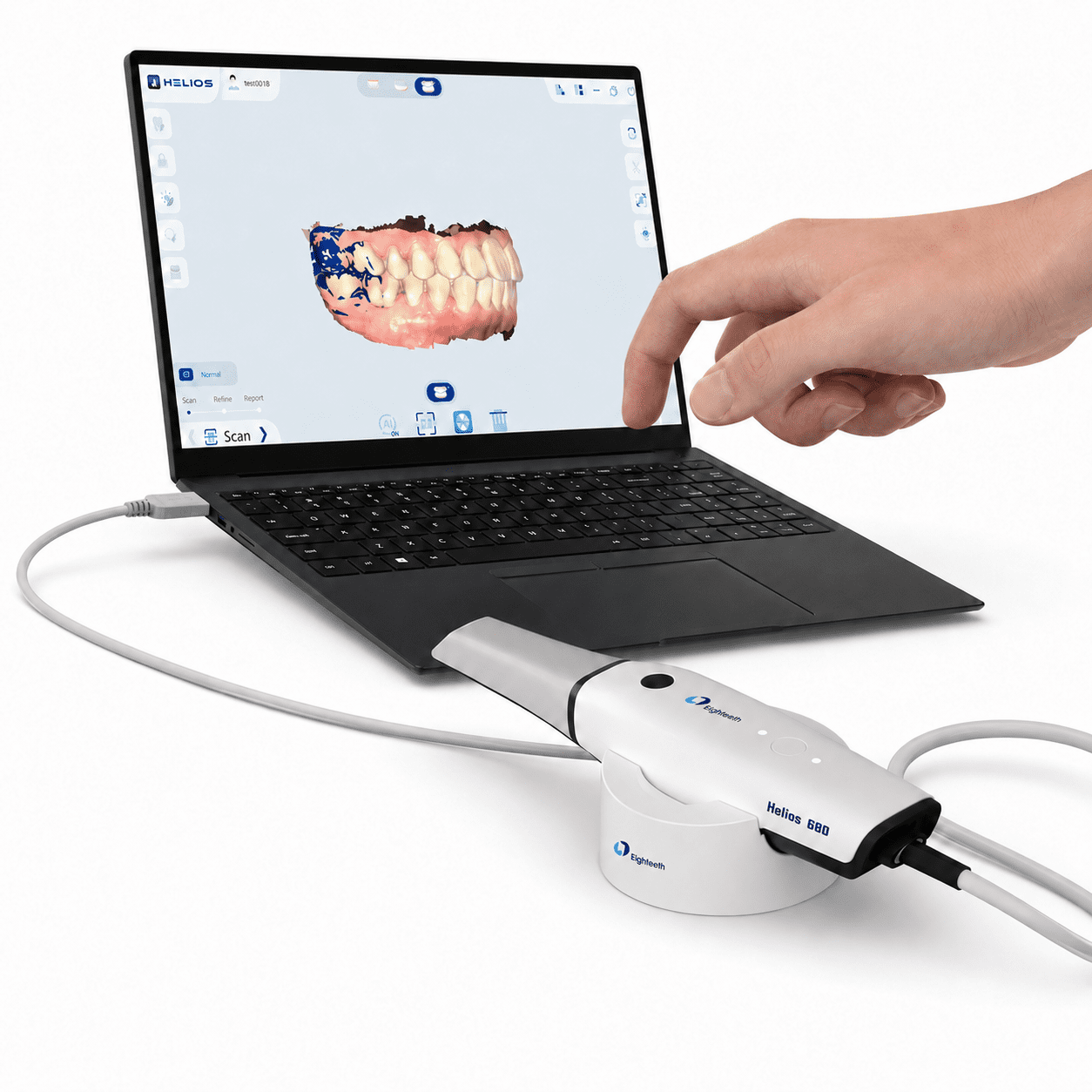

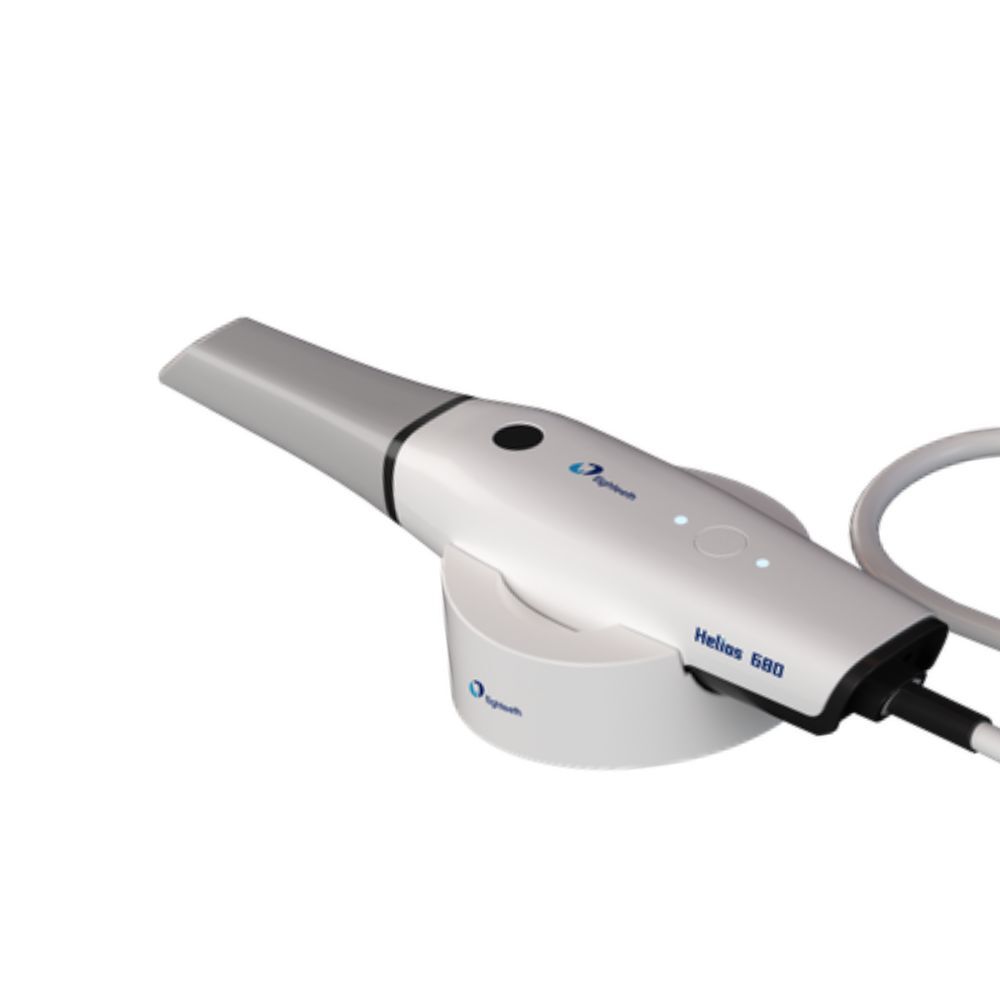

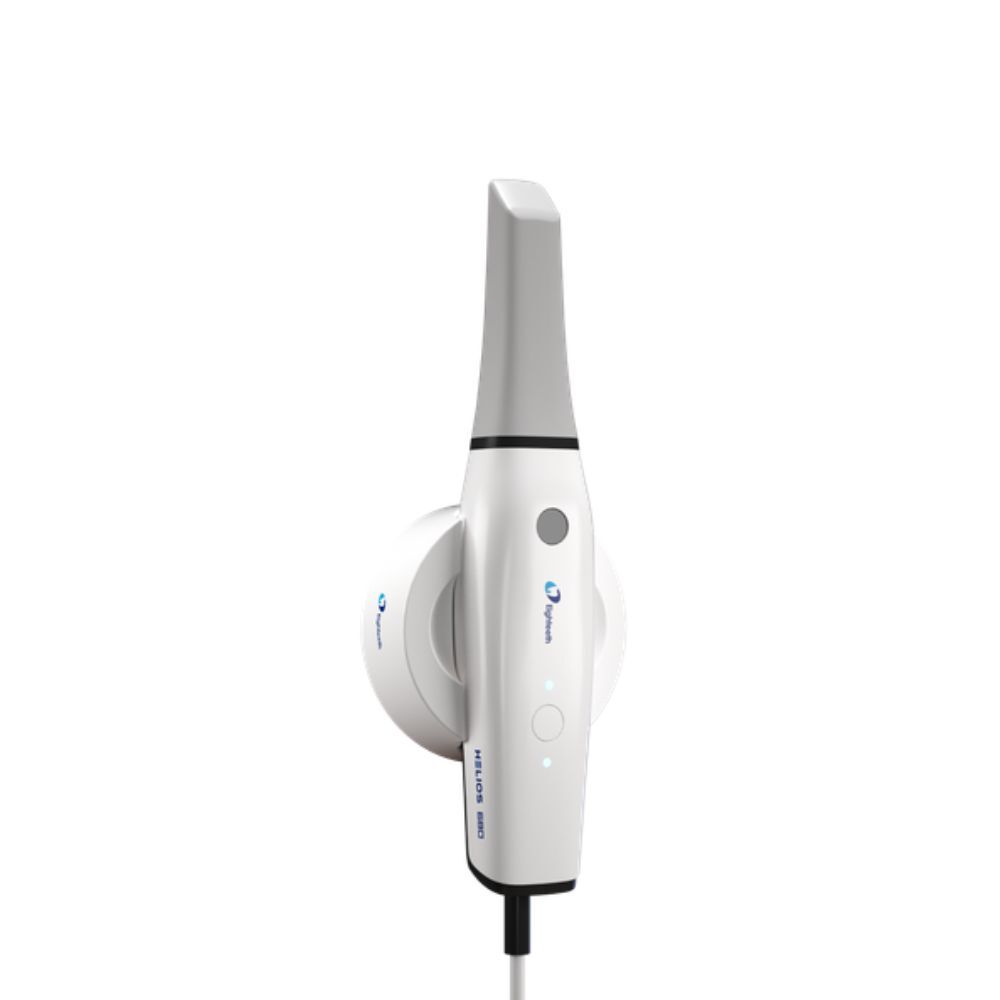

Eighteeth Helios 680 Intraoral Scanner

• 16 µm full-arch accuracy supports precise digital impression capture for restorative, orthodontic, and implant planning.
• 8 µm single-tooth precision helps capture fine tooth details for crown, inlay, onlay, veneer, and margin-related cases.
• 30 FPS scanning speed enables smoother scan acquisition and helps reduce scanning time during clinical workflows.
• 24-bit true colour imaging provides realistic tooth and tissue visualisation, supporting shade understanding and better lab communication.
• Lightweight 161.5 g handpiece offers better control and reduced hand fatigue during full-arch or repeated scans.

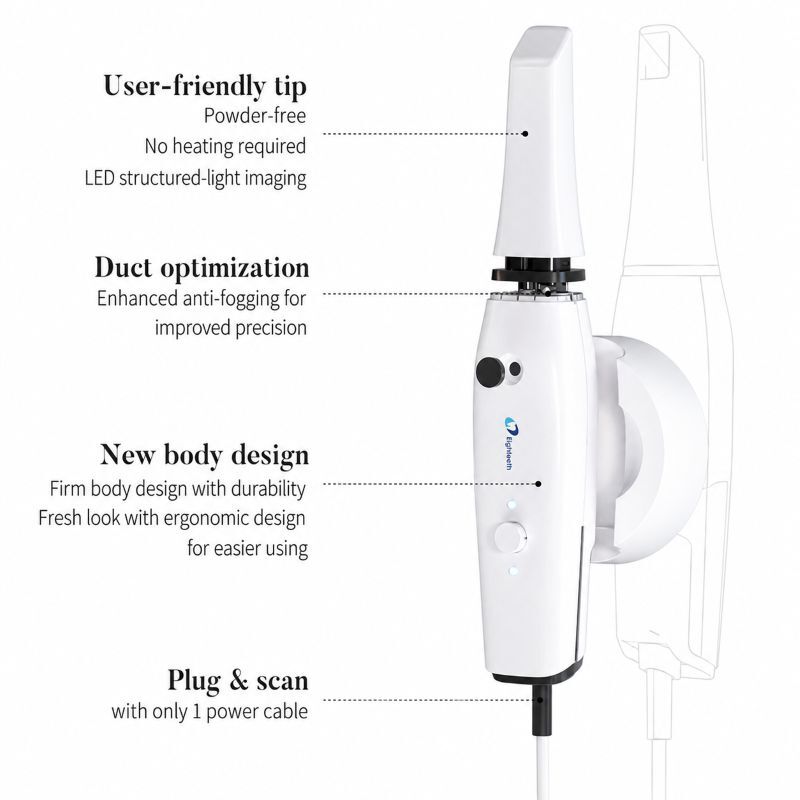

• Powder-free LED structured-light imaging allows direct intraoral scanning without additional powder application or tip pre-heating.
• Removable 180° reversible tip improves clinical access and scanning convenience in different quadrants of the mouth.
• Enhanced anti-fogging duct design helps maintain scanning clarity and precision during intraoral use.
• Autoclavable scanner tips are designed to withstand up to 100 sterilisation cycles, supporting infection control in daily practice.
• Calibration-free accuracy and colour system reduces manual maintenance and allows clinicians to start scanning with less setup time.
• Open data output in STL, PLY, and OBJ formats supports flexible integration with CAD/CAM, orthodontic, and lab workflows.

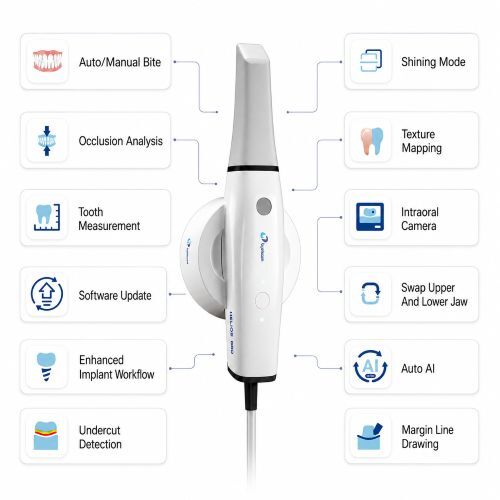

• Built-in software tools include auto/manual bite, occlusion analysis, undercut detection, tooth measurement, margin line drawing, intraoral camera function, model builder, and upper/lower jaw swap.
• AI report and orthodontic simulation help improve case explanation, diagnosis support, and doctor-patient communication.
• Air Mouse function allows the scanner to control software and rotate 3D models without switching frequently to the laptop trackpad or mouse.
• Cloud storage support offers 10GB free cloud storage for easier case sharing and digital case management.

• Scanning Technology: LED structured-light imaging
• Full-Arch Accuracy: 16 µm
• Single-Tooth Accuracy: 8 µm
• Depth of Field: 20 mm
• Scan Area: 16 × 14 mm large scan area × 3; 12 × 12 mm small scan area × 1
• Scanning Speed: 30 FPS
• Scanner Weight: 161.5 g
• Tip Design: Removable and 180° reversible
• Scanning Mode: Powder-free scanning
• Anti-Fog System: Enhanced anti-fogging duct design
• Calibration: Accuracy calibration-free and colour calibration-free
• Advanced Mode: Remote control supported
• Output Formats: STL, PLY, OBJ
• Connectivity: USB 3.0
• Cable Length: 1.8 m
• Voltage: 4.9V–5.1V
• Current: >1A
• Tip Sterilisation: Up to 100 sterilisation cycles

Recommended System Requirements

• Processor: Intel Core 13th Gen i7-13700 or equivalent
• Memory: 32GB DDR4, 2666 MHz or better
• Hard Drive: 1TB SSD or more
• Graphics Card: NVIDIA GeForce RTX 3060, 6GB VRAM
• Display: 15.6-inch FHD, 1920 × 1080 or higher
• USB Interface: USB 3.0
• Operating System: Windows 10 / 11

• Helios 680 intraoral scanner handpiece
• Scanner base / holder
• USB 3.0 connection cable
• Reversible autoclavable scanner tips
• Software access / installation support
• User documentation

• 1 Year warranty against all parts of the product under normal operating conditions.
• Physical damage is not covered under warranty in any case.

1. What is the accuracy of the Helios 680 intraoral scanner?

The Helios 680 offers 16 µm full-arch accuracy and 8 µm single-tooth precision, making it suitable for routine restorative, orthodontic, implant, and digital impression workflows.

2. Does the Helios 680 require calibration?

No. The scanner is designed with calibration-free accuracy and colour calibration, reducing setup time and routine maintenance.

3. Is the Helios 680 suitable for full-arch scans?

Yes. With 30 FPS scanning speed, 16 µm full-arch accuracy, and a 20 mm depth of field, it is suitable for efficient full-arch digital impression capture.

4. Can the scanner tips be sterilised?

Yes. The scanner tips are autoclavable and can withstand up to 100 sterilisation cycles.

5. Which file formats does Helios 680 support?

The scanner supports STL, PLY, and OBJ output formats, allowing flexible use with different CAD/CAM and lab workflows.

6. Does it support orthodontic workflows?

Yes. It includes orthodontic simulation, occlusion analysis, bite registration, upper/lower jaw swap, and model-building functions to support orthodontic planning and communication.
