Key features

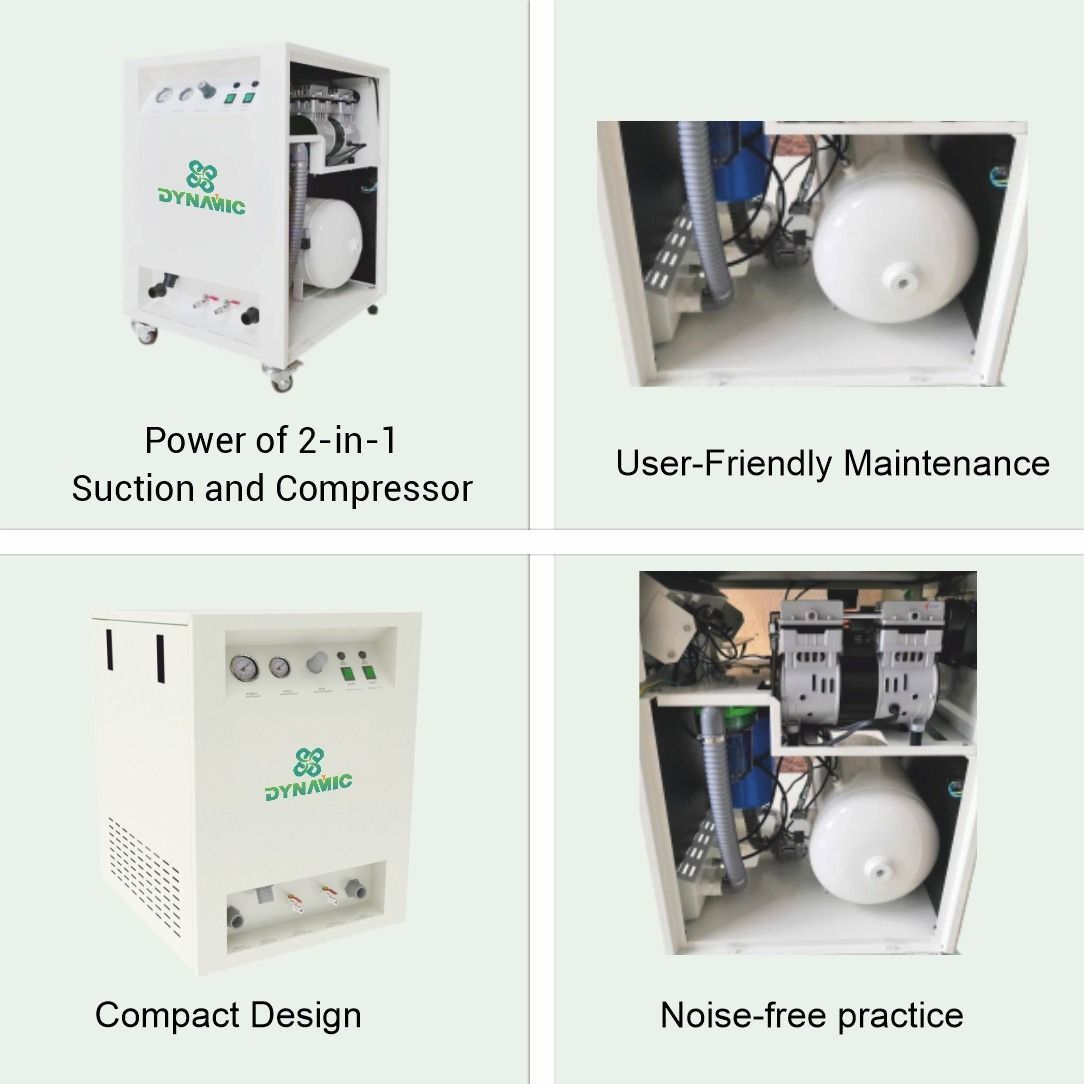

• Noise-free operation ensuring enhanced patient comfort during procedures
• Dual functionality with integrated suction and air compressor system
• Compact and space-saving design suitable for small and multi-operatory clinics
• Cost-effective solution reducing the need for multiple equipment units
• High suction efficiency for effective evacuation of fluids and debris
• Enhanced mobility for flexible placement and easy adaptability
• Durable construction for long-term clinical performance
Technical Specification
• Voltage: 115–230V / 50–60Hz
• Power: 1.2 kW
• Air Flow (5 Bar): 78 L/min
• Suction Unit Air Flow: 300 L/min
• Vacuum Level: -11 kPa
• Sewage Tank Capacity: 22.5 L
• Noise Level: ≤65 dB(A)
• Net Weight: 69 kg
• Gross Weight: 89 kg
• Machine Dimensions: 600 × 530 × 830 mm
Packaging
- Dynamic Compressor Suction Unit (DAS002)
- Package Dimension (mm): 690 x 620 x 990
Warranty
- 1 Year warranty against all parts of the product under normal operating conditions.
- Physical damage is not covered under warranty in any case.
FAQS
1. What makes DAS002 different from regular suction systems?
It combines both compressor and suction functions in one unit, eliminating the need for separate machines.
2. Is the system noisy during operation?
No, it operates at ≤65 dB(A), ensuring a quieter and more comfortable clinic environment.
3. What is the suction capacity of the system?
It provides a suction airflow of 300 L/min with a vacuum level of -11 kPa.
4. Does it require significant installation space?
No, its compact design makes it ideal for space-constrained clinics.
