Implant contra-angle handpiece and the motor increases the dentist’s comfort by reducing hand fatigue. Noiseless high-quality Swiss motor imported that is comfortable for the patient and reduces anxiety. Imported GRW Ball Bearings from Germany increased the efficiency & durability of the contra-angle handpiece. L arge 7” colored touch screen with glass interface for clear visibility on the screen during an oral surgical procedure. External mute water peristaltic pump that is compatible with disposable water tubing. Multi-functional foot control to allow the dentist for aseptic operations. 8-step guiding tool for easy operation by the dental professional. API Sinus Lift Kit or Bone Scrapper: Used to elevate and/or detach the periosteum from the underlying bone by a pushing action applied along the longitudinal axis of the bone. Made of high-grade stainless steel. Available in a wide variety of sizes and blade designs

KEY SPECIFICATION

Implant contra-angle handpiece and the motor increases the dentist’s comfort by reducing hand fatigue.
Noiseless high-quality Swiss motor imported that is comfortable for the patient and reduces anxiety.
Imported GRW Ball Bearings from Germany increased the efficiency & durability of the contra-angle handpiece.
Large 7” colored touch screen with glass interface for clear visibility on the screen during an oral surgical procedure.
External mute water peristaltic pump that is compatible with disposable water tubing.

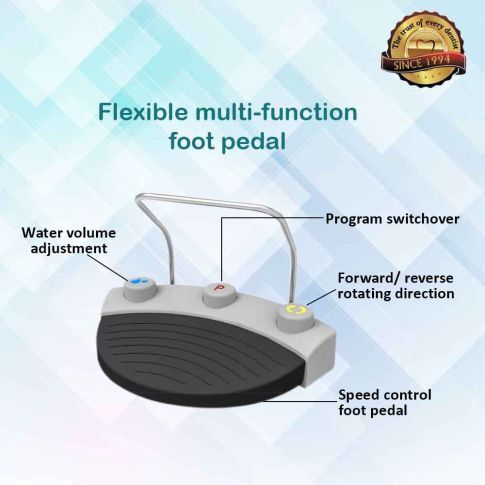

Multi-functional foot control to allow the dentist for aseptic operations.
8-step guiding tool for easy operation by the dental professional.

API Sinus Lift Kit or Bone Scrapper:

Used to elevate and/or detach the periosteum from the underlying bone by a pushing action applied along the longitudinal axis of the bone.
Made of high-grade stainless steel.
Available in a wide variety of sizes and blade designs

Technical Specification

Technical Specifications:

Both Optic/Non-Optic in the same device (light control on screen)
Motor Speed range: 300 – 200,000 rpm (differs as per gear ratio)
Max handpiece Speed (20:1 gear ratio): 2,000 rpm
Torque Range (20:1 handpiece): 5 – 80 Ncm
Max Pump Output: 110 ml/min
Unit Dimensions: 276mm x 267mm x 110mm
Motor Dimensions: Diameter 23.4mm, Length 91mm
Motor weight: 140gm
Power Supply: AC220V 50/60Hz
Available Gears:
1. 20:1
2. 16:1
3. 27:1
4. 1:1
5. 1:2
6. 1:3
7. 1:5

Related Keywords Search

Woodpecker Implant-X Fiber Optic Implant Motor available only at BestDentaldeals. Explore the widest collecton of dental products from top brands. Shop Now!

Related Products

Physiodispensor and Piezosurgery Units

Woodpecker Surgery X Piezosurgery

Physiodispensor and Piezosurgery Units

Woodpecker Implant X Physiodispensor

Rated 5.00 out of 5

Physiodispensor and Piezosurgery Units

NSK Physiodispenser Surgic AP 2 implant Motor

Dental Chairs

NSK Physiodispenser Surgic Pro 2 Implant Motor (Non Optic)

₹180,000.00

Physiodispensor and Piezosurgery Units

Woodpecker Ultrasurgery LED – Advanced Piezosurgery Unit

Dental Chairs

NSK Physiodispenser Surgic Pro 2 Implant Motor (Optic)

₹225,500.00

Reviews

There are no reviews yet.

Be the first to review “CSM Implant Bundle Offer With Implant X & Implant Surgical Kit”

CSM Implant Bundle Offer With Implant X & Implant Surgical Kit

Q: Technical Specification

Technical Specifications: Both Optic/Non-Optic in the same device (light control on screen) Motor Speed range: 300 – 200,000 rpm (differs as per gear ratio) Max handpiece Speed (20:1 gear ratio): 2,000 rpm Torque Range (20:1 handpiece): 5 – 80 Ncm Max Pump Output: 110 ml/min Unit Dimensions: 276mm x 267mm x 110mm Motor Dimensions: Diameter 23.4mm, Length 91mm Motor weight: 140gm Power Supply: AC220V 50/60Hz Available Gears: 20:1 16:1 27:1 1:1 1:2 1:3 1:5

Add to wishlist

Add to compare

SKU: UDL31-1

save 45%

Original price was: ₹376,000.00.Current price is: ₹205,000.00.

BUNDLE INCLUSIONS:

CSM 25 Implants
25 Abutments
3 Prosthetic Sets
1 Surgical Kit
Woodpecker Implant-X

This device serves the crucial function of placing dental implants in the alveolar bone of both the maxilla and mandible, offering dentists precise control over speed and torque for increased accuracy. Equipped with an external mute water peristaltic pump compatible with disposable water tubing, it ensures optimal hygiene standards. The inclusion of a multi-functional foot control enables dentists to perform aseptic operations efficiently. Additionally, its 8-step guiding tool simplifies operations for dental professionals. Beyond implant placement, this versatile device facilitates tooth polishing, finishing, trimming, cavity, and endodontic biomechanical preparation tasks. Its intuitive control over light, water spray, and forward/reverse functions makes it particularly suitable for implant placement procedures.
