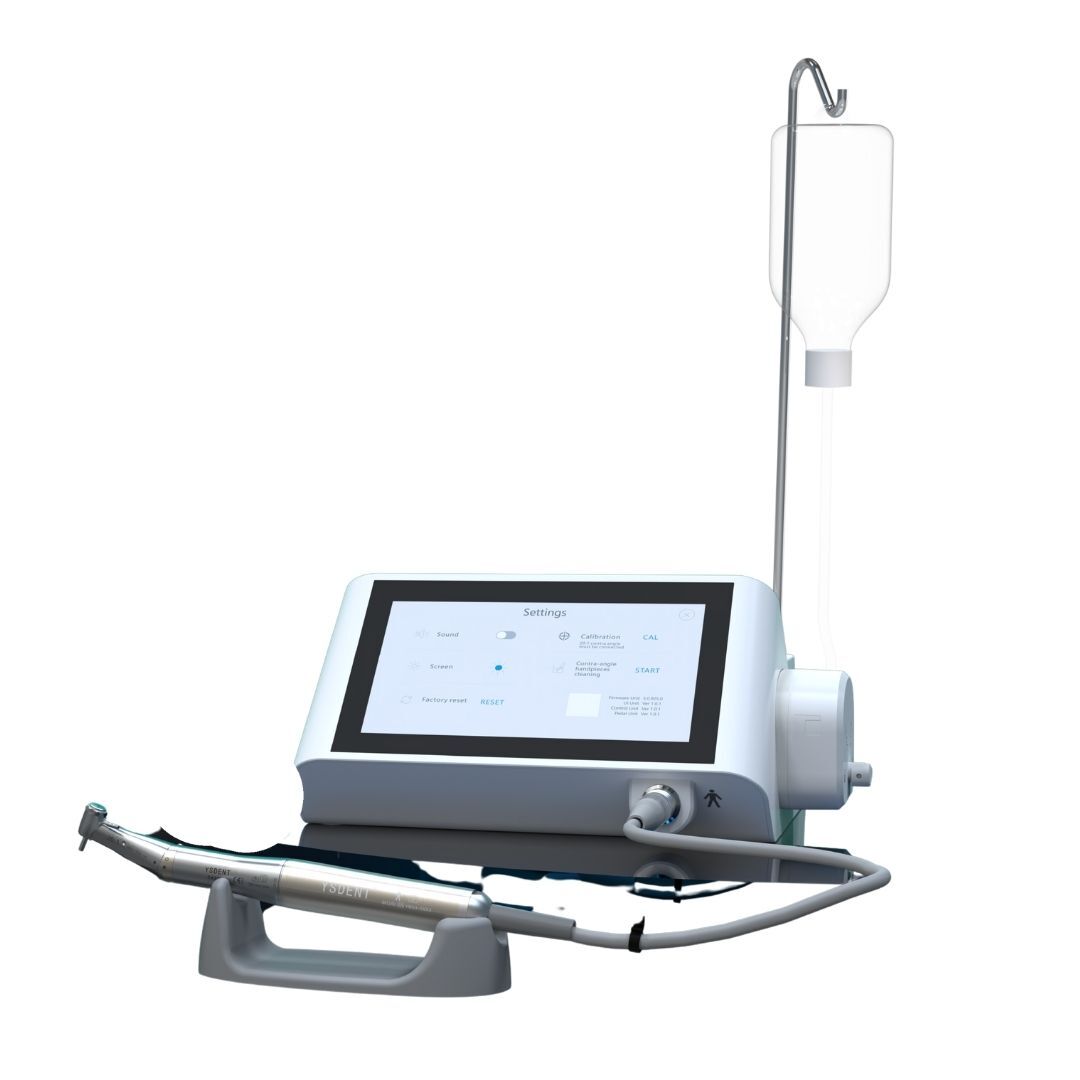

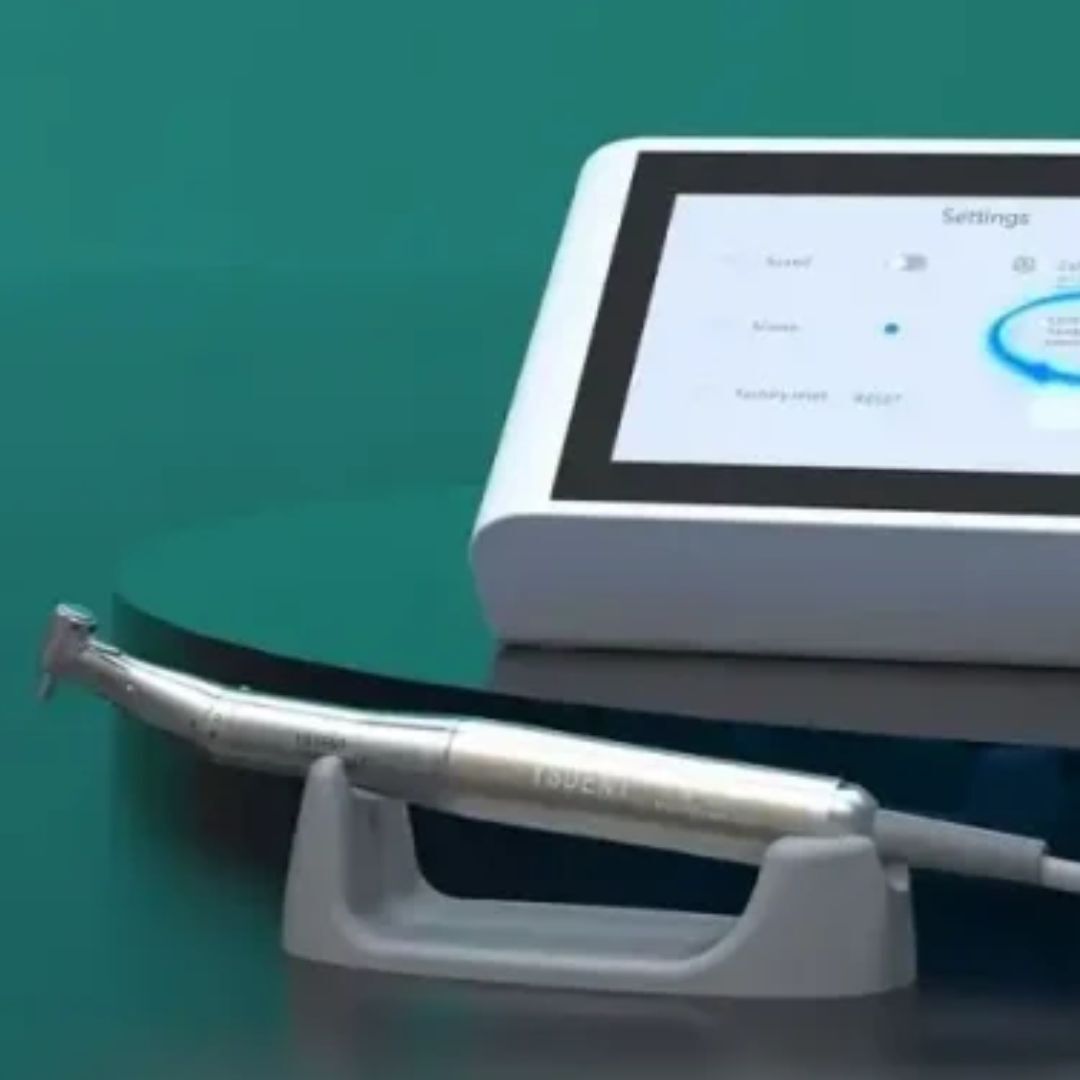

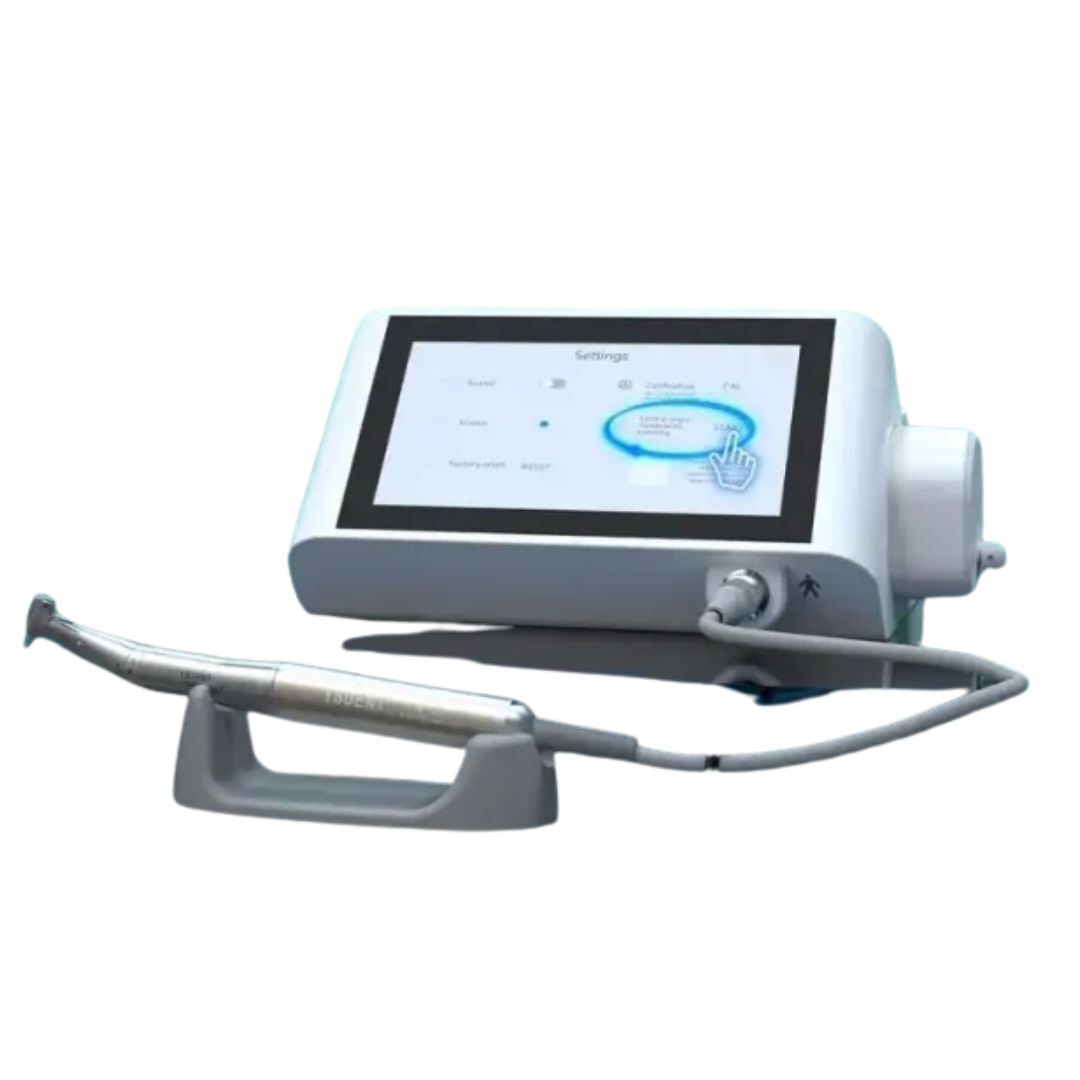

Coxo Surgic-X Brushless Implant Motor System with 20:1 LED Surgical Contra Angle Handpiece

• Brushless Induction Motor: Delivers up to 70 N·cm torque with ultra-low noise and long-life reliability.
• Dual-Mode Operation: Switch easily between Implant and Surgical modes with 6 programmable steps each.

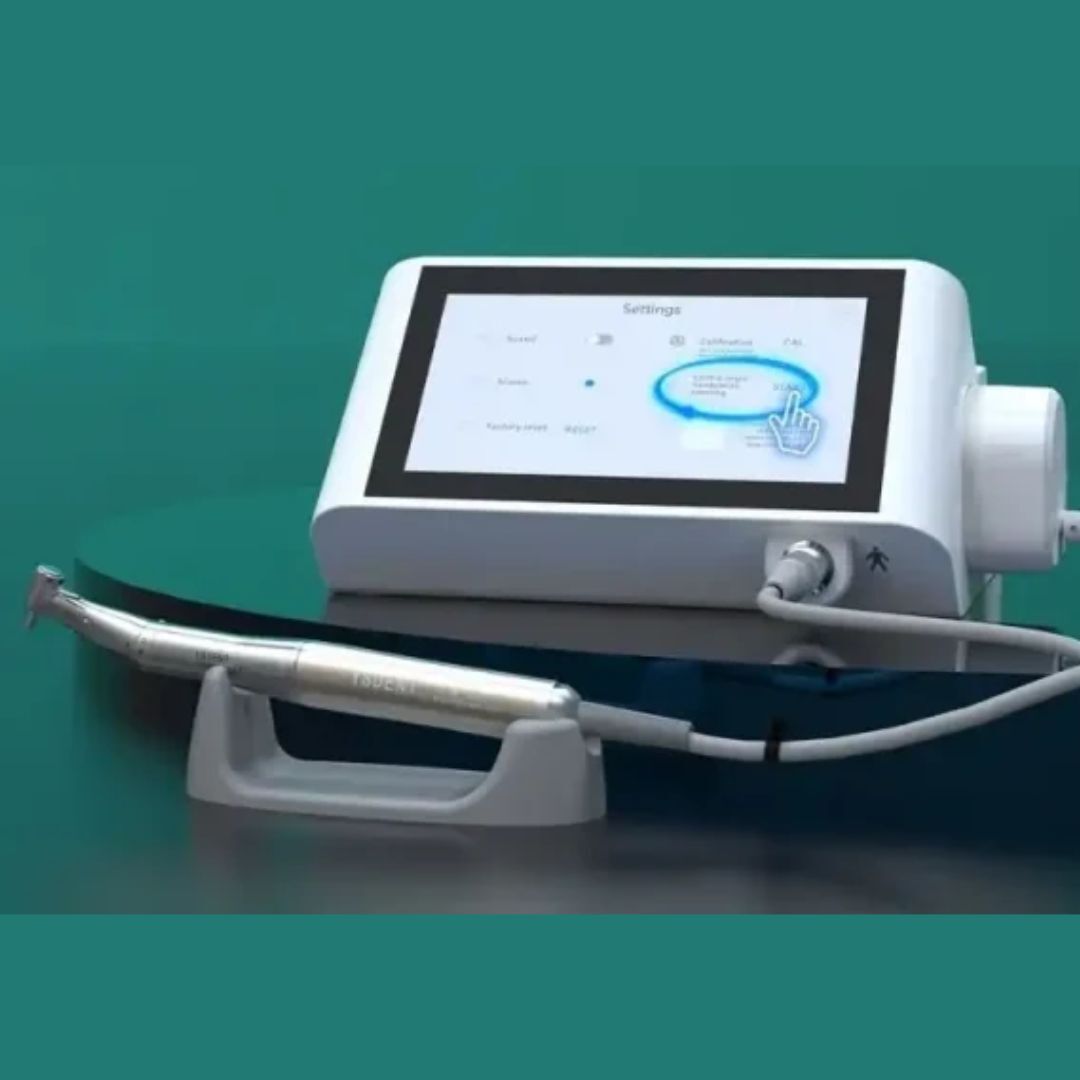

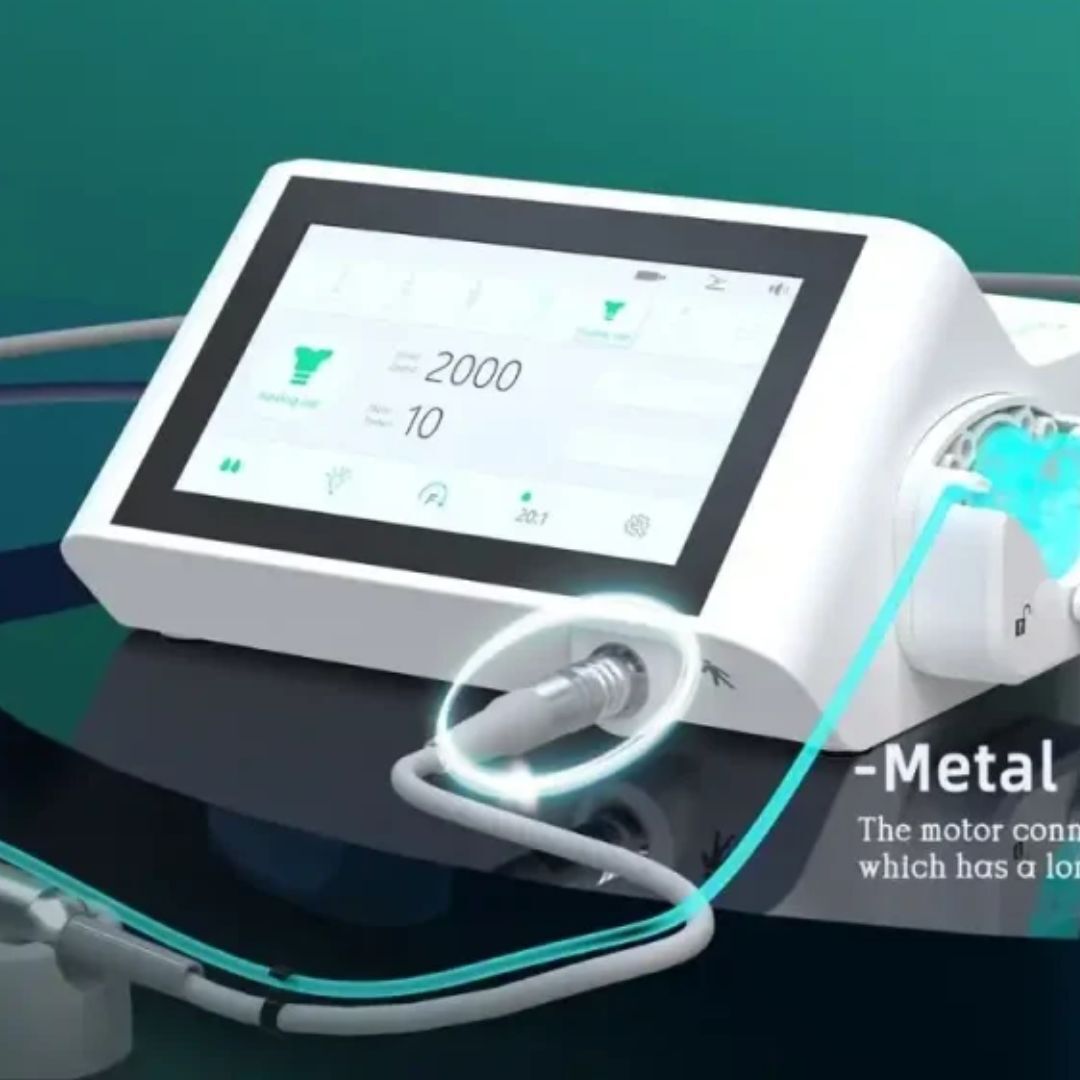

• 7-inch Graphical Touchscreen: Real-time display for speed, torque, and irrigation with intuitive one-touch control.
• Dual Illumination System: >30,000 lux LED + fiber optics for bright, shadow-free surgical visibility.
• Smart Coolant Management: Built-in peristaltic pump with 4 adjustable flow levels up to 50 ml/min.
• Ergonomic & Sterile Design: Lightweight, fully autoclavable handpieces and cables to enhance infection control.
• Safety & Compliance: Overload protection, thermal sensors, and full ADA sterilization compliance.
• Multifunction Foot Pedal: Hands-free control for speed, program selection, forward/reverse, and irrigation.

Control Unit

• Power Input: 100V–240V ~ 50Hz/60Hz
• Input Power: 250 VA
• Operating Mode: Non-continuous operation
• Duty Cycle: Max. ON 40s / Min. OFF 10min
• Degree of Protection (IEC 60529): IPX7 (Foot Pedal)
• Maximum Torque (20:1): 80 N·cm

Motor

• Speed Range: 300 – 40,000 rpm
• Motor Cable Length: 1.8 m
• Material: Aluminum alloy & stainless steel

Foot Pedal

• Model Number: FS-3
• Degree of Protection (IEC 60529): IPX7
• Cable Length: 1.8 m

• Control Unit

• Brushless Motor

• Foot Pedal (Model FS-3)

• Bracket

• Power Cord

• Irrigation Hanger

• Tube Holder

• Fuse (2 pcs)

• Handpiece Stand

• Protective Plug

• LED Lamp

• Instructions Manual

• 1 Year warranty against all parts of the product under normal operating conditions.
• Physical damage is not covered under warranty in any case.

1. What is the maximum torque output of the system?
The system delivers up to 80 N·cm torque when used with a 20:1 surgical contra-angle handpiece.

2. What is the operating speed range?
The motor operates within a wide speed range of 300 to 40,000 rpm.

3. Is the motor compatible with standard surgical handpieces?
Yes, it meets ISO 3964 coupling requirements for compatibility with standard surgical contra-angles.

4. Does the system include LED illumination?
Yes, it features integrated LED illumination with a 6,000 K color temperature for bright, natural white light.

5. What safety features are included?
The unit includes Class I electric shock protection, IPX7-rated foot pedal, overpressure protection, and thermal safeguards.

6. Is the motor suitable for continuous operation?
No, it is designed for non-continuous operation with a duty cycle of 40 seconds ON and 10 minutes OFF.
