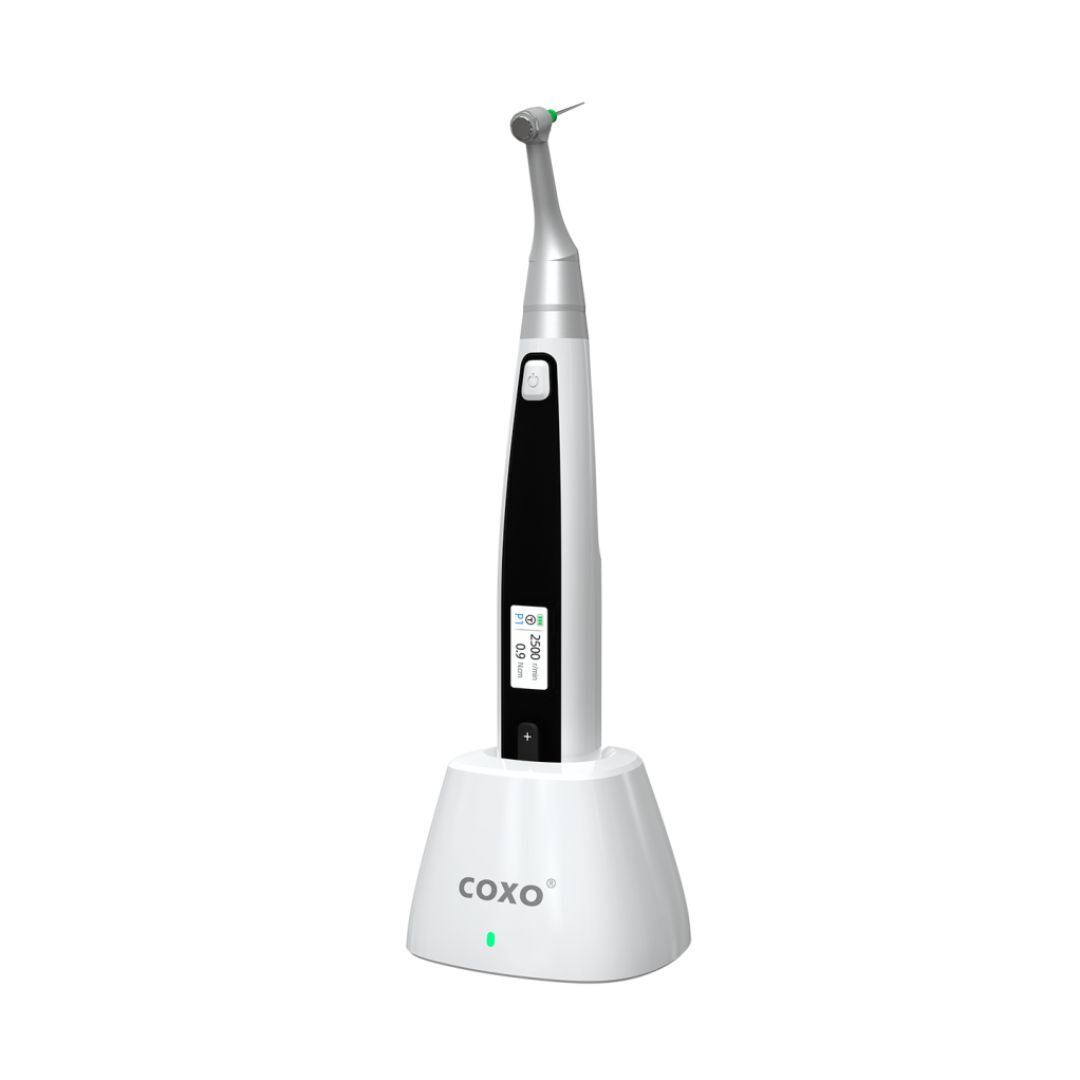

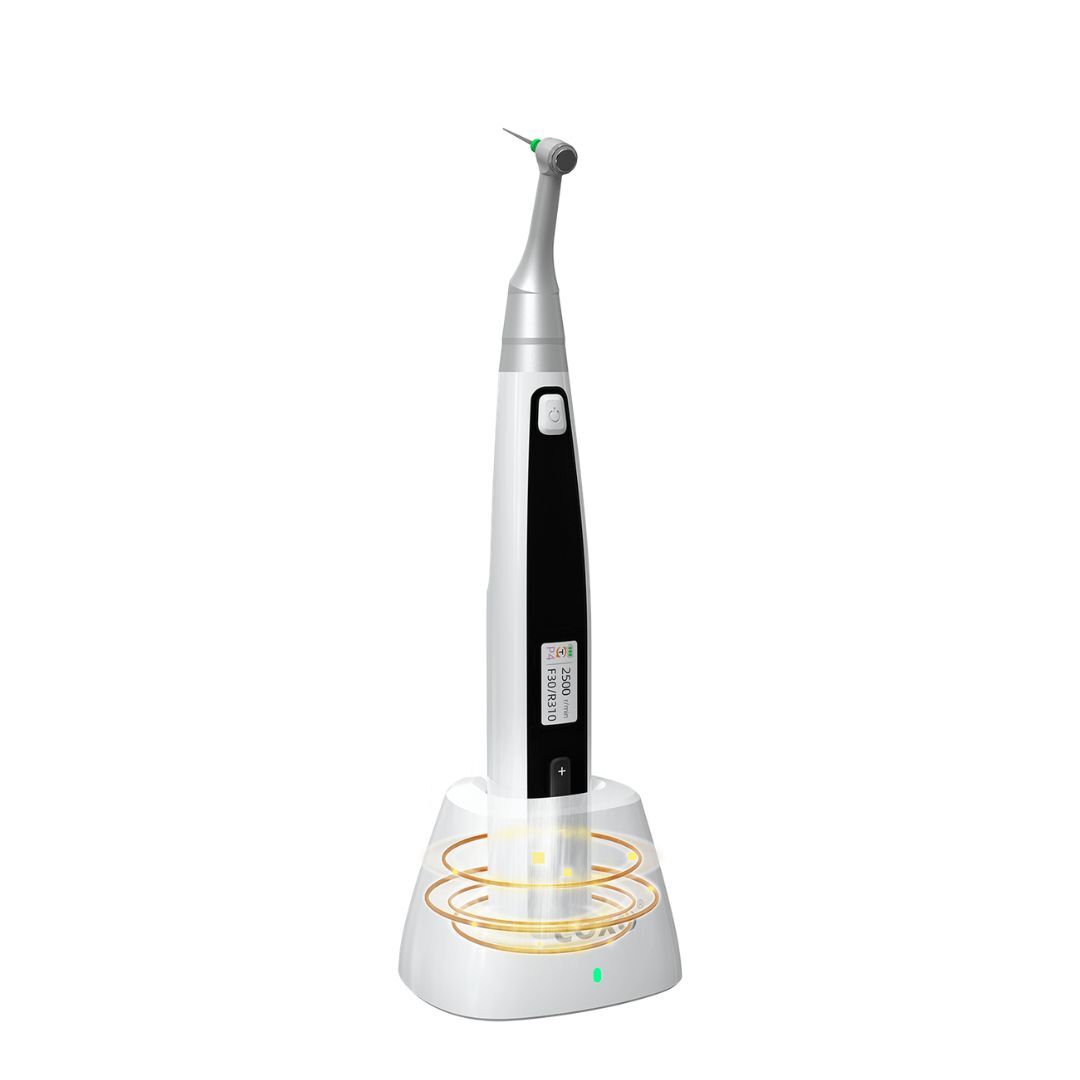

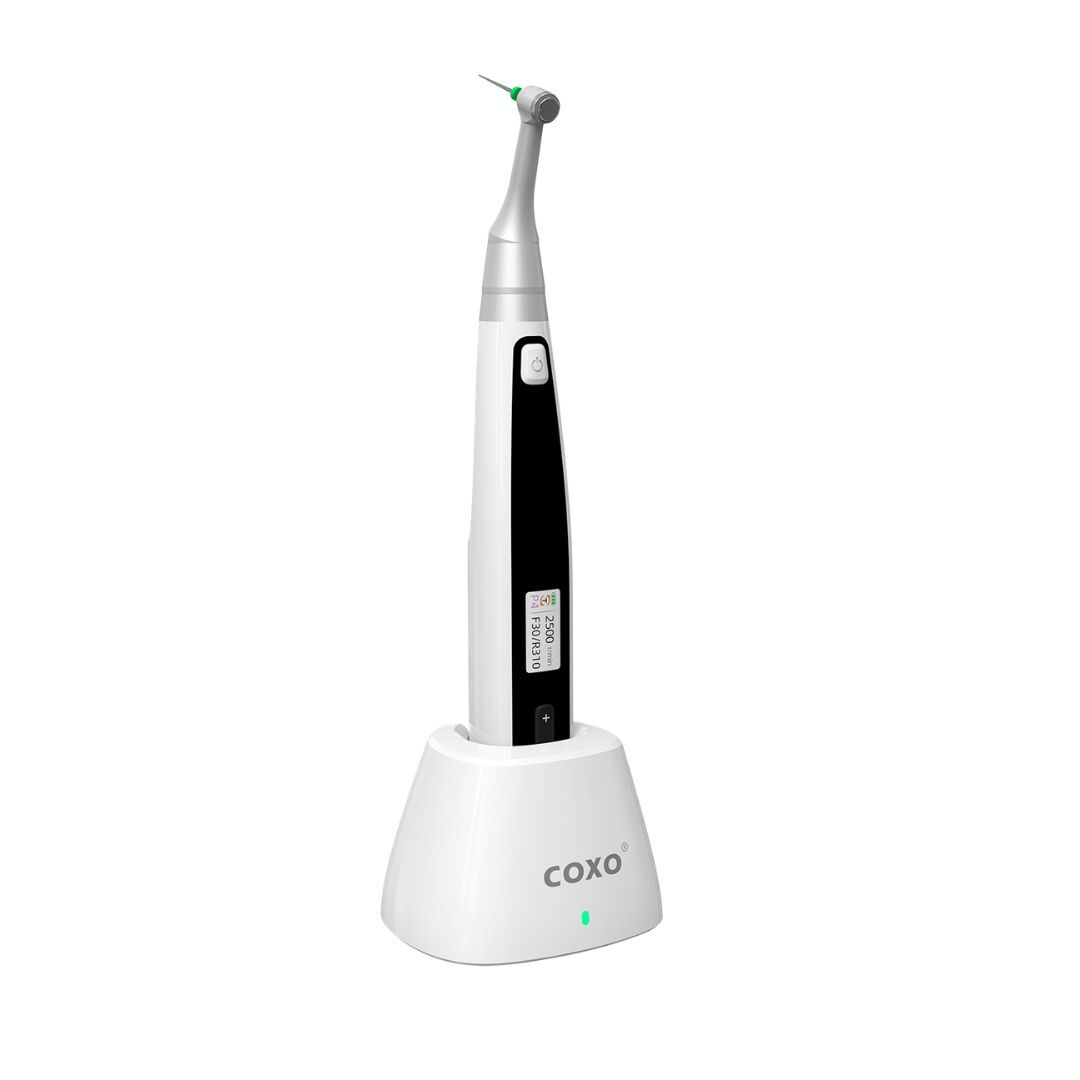

Coxo EndoNova X Brushless Endomotor with Apex Locator

• Brushless motor delivers stable speed, low noise, and long-lasting performance
• Integrated apex locator enables real-time working length measurement
• Adjustable torque range supports safe and precise canal preparation
• Wide speed range suits multiple endodontic applications
• Reciprocating motion helps reduce file stress and breakage risk
• Multiple modes support endo motor use, ledge removal, activation, and polishing
• Wireless ergonomic design improves mobility and chairside efficiency
• Compact mini head allows easier access to posterior teeth
• 360° rotatable head enhances flexibility during treatment
• High measurement accuracy supports predictable clinical outcomes

• Motor Type: Brushless Endo Motor
• Speed Range: 100–2500 rpm
• Torque Range: 0.6–5.0 N·cm
• Contra-angle Ratio: 6:1
• Power Supply: AC 100–240V, 50/60Hz
• Output: DC 5V, 2A
• Input Power: 20 VA
• Measurement Accuracy: ±0.5 mm
• Operation Mode: Max ON 5 min, Min OFF 1 min
• Battery: Li-ion Battery, DC 3.7V, 1200 mAh
• Dimensions: 78 × 74 × 225 mm
• Head Type: Mini Head 10.8 mm
• Rotation: 360° Rotatable Head

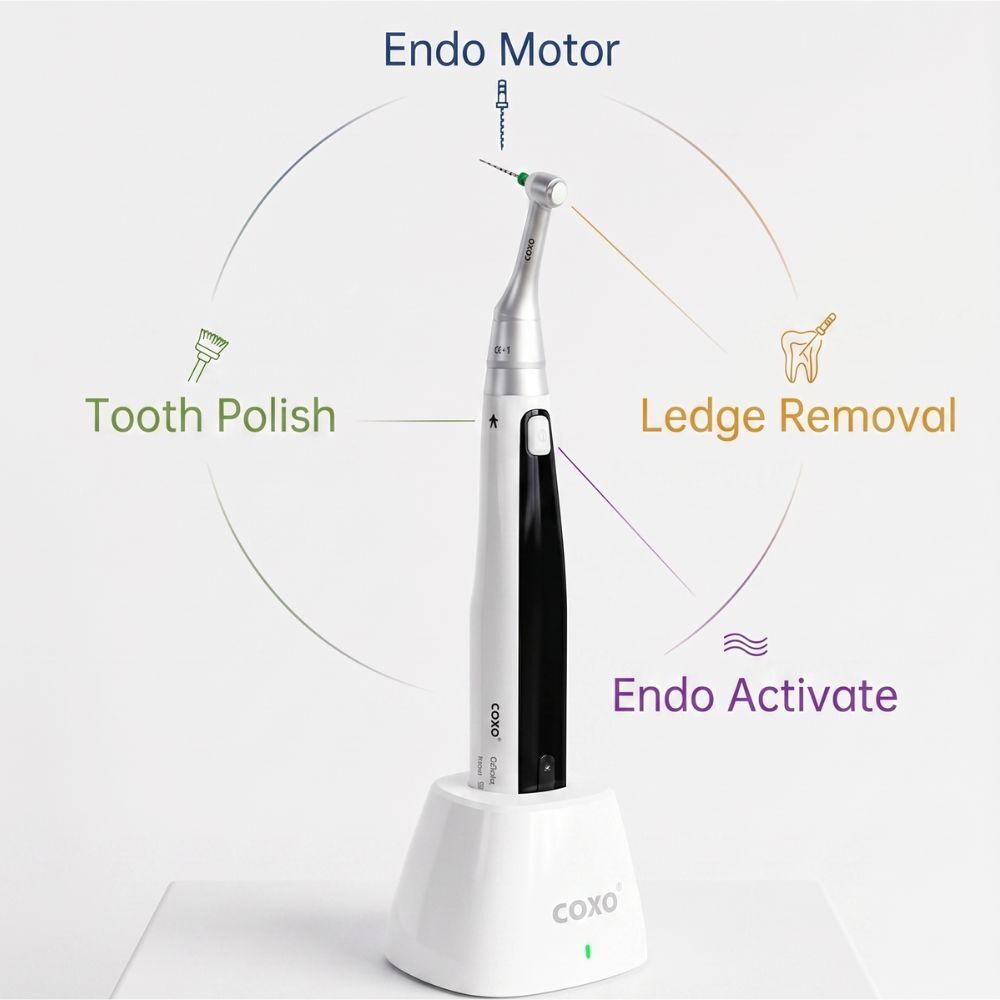

• Modes: Endo Motor | Ledge Removal | Endo Activation |  Tooth Polishing
• Rotary Mode: 100–2500 rpm | 0.6–5.0 N·cm | Auto stop | Auto reverse | Auto reciprocate
• Reciprocating Mode: 150–450 rpm | forward angle 30°–330° |  reverse angle 30°–330°

• Motor Handpiece
• Charging Base
• Contra-angle Handpiece
• File Clip
• Measuring Wire
• Apex Tester
• Lip Hook
• AC Adapter
• Contra-angle Silicone Covers
• Wrench
• Spray Nozzle

• 1 Year warranty against all parts of the product under normal operating conditions.
• Physical damage is not covered under warranty in any case.

This product is self-installable, and technician support is available on a paid basis if required.

1. Does the Coxo EndoNova X have an inbuilt apex locator?
Yes, it comes with an integrated apex locator for accurate real-time working length measurement.

2. What is the speed range of the Coxo EndoNova X Endomotor?
The device offers a speed range of 100 to 2500 rpm for rotary mode.

3. Does this endomotor support reciprocating motion?
Yes, it features reciprocating motion with adjustable forward and reverse angles.

4. What are the main modes available in this device?
It supports endo motor, ledge removal, endo activation, and tooth polishing modes.

5. Is the Coxo EndoNova X suitable for easy chairside handling?
Yes, its wireless ergonomic design, mini head, and 360° rotatable head make it easy to handle during procedures.
