Coxo Implant UV Activator + Coxo Surgic-X Brushless Implant Motor Combo

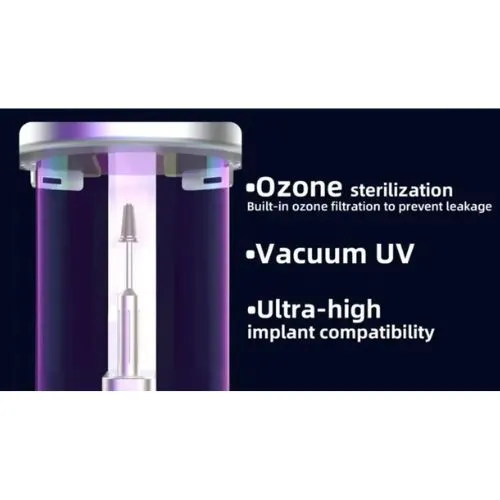

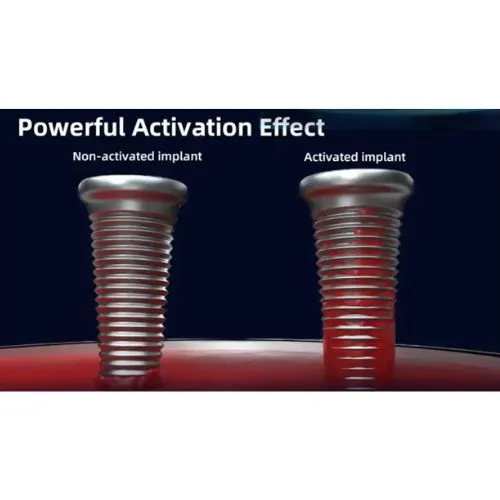

• 172 nm Vacuum UV technology increases BIC from 50–60% to over 90%, removes surface hydrocarbons, enhances cell attachment, enables early loading, and improves outcomes in high-risk cases

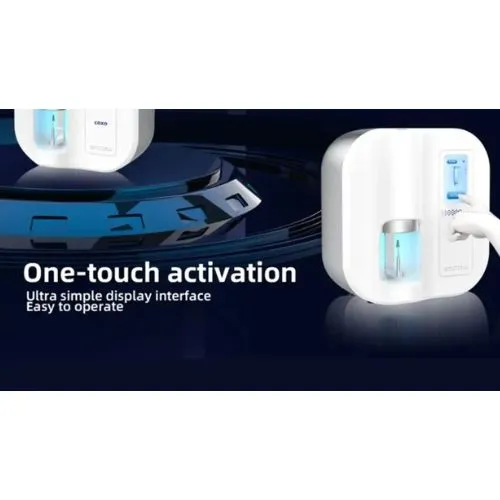

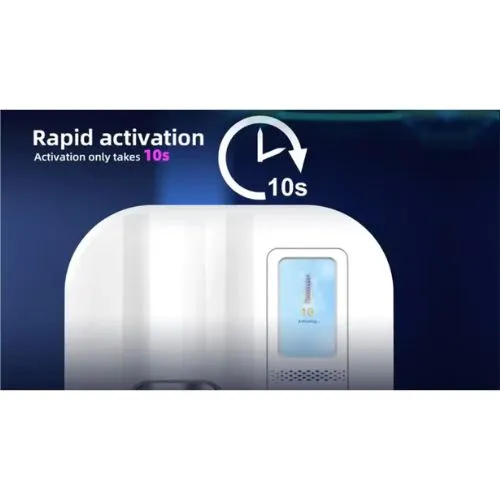

• Rapid 10-second activation per implant with seamless integration into chairside workflow

• Brushless induction motor delivering up to 80 Ncm torque (20:1) with stable torque output for controlled implant placement

• Dual illumination system with 30,000 lux LED + fiber optics for bright, shadow-free surgical field visibility

• 7-inch graphical touchscreen display with real-time monitoring of torque, speed, and irrigation, plus 6 programmable steps each for Implant and Surgical modes

• Built-in peristaltic pump with 4 adjustable flow levels up to 50 ml/min for smart irrigation and cooling

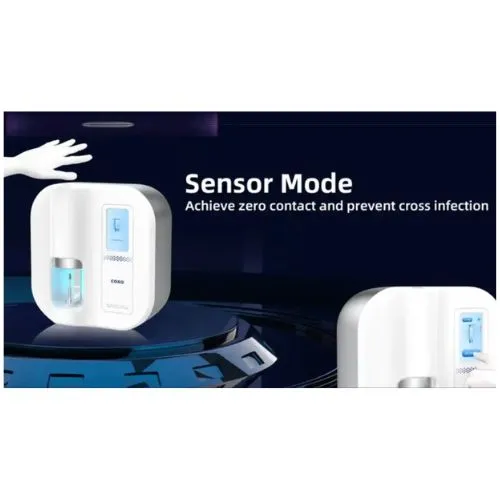

• Zero-contact sensor mode for improved sterility, fully autoclavable handpieces and cables, and IPX7 waterproof multifunction foot pedal

• Universal compatibility with multiple implant holders suitable for various implant brands and compatible with standard surgical implant systems

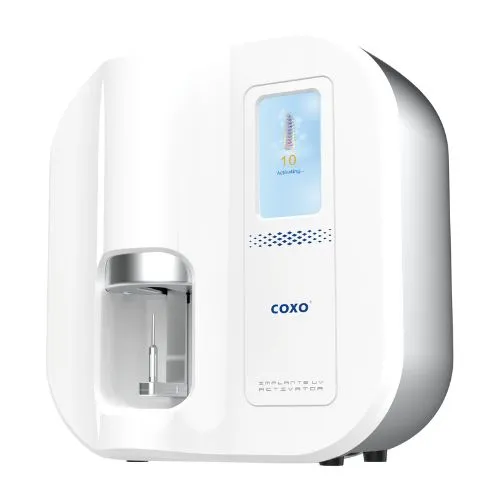

Coxo Implant UV Activator

• Adapter Input: 100–240V ~ 50/60Hz, 6.5A Max
• Adapter Output: 24.0V, 9.2A
• Input Power: 250 VA
• UV Wavelength: 172 nm
• Activation Time: 10 seconds
• Operating Mode: Short operation
• Size: L316 × W187 × H331 mm
• Weight: 5.5 kg

Coxo Surgic-X Brushless Implant Motor System

• Power Input: 100V–240V ~ 50/60Hz
• Input Power: 250 VA
• Operating Mode: Non-continuous
• Duty Cycle: Max ON 40s / Min OFF 10min
• Maximum Torque (20:1): 80 Ncm
• Speed Range: 300 – 40,000 rpm
• Motor Cable Length: 1.8 m
• Motor Material: Aluminum alloy & stainless steel

Coxo Implant UV Activator

• UV Activator Unit
• Implant Holders
• Implant Clamp
• Sterilization Case
• Power Adapter

Coxo Surgic-X Brushless Implant Motor System

• Control Unit

• Brushless Motor

• Foot Pedal (Model FS-3)

• Bracket

• Power Cord

• Irrigation Hanger

• Tube Holder

• Fuse (2 pcs)

• Handpiece Stand

• Protective Plug

• LED Lamp

• Instructions Manual

• 1 Year warranty against all parts of the product under normal operating conditions.
• Physical damage is not covered under warranty in any case.

1. How does the UV Activator improve implant success?

The 172 nm Vacuum UV light removes organic contaminants from the implant surface and increases surface energy, promoting faster bone cell attachment and significantly improving osseointegration.

2. Can this system support early loading protocols?

Yes. Enhanced BIC levels combined with precise torque control make early prosthetic loading more predictable in suitable cases.

3. Is the UV activation safe for clinical use?

Yes. The system produces minimal ozone (<0.02 ppm) and features controlled short operation mode for safe chairside use.

4. What makes the Surgic-X motor different from standard physiodispensers?

It features a brushless induction motor, delivering higher torque stability, lower noise, longer lifespan, and improved surgical precision.

5. Is the 20:1 contra angle handpiece autoclavable?

Yes. The surgical contra angle and associated components are fully autoclavable for optimal infection control.

6. Can this combo be used for high-risk patients?

Absolutely. It is ideal for cases involving poor bone density, smokers, elderly patients, and those with systemic conditions.
