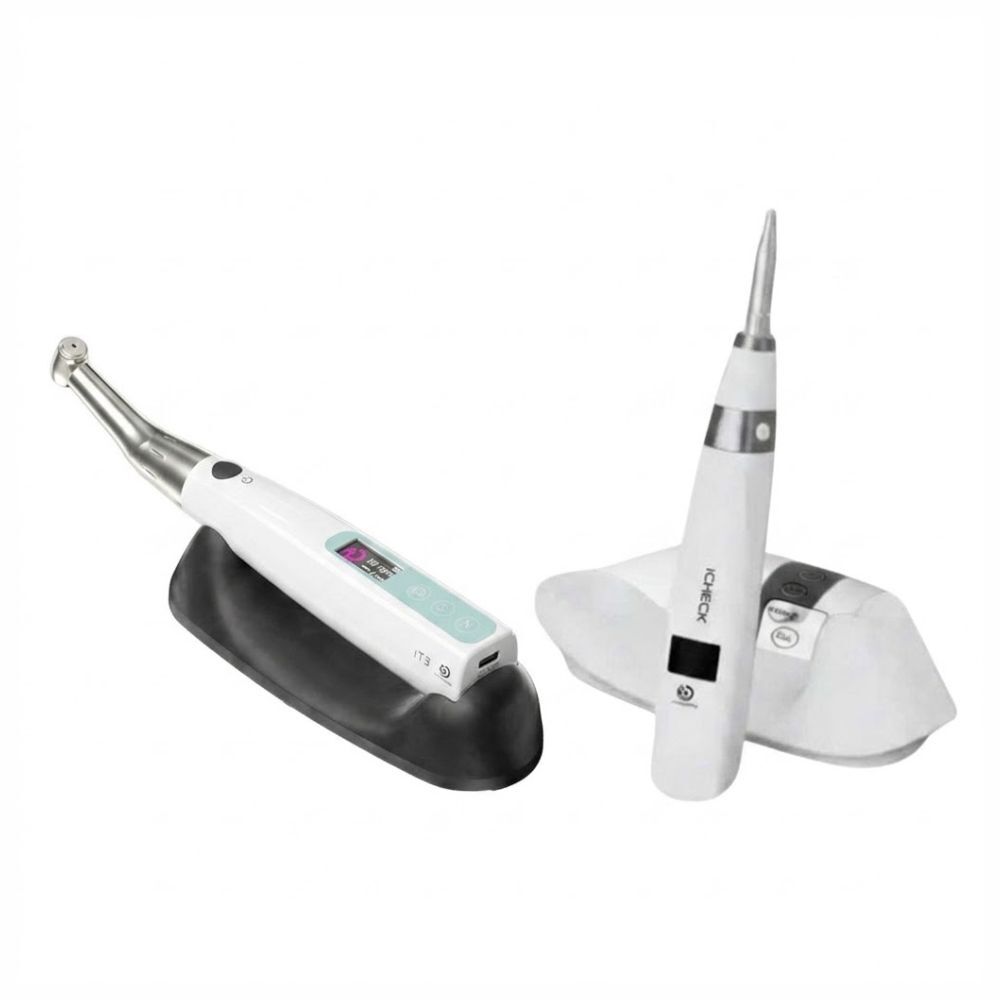

Yahope iT3 Dental Implant Torque Wrench & iCheck Dental Implant Stability Meter Combo

• Complete implant workflow support with one device for stability measurement and one for controlled abutment tightening.
• Consumable-free stability measurement with iCHECK, as it does not require SmartPegs or single-use measuring components.
• Tapping-based implant stability evaluation helps clinicians assess implant stability quickly during surgery, healing checks, and prosthetic planning.
• One-click rapid measurement in iCHECK allows quick chairside assessment with minimal setup and workflow interruption.
• Data obtained after 6 taps for stable readings, while the safety program stops after 2 taps if stability is below 59.
• Controlled torque application with Yahope iT3, offering an adjustable torque range of 10–50 N·cm.
• Low-speed implant control with Yahope iT3 speed range of 10–50 rpm for smooth abutment fixation.
• CW and CCW rotation modes allow forward and reverse movement for tightening and loosening implant abutments.
• Cordless rechargeable design supports chairside portability, convenient handling, and easy access in the oral cavity.
• LCD digital displays provide clear visibility of working parameters and measured values during clinical use.

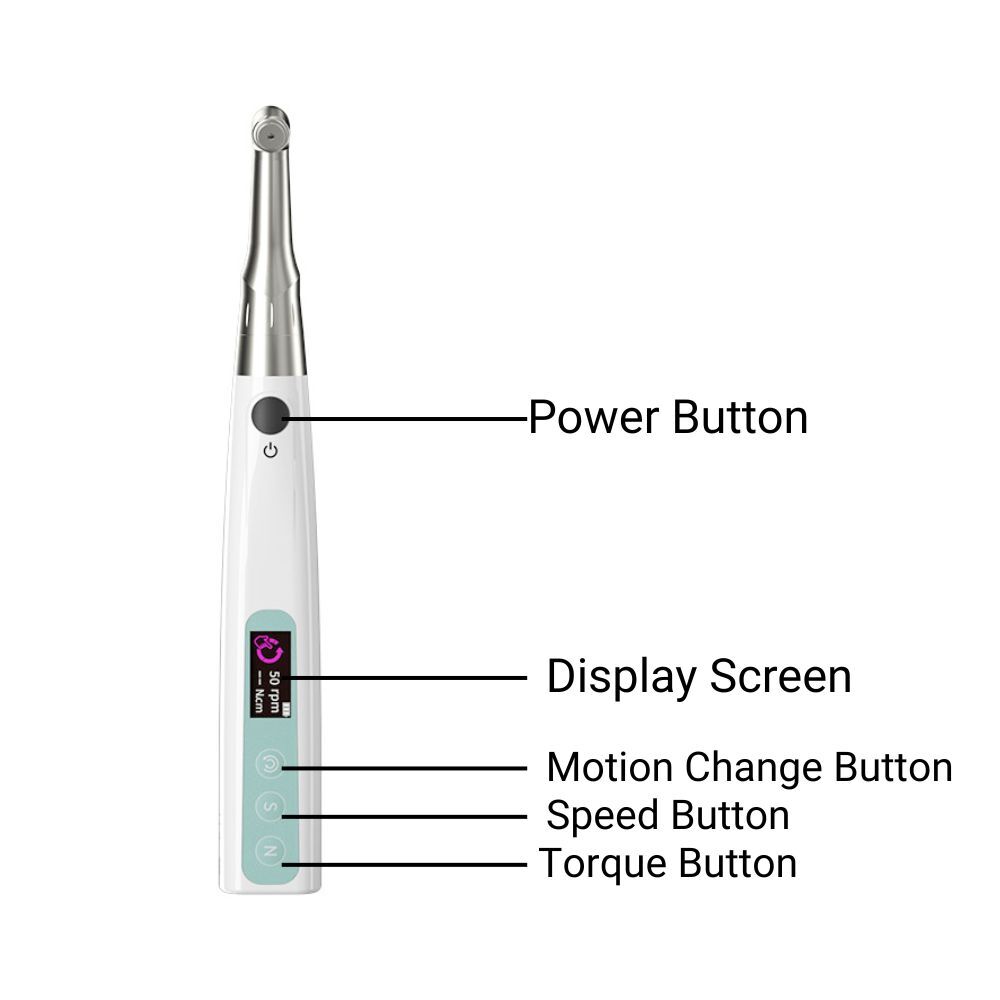

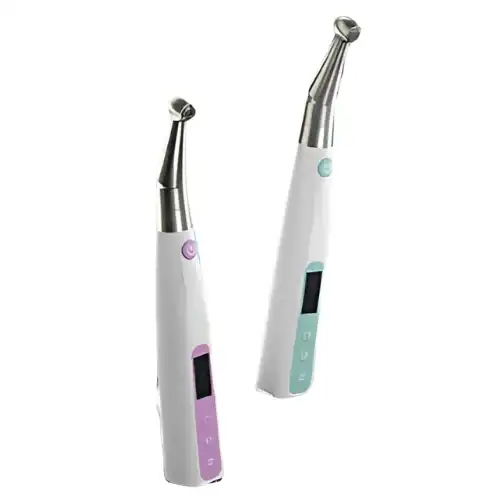

Yahope iT3 Dental Implant Torque Wrench

• Product Type: Cordless dental implant torque wrench / motor handpiece system
• Intended Use: Fixing an abutment onto an implant during implant surgery or implant prosthetic procedures
• Operation Mode: Continuous operation
• Rotation Direction: Forward / Clockwise rotation and Reverse / Counterclockwise rotation
• Motion Mode: CW and CCW mode
• Torque Range: 10–50 N·cm
• Speed Range: 10–50 rpm
• Contra Angle Ratio: 20:1
• Display: LCD digital display
• Battery Type: Rechargeable lithium battery
• Battery Model: 18500
• Battery Capacity: 1900 mAh
• Battery Protection: Over-voltage, over-current, and short-circuit protection
• Adapter Input: 100–240V~, 50/60Hz
• Adapter Output: 5V, 1A

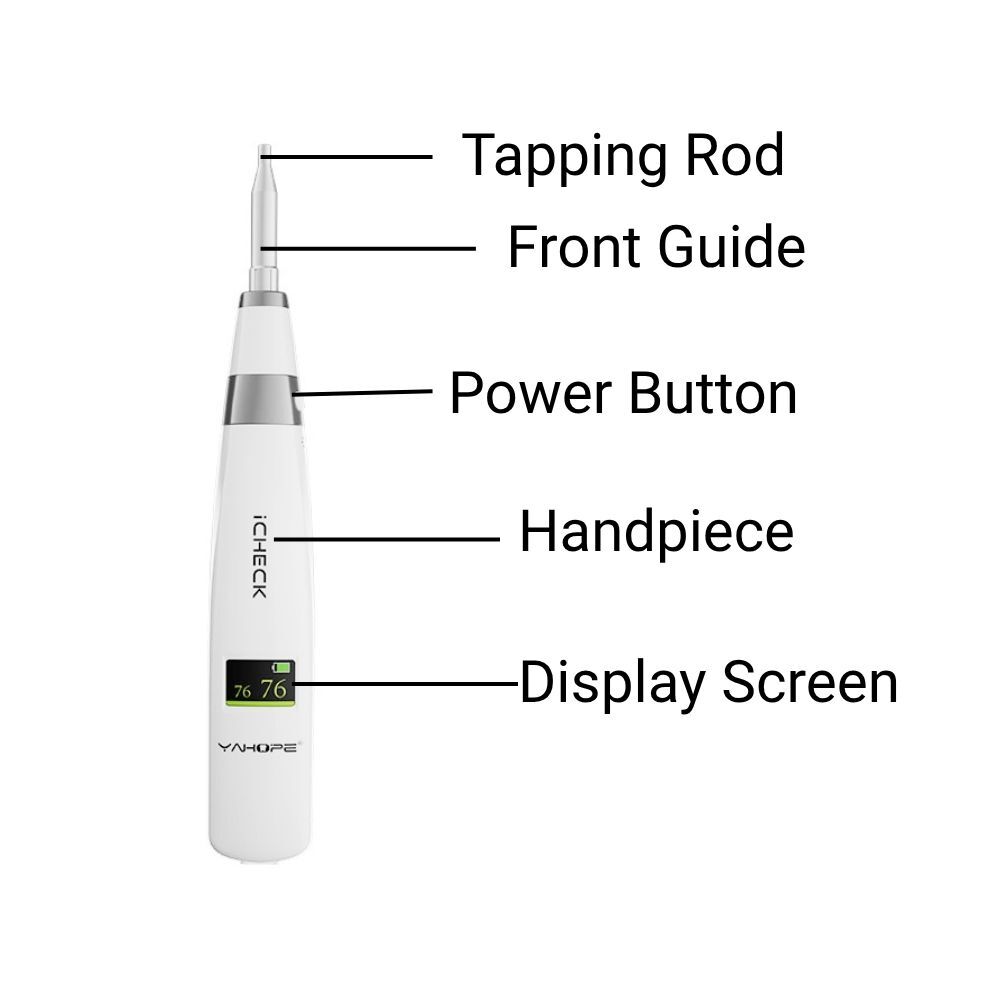

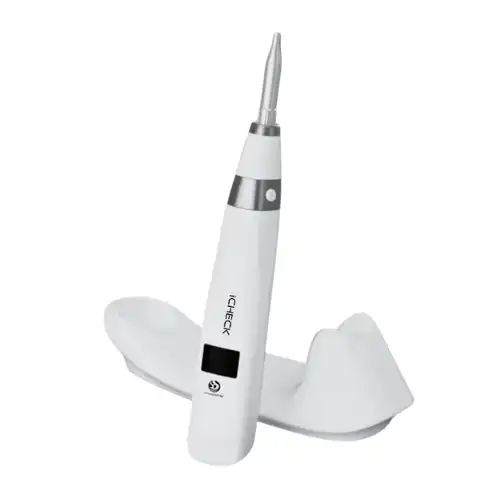

Yahope iCHECK Dental Implant Stability Meter

• Product Type: Implant stability meter
• Measurement Method: Tapping-based implant stability measurement
• Consumable Requirement: No SmartPeg required
• Display: LCD display
• Operation Mode: Continuous operation
• Battery Type: Rechargeable lithium battery
• Battery Model: 16340
• Battery Capacity: 700 mAh
• Battery Protection: Over-voltage, over-current, and short-circuit protection
• Adapter Input: 100–240V~, 50/60Hz
• Adapter Output: 5V, 1A
• Accuracy: Display value ±3
• Tapping Speed: 0.5 seconds per tap
• Tapping Strength: ≤1.0 N to 1.3 N
• Measurement Tapping Cycle: Taps 2–4 times until the measured value reaches 1–59
• Stability Measurement: After 60–99, the device taps 6 times to measure stability

Yahope iT3 Dental Implant Torque Wrench

• Handpiece
• Screwdrivers (16 drivers)
• Spray Nozzle
• Contra Angle
• Adapter
• Base

Yahope iCHECK Dental Implant Stability Meter

• Handpiece
• Tapping Rod / Applied Part
• Front Guide
• Target Bar
• Base
• Allen Wrench
• Adapter
• Disposable Sleeves

• 1 year warranty against all parts of the product under normal operating conditions.
• Physical damage is not covered under warranty in any case.

1. What is included in this combo?

This combo includes the iCHECK Dental Implant Stability Meter for implant stability measurement and the Yahope iT3 Dental Implant Torque Wrench for controlled abutment fixation.

2. What is the main advantage of using both devices together?

The iCHECK helps assess implant stability, while the Yahope iT3 helps apply controlled torque during abutment fixation. Together, they support both evaluation and prosthetic handling in implant dentistry.

3. Does the iCHECK require SmartPegs?

No. iCHECK does not require SmartPegs, making it a consumable-free implant stability measurement system.

4. How does iCHECK measure implant stability?

iCHECK uses a tapping rod mechanism. It obtains data after 6 taps for stable readings. If the stability value is below 59, the device stops after 2 taps and activates the protection program.

5. What is the torque range of the Yahope iT3?

The Yahope iT3 offers an adjustable torque range of 10–50 N·cm for controlled implant abutment fixation.
