Key Highlights

Compact and User-Friendly Design: The Zircom Sintering Furnace boasts a space-efficient size of 12 (W) x 25 (H) x 18 (D) inches, making it ideal for smaller laboratories or limited workspaces. Its user-friendly interface ensures ease of operation, reducing the learning curve for new users and enhancing workflow efficiency.

Versatility in Material Compatibility: This unit is designed to accommodate a wide variety of zirconia materials, making it a flexible choice for dental laboratories. This versatility allows for a broader range of dental restoration projects, catering to diverse client needs.

High Capacity and Efficient Sintering: With its capacity to sinter 50–60 single crowns in 3 ceramic trays during a normal sintering cycle of 7–10 hours, the Zircom Sintering Furnace is both efficient and high-performing. This capability is essential for laboratories with high throughput demands.

Programmable with Extensive Customization: The furnace allows for the creation of up to 100 programs with 20 steps each, offering unparalleled customization for various zirconia types. This feature ensures precise control over the sintering process, tailoring it to specific material properties for optimal results.

Advanced Quick Firing Program with LED Display: The quick firing program, capable of reaching high temperatures up to 1600°C, is a standout feature. This, combined with an LED display for easy monitoring, enhances the furnace’s efficiency, particularly for time-sensitive projects.

SD Card for Program Editing and Updates: The inclusion of an SD Card slot allows users to edit firing programs on their PC, offering added convenience and flexibility. This feature also enables easy updates to the furnace, ensuring it stays current with the latest sintering techniques and technologies.

Technical Specification

Firing Platform: Ø95mm (3.74 inches)
Working Temperature: 1,600°C (2,912°F)
Display: 3.5-inch LCD Color Display
Heating Element: High Purity MoSi2
Working Power: AC 220V, 50/60Hz, Max. 2.5kVA
Dimensions: 12 inches (width) x 25 inches (height) x 18 inches (depth)
Gross Weight: 40 KG

Disclaimer Product configurations, features, and specifications are subject to change based on the original manufacturer’s design and supply. Certain accessories or attachments may not be included in the standard offering and can vary by model or production batch. We recommend confirming all required features at the time of purchase. Requests for additions post-delivery will be considered based on availability and feasibility, and may incur additional costs.

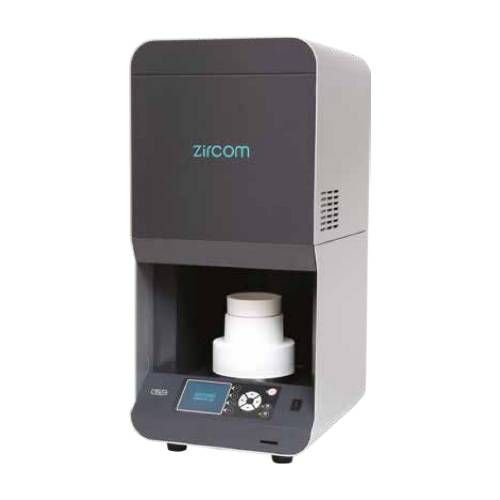

KDF Zircom Sintering Furnace
