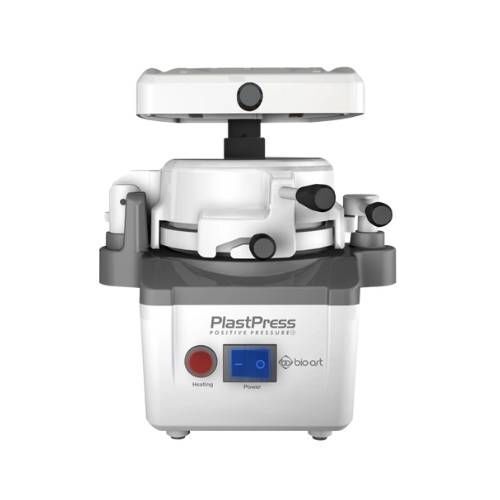

Bio-Art PlastPress Positive Pressure Thermoforming Machine

• Positive Pressure Lamination Technology: Ensures superior adaptation and higher precision compared to traditional vacuum forming machines.

• Ultra-Compact Design: One of the most compact laminators in its category, saving valuable workspace in clinics and labs.

• High Fidelity Material Copying: Delivers detailed and accurate thermoforming results for better-fitting dental appliances.

• Low Noise Operation: Operates more quietly than vacuum laminators, improving the clinical working environment.

• Supports Multiple Materials (Up to 6 mm Thickness): Capable of processing a wide range of thermoforming materials for diverse dental applications.

• Compatible with Round & Square Plates: Offers flexibility in material selection and ease of use across different workflows.

• Direct Compressor Connection: Requires connection to a compressor (3–8 bar / 43.5–116 psi) for consistent and controlled pressure.

• Eight Integrated Safety Systems: Ensures enhanced operational safety, protecting both the user and the equipment.

• Versatile Clinical Applications: Suitable for orthodontics, prosthetics, aesthetic dentistry, sleep appliances, sports dentistry, bruxism, and general practice.

• User-Friendly & Efficient Workflow: Designed for easy handling, quick operation, and improved productivity in dental procedures.

• Voltage: 127V 60 Hz or 220V 50/60 Hz (±10%)

• Heating resistance power: 450 W

• Average energy consumption: 1.6 kWh per month (using 10 times per day, for 22 days)

• Pressing pressure: 2 bar (29.0 psi)

• Minimum air inlet pressure: 3 bar (43.5 psi)

• Maximum air outlet pressure: 8 bar (116 psi)

• Connection type: Quick coupling for Ø 6 mm hose

• Product dimensions (L x W x H):

  • Without packaging: 265 x 235 x 270 mm

  • With packaging: 310 x 270 x 310 mm

• Weight:

  • Without packaging: 7.5 kg

  • With packaging: 8.5 kg

• Operating temperature: 5°C to 40°C
• Maximum noise level: 80 dB
• Thermorforming Sheet Dimensions


  • Thickness: Up to 6 mm

  • Round sheets: Ø 120 mm to Ø 134 mm

  • Square sheets: 120 x 120 mm to 130 x 130 mm

• PlastPress 127V or 220V
• Glass beads 250 g
• Model holder
• Plate display set
• Power cable
• Hose extension
• Instructions manual

This product is self-installable, and technician support is available for a fee if required.

• Manufacturer/Importer warranty of 1 Year is applicable for this product.
• Warranty does not apply against any physical damage to the product.

1. What is the Bio-Art PlastPress used for?

It is used for thermoforming dental appliances such as trays, aligners, retainers, and guards.

2. How is it different from vacuum laminators?

It uses positive pressure, which provides better material adaptation, higher accuracy, and lower noise levels.

3. What type of materials can it handle?

It supports various thermoforming materials up to 6 mm thickness.

4. Does it require a compressor?

Yes, it must be connected to a compressor operating between 3 and 8 bar pressure.

5. Is it suitable for orthodontic applications?

Yes, it is widely used for orthodontic appliances like retainers and aligners.
