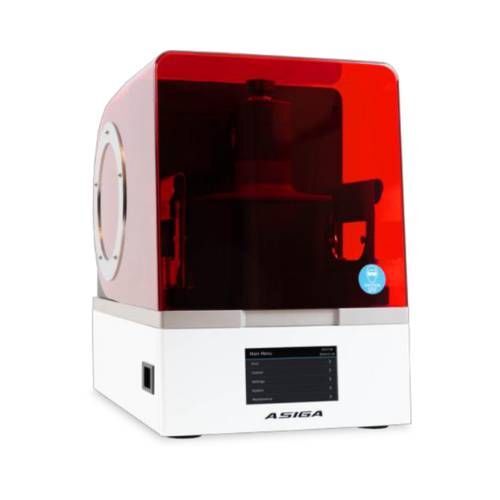

Asiga Max DLP 3D Printer

• 62µm HD print precision for accurate dental models, splints, surgical guides, and other clinical applications.
• Smart Positioning System SPS™ monitors and controls every layer for improved accuracy and print consistency.
• DLP micromirror technology delivers reliable image projection with broad wavelength capability.
• Auto-calibrating UV LED with integrated radiometer helps maintain consistent printing performance over time.
• 385nm LED as standard, with 405nm available on request for selected workflows.
• Open material system supports over 500 qualified resins from leading dental material manufacturers.
• Transparent Mode™ enables precise printing of clear, water-transparent dental resins.
• Chamber heating system warms temperature-sensitive materials and helps reduce resin viscosity for faster printing.
• UltraGLOSS™ technology allows glossy, pre-polished surface output, reducing manual post-polishing effort.
• Asiga Composer software offers easy nesting, automatic build preparation, and lifetime software updates.

• Technology: DLP
• Pixel Size: 62µm
• Build Volume: 119 × 67 × 76mm
• Build Volume in Inches: 4.68 × 2.63 × 2.99 inches
• UV LED: Auto-calibrating UV LED
• Standard Wavelength: 385nm
• Optional Wavelength: 405nm available on request
• Material Compatibility: Compatible with over 500 qualified resins from leading material manufacturers
• Software: Asiga Composer software
• Software Updates: Lifetime updates included
• File Inputs: STL, SLC, PLY, STM
• Network Compatibility: Wi-Fi, Wireless Direct, Ethernet
• Power Requirements: 12V, 10A, 120W
• Printer Size: 260 × 385 × 370mm
• Printer Weight: 19.3 kg
• Packed Size: 410 × 500 × 480mm
• Packed Weight: 21.6 kg

• Asiga Max 3D Printer
• Asiga Composer Software
• 1 kg Asiga Material
• 1L Build Tray
• Asiga Flash Post-Curing Chamber
• Calibration Toolkit

• 1 year warranty against all parts under normal working conditions
• Physical damage is not covered under warranty

Q1. What is the Asiga Max 3D Printer used for?
The Asiga Max is used for high-precision dental 3D printing applications such as models, splints, surgical guides, clear appliances, temporary restorations, and other resin-based dental workflows depending on the selected material.

Q2. What is the print accuracy of the Asiga Max?
The printer features a 62µm pixel size, making it suitable for detailed dental applications where dimensional accuracy and surface detail are important.

Q3. Is the Asiga Max compatible with third-party resins?
Yes, the Asiga Max 2 uses an open material system and is compatible with over 500 qualified resins from leading material manufacturers. Users can also create their own material profiles.

Q4. What is SPS™ technology in the Asiga Max?
SPS™, or Smart Positioning System, is Asiga’s layer monitoring technology that controls the position and thickness of every printed layer. This helps improve accuracy, repeatability, and print reliability.

Q5. Does the Asiga Max support clear resin printing?
Yes, the printer includes Transparent Mode™, which allows accurate printing of true water-clear materials with high precision.
