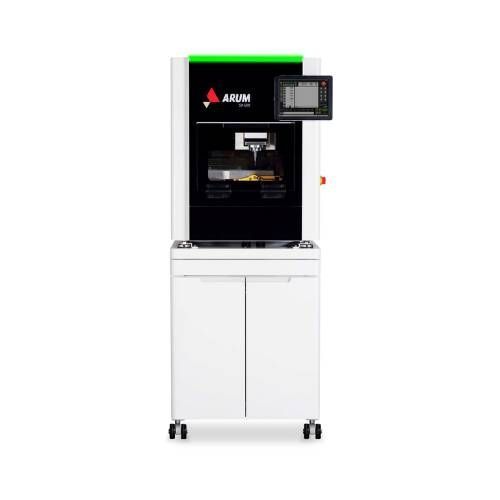

Outstanding Milling Performance: The 5X-500 model allows for easy replacement of four types of jigs, providing versatility in machining tasks.

Excellent Precision: The ZERO Point system ensures high origin point precision, even with repeated jig replacements, enabling stable machining of complex shapes.

Durability: Features like the Servo Motor with a built-in Absolute encoder and auxiliary support effectively compensate for even the finest vibrations, ensuring long-lasting performance.

Powerful Spindle: Sourced from Sycotec in Germany, the spindle is designed for superior precision performance, capable of machining a wide range of dental CAD/CAM materials.

Versatility in Milling: With the Open C Type Jig, users can minimize time spent on machining and post-machining tasks, including labial (or buccal) side texture and metal undercut areas.

Material Compatibility: Efficiently machines a variety of materials, including Co-Cr, Titanium, and Ni-Cr.

• Axis: 5-Axis
• Processing: Wet and Dry
• Spindle Power: AC 2.2 kW
• Max. RPM: 60,000
• A.T.C: 20 (Automatic Tool Changer)
• Tool Shank (mm): Ø6
• Motor: Servo
• Drive Mechanism: Ball Screw
• Way System: Linear Guide

Machine Dimensions:

• Machine Size (WDH): 689918839 mm
• Weight (Machine / Table): 230 kg / 65 kg

Travel:

• X,Y,Z axis: 227.5125131 mm
• A axis / B axis: 360˚/ +40˚ ~ -31.5˚

Clamping System:

• Clamping System: Zero Point

Package Dimention in MM : 689x918x839
