Efficient C-TYPE JIG: Precision processing of the labial (or buccal) side texture and undercut area, reducing post-processing time and ensuring optimal results.

Easy Material Exchange: The cartridge-type material system allows for a hassle-free switch from disk to CAD block, enhancing workflow efficiency.

All-in-One System: Eliminates the need for an external compressor, with all additional devices, including Dust Collector and Coolant System, built inside. This design addresses space constraints and minimizes noise. The German Renfert SILENT compact CAM model is optionally available.

High-Speed Processing: With a speed of 80,000 RPM and the choice between two roughing modes (peeling milling or parallel milling), the unit ensures effective processing of glass ceramic materials.

Exceptional Detail Expression: ARUM’s exclusive 0.3mm tool for Zirconia allows for precision processing of grooves and labial side textures, crafting prostheses that closely resemble natural teeth.

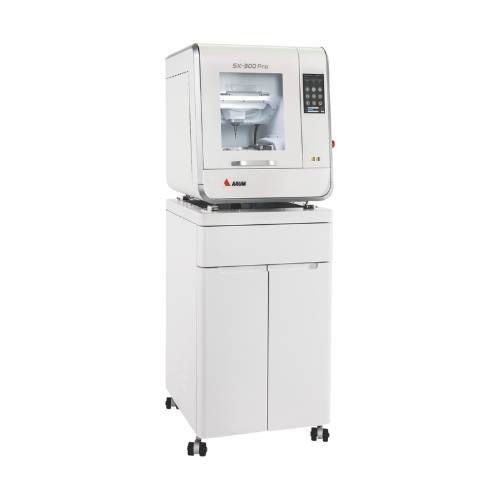

• Model: 5X-300pro
• Axis: 5-Axis
• Processing: Wet and Dry
• Spindle Power: AC 0.5 kW
• Max. RPM: 80,000
• A.T.C: 12 (Automatic Tool Changer)
• Tool Shank (mm): 4
• Motor: Stepping Encoder
• Drive Mechanism: Ball Screw
• Way System: Linear Guide

Machine Dimensions:

• Machine Size (WDH): 568638645 mm
• Total Size (WDH): 5686411583 mm
• Weight (Machine / Table): 90 kg / 65 kg

Travel:

• X,Y,Z axis: 167119.894 mm
• A axis / B axis: ±30˚ / 360˚

Package Dimention in MM : 568x641x1583
