Key Highlights
Auto Anti-Fogging: This feature automatically prevents the buildup of fog on the scanner’s lens, ensuring clear visibility and consistent scan quality without the need for manual cleaning or defogging during use.
One-Button Control: Simplifies operation by allowing users to control the scanner functions with a single button. This design enhances ease of use and efficiency, particularly in busy dental settings.
Light Weight (240 g): The scanner’s lightweight design, at just 240 grams, reduces hand fatigue and makes it easier to handle, especially during prolonged scanning sessions.
Ergonomically Designed for Optimal Hand-held Operation: The scanner is shaped and balanced to fit comfortably in the hand, reducing strain and improving precision during scans.
Dynamic LED Indicator: This feature provides visual feedback on the scanner’s status and operations, such as battery level, connection status, and scan readiness, through color-coded LED signals.
58% Greater Scan Field of View than Aoralscan 2: The enhanced field of view allows for capturing larger areas in each scan, making the scanning process faster and more efficient compared to the previous model.
16×12 mm FOV (Standard Tip): The standard tip offers a 16×12 mm field of view, allowing for detailed scans of dental structures, suitable for a wide range of dental applications.

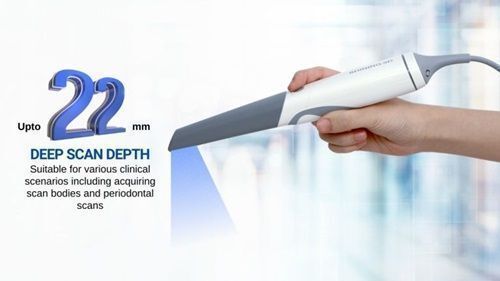

Up to 22 mm of Scan Depth: The scanner can capture details up to 22 mm deep, providing thorough and detailed images of dental structures, crucial for accurate diagnoses and treatment planning.
2 Tip Sizes for Adults and Children: To accommodate different patient sizes, the scanner comes with two tip sizes, ensuring comfortable and effective scanning for both adults and children.
Motion Sensing: Less Contact, Much Safer: This feature allows for gesture-based controls, reducing the need to physically touch the scanner or other surfaces, thereby enhancing hygiene and safety.
AI Scanning: Speed up the scan: Integrating AI technology, the scanner can intelligently optimize the scanning process, resulting in faster and more accurate scans.
Cloud Platform: Offers cloud-based storage and data management, facilitating easy access to scan data, collaboration with colleagues, and integration with other digital dentistry tools.
Cart Option: Provides an additional, mobile workstation for the scanner, enhancing its portability and convenience in various clinical settings.
Technical Specification
- Scan Field
- Standard scanner tip: 16 mm × 12 mm × 22 mm
- Mini scanner tip: 12 mm × 9 mm × 22 mm
- Scan Depth
- -2-20 mm from exit surface of tip
- Scan Principle
- Non-contact scanner with structured light
- Dimensions (L × W × H)
- 281 mm × 33 mm × 46 mm
- Weight
- 240 ± 10 g (without cables)
- Output
- STL, OBJ, PLY
- Connector
- USB 3.0
- Power Input
- 12V DC/3 A
